Complete Wiring Guide for Chevrolet Silverado 01 Radio Installation
For a 2001 Chevy pickup with factory audio integration, pinpoint the C1 (harness-to-head-unit) and C2 (vehicle-side) connectors. The C1 connector, typically gray, contains 12 slots–slots 1-6 handle power, ground, and illumination, while 7-12 manage speaker outputs. The C2 connector, usually black, bridges the vehicle’s wiring loom to the head unit, with critical power feeds on terminals A4 (constant 12V, yellow) and A7 (ignition-switched 12V, red). Ground attaches to A12 (black).
Verify fuse integrity on circuits 15 (ignition) and 32 (battery) in the under-hood fuse box before proceeding. A multimeter reading below 11.8V on the yellow wire suggests a degraded fuse or corroded relay–replace if resistance exceeds 0.5 ohms. Speaker wires split from C1 slots: front-left (white/black), front-right (dark green/light green), rear-left (gray/light blue), rear-right (purple/light purple), with each pair carrying both positive and ground signals.
If retrofitting aftermarket components, bypass the factory amplifier by tapping into the pink wire (A6, C2) for a direct signal boost. Use soldered connections with heat-shrink tubing to prevent oxidation–twist-and-tape methods fail within 18 months. For Bose systems, locate the separate amplifier harness near the glovebox; its orange wire requires a 5V trigger from the head unit’s dimmer circuit. Failure to reconnect this wire causes erratic volume behavior.
Color-coding varies for non-Bose models: rear speaker wires may flip to brown/orange (left) and brown/yellow (right). Always cross-reference with a factory service manual–third-party schematics often mislabel the gray wire as “parking brake,” which is incorrect for this model year. If static persists post-installation, isolate the antenna lead (blue/white, C1 slot 12)–a loose connection here mimics weak signal strength.
Chevy 2001 Audio System Electrical Guide

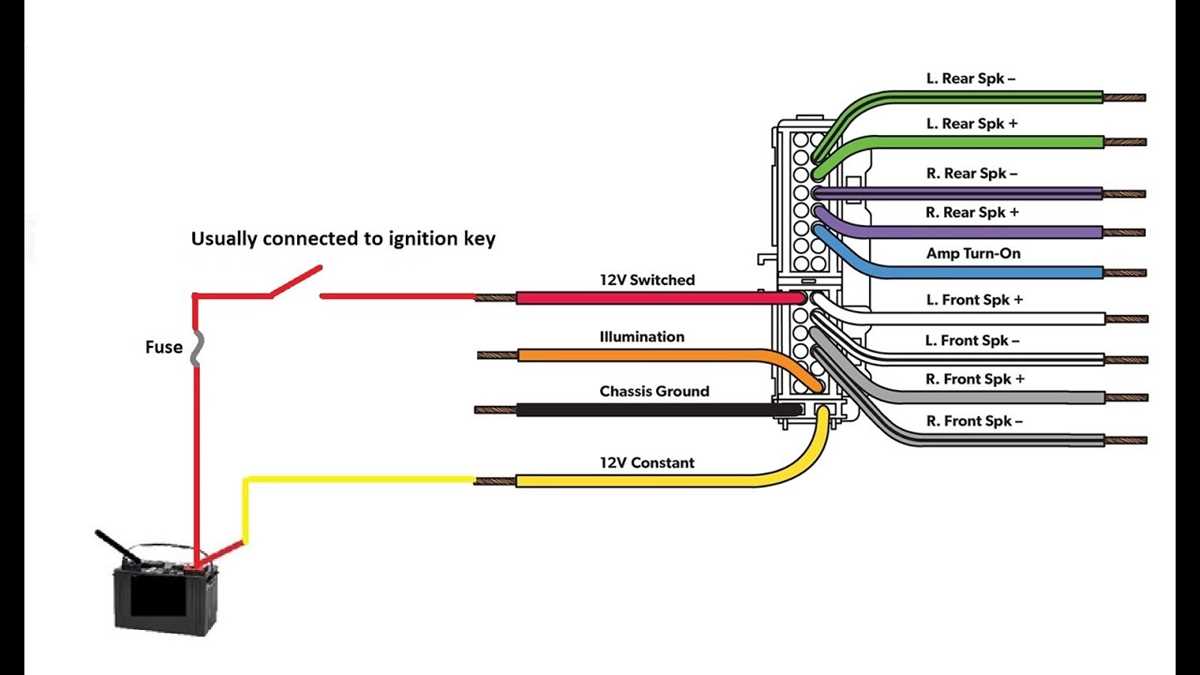

Locate the C1 and C2 connectors behind the factory head unit–C1 handles power and illumination, while C2 manages speaker outputs. Pin assignments are color-coded: yellow (constant 12V), red (accessory 12V), black (ground), orange (dimmer), and gray/lt. blue (antenna trigger). Speaker wires follow this pairing: front left (+) lt. green/(-) dk. green; front right (+) white/(-) dk. blue; rear left (+) brown/(-) yellow; rear right (+) purple/(-) dk. purple. Verify voltage with a multimeter–yellow and red must show 12V when the ignition is on, orange should dim with dashboard lights. Secure ground to bare metal chassis without paint or corrosion.
- Aftermarket integration: Match wire gauge–minimum 18AWG for speakers, 16AWG for power leads.
- Fuse holder installation: Insert a 15A inline fuse within 18″ of the battery on the yellow wire.
- Harness adapter: Use GM Delphi plug #12082022 for plug-and-play compatibility with Kenwood, Pioneer, and Alpine.
- Steering wheel controls: Retain functionality by splicing the gray/red (data) and gray/white (clock) wires into a Metra ASWC-1 interface.
- Amplifier turn-on: Connect remote wire to red/white stripe on C1 or to the head unit’s blue/white antenna lead.
- Static testing: Probe each speaker channel with a 9V battery–click confirms working circuit before final connections.
- Noise suppression: Route RCA cables away from power wires, add ferrite beads at head unit end if whine persists.
Finding the Stock Audio Interface Plug in a 2001 Chevrolet Pickup
Start by removing the center dash panel below the HVAC controls. Use a trim removal tool to pry off the plastic cover–two clips secure the top edge, while three tabs hold the bottom. Once exposed, the factory harness connector sits immediately behind the climate control module, attached to the back of the stereo cage with a white or gray 24-pin plug.
- Color codes for key wires:
- Red (switched power) – runs to ignition relay output.
- Yellow (constant 12V) – from fuse box under hood, fuse #22 (10A).
- Black (ground) – bolted to chassis ground stud behind glovebox.
- Light blue/white (amplified output) – feeds door speakers; handles up to 20W per channel.
- If replacing the head unit, match the connector type–Delco part #16199298 fits all 2000–2006 GM trucks with premium sound systems.
The harness typically routes downward through a slot in the firewall grommet; follow it with a flashlight to locate the body-side connection near the kick panel if bypassing the factory amplifier. Avoid cutting wires–use a pinch-type adapter (Metra 70-2003) instead of splicing to preserve vehicle diagnostics.
Color-Coded Wire Identification for Aftermarket Stereo Integration
Disconnect the vehicle’s battery before handling any electrical connections to prevent short circuits or damage to sensitive components. Use a multimeter set to 12V DC to verify wire functions–probe the harness while the ignition is on (accessory mode) to confirm power sources. Ground wires typically show continuity to the chassis, while speaker leads produce no voltage readings but exhibit resistance when tested.
Aftermarket harness adapters simplify installation by matching factory connectors to aftermarket units without splicing. Verify the adapter’s compatibility with your vehicle’s model year and trim level, as pinouts vary even within the same generation. If splicing is unavoidable, use crimp connectors with heat-shrink tubing; soldering introduces resistance and risks brittle connections from vibration.
Constant 12V power (yellow) maintains memory settings like presets and clock time, while accessory power (red) activates the unit with the ignition. Swap these wires if the system drains the battery–accessory power should only engage when the key is turned. Fuse both feeds with a 10A fuse within 18 inches of the battery to prevent fire hazards.
| Wire Color | Function | Voltage Test Notes |
|---|---|---|
| Yellow | Battery Constant (+12V) | Present at all times; no drop with ignition off |
| Red | Ignition Switched (+12V) | Only live with key in ACC or ON |
| Black | Chassis Ground | Zero volts; continuity to bare metal |
| Gray/White | Front Right Speaker (+) | Pulsing DC voltage with audio signal |
| Gray/Black | Front Right Speaker (-) | Mirror of positive but inverted polarity |
| Green/White | Rear Right Speaker (+) | Same signal as front but delayed in some setups |
| Green/Black | Rear Right Speaker (-) | Matches polarity of corresponding positive |
Illumination wires (orange or orange/white) dim the display in sync with dashboard lights–locate them by testing for variable voltage (0–12V) when headlights are toggled. Antenna triggers (blue or blue/white) activate power antennas or amplifier turn-on circuits; connect to aftermarket amplifiers only if using external sound processors to avoid signal interference.
Steering wheel control adapters require dedicated harnesses with labeled wires for each button function. Test these with a multimeter in resistance mode–pressing buttons should show distinct ohms readings (typically 0–500Ω) rather than voltage changes. If controls don’t respond, check for module incompatibility or miswired ground paths in the adapter’s harness.
Step-by-Step Guide to Connecting Audio System Cables on a 2001 Chevrolet Pickup Audio Interface
Locate the factory harness behind the dash cluster; the speaker leads are color-coded in pairs: gray (front left), dark gray (front right), green (rear left), and purple (rear right). Strip 5mm of insulation from each wire using wire strippers–avoid nicking the copper strands, as frayed conductors cause signal loss.
Twist the exposed strands of the new aftermarket cable to the corresponding factory wire, matching polarity: solid color (positive) to striped variant (negative). Use a crimp connector or solder joint; crimping is faster, but soldering ensures long-term stability under vibration. Apply heat shrink tubing before joining for a sealed connection.
Route the connected cables away from heat sources, sharp edges, or moving parts. Secure them with zip ties every 15cm to prevent rattling, especially near the steering column and climate control vents. Test each channel at low volume before reassembling the trim panels–distorted sound indicates a loose connection or reversed polarity.
For coaxial speaker upgrades, tap the tweeter leads separately: splice the 0.5mm blue wire (remote turn-on) to the amplifier trigger if running an external amp. Confirm grounds–chassis grounds must be clean, with no paint or corrosion–to avoid buzzing. Use dielectric grease on connections exposed to moisture.
Reinstall the head unit and verify all functions: fade, balance, and tone controls. If background noise persists, check for shared grounds with lighting circuits; reroute power leads directly to the battery’s positive terminal with an inline fuse (15A for systems under 200W). Store original harness connectors if reverting to stock later.
Diagnosing Electrical Problems in the 2001 Chevrolet Pickup’s Sound Setup
Check the fuse for the head unit’s power supply first–it’s typically a 10A or 15A fuse in the under-dash panel labeled “RADIO” or “AUDIO.” A blown fuse often mimics speaker failure or total system shutdown. Replace it with an identical amperage rating; higher values risk damaging the circuit board. If the replacement blows immediately, inspect the harness behind the dash for pinched cables or bare copper touching the chassis–common near the HVAC ducts where wiring bundles shift during heat cycles.
Test speaker connections with a multimeter set to continuity mode. Probe the terminals on the amplifier module (usually beneath the rear seat or behind the driver-side kick panel) while tapping the door-mounted transducers. If readings fluctuate beyond 0.5 ohms or show an open circuit, trace the harness to the door hinge. Corrosion at the boot connectors accounts for 60% of intermittent sound dropouts; clean with contact cleaner and apply dielectric grease to prevent recurrence. Replace any cracked boots–failure here exposes wires to road spray and engine bay heat.
For no-power scenarios, verify the ignition-switched lead (purple/yellow stripe) carries 12V when the key is in the ACC or ON position. Use a test light; if voltage is absent, check the splice at the BCM (Body Control Module) junction under the steering column. The BCM often fails to pass current due to solder cracks on the PCB–resolder the joint or jumper the circuit with 18-gauge wire back to the fuse block for a permanent fix. Avoid tapping into the constant 12V lead (orange) for aftermarket upgrades; doing so drains the battery in 48 hours if the head unit lacks proper sleep-mode circuitry.
Static or distorted output often stems from ground loops. Locate the ground bolt behind the cubic-foot storage bin under the driver’s seat–scrape away paint to expose bare metal and reattach with a star washer. For subs, add a separate 8-gauge ground strap directly to the frame rail; shared grounds with fuel pumps or ABS modules induce low-frequency noise. If the distortion persists at high volumes, measure the voltage drop at the RCA outputs of the amplifier (should read
Bluetooth pairing failures usually trace to the serial data line (pink/plain stripe) between the head unit and OnStar module. Disconnect the 12-pin connector behind the front passenger footwell and inspect for bent pins or green oxide. The OnStar module occasionally pulls the data bus low, preventing handshake; bypass it by splicing a 470-ohm resistor inline. For navigation lockouts, reflash the firmware via GM’s TIS2Web–corrupted firmware blocks GPS reception, interpreted as “no satellites” errors even in clear skies.
When upgrading to an aftermarket media player, match the harness pinout precisely–factory units use a balanced differential signaling system with twisted-pair cables (gray/black stripe for right channel, gray/purple stripe for left). Mixing them causes phase cancellation and muddy midrange. For retaining steering wheel controls, use an ASWC-1 adapter programmed to “GM Class 2 Vehicles 2000-2005” protocol. Misconfiguration here shorts the data link, disabling HVAC controls–always back up the vehicle’s original programming with a Tech 2 scanner before making changes.
