Ford F150 2003 Sound System Wiring Color Codes and Pinout Guide

03 f150 radio wiring diagram

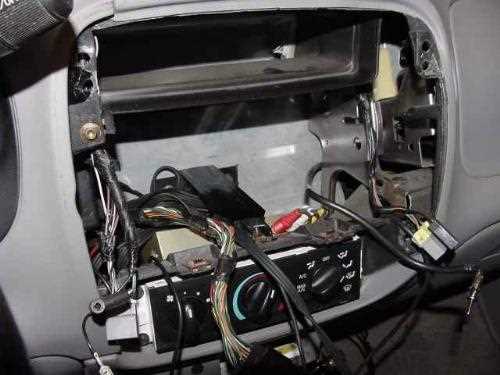

For precise component integration in the 2003 Ford truck’s multimedia setup, begin by locating the factory harness behind the dashboard center stack. The primary 12-pin connector (black, labeled C1) supplies power, ground, and signal feeds–pinouts vary between base and premium systems, so cross-reference with the vehicle’s original equipment manual. Constant 12V (red wire, pin 3) requires direct connection to the battery with an inline 15A fuse; tapping into the ignition-controlled circuit (yellow wire, pin 7) ensures shutdown with the key.

Speaker outputs follow a color-coded standard: front left (+) gray, front left (-) gray/black, front right (+) purple, front right (-) purple/black, rear left (+) green, rear left (-) green/black, rear right (+) blue, rear right (-) blue/black. Resistance checks (4-8 ohms) must confirm continuity before connecting aftermarket units; mismatches cause distortion or amplified circuitry damage. The factory amplifier, if present, resides under the passenger seat; its 18-pin harness (gray, labeled C2) demands compatible adapters (Metra 70-1771 or equivalent) to retain steering wheel controls.

Data buses (CAN or Ford’s proprietary protocol) require specialized interfaces for retained accessory power and vehicle speed sensing. Aftermarket integration kits (iDatalink Maestro RR or AX-DSR1) decode signals from the instrument cluster connector (C3, white/red wires) for display synchronization. Antenna power (power-blue, pin 6) must remain active post-ignition cutoff to prevent motor burnout in automatic systems. Ground distribution (black wires, pins 1 and 8) should terminate at chassis points within 18 inches of the unit to prevent alternator whine.

For retrofit installations, bypass the factory clockspring if steering wheel controls are non-functional–trace the clockspring’s ribbon cable to the multifunction module (behind the glove box) and verify voltage drops across the horn relay. Retain the original theft-deterrent circuit (pin 10, pink/yellow) by splicing into the accessory harness; aftermarket capacitors (0.1µF) across speaker leads suppress high-frequency interference. Failure to isolate the parking brake wire (orange/light blue) triggers safety lockouts in video-capable units.

2003 Ford Pickup Audio System Connection Schematic

Locate the harness behind the dashboard cladding on the passenger side–it’s secured with a single 10mm bolt and two plastic clips. Disconnect the factory connector by pressing the release tab while pulling gently; twisting can damage the locking mechanism. The aftermarket interface will snap directly into this port if the pinout matches the following:

Wire Color Function Aftermarket Pin Voltage (Key On)
Yellow/Black Battery Constant A4 12.6V–14.4V
Light Green/Black Left Front Speaker (+) B3 2.8V–4.2V peak
Dark Green/Orange Right Front Speaker (+) B1 2.8V–4.2V peak
Gray/Red Illumination A7 0V–10V PWM
Orange/White Remote Turn-On A6 12V on ACC

Splice the antenna lead–black with a white stripe–into the existing coaxial cable using a crimp connector, not solder; solder adds stiffness that can crack the shield over time. Ground the new head unit’s chassis wire separately to the transmission tunnel via a 10-gauge ring terminal torqued to 12 Nm; shared grounds under the dash often introduce alternator whine.

Test each channel before reassembly by playing a 1 kHz sine wave at –10 dBV; any trace below 900 mV RMS on the scope indicates a shorted speaker or reversed polarity, which will cause phase cancellation at the door tweeter. If the steering wheel controls fail after installation, replace the clockspring; resistance between pins 12 and 3 on the clockspring connector should read 470 Ω ±5%.

Avoid splicing the diagnostic CAN bus–tan/light blue wires–into any third-party harness; these carry sync messages for PATS and if disrupted will require a four-digit key code reflash at the dealership. Keep speaker impedance above 3.2 Ω to prevent damaging the factory amplifier’s delta-sigma DAC.

Reattach the climate control bezel by aligning the top tabs first, then snapping the lower clips; forcing the unit can shear the plastic locating pins. Verify all functions with the engine running–AC compressor cycles can cause voltage drops that reset modern touchscreen displays.

Finding the 2003 Ford Pickup Audio Interface Connector Layout

Begin by accessing the dashboard cluster from the driver’s side. Remove the lower trim panel beneath the steering column using a trim removal tool–avoid forcing clips to prevent breakage. The primary harness plug for the stereo system is situated behind the climate control module, secured by a single retaining screw. Disconnect the battery’s negative terminal before handling any electrical terminals to eliminate short-circuit risks.

The harness connector for the 2003 model is a 20-pin rectangular plug, typically black with numbered slots. Pin assignments follow this configuration: slots 1-4 manage speaker outputs (front left, front right, rear left, rear right), while slots 5-8 handle power delivery–constant 12V, ignition-switched 12V, illumination, and ground. Slots 9-12 interface with the vehicle’s data bus for chime signals and accessory control.

Verifying Connector Integrity

Inspect the plug for corrosion or bent pins before testing. Use a multimeter set to DC volts (20V range) to confirm voltage at slot 5 (constant power) and slot 6 (ignition-switched) when the key is turned to the ACC position. A reading below 11.5V indicates a fuse issue (check fuse #23, 20A) or wiring degradation near the firewall pass-through grommet. Slot 16 provides illumination control–test with headlights on for a 1-12V dimming range.

For aftermarket upgrades, note that slots 17-20 are reserved for optional features like satellite adapters or auxiliary inputs, often unused in base trims. If adapting a non-OEM component, splice into slots 5, 6, and 8 for power, ensuring wire gauge matches factory specifications (18-20 AWG for signals, 16-14 AWG for power). Avoid tapping into slot 7 (illumination), as mismatched loads can trigger onboard diagnostics errors.

Locate the amplification harness–present in premium audio packages–behind the glove compartment. This secondary 12-pin connector splits signal feeds before reaching the speakers, identifiable by its purple and gray casing. If absent, the head unit powers speakers directly through the primary plug. When retrofitting, bypass amp connections to prevent impedance mismatches that cause distortion.

Document each connection before reassembly. Reattach the climate control module first, ensuring vents align correctly, then secure the dash trim. Reconnect the battery last, then verify all functions: volume, seek buttons, and chime alerts. If static persists, recheck ground integrity at slot 8; a weak ground can cause signal interference, particularly with amplified setups.

Step-by-Step Guide to Harness Wire Color Codes for Aftermarket Audio Integration

Locate the factory connector behind the dash, typically a 12-pin or 24-pin plug on Ford platforms. Identify the following standardized color mappings–these are consistent across most 2003–2008 model years but always verify with a multimeter before splicing:

  • Constant 12V Supply (Yellow): Solid yellow or yellow with a thin stripe (varies by trim). This powers memory functions; use a fused circuit rated for at least 10A.
  • Switched 12V (Red): Red or red with a black stripe. Energizes only when ignition is in ACC or ON. Reliable splice points include the fuse box tap near F2.12 (check owner’s manual for exact location).
  • Ground (Black): Solid black or black with a white stripe. Attach directly to chassis metal–scrape paint to bare metal for optimal conductivity.
  • Speaker Outputs (Front/Rear):
    • Front Left (+): Light green or gray with purple stripe.
    • Front Left (–): Gray or gray with black stripe.
    • Front Right (+): White or white with blue stripe.
    • Front Right (–): Blue or blue with white stripe.
    • Rear Left (+): Dark green or brown with orange stripe.
    • Rear Left (–): Brown or brown with light blue stripe.
    • Rear Right (+): Purple or violet with green stripe.
    • Rear Right (–): Green or green with purple stripe.

    Impedance mismatch causes distortion; ensure aftermarket unit matches factory 4-ohm rating.

For vehicles with premium sound systems (e.g., Sony or Mach), expect additional wires:

  • Amp Trigger (Blue/White): Sends 12V signal to activate external amplifiers. Connect this to an aftermarket amp’s remote turn-on lead.
  • Mute/Telephone (Orange): Silences audio during calls–tie into hands-free kit if applicable.
  • Illumination (Light Green): Dims display with headlights. Tap into dash light green wire (not the instrument cluster).
  • Speed-Sensitive Volume (Pink): Adjusts volume based on vehicle speed. Bypass unless aftermarket head unit supports this feature.

Use T-tap connectors or solder splices for permanent connections–avoid quick-disconnects, which corrode over time. Apply heat-shrink tubing over exposed wires to prevent shorts. Test each circuit before reassembling the dash:

  1. Set multimeter to DC voltage (20V range).
  2. Probe yellow wire–should read 12V regardless of ignition state.
  3. Probe red wire–12V only with ignition on/ACC.
  4. Probe black wire–0V (ground) against chassis.
  5. Play audio source; confirm all speakers produce sound at equal volume levels.

If the steering wheel has audio controls, retain functionality via an adapter harness (Metra ASWC-1 or Scosche SWI-JACK). Connect these first to avoid reworking splices later. For vehicles with factory navigation, disconnect the antenna amplifier (amber wire) to prevent GPS signal interference. Always secure loose wires away from moving parts (e.g., pedals, HVAC blend doors).

Common pitfalls include reversed polarity on speaker wires (audible distortion) and improper ground connections (static or whine). If the vehicle has a factory amp (located under rear seats or behind rear panels), bypass it by locating the amp’s input wires (often gray and gray/black) and connecting directly to the head unit–this maintains sound quality without requiring an amp integration module.

For heated seats or rear entertainment systems, trace the pink/orange stripe wire–this carries 12V only with keys in the ON position. Avoid tapping this for accessory power unless absolutely necessary. If the aftermarket unit includes video inputs, route RCA cables separately from power wires to eliminate signal noise (keep a 6-inch minimum separation).

Final verification steps: Cycle ignition through all positions (OFF/ACC/RUN/START) while monitoring constant and switched power sources. If any circuit drops voltage unexpectedly, inspect fuse ratings and relays–Ford often uses hidden inline fuses not labeled in owner manuals. Document all connections with a labeled wiring diagram for future reference.
