Complete 2005 Chevy Impala Radio Wiring Color Code Guide and Diagram

Begin by disconnecting the negative battery terminal to prevent short circuits–this model’s electrical harness lacks built-in surge protection. Locate the 20-pin connector behind the dash panel, typically positioned near the climate control module. Pin assignments follow this sequence: yellow (constant 12V), red (accessory), black (ground), orange (illumination), light green (rear left speaker), dark green (rear right speaker), gray (front left speaker), white (front right speaker), purple (antenna motor), brown (mute signal). Verify each wire with a multimeter before splicing to avoid damaging the stock amplifier.

Factory harnesses in this vehicle use thin-wall PVC insulation, rated for 18 AWG current capacity. When extending wires, match this gauge to prevent voltage drop–critical for amplifier performance. The purple wire (antenna motor) carries 5A peak; exceeding this load will trip the internal fuse linked to the body control module. For aftermarket units requiring RCA inputs, tap into the dark blue (data bus) wire only if the replacement head supports the vehicle’s Class II serial protocol. Bypassing this connection may disable steering wheel controls.

Ground connections demand bare metal contact on an unpainted surface adjacent to the original harness point. Remove factory sealing compound from the chassis hole using a wire brush–corrosion here causes intermittent signal loss. Route new wiring away from the HVAC blower motor to avoid electromagnetic interference. For systems integrating backup cameras, the pink wire (reverse signal) activates at 12V; splice this directly to the camera’s trigger input without relying on the infotainment system’s software delay.

Static discharges from improper handling can corrupt the EEPROM in the stock unit’s microprocessor. Before removal, touch a grounded metal surface to equalize potential. For vehicles equipped with OnStar, retain the light blue module wire–cutting it disables emergency services. Aftermarket harness adapters often omit this connection, leading to diagnostic trouble code U1000.

2005 Sedan Audio Integration Schematic

Begin by locating the factory harness behind the center stack–commonly identifiable by a 12-pin white connector and a separate 8-pin gray plug. The left-side pinout carries constant power (orange wire, 16AWG) directly from the fuse panel, while the right cluster supplies switched ignition (yellow/black stripe, 18AWG) from the ignition switch. Verify voltage with a multimeter before splicing; 12.6V at rest confirms proper feed.

Ground connections terminate at a chassis stud behind the glovebox. Use bare copper wire (14AWG minimum) crimped to a ring terminal–avoid relying on factory grounding straps as corrosion often compromises conductivity. For aftermarket units requiring dual grounds, split the lead into a Y-split before attaching to the same stud to prevent signal noise.

Color-Coded Connector Mapping

The 8-pin gray connector hosts speaker outputs: front left (+) light blue, front left (-) light blue/black; rear right (+) dark green, rear right (-) dark green/black. Note that only four channels are present–rear fill signals share a common return. Miswiring introduces phase cancellation; test each channel individually with a 1kHz sine wave at low volume prior to finalizing connections.

If retaining the stock amplifier (located under the driver’s seat), bypass the pink/black wire in the 12-pin connector–disconnecting this lead disables the internal amplifier, freeing the signal for direct line-level output. For OEM navigation units, retain the purple/white data bus wire; severing it disables steering wheel controls.

Factory antenna leads (black coaxial, Type F) thread through the firewall grommet near the brake master cylinder. Route new antenna cables parallel to the existing harness, securing every 6 inches with nylon ties to prevent chafing against the brake lines. An unterminated coax pickup can introduce AM band interference; terminate unused leads with a 75-ohm resistor at the head unit.

Troubleshooting Voltage Drop

Dimmed displays during engine crank indicate insufficient power delivery. Relocate the constant power feed to an unswitched 12V source at the underhood fuse block (cavity F5, 20A mini fuse). For vehicles with delayed accessory circuits, tap the pink wire at the BCM instead–this maintains memory functions during battery disconnections.

Audio distortion at high volumes often stems from inadequate grounding. Relocate the ground wire to a bare metal surface on the transmission tunnel, sanding the contact point to bare steel. Apply dielectric grease to the terminal before securing with a stainless-steel bolt to prevent oxidation. For persistent noise, install a 3A diode inline on the ignition-switched wire to suppress voltage spikes from the alternator.

Aftermarket harness adapters labeled “GM Class 2” simplify integration but may omit the data bus connection. If retaining factory features like OnStar or chimes, ensure the purple/white wire remains intact–cutting it requires manual reconnection using a soldered splice and heat-shrink tubing to prevent shorts.

Finding the Original Audio System Connector on a 2005 Sedan

Start by removing the center console trim panel directly below the climate controls. Use a plastic pry tool to avoid scratching the dashboard surfaces. The panel snaps off with light pressure; no screws are involved at this stage.

Once the trim is detached, locate the 24-pin harness near the rear of the mounting bracket. The connector is typically black, rectangular, and positioned horizontally. On the 2005 model, it often sits just above the factory amplifier if one is present.

Trace the wires from the back of the audio unit backward–they lead directly to this harness. The colored wires match standard GM coding: orange for power, gray for illumination, dark blue for the right speaker output, and light green for the left.

The harness may be secured with a small retaining clip. Press the clip inward while gently pulling the connector away from the bracket. Avoid tugging on individual wires to prevent damage.

If the harness isn’t immediately visible, check behind the climate control module. Some installations route the connector through a small channel carved into the dash framework. A flashlight and a 90-degree pick tool can help retrieve it.

Verify the connector’s condition before proceeding. Look for bent pins, corrosion, or insulation cracks–common issues in high-mileage vehicles. Clean contacts with electronic cleaner and a soft brush if needed.

Alternative Locations

In vehicles with premium audio systems, the harness might be hidden behind the glovebox liner. Remove the glovebox door and inner panel to access it. The connector here mirrors the one behind the center console.

For models with rear seat entertainment, a secondary harness exists near the trunk’s right side panel. This duplicate feeds signals to the optional subwoofer but shares many wires with the primary harness.

Decoding Connector Hues in the Vehicle Audio Harness

Examine the 12-pin harness first–yellow leads typically supply constant 12-volt power from the battery, ensuring memory retention for presets and clock settings. The adjacent red wire often delivers switched voltage, activated only when the ignition is turned on, preventing parasitic drain. Confirm these roles with a multimeter: yellow should read a steady 12V regardless of key position, while red must drop to zero when the engine is off.

Ground connections demand scrutiny–black wires usually terminate at chassis points, but corrosion or loose mounting screws can introduce noise or intermittent failures. Strip a small section of insulation, attach it to a clean metal surface, and verify continuity with a test light. If dimming occurs, locate a secondary grounding point near the audio unit’s original baseline to eliminate resistance issues. For audio signals, purple and gray wires frequently carry left and right front speaker outputs respectively; connecting these incorrectly reverses channel polarity and weakens bass response.

Illumination control on the head unit relies on the orange or orange-striped lead–this wire syncs with dashboard backlighting and dims proportionally with headlight activation. If the display remains overly bright at night, probe this circuit for voltage fluctuations between 0V (no lights) and ~12V (full brightness). A deviation suggests a faulty rheostat or short in the lighting harness further upstream.

Factory mute functions may route through light blue or pink leads–these wires interface with Bluetooth modules or navigation systems to suppress playback during phone calls. Test by initiating a call: audio should pause or reduce volume automatically. Anomalies here often trace back to incorrect splice points or damaged insulation from aftermarket accessory installations.

Step-by-Step Connection for Aftermarket Stereo Installation

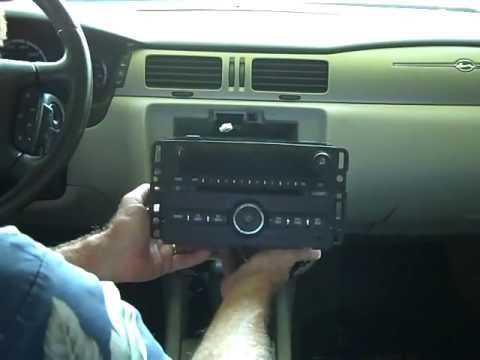

Disconnect the vehicle’s battery negative terminal before handling any electrical components to prevent short circuits or damage. Remove the factory unit by prying off the trim panel with a plastic tool–avoid metal tools to prevent scratches. Locate the harness adapter that matches the vehicle’s original connector; color-coding should align with the aftermarket system’s wiring guide. If no adapter is available, strip ¼ inch of insulation from each wire and use a multimeter to verify functions before soldering or crimping.

Wire Function Matching

Factory Wire Color	Aftermarket Wire Color	Function
Yellow (thick)	Yellow	Constant 12V power
Red	Red	Switched 12V (ignition)
Black	Black	Ground
Purple/White stripe	Purple	Rear right speaker (+)
Gray	Gray	Front right speaker (+)
Green/Black stripe	Green	Rear left speaker (+)
White/Black stripe	White	Front left speaker (+)
Dark Blue/White stripe	Blue/White	Antenna/amplifier trigger

Secure all connections with heat-shrink tubing or electrical tape to prevent corrosion or vibration-related failures. Reconnect the battery and test all functions–volume, fade/balance, and source switching–before securing the new unit into the dash. If the display dims with headlights, locate the illumination wire (typically orange or orange/black) and connect it to the vehicle’s dimmer circuit. For amplified systems, run a dedicated power wire directly to the battery, fused within 18 inches of the terminal.
