Complete 2007 Dodge Charger Radio Wire Color Codes and Diagram Guide

For immediate troubleshooting of the 2007 sedan’s factory-installed sound unit, locate the C1 harness connector–an 18-pin plug behind the dashboard fascia, typically colored grey or tan. Pins 1 (constant 12V, orange), 2 (ignition-switched 12V, yellow), and 6 (ground, black) form the critical power triad; resistance between ground and any switched lead should never exceed 0.5 ohms. If voltage at pin 1 drops below 11.8V, inspect the fusible link labeled “IOD” in the under-hood fuse box before proceeding further.

Speaker outputs route through the C2 harness, a separate 12-pin block on the right side of the unit. Front-left (+) sits on pin 2 (white/light blue), front-left (-) on pin 8 (white/brown); rear-right (+) occupies pin 7 (dark blue/light green), its negative counterpart on pin 1 (dark blue/brown). Verify wire gauge between harness and door speakers–minimum 18 AWG for transient peak currents; anything thinner risks clipped waveforms above 80 watts RMS.

Illumination control wire (pin 9, grey/violet) carries +5V PWM from the instrument cluster’s dimmer module; measure duty cycle between 0–100% as brightness varies–out-of-spec readings (>3.3V RMS) indicate cluster failure, not head unit fault. Antenna trigger (pin 17, pink) supplies +12V only when AM/FM modes engage; if absent, test continuity from pin 17 to the coax shield ground at the mast base–open circuits here commonly cause “no signal” errors.

The CAN bus wires (pins 14 & 15, twisted pair, orange/green and orange/white) require a logic-level scan tool for diagnosis–raw terminal voltage of 2.5V ±0.2V at each pin confirms proper bus arbitration; deviations suggest a module short or firmware mismatch. Always terminate the harness with the factory jumper plug (p/n 05015796AB) when bench-testing; removing it risks erroneous fault codes in the BCM.

2007 Sedan Infotainment System Circuit Guide

Locate the factory harness behind the dashboard center console–pinout labels are embossed on the plastic connector housing. Wire colors follow Chrysler’s MOPAR standard: dark green for left front speaker positive, light blue/black tracer for right front speaker negative, and orange for constant 12V power. Verify each lead with a multimeter before splicing; incorrect connections can trigger the vehicle’s theft-deterrent module.

The amplifier integration harness (if equipped) requires splicing into the rear speaker wires–light green/red stripe for left rear positive, tan/yellow stripe for right rear negative. OEM connectors use a proprietary locking tab; releasing it without damage requires a small flathead inserted at a 30-degree angle while gently pulling the harness outward. Aftermarket adapters often omit this detail, leading to intermittent audio dropouts.

Ground the new head unit’s chassis to the metal frame beneath the glovebox using an 8-gauge ring terminal and a 10mm bolt. Factory grounds frequently corrode; sand the contact surface with 400-grit paper and apply dielectric grease to prevent oxidation. Avoid daisy-chaining grounds–this sedan’s electrical system is sensitive to voltage fluctuations, especially in models with the 5.7L engine.

For steering wheel control retention, use a PAC RP4-CH11 module. Connect the purple wire (SWI input) to the vehicle’s communication bus at the fuse box–pin 3 on the C2 harness. The gray wire (ground) must attach to the same ground point as the infotainment system. Incorrect wiring here disables cruise control and climate functions due to shared CAN signals.

Antenna power requires a direct 12V feed; splice into the pink wire at the harness or tap the fuse box (fuse #23, 10A). Factory antennas use an amplified signal–aftermarket units without a preamp may produce weak reception, particularly in urban areas with analog broadcasts. For satellite compatibility, ensure the head unit supports SiriusXM v2 protocol; early 2007 builds use an older encryption that newer tuners may not decode.

Reverse signal integration demands tapping the light blue/white stripe wire at the transmission range sensor. This sedan’s BCM interprets the signal for backup camera activation and parallel parking sensors. If the display shows a persistent “No Signal” error, check for continuity in the C3 harness–pins 12 and 14 frequently degrade due to heat exposure from the transmission tunnel.

Finalize installation by resetting the ECU via disconnecting the negative battery terminal for 30 minutes. This clears stored error codes related to the infotainment system’s absence during aftermarket installation. Reconnect and test all functions–door chimes, speed-compensated volume, and delayed accessory power–before reassembling the dashboard trim to avoid rework.

Finding the Right Electrical Connector for Your 2007 Sedan’s Infotainment System

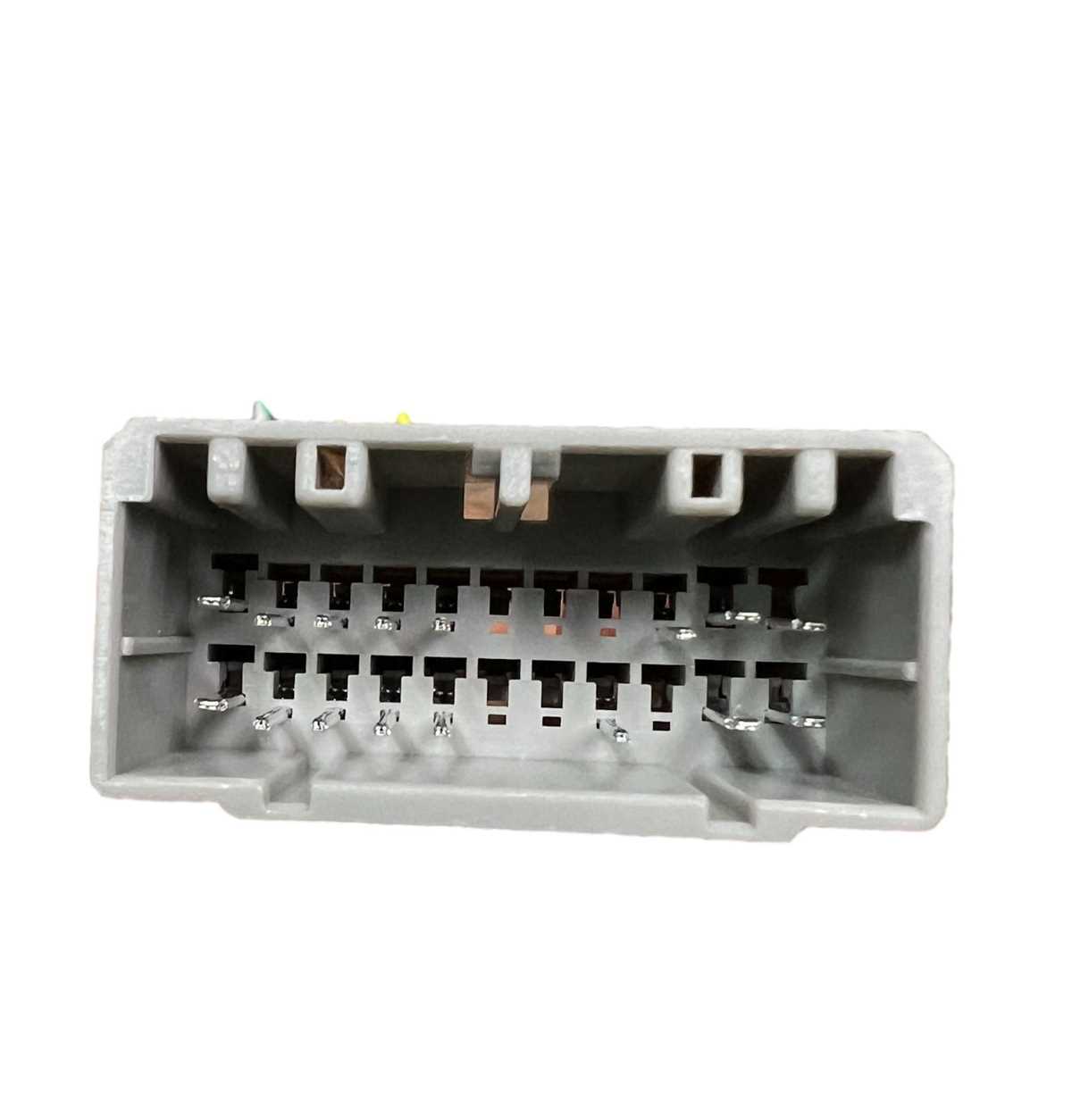

Begin by locating the OEM part number on the existing harness or vehicle documentation. For a 2007 model, the factory connector is typically a 16-pin plug with color-coded leads–specifically, Metri-Pack 280 Series terminals. Branded replacements like Mopar PN 05077459AB are direct matches, but third-party alternatives (e.g., Axxess ASWC-1 or Scosche FD16B) require verification of pin alignment for features like amplified audio, steering wheel controls, and vehicle speed sensor integration.

Check the pinout configuration against aftermarket installation guides. The standard layout for this year includes:

• Yellow/light blue: +12V constant power
• Dark green/white: ground
• Pink/violet: illumination (dims with dash lights)
• Gray/violet: accessory power (key-on)

Discrepancies in wire gauge (usually 18-20 AWG) or insulation material (PVC vs. cross-linked polyethylene) may indicate compatibility issues.

Verify compatibility with retained accessory power (RAP) if upgrading to a system with navigation or backup camera inputs. The original harness includes a gray/brown lead for RAP–ensure the new connector supports this function to prevent battery drain or erratic behavior when the ignition is off. Adapters like PAC RP5-CH11 explicitly account for this, while generic harnesses may omit it.

Inspect the connector housing for physical wear or corrosion, especially if the vehicle has sat unused. The 2007 sedan’s harness often uses gold-plated contacts; oxidation can disrupt low-level signals (e.g., microphone input or satellite radio). Clean pins with DeoxIT or a fiberglass pen, but avoid abrasives that damage the plating. For replacements, prioritize connectors with tin or silver plating if gold isn’t available.

Compare harness length and routing paths. Factory connectors measure ~3 feet with molded strain reliefs–aftermarket options may vary, leading to tension or exposed wires near the firewall. For integrated climate control interfaces, ensure the harness includes the purple/orange lead (data bus) if the new unit supports dual-zone adjustments via the screen.

Test the harness with a multimeter before final installation. Probe each terminal in resistance mode (Ω) to confirm continuity and absence of shorts. For example, the yellow/light blue lead should show ~0.5Ω to the battery positive, while the dark green/white ground should read

Document any modifications made during installation. If splicing is necessary (e.g., for heated seat controls or parking sensors), use solder and heat-shrink tubing instead of crimp connectors to maintain signal integrity. Label each wire with masking tape or a label maker to simplify future diagnostics or upgrades.

Step-by-Step Guide to Locating the Factory Audio System Harness

Remove the center dashboard panel by inserting a flathead screwdriver into the seam near the climate control buttons. Gently pry outward while working along the right edge to release the clips holding the trim in place. Set the panel aside to expose the rear of the sound unit mounting cage–focus on the bundle of wires tucked behind the HVAC vents.

Identifying Connector Position

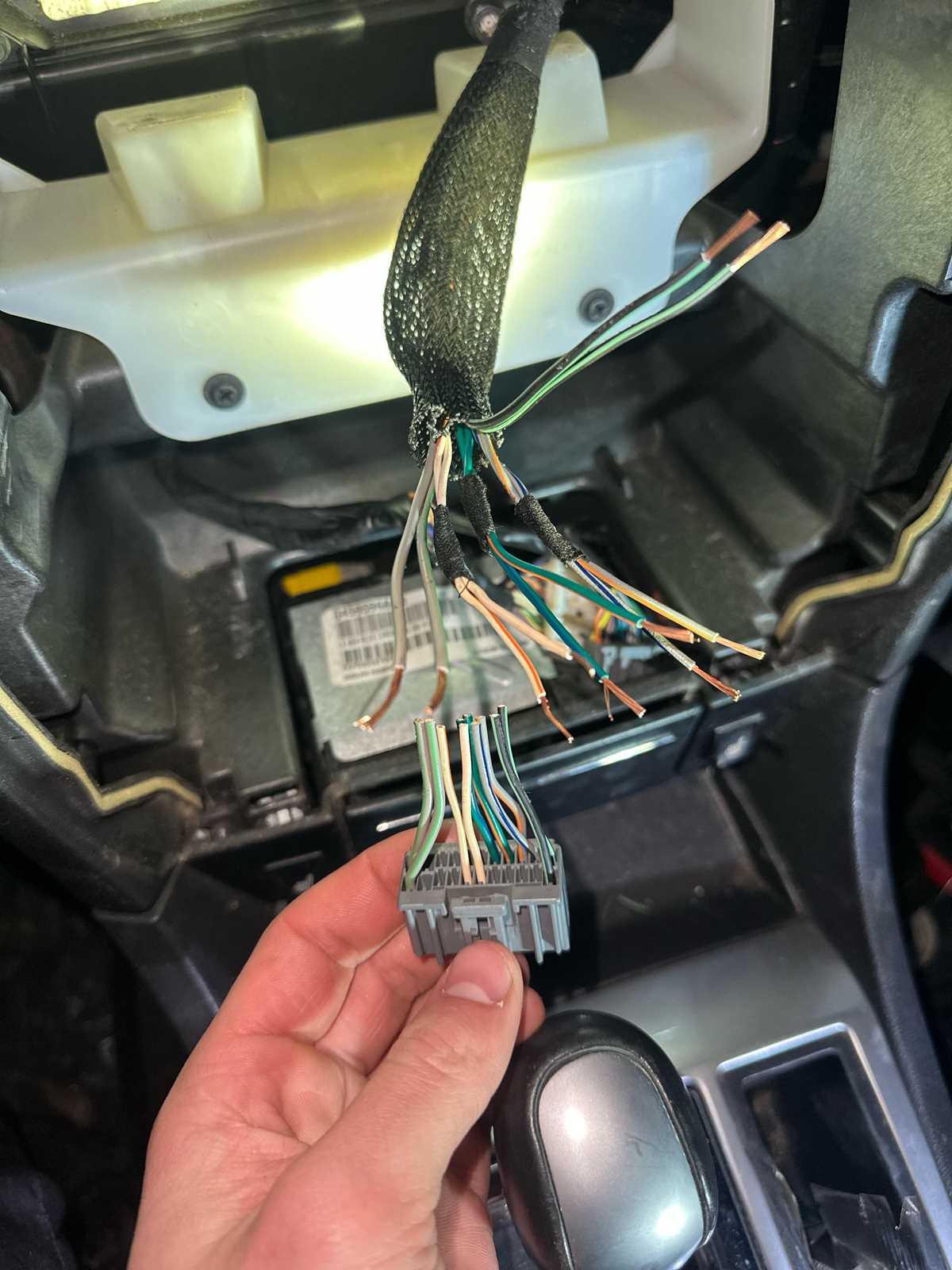

Trace the harness from the back of the head unit to where it disappears behind the glovebox area. The connector sits 3 inches above the passenger-side kick panel, secured with a black plastic locking tab. Pinch the tab while pulling the connector outward to detach it–avoid yanking on individual wires.

Wire Color	Function	Typical Voltage
Dark Green/White stripe	Front left speaker (+)	4.8V
Light Blue/Red stripe	Rear right speaker (-)	Ground reference
Yellow	Constant 12V power	12V–14V
Violet	Illumination control	Variable 0–12V

Final Verification Steps

Cross-reference the harness connector shape with the OEM service manual–ensure the 12-pin and 16-pin plugs match the expected layout. If corrosion is present on the terminals, clean with electrical contact spray before reconnecting. Reinstall the dashboard trim by aligning the clips and pressing firmly until seated.

Understanding Factory Harness Colors for Custom Audio Upgrades

Start by identifying the 12-pin connector on the vehicle’s OEM harness. Pin 1 (yellow stripe) delivers constant 12V power–verify this with a multimeter before connecting to aftermarket gear to avoid draining the battery. Pin 2 (solid orange) carries switched 12V, active only when the ignition is on; this should link directly to the new unit’s ACC terminal to prevent parasitic draw.

Ground connections require special attention. Pin 10 (black with a white stripe) serves as the primary chassis ground. Ensure the new installation’s ground wire contacts bare metal, preferably sanded down to eliminate paint or corrosion, and secure it with a star washer for optimal conductivity.

• Pin 3 (light green stripe): Front left positive (+) speaker output
• Pin 4 (dark green stripe): Front right positive (+) speaker output
• Pin 5 (gray stripe): Rear left positive (+) speaker output
• Pin 6 (purple stripe): Rear right positive (+) speaker output
• Negative (-) speaker wires correspond to solid versions of the same colors (e.g., solid light green for front left negative)

Avoid mixing speaker polarity–crossing a light green wire with a solid one will cancel audio output in that channel. Use a 1kHz test tone at moderate volume to confirm phase alignment; asymmetrical waveforms indicate reversed connections.

For vehicles equipped with amplified systems, Pin 8 (dark blue with a white stripe) signals the amplifier turn-on lead. This 12V output activates when the original head unit powers up. Connect it to the aftermarket deck’s remote turn-on input, but add a 10-amp fuse inline to protect against short circuits.

Factory steering wheel controls route through Pin 9 (brown with a white stripe). If retaining these functions, match this wire to the new interface’s data input using an adapter module–generic splices will disable button responsiveness without proper resistance matching.

Illumination circuits (Pin 7, solid pink) adjust dash brightness in sync with exterior lights. Hook this to the new stereo’s dimmer input to maintain consistent backlighting behavior. Test dimming functionality with parking lights on; improper connections may cause backlight failure at night.

Always isolate and cap unused factory wires–solder and heat-shrink connections for reliability. Verify all splices with a continuity tester before reassembling panels to prevent intermittent failures from loose contacts.
