Step-by-Step Guide to Safe 1 Ohm Stable Wiring for Audio Systems
Begin with pure copper wire rated for at least 150% of your amplifier’s continuous current draw. For a 2000W RMS setup at 12V, this translates to 8-gauge (8 AWG) wire–or thicker if runs exceed 15 feet. Twist positive and negative conductors together at a density of at least five full twists per foot to minimize induced noise and maintain signal integrity under sustained load.
Ground your distribution block directly to the vehicle’s chassis using a 4-gauge or larger braided strap, avoiding paint or powder-coated surfaces. Secure connections with crimped ring terminals coated in nickel or tin, then solder the joint with 60/40 lead-based solder for mechanical stability. Heat-shrink tubing rated for 105°C or higher must cover the entire joint to prevent oxidation and current leakage.
Route power cables away from sensitive signal wires and ignition components by a minimum of 12 inches. Use polyethylene or nylon conduit if paths intersect factory harnesses. Fuse each cable within 7 inches of the battery terminal with a class-T or ANL fuse matching the conductor’s ampacity–never exceed the wire’s maximum continuous rating.
Test each connection with a digital multimeter under full load: voltage drop between battery and amplifier terminals should not exceed 0.5V. If readings surpass this threshold, reduce resistance by shortening cable length, increasing gauge, or replacing terminals with silver-plated alternatives.
For subwoofer loads below 2 ohms, ensure your amplifier’s specifications explicitly state support for bridged or parallel configurations at this impedance. Failure to verify compatibility risks irreversible damage to output stages, even with proper cabling.
Building a Single-Impedance Connection Guide: Practical Steps
Select cables with a minimum 8-gauge thickness for amplifiers under 500W RMS to prevent voltage drops. Thicker conductors reduce resistance losses, ensuring consistent energy delivery to subwoofers rated for low-load operation.
Connect amplifier terminals to subwoofer voice coils in parallel for dual-coil models to achieve the target load rating. Verify polarity–positive to positive (red), negative to negative (black)–to avoid phase cancellation, which weakens bass output.
Below are tested gauge recommendations for different power outputs at the specified load level:
| Amplifier Power (RMS) | Minimum Cable Gauge | Connector Type |
|---|---|---|
| 200W–300W | 10 AWG | Tinned copper lugs |
| 300W–600W | 8 AWG | High-current screw terminals |
| 600W–1000W | 4 AWG | Gold-plated ring terminals |
| 1000W+ | 0–1/0 AWG | AGU or ANL fuse holders |
Secure all connections with a crimping tool rated for automotive wiring–never twist and solder, as vibrations loosen soldered joints over time. Apply dielectric grease to terminals to prevent corrosion, particularly in humid or coastal environments.
Load Balancing for Multi-Speaker Setups

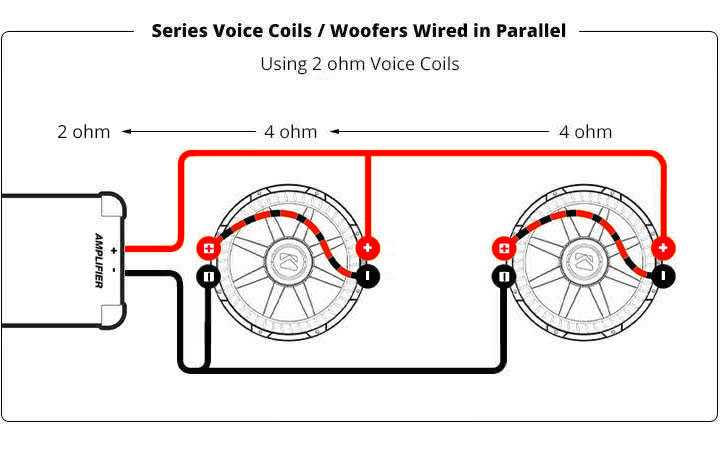

When configuring two subwoofers, wire them in parallel to halve the total load. For example, two 2-Ω voice coils wired together yield a 1-Ω final value. Confirm amplifier compatibility–most Class D mono blocks handle 1-Ω sustained loads, while Class AB units may overheat.
Measure the final load rating with a digital multimeter before powering the system. Set the meter to resistance mode (Ω), and probe the amplifier’s speaker outputs. A reading above 0.8 Ω and below 1.2 Ω confirms correct configuration.
Use a 150–250A fuse on the power wire within 18 inches of the battery to protect the circuit. Avoid relying solely on the amplifier’s built-in fuse; a second fuse prevents cascading failures if the primary fuse fails during a short.
Grounding Best Practices
Attach the ground cable to a bare metal chassis point no longer than 24 inches from the amplifier. Remove paint or rust at the contact area for a low-resistance connection. Avoid using factory bolt holes for grounding–drill a new hole and deburr the edges to ensure flush metal-to-metal contact.
Test ground integrity with the vehicle running. Set a multimeter to DC voltage and measure between the negative battery terminal and amplifier ground. A reading exceeding 0.5V indicates ground noise, necessitating a shorter or cleaner ground path.
Selecting Optimal Cable Thickness for Single-Impedance Low-Frequency Drivers
For a 16 AWG cable to safely handle 500 watts at an impedance nearing unity, the total run length must not exceed 3 meters (10 feet). Any extension beyond this distance demands a thicker conductor–14 AWG for runs up to 6 meters, and 12 AWG for distances approaching 12 meters–to prevent voltage drop exceeding 0.5V under full load. Copper-clad aluminum (CCA) cables require a 20% increase in gauge to match pure copper’s performance, while oxygen-free copper (OFC) allows for a 10% reduction in thickness without sacrificing reliability.
Stranded wire outperforms solid core in flexibility and vibration resistance, critical for mobile installations. A 120-strand configuration (e.g., 12 AWG) reduces skin effect losses by 18% compared to a 60-strand alternative at frequencies below 80 Hz. For sealed enclosures, stranded copper tolerates tighter bends with minimal signal degradation, whereas ported systems benefit from the rigidity of fewer, larger strands to minimize modulation artifacts from cabinet resonance.
Current-carrying capacity diminishes exponentially with rising ambient temperatures. At 30°C (86°F), 10 AWG copper cable supports 55A continuously, but at 60°C (140°F)–common in trunk-mounted amplifiers–this rating drops to 38A. Thermal derating necessitates upsizing to 8 AWG for environments where temperatures exceed 45°C (113°F), particularly in systems pushing 800 watts or more to the sub-bass transducer.
Termination quality dictates long-term stability as much as cable gauge. Crimped spade connectors introduce 0.02Ω resistance per joint, while soldered joints with heat-shrink tubing reduce this to 0.005Ω. For transient-heavy content (e.g., drum-heavy genres), even minor resistance compounds, causing 3–5% power loss per meter of 16 AWG cable at peak excursion. Gold-plated connectors mitigate corrosion but offer no electrical advantage over high-quality tin-plated alternatives in this application.
Shielding becomes relevant only in runs exceeding 15 meters or where interference sources (ignition systems, alternators) are present. Unshielded twisted pair (UTP) suffices for most passenger-compartment installations, but foil-shielded twisted pair (FTP) cuts radio-frequency interference (RFI) by 60% in high-noise environments. Avoid braided shielding for sub-bass applications–its 85% coverage leaves gaps at the frequencies of interest and increases capacitance, slightly dulling transient response.
For dual 4Ω drivers wired in parallel to present a unity load, each leg demands identical gauge to maintain balanced current distribution. A single 10 AWG conductor split into two 12 AWG lead-outs introduces 0.07Ω imbalance, skewing power delivery by 8% at 1kHz. Use a distribution block with equal-length output cables or direct parallel termination at the binding post to preserve phase coherence and prevent thermal runaway in the underpowered branch.
Step-by-Step 1-Impedance Configuration for Dual-Coil Low-Frequency Drivers
Begin by verifying the specifications of your subwoofers–each coil must tolerate 0.5-ohm loads individually, with a combined tolerance of 1 impedance when connected. Use 4-gauge oxygen-free copper cable for all connections to minimize resistive loss. Strip insulation precisely to ½ inch, then twist strands tightly before crimping with high-compression ring terminals. Secure terminals to amplifier binding posts using a torque wrench set to 12 in-lbs to prevent loosening under vibration.
Connection Sequence
- Connect the positive terminal of the first coil to the positive amplifier output.
- Link the negative terminal of the first coil to the positive terminal of the second coil.
- Attach the negative terminal of the second coil to the amplifier’s negative output.
- Measure impedance with a multimeter–confirm a reading of 1 (+/- 0.1) across both channels.
- Avoid daisy-chaining more than two coils per channel to prevent impedance drop below safe thresholds.
- Use dielectric grease at all terminal connections to inhibit corrosion in high-current paths.
- Test sound output at 50% amplifier gain before finalizing enclosure mounting to detect clipped waveforms early.
Common Pitfalls in Low-Impedance Subwoofer Connections
Using undersized gauge cables for 2-channel or 4-channel amplifier outputs will cause voltage drops and power loss. A minimum of 4 AWG wire is required for most 1000W RMS setups–anything thinner risks overheating and poor bass response. Measure the cable length from the amp to the subwoofer terminals; every additional foot beyond 16 requires stepping up one gauge size to compensate for resistance. Copper-clad aluminum cables may appear cost-effective but degrade performance under sustained low-load conditions, increasing distortion at high volumes.
Parallel configurations demand exact impedance matching. A single mismatched coil will imbalance current draw, forcing one subwoofer to handle 70% of the load while the other labors at 30%. Verify voice coil specifications before bridging–dual 2-ohm coils wired incorrectly can present as 0.5-ohm loads, tripping amplifier protection circuits or damaging output stages. Use a multimeter in continuity mode to confirm connections before powering on; miswired terminals often mimic functional setups but fail under dynamic bass transients.
Amplifier Selection Errors
Choosing an amplifier rated for 4-ohm loads when driving a 1-ohm connection strains circuitry and shortens lifespan. Check the amplifier’s minimum load rating–many class-D models tolerate 1-ohm continuous duty, while class-AB units require derating to 2 ohms or higher. Look for “low-impedance stable” labels only on units with robust power supplies; cheap amplifiers exaggerate wattage claims and lack sufficient capacitance, leading to clipped signals and subwoofer failure. Capacitors rated below 1 Farad per 1000W introduce voltage sag during bass drops, causing audible distortion.
Avoiding Ground Loops and Signal Noise
Looping ground wires between multiple components or securing them to painted chassis points creates ground loops. Dedicate a single clean ground point to the vehicle’s chassis–scratch away paint to bare metal for a secure connection. RCA cables routed alongside power wires pick up electrical interference, corrupting the subwoofer signal; maintain at least 6 inches of separation or use shielded twisted-pair cables. Ferrite beads help suppress high-frequency noise from alternator whine but won’t compensate for poorly fused circuits–ensure a dedicated 100A fuse within 18 inches of the battery, sized 120% of the amplifier’s maximum draw.
