How to Wire a Single Pole Switch Step-by-Step Guide with Diagram
Connect the live feed directly to the fixed terminal of the control device–typically marked with an L or a similar identifier–using a 1.5mm² solid copper conductor. Secure the connection with a torque of 1.2 Nm (or manufacturer-specified value) to prevent loosening under thermal cycling. The neutral conductor should bypass the mechanism entirely, routed straight to the load terminal of the output device (e.g., lamp, appliance).
For installations in conduit systems, use THHN/THWN-2 insulated cables and ensure conduit fill does not exceed 40% of cross-sectional area to allow heat dissipation. In cable-in-wall setups, NM-B 14/2 gauge is standard for 15-amp circuits, but downsize to 12/2 for 20-amp branches. Verify local codes–some jurisdictions require arc-fault protection even on simple branch controls.
Label both ends of each conductor before stripping. A 0.5-inch exposed length is optimal; excess bare wire increases short-circuit risk, while insufficient length reduces grip strength. Use wire nuts rated for #14-#10 when splicing, twisting clockwise first to match thread direction, then applying firm rotational pressure until the connection resists further tightening.
Test continuity with a multimeter set to 200Ω range. Probe between the live input and the load terminal–reading should drop to near 0Ω when the actuator is engaged. If resistance exceeds 1Ω, check for corroded contacts, loose terminals, or incorrect conductor pairing. For metal enclosures, bond the grounding conductor to the box with a 10-32 green grounding screw; plastic enclosures require separate grounding if the circuit exceeds 50VA.
In three-phase adaptations, isolate the single-pole control to one phase only–mixing phases at the same mechanism violates NEC 210.4(B) and creates hazardous voltage differentials. For dimming loads, replace standard toggle with a triac-based module, ensuring compatibility with LED drivers (check minimum holding current specifications).

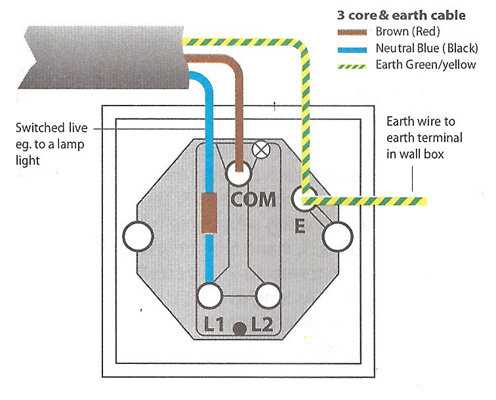

Single-Control Circuit Layout for Lighting
Connect the live conductor from the power source directly to the input terminal of the toggle device. Use a 1.5mm² copper cable for standard residential setups to handle 10A loads safely. Label the live wire with red or brown insulation at both ends to prevent misidentification during maintenance. Avoid using twist connectors–opt for screw terminals or push-in clamps rated for solid and stranded conductors.
Link the output terminal of the toggle to the lamp holder using the same gauge cable. Ensure the connection forms a continuous path without intermediate junctions, as splices increase resistance and heat buildup. For metal-enclosed fixtures, add a bonding jumper from the fixture’s grounding screw to the circuit’s earth conductor using green/yellow 2.5mm² wire. Verify all connections with a multimeter set to continuity mode before energizing.
Key Safety Measures
Always isolate the circuit at the consumer unit before touching any terminals. Test for voltage absence using a non-contact detector on all conductors–neutral and earth included–as induced currents can persist. For flush-mounted devices, secure the faceplate with insulated screws to prevent shorts against back-box edges. When running cables through wooden studs, use protective nail plates over penetration points to shield wires from future fasteners.
Select a toggle device with a matching current rating–typically 6A for LED loads or 10A for incandescent. Replace any brittle insulation immediately, as it indicates overheating. For outdoor setups, use a weatherproof enclosure with a gasket and silicone sealant around conduit entries. Tighten terminal screws to 1.2Nm torque–loose connections are a primary cause of arcing.
Color-code the conductors consistently: brown for live, blue for neutral, green/yellow for earth. If modifying an existing installation, photograph the original layout before disassembly. For single-pole circuits, never connect the neutral conductor through the toggle–this violates safety standards and risks shock. Instead, run the neutral directly from the power source to the lamp, bypassing the control entirely.
After completion, energize the circuit and check for operational consistency. Use an infrared thermometer to scan terminals after 15 minutes; temperatures above 60°C signal poor connections. Store spare parts–extra terminals, cable clamps–in a labeled container for future repairs. For dimmable setups, ensure the toggle and bulb types are compatible; mismatched components cause flickering or failure.
How to Identify Terminals on a Single Pole Light Switch
Examine the contact points on the device–most models have two brass-colored screws, with one often positioned higher than the other. The upper terminal typically connects to the power source, while the lower one leads to the fixture. If markings exist, they may read “LINE” (for incoming current) and “LOAD” (for the outgoing circuit). On decora-style plates, the top screw aligns with the hot wire from the panel, and the bottom connects to the lamp or bulb.
For older toggle variants, the metal strap or mounting tab between the screws grounds the device when installed in a metal box. The screw opposite the strap usually handles the live wire, while the remaining screw carries the return feed. Some European imports label these as “L” (live) and “↓” (load), though North American versions rarely include such icons without a manufacturer’s specification sheet.
Visual Clues Without Markings
- Brass terminals: Always hot or load–never ground.
- Green screw: Exclusively for grounding, often near the strap or at the base.
- Back-wired holes: Match screw positions–push-in slots correspond to their adjacent screws.
- Manufacturer logos: Sometimes stamped near the correct terminals on premium models.
Use a multimeter set to AC voltage to verify: touch probes to both brass screws while the power is on–a reading between 110–125V confirms the LINE terminal. If zero volts appear, flip the breaker and retest before handling. For push-button designs, note the internal spring mechanism–pressure points align with screw placement, though direct probing remains the most reliable method.
Dimmer units add complexity; look for single-terminal indicators like “HOT” or a red dot near the top screw. On rotary types, the continuous metal tab marks the input side, while segmented tabs handle load output. Always consult the included instruction sheet–even minimalist designs often bury critical details in small print.
Step-by-Step Guide for Connecting a Single-Control Mechanism to Electrical Supply
First, disconnect electricity at the circuit breaker panel by flipping the breaker corresponding to the outlet or fixture you’ll modify. Verify power is off using a non-contact voltage tester–hold the probe near the live conductor; if the device emits no alert, proceed. Strip 6–8 mm of insulation from the ends of the incoming and outgoing cables using wire strippers, ensuring no copper strands are nicked. Twist the exposed strands clockwise to prevent fraying, then align them parallel with the screw terminals on the control device.
| Component | Preferred Wire Gauge | Screw Torque (Nm) |
|---|---|---|
| Copper conductor | 14 AWG (1.5 mm²) | 0.5–0.6 |
| Aluminum conductor | 12 AWG (2.5 mm²) | 0.7–0.8 |
| Ground connection | 14 AWG (1.5 mm²) | 0.4–0.5 |
Attach the neutral (white) and ground (green or bare) wires directly to the outlet or luminaire–neutral to the silver screw, ground to the green screw. Loop the live (black or red) conductor clockwise under the brass terminal on the control mechanism, tighten the screw until resistance increases, then apply an additional quarter turn. Fold excess wire neatly into the electrical box to avoid interference with the cover plate. Secure the mechanism into the box using mounting screws, ensuring it sits flush without gaps. Restore power at the circuit breaker and test functionality by toggling the actuator–if the connected device activates, installation is correct.
Common Errors in Single-Control Circuit Installation and Prevention Techniques
Connecting the live conductor directly to the fixture output terminal while ignoring the toggle mechanism’s input creates a permanent hot connection. This bypasses the control function entirely, leaving the light source always energized. Verify continuity with a multimeter before finalizing connections: the active feed must enter the mechanism’s common port, not the load side.
Misidentifying Cable Functions
Using a red or black jacket as the sole indicator of functionality risks mixing up neutral and supply lines. Label conductors immediately after stripping insulation–mark the incoming supply, return path, and earth leads with colored tape or sleeves. Measure voltage between each core and ground before making joins to confirm correct identification.
Leaving earth connections loose or unattached introduces a serious shock hazard and violates safety codes. Secure the protective conductor to the device’s dedicated terminal with a proper crimp or screw clamp, not a friction twist. Verify grounding integrity by checking resistance between the earth terminal and a known ground point; values above 1Ω indicate a faulty connection requiring immediate correction.
Skipping polarity checks when terminating leads often results in fixture malfunctions. Always match the live feed to the brass-colored screw, neutral to silver, and ground to green. After securing each lead, tug firmly to ensure mechanical stability–loose strands can migrate, causing intermittent failures or shorts.
