Simple 12V Audio Amplifier Circuit Design and Schematic Guide

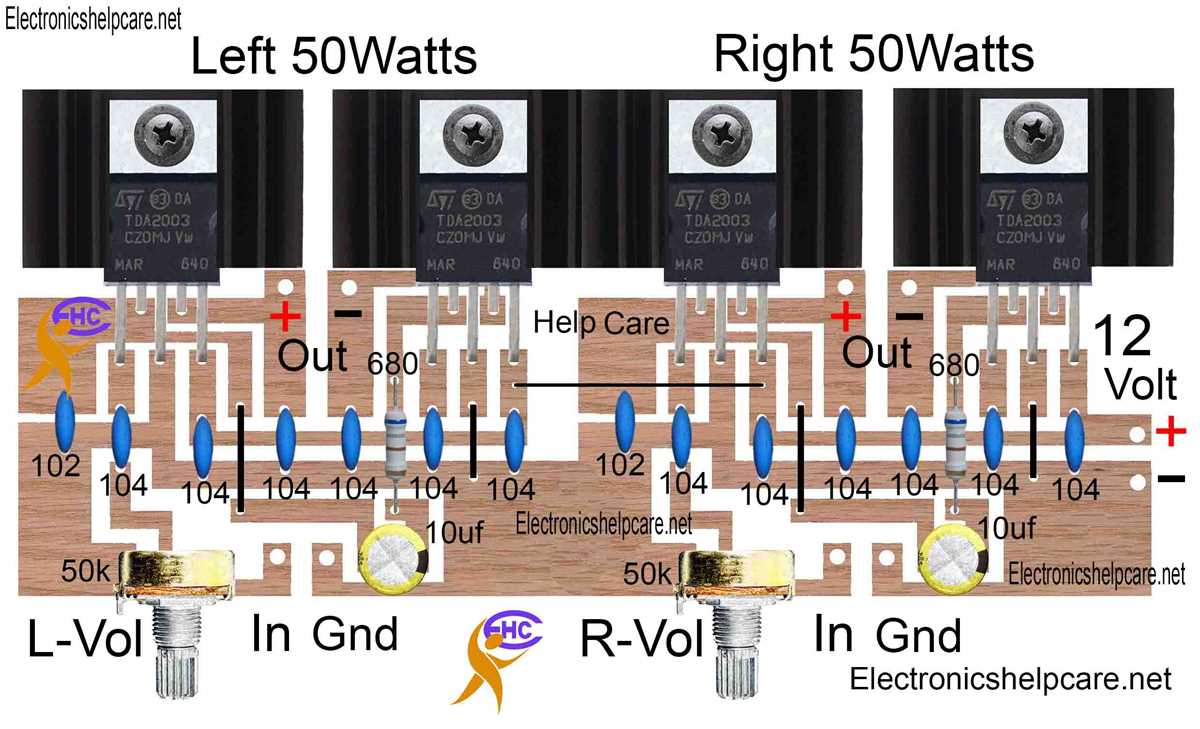

For compact audio projects requiring 12W output, use a TDA2003 IC based design. This chip operates efficiently at 12V input, delivering clear sound with minimal distortion–ideal for car stereos or portable speakers. Connect pin 5 to a 470µF capacitor for stable power delivery, while pins 1 and 4 handle signal input and ground, respectively. A 220µF coupling capacitor on the output (pin 4) filters DC offsets, ensuring clean audio transmission.

For lower-power needs (under 5W), the LM386 offers a simpler alternative. Arrange gain settings via a 10µF capacitor between pins 1 and 8 for a 200x boost, or omit it for unity gain. Include a 0.05µF bypass capacitor on pin 7 to reduce noise. This configuration runs on a single supply, eliminating the need for dual rails. Heat sinks are unnecessary due to the chip’s low thermal output.

To drive 4-ohm loads, pair a MOSFET IRF540N with a push-pull stage. Use a 10kΩ resistor to bias the base of a complementary NPN/PNP transistor pair (e.g., BC547/BC557), ensuring linear amplification. A 1kΩ pot adjusts bias voltage, preventing crossover distortion. For stability, add a 0.1µF decoupling capacitor across the supply rails near the MOSFET drain.

Grounding is critical: star-ground all components to a single point to avoid hum. For automotive applications, add a 1N4007 diode in reverse across the supply input to protect against voltage spikes. Test with a 1kHz sine wave at 0.1V RMS; THD should remain under 0.5% at full output. Use shielded cable for input signals if noise persists.

Building a Low-Power Audio Boost Setup

Start with an LM386 integrated chip–it delivers a 200x gain without needing external components for basic setups. Wire pin 2 to ground through a 10μF capacitor for stable input coupling, while pin 6 connects directly to a 12W source. A 250μF electrolytic on the output (pin 5) smooths distortion at higher volumes. Keep traces short to minimize noise pickup, especially near the input stage.

Key Component Layout

Place a 10kΩ potentiometer between the input and pin 3 to control signal strength without clipping. For bass response, add a 0.047μF ceramic capacitor between pins 1 and 8–this widens frequency response down to 50Hz. Avoid bulky heat sinks; the LM386 dissipates under 1W in most car stereo applications. Use thick copper wire (22 AWG minimum) for power lines to prevent voltage drops during peaks.

Test with a 4Ω speaker and a 1kHz sine wave at 0.5V RMS–output should reach 5W RMS with less than 0.2% THD. If treble sounds harsh, solder a 0.1μF capacitor across the speaker terminals. For deeper bass, replace the ceramic with a 10μF electrolytic on pins 1-8, but expect a slight volume reduction. Always decouple the power line near the chip with a 100μF electrolytic and a 0.1μF film capacitor to filter ripple.

For off-grid use, pair this with a 7Ah sealed lead-acid battery–it powers the setup for 8+ hours at moderate levels. Mount all components on perfboard with a ground plane to avoid earth loops. If using balanced inputs, add an NE5532 op-amp before the LM386 to buffer the signal; this reduces crosstalk in noisy environments like vehicle cabins.

Key Elements for Building a Low-Voltage Sound Booster

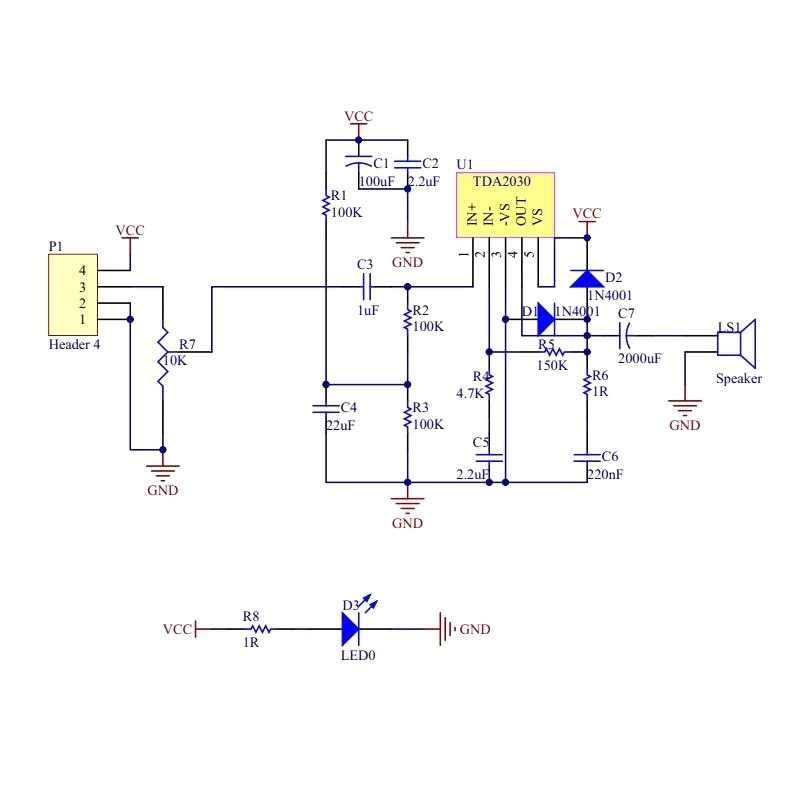

Begin with a TDA2030 integrated chip–it delivers 14W RMS into 4Ω loads at 12V with minimal distortion, requiring only a handful of external parts. Pair it with a 220µF electrolytic capacitor on the power input to smooth ripple currents down to under 100mV peak-to-peak. For coupling audio signals, use 10µF non-polarized film capacitors; they preserve phase integrity better than electrolytics while avoiding DC leakage.

Select a TO-220 heatsink with at least 8°C/W thermal resistance–without it, the chip throttles output after 30 seconds at full load. Grounding demands 16-gauge oxygen-free copper wire to prevent ground loops; twist signal and power grounds separately back to a single star point. Input impedance should match your source: 47kΩ resistors work for line-level devices, while 10kΩ suits high-impedance instruments like guitars.

Output filtering requires precise inductance values to avoid high-frequency oscillations. A 1µH ferrite-core inductor in series with the speaker load suppresses ringing above 100kHz. Power supply decoupling pairs a 100nF ceramic capacitor (placed within 2mm of the chip’s power pins) with a 1000µF low-ESR electrolytic for transient response. Below is a comparison of capacitor types for critical roles:

Component Role	Type	Value	Tolerance	Voltage Rating
Power smoothing	Electrolytic	220µF	±20%	16V
Signal coupling	Film	10µF	±5%	25V
Decoupling	Ceramic (X7R)	100nF	±10%	50V

Speaker protection fuses must be sized at 1.5× the maximum continuous current–for a 12V source driving 4Ω loads, use 3A slow-blow fuses. Avoid carbon-film resistors for feedback networks; 1% metal-film 0.25W types maintain stability across temperature swings. If driving multiple speakers, isolate each channel with 1N4007 diodes to prevent back-feeding, especially in bridge configurations.

For input stage biasing, 4.7kΩ resistors set the quiescent current while keeping noise below -90dB. Shielded AWG24 twisted-pair cable reduces electromagnetic interference on long signal runs, but keep lengths under 30cm to avoid capacitance losses. Final assembly should separate analog and digital grounds entirely, reconnecting them only at the power connector’s bolt–forgotten steps here introduce hum audible at 1mW output.

Step-by-Step Wiring Guide for a Single-Channel 12 DC Audio Booster

Begin by securing a stable power supply rated at 12 DC with at least 2A output–check the fuse rating (typically 2.5A) before connecting. Strip 5mm of insulation from the red (positive) and black (ground) wires, then crimp on 4mm bullet connectors to prevent shorting. For the RCA input, use shielded coaxial cable (e.g., RG-59) to minimize interference; solder the center conductor to the input terminal and the shielding to the chassis ground.

• Connect the power input: attach the red wire to the “+12V” terminal and the black wire to the ground post. Avoid twisting wires–use heat-shrink tubing over exposed joints.
• Speaker output: match the impedance (4–8 ohms) of your driver to the output terminals. Use 16-gauge wire for runs under 3 meters; 12-gauge for longer distances.
• Grounding: bolt the chassis ground to the vehicle’s frame using a star washer to prevent corrosion. Never daisy-chain grounds–this causes noise.

Test the connections with a multimeter (continuity mode) before powering on. Voltage should read 12–14 DC between the positive terminal and ground with no more than 0.3V drop under load. If hum or distortion occurs, recheck RCA shielding and ground points–loose shielding is the primary culprit.

1. Set gain: turn the potentiometer fully counterclockwise before powering up, then gradually increase while playing a 1kHz test tone at -10dB. Stop when clipping appears on the scope.
2. Enclose bare terminals with insulating boots or a non-conductive housing (e.g., ABS plastic). Secure wires with zip ties every 15cm to prevent vibration fatigue.
3. Final check: run the unit at 75% capacity for 30 minutes. Heat sinks should remain below 50°C–excessive heat indicates poor grounding or undersized power wires.

Selecting the Optimal Semiconductor for Low-Voltage Audio Boosting

Prioritize transistors with a collector-emitter breakdown (V_CEO) of at least 30V–even for a 12V source. This headroom prevents thermal runaway during peak signals, particularly in class AB configurations where idle current spikes under heavy bass loads. Look for devices like the MJE13003 (60V V_CEO, 1.5A I_C) or TIP41C (60V V_CEO, 6A I_C); their robustness outweighs cost for hobbyist builds.

Match the gain bandwidth product (f_T) to your target frequency range. For full-range applications (20 Hz–20 kHz), an f_T above 10 MHz suffices–examples include the 2N3904 (300 MHz f_T) for pre-stages or BD139 (250 MHz f_T) for output drivers. Subwoofer-only designs (20–200 Hz) tolerate lower f_T values (e.g., TIP31C at 3 MHz), reducing crossover distortion artifacts.

Thermal conductivity dictates reliability. TO-220 packages (e.g., IRF510 MOSFET) dissipate ~1.5 W/°C, suitable for compact enclosures. For higher power, TO-3P variants like the 2SC5200 (150W P_D) handle 30 W RMS with a 10°C/W heatsink. Verify R_thJA (junction-to-ambient) in datasheets–values below 50°C/W require forced air cooling.

Dynamic input impedance must complement preceding stages. Darlington pairs (e.g., TIP122) offer 1000+ h_FE but introduce phase shifts above 10 kHz; use them only in low-pass filters. For flat response, opt for single devices like the BC547B (h_FE 200–800) or MOSFETs (e.g., IRFZ44N) with capacitive gate input (~1.1 nF), which couple efficiently to op-amp drivers.

Noise figure (NF) determines hiss in low-level setups. Bipolars like the BC550C (NF DS(on) MOSFETs (

Diagnosing Faults in Low-Voltage Audio Power Setups

Check solder joints first using a magnifying lens–cold joints or hairline cracks disrupt signal flow, especially near heat-prone components like transistors or capacitors. Apply fresh solder with a temperature-controlled iron (300–350°C) to suspect connections, then gently tug wires to confirm adhesion. If buzzing persists, isolate the preamp stage by disconnecting inputs; a sudden drop in noise points to interference from ground loops or unshielded cables.

• Probe DC offsets at speaker terminals with a multimeter–readings above 50mV indicate failed coupling capacitors or biased output transistors. Replace electrolytics (minimum 25V rating) if ESR exceeds 2Ω when tested with a component analyzer.
• Measure rail supply–fluctuations outside ±0.5V suggest a weak power source or shorted rectifier diodes. Use a 10A fuse in the supply line to prevent damage during testing.
• Inspect thermal paste on heatsinks–dried compound reduces cooling efficiency, causing protective shutdowns. Clean surfaces with isopropyl alcohol and reapply non-conductive paste (e.g., Arctic MX-4).

For intermittent distortion, inject a 1kHz sine wave at 50% volume and observe the waveform on an oscilloscope. Clipping on positive/negative peaks suggests asymmetrical bias; adjust trimpots (10kΩ) in 5° increments while monitoring output symmetry. If crossover distortion appears, replace matched transistor pairs (e.g., TIP31C/TIP32C) even if one tests functional–mismatched hFE values degrade fidelity.

Hum at 50/60Hz usually stems from poor grounding. Connect a 0.1µF ceramic capacitor between the ground plane and chassis, then twist input cables to cancel inductive pickup. If noise persists, relocate the power transformer at least 15cm from the signal path–its magnetic field can couple into traces. For mobile setups, add a 1000µF decoupling capacitor across the supply terminals to smooth voltage drops during load changes.
