How to Wire a 12 Volt Car Cigarette Lighter Socket Step by Step Guide

Start by confirming the positive and negative terminals on your car’s power outlet. The center pin connects to the +12V lead, while the outer collar serves as ground. Any deviation here risks short circuits or device failure. Use a multimeter to verify voltage before attaching wires–readings should stabilize between 13.5V and 14.2V when the engine runs, dropping no lower than 12.0V with the ignition off.

Secure connections require 16-14 AWG wire for most accessories, striped 5mm (3/16″) from the end. Crimp ring or spade terminals to prevent corrosion; soldering alone isn’t reliable under vibration. For in-line fuses, position a 10A–15A blade fuse within 15cm (6″) of the power source to protect against overloads. Avoid shielded or braided cables unless noise suppression is critical–unnecessary complexity causes voltage drop.

Route wiring away from engine heat, moving parts, and sharp edges. Use plastic clips or loom tubing to bundle runs, never zip-ties alone–plastic degrades under UV exposure. For multi-port adapters, split the power feed with Y-connectors only if total current draw stays below 80% of the circuit’s rated capacity. Test under load before finalizing: plug in a 55W–100W device and check for voltage sag (should not drop below 11.8V at the accessory end).

If rewiring an OEM socket, disconnect the battery’s negative terminal first. Remove the housing to expose soldered joints or screw terminals–note the factory crimp style (e.g., JST or bullet connectors). Replace any brittle insulation, especially near the fuse box where temp extremes accelerate wear. For aftermarket installations, ground to the chassis frame at a clean, bare-metal contact point; never to painted surfaces or thin body panels.

Vehicle Power Socket Connection Guide

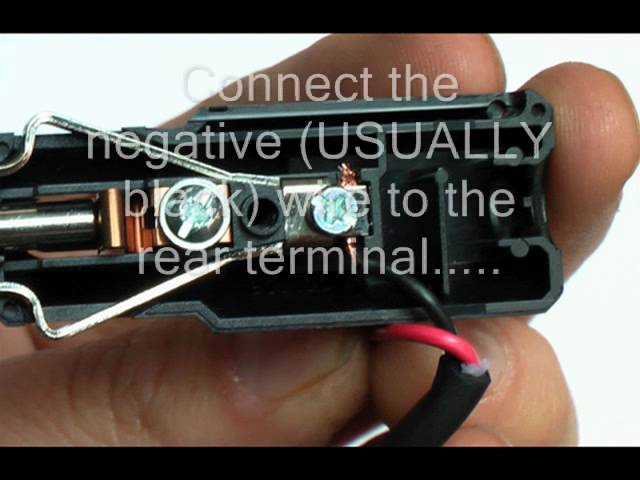

Always connect the positive lead to the central terminal of the socket–typically marked with a “+” or red indicator–to ensure proper current flow. The negative wire attaches to the outer shell or side contact, often denoted by a “-” or black marking. Failure to match these polarities can damage devices or the socket itself.

Use 18–14 AWG stranded copper wire for most auxiliary power applications, as thicker gauges reduce resistance and prevent overheating under sustained loads. For high-draw appliances (e.g., portable compressors), opt for 14 AWG to handle surges up to 15 amperes. Secure connections with solder or crimp terminals, then insulate with heat-shrink tubing to prevent shorts. Below are commonly used wire specifications:

Wire Gauge (AWG)	Max Current (Amperes)	Recommended Use
18	10	LED lights, phone chargers
16	13	Mini coolers, GPS units
14	15	Tire pumps, inverters
12	20	High-power tools, dual sockets

Test connections with a multimeter before final assembly. Set the meter to DC scale (20V range) and probe the socket’s terminals–positive to center pin, negative to outer ring. A reading between 11.5 and 14.5 units confirms correct installation. If voltage drops below 11, check fuse integrity or loose wiring. For spliced installations, add an inline fuse (matching device rating) within 15 cm of the power source to protect circuits.

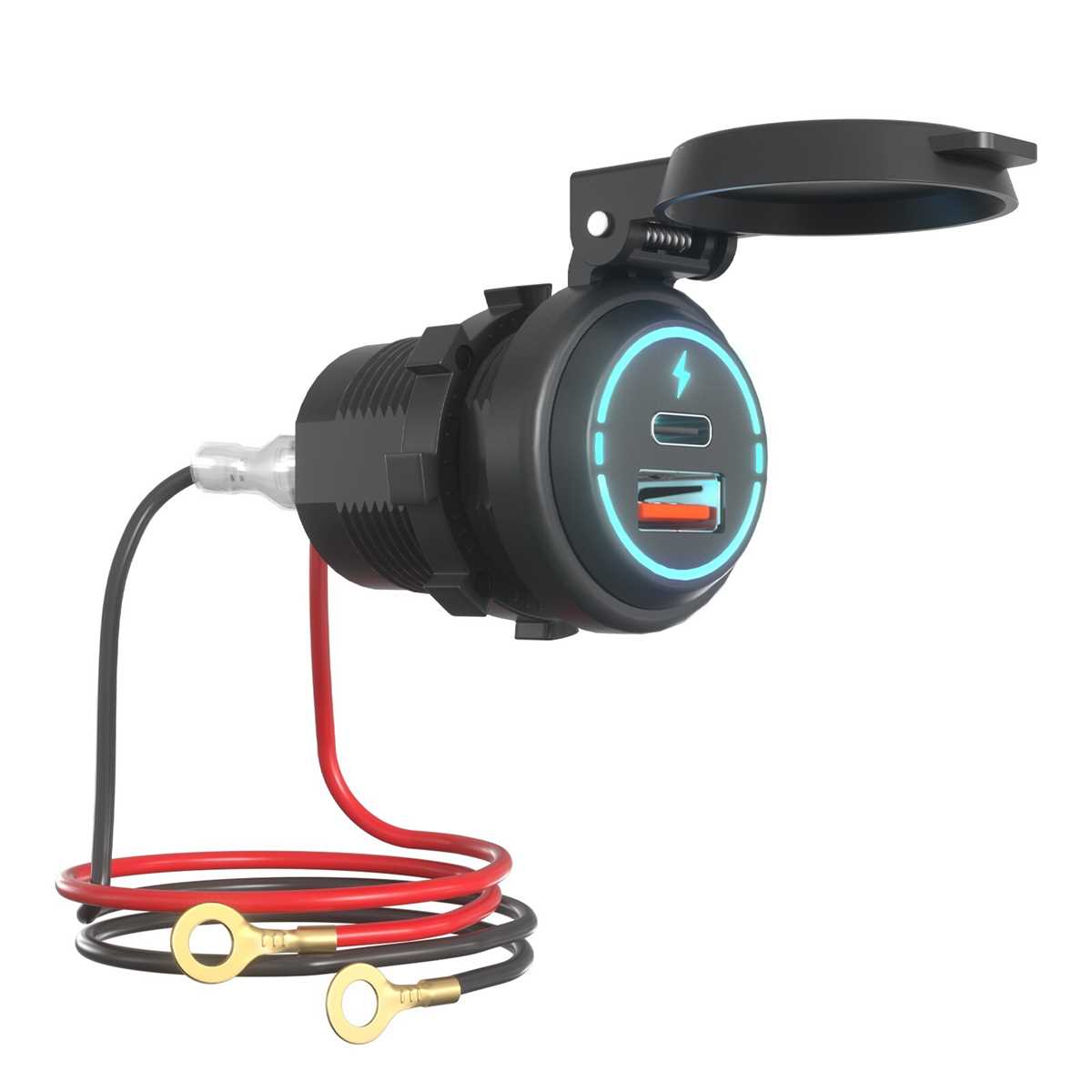

For aftermarket dual outlets, run a single power lead from the battery’s positive terminal, splitting it to each socket via a distribution block. Ground both sockets to the vehicle’s chassis using a single common earth point to minimize resistance. Avoid mounting sockets near heat sources or moving parts; secured with self-tapping screws and insulated grommets, even minor vibrations can loosen improperly fastened terminals over time.

Essential Gear and Supplies for Connecting a 12-A DC Connector

Select a 18-22 AWG stranded copper wire rated for at least 10 amps to handle automotive currents safely. Solid-core wires risk fatigue under vibration, while thinner gauges (24 AWG or higher) may overheat under load. Verify insulation type–PVC or TPE resists heat and abrasion better than basic polyethylene. For outdoor or marine use, opt for tinned copper strands to prevent corrosion.

• Wire strippers with 18-22 AWG notches for clean cuts without nicks.
• Crimping tool–ratcheting type ensures consistent compression; avoid pliers or side cutters.
• Heat-shrink tubing (3:1 ratio, 4mm diameter) or electrical tape (vinyl, not cloth) for strain relief.
• Multimeter to confirm polarity (+12V center pin, chassis ground) before connection.
• Soldering iron (30-60W, conical tip) + rosin-core solder for secure joints, especially in high-vibration environments.
• Needle-nose pliers for bending terminal tabs if the original connector lacks a proper crimp.

Pre-assembled automotive-grade harnesses simplify installation but check termination style: quick-disconnect spades (male/female 0.25″) suit most adapters, while ring terminals (M4/M5) require bolted connections. Avoid cheap “universal” kits–look for UL or ISO-rated components to prevent voltage drop or short circuits. For fused circuits, use ATC/ATO blade fuses (5A for low-draw devices, 10A-15A for accessories like inverters).

Mark polarity immediately: center contact is positive (+), outer shell is negative (-). Cross-check with a 9V battery if markings are unclear–a reversed connection can destroy electronics or trip vehicle ECUs. For bypassing factory harnesses, add an in-line fuse holder (5″ from power source) to meet automotive electrical standards. If extending wires, join with butt connectors (heatshrink-insulated) rather than twisting; solder alone doesn’t withstand vibration.

For mobile installations (RVs, boats), add ferrite beads to suppress RF interference on long runs. Test under full load–120W+ devices may require thicker wire (16 AWG) to avoid voltage sag. Store unused connectors in a zip-top bag with silica gel to prevent oxidation of terminals.

Step-by-Step Guide to Preparing and Joining Conductors

Begin by selecting the proper tool–a sharp utility knife or specialized stripper with notches matching the conductor’s gauge. For a standard 18 AWG cable, use a 1.0 mm notch to avoid nicking copper strands. Hold the blade at a 45-degree angle and rotate the conductor while applying light pressure; this method prevents fraying. If using automated strippers, align the cutting depth before clamping to ensure consistent removal of insulation.

Measure and mark the stripping point with a fine-tip marker: 8–10 mm for most automotive connectors. For solid-core conductors, twist the exposed end clockwise three turns to compact strands before soldering or crimping. Stranded wire benefits from tinning–heat the strands evenly while applying a thin layer of rosin-core solder to prevent oxidation. Avoid melting adjacent insulation by keeping the iron tip clean and using a heat sink when working near plastic sheathing.

• Tools required:
• Precision stripper (calibrated for 16–22 AWG)
• Temperature-controlled soldering station (300–350°C)
• Crimping pliers with ratcheted jaws
• Fine-grit sandpaper (1200-grit) for cleaning copper
• Heat-resistant silicone tubing (sleeve) or adhesive-lined shrink wrap

When joining conductors, match polarity if applicable–most devices use a 1.5 mm bullet connector with male/female terminals. Crimp first for mechanical strength, then solder for conductivity. For temporary connections, employ a butane torch’s blue flame to heat-solder quickly, reducing thermal stress on nearby components. Always test continuity with a multimeter before finalizing; resistance should read <0.1 Ω for short runs.

For permanent splices, stagger joints by at least 30 mm to prevent short circuits under vibration. Apply liquid electrical tape or self-fusing silicone tape in a spiral pattern, overlapping each layer by 50%. Secure the splice with heavyduty tie wraps every 40 mm. If shielding is present, ground the braid to the chassis using a 4–6 mm ring terminal and a stainless steel screw. Avoid daisy-chaining–the ground path should be direct.

1. Cut conductors to exact lengths, accounting for 10% extra for trimming.
2. Strip both ends, verifying insulation removal with a magnifying lens.
3. Insert conductors into terminals fully–no exposed copper should remain.
4. Crimp with pliers using medium pressure; tug test at 2 kgf.
5. Apply heat-shrink tubing, starting from the center outward to prevent air pockets.
6. Re-test under load conditions–voltage drop should not exceed 0.3V.

Identifying Positive and Negative Terminals in a Vehicle Socket

Check the socket’s center pin first–it’s always the hot terminal. Use a multimeter set to DC mode: connect the red probe to the pin and the black probe to the socket’s outer rim. A reading of 12-14 units confirms polarity. If the display shows a negative value, reverse the probes. Avoid guessing: reverse polarity fries connected devices instantly.

Examine the socket’s casing for a small tab or protrusion on one side. This marks the return path. Test it by touching the black probe to this tab while keeping the red probe on the center pin. A steady reading without fluctuation indicates a proper ground. If no tab exists, trace the socket’s housing–most vehicles ground through the metal frame.

For aftermarket adapters, inspect the wiring colors: red denotes power, black or brown indicates ground. Factory-installed sockets often use standardized coding, but third-party units may vary–verify with a multimeter before trusting color alone. Never assume: mismatched connections cause shorts, overheating, or fires.

If the socket lacks markings, shine a light inside to spot burn marks or corrosion–these often appear on the positive terminal. Clean both terminals with a wire brush before testing to ensure accurate readings. For permanent modifications, solder connections and insulate with heat-shrink tubing to prevent vibration-induced failures.
