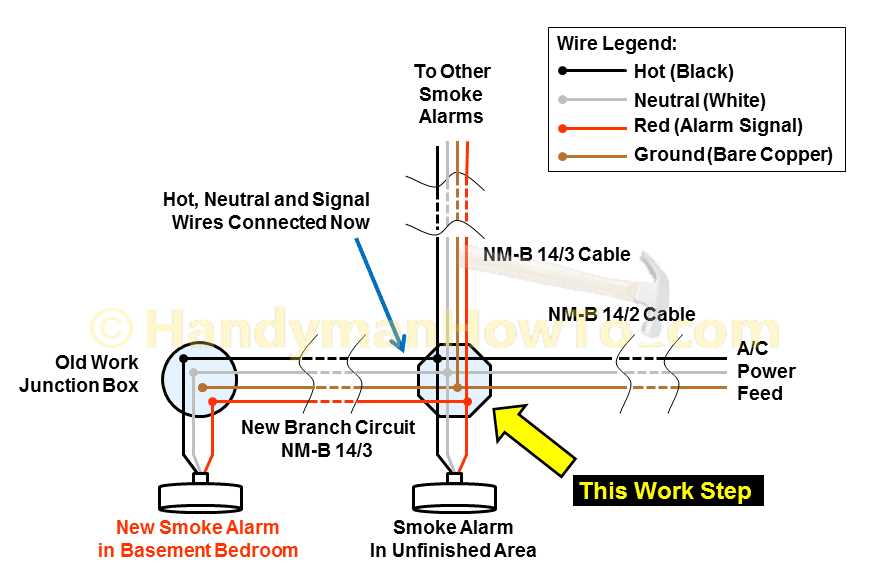

Complete Guide to Wiring a 120V Smoke Detector Step by Step
Use a 14-gauge solid copper wire for the entire circuit–anything thinner risks voltage drop and false alarms. Connect the hot (black), neutral (white), and ground (bare or green) wires directly to the device’s labeled terminals without splicing unless absolutely necessary. Bypass the interconnect wire (red) if the unit operates standalone; otherwise, strip 3/8 inch of insulation and secure it under the same terminal screw as another identical unit in the chain.
Never daisy-chain power through multiple alarms–each must tap the same circuit breaker to prevent overloading. Test continuity with a multimeter after tightening each connection: 120V AC at the hot terminal, 0V between neutral and ground, and less than 1 ohm across interconnect wires. If readings fail, recheck splices for stray strands or loose screws before energizing.
Install the mounting bracket first, aligning the knockout with the electrical box. Secure the device by twisting it clockwise until the tabs lock–counterclockwise rotation damages the backplate. If the unit chirps post-installation, verify the battery backup (if present) and ensure the ground wire isn’t touching a neutral terminal, which causes erratic behavior.
For parallel connections, strip 5/16 inch of insulation from the red interconnect wire and twist all exposed ends together with a wire nut, then tape the nut tightly to prevent slippage. Confirm all alarms sound simultaneously during a test by pressing the test button on the originating unit–delays indicate faulty interconnect wiring.
Replace the entire circuit if any alarm fails the self-test or shows corrosion on the terminals. Use non-aluminum wiring and UL-listed components exclusively; mixing incompatible metals accelerates oxidation, shortens lifespan, and violates most building codes.
How to Connect Hardwired Fire Alert Systems
Begin by installing a dedicated 20-amp circuit breaker for the alarm network, ensuring it powers only the devices. Use 14-gauge NM-B copper cable for 15-amp circuits or 12-gauge for 20-amp; never mix wire gauges in a single run. Label each cable at both ends with the room or zone it serves–this prevents confusion during troubleshooting or future expansions.
Connect the hot (black) wire to the first unit’s L (line) terminal, then daisy-chain it to subsequent devices using pigtail splices. The neutral (white) wire follows the same path, terminating at the N (neutral) screw. For interconnected systems, attach the red or yellow wire to the interconnect terminal–this ensures all alarms sound when one detects danger. Cap unused wires with wire nuts and tuck them into the electrical box.
Grounding and Testing
Attach the bare copper or green-insulated ground wire to the ground screw in each electrical box, even if the device lacks a ground terminal. After securing all connections, restore power and test each unit using the test button. Verify all alarms sound simultaneously–if one remains silent, check the interconnect wire for continuity with a multimeter. Avoid using push-in terminals; loop wires clockwise around screws for reliable connections.
For battery backup models, install a fresh 9V or lithium cell before finalizing the installation. Document the circuit layout with a hand-drawn schematic, noting wire colors, terminal assignments, and breaker location. Store this alongside the property’s electrical panel records for quick reference during maintenance or emergencies.
Key Elements of a Mains-Powered Fire Alarm System
Always verify the device’s compliance with UL 217 or NFPA 72 standards before installation. Non-certified units may fail under voltage fluctuations or emit false signals when exposed to steam or cooking fumes.
The backup battery–typically a 9V alkaline or lithium cell–must be replaced every 6–12 months, even if the unit remains silent. A swollen or leaking battery can corrode internal contacts, rendering the entire circuit inoperative. Label the installation date on both the device and battery for tracking.
Each unit requires three core connections:
- Hot (ungrounded conductor) – Directly links to the breaker panel’s 15A or 20A circuit. Use 14 AWG copper wire for 15A circuits, 12 AWG for 20A.
- Neutral (grounded conductor) – Returns current to the panel. Do not splice neutrals from multiple devices–each must maintain its own unbroken path.
- Interconnect wire – A dedicated conductor (usually orange or yellow) synchronizes alarms across multiple units. Never use the neutral or ground as an interconnect substitute.
Mounting location dictates performance. Install units on ceilings at least 4 inches from walls or on walls with the top edge 4–12 inches below the ceiling. Avoid dead-air pockets above doors, near HVAC vents, or within 10 feet of cooking appliances. High-humidity areas like bathrooms require units with moisture-resistant seals.
Test functionality monthly using the test button, not an open flame or aerosol spray. A failing alarm often emits a low-battery chirp (once every 30–60 seconds) or a trouble beep (three rapid pulses). Replace the entire unit if testing reveals inconsistent volume, slow response, or failure to sync with interconnected devices.
Splice connections using twist-and-solder or rated push-in connectors, never tape alone. Exposed copper oxidizes, increasing resistance and risking intermittent failures. Secure all splices in a UL-listed junction box; never bury conductors behind drywall. Mark each wire at both ends with heat-shrink labels to simplify future troubleshooting.
For whole-home coverage, space units no more than 30 feet apart, with at least one on every level (including basements and attics with habitable space). Add extra units near sleeping areas–response time drops by 50% when outside a 15-foot radius. Replace all units simultaneously after 10 years; dust accumulation and sensor degradation reduce sensitivity below detectable thresholds.
How to Install a Hardwired Fire Alarm Network: A Precision Walkthrough
First, shut off the power at the circuit breaker serving the alarm circuit. Use a non-contact voltage tester to confirm the absence of current at the junction box where you’ll connect the devices. Identify the hot (black), neutral (white), and ground (bare or green) conductors–mismatching these will trip the breaker or damage the unit.
Strip ½ inch of insulation from each wire end using wire strippers. Tighten the stripped ends into the corresponding terminals on the alarm’s backplate: black to brass, white to silver, ground to green. Secure the backplate to the junction box with mounting screws, ensuring no wires are pinched beneath it. Loose connections cause intermittent failures; verify each terminal screw is tightened to 12 in-lbs of torque.
Interconnecting Multiple Alarms: Critical Path Mapping
| Alarm Location | Interconnect Wire Color | Function |
|---|---|---|
| Master Unit (near panel) | Red | Signal output to slaves |
| Slave Unit 1 (hallway) | Yellow | Signal input/output |
| Slave Unit 2 (bedroom) | Orange | Signal input |
Daisy-chain the alarms by splicing a red interconnect wire between the master and each slave. Use UL-rated wire nuts to join the wires; twist clockwise until resistance increases. Tape each nut with electrical tape to prevent unraveling. The master’s output terminal sends a 9V pulsating signal that triggers all units–improper splicing creates silent failures.
Testing and Final Validation
Restore power and press the test button on the master unit. All alarms should emit a synchronized 85 dB temporal-3 pattern within 3 seconds; delays indicate a weak interconnect splice. Measure voltage at each slave’s interconnect terminal–it should read 8–9V AC during alarm. If readings drop below 7V, recheck splices and wire gauge (minimum 14 AWG for runs over 50 feet). Document each unit’s serial number and test date on the circuit breaker label for future reference.
Seal junction boxes with blank covers after ensuring no exposed conductors remain. Label the breaker with the alarm circuit description and date. Revisit this setup annually: replace batteries in units every 6 months, and test interconnect integrity by triggering the master–marginal voltage degradation is normal after 7 years and signals imminent failure.
Identifying the Correct Wires: Hot, Neutral, and Interconnect
Verify wire functions by checking insulation color codes and terminal labels before making connections. Standard household alarms use three core conductors, each serving a distinct role.
The hot conductor (typically black or red) carries the supply voltage. Confirm its function using a non-contact voltage tester–this wire should register 110-125VAC relative to ground. Connect this to the terminal marked “L” or “Line.” Misidentification risks damaging the device or creating a short circuit.
The neutral conductor (white) completes the circuit. Test continuity between this wire and the neutral bus bar in the service panel. Attach it to the “N” terminal. Improper neutral connections cause erratic operation or failure to power on.
- Avoid assuming white wires are neutral in older installations–verify with a multimeter.
- Never splice neutral wires from separate circuits; this violates electrical codes.
- If neutral is absent (rare in modern systems), consult an electrician to upgrade wiring.
The interconnect wire (usually yellow, orange, or another non-standard color) synchronizes multiple units. This conductor should show no voltage when idle but carry a pulsed signal during an alarm. Connect it to the corresponding terminal on each device, ensuring consistent color coding across the network.
For retrofit projects, trace existing wires using a tone generator and probe. Label each conductor at both ends before disconnecting legacy systems. Replace deteriorated or brittle wiring, especially in installations older than 15 years–insulation breakdown increases failure risk.
- Map wire routes between devices before cutting or splicing.
- Test interconnect continuity with devices powered off to avoid false signals.
- If replacing a single unit in a series, confirm the new model supports existing interconnect protocols (e.g., NFPA 72 compliance).
