Complete Wiring Guide for 125cc Pit Bike Kick Start System Layout
For a correct rebuild of your 100-140 cm³ trail quad’s manual-start electrical layout, begin by tracing the lone 12V power lead from the magneto to the rectifier–this is the sole charging source. Use a multimeter set to DC 20V to confirm a minimum 13.8V output at 5,000 RPM before proceeding.
Locate the ignition coil’s primary winding marked “+” (red) and “-” (black). Solder a 18 AWG silicon-jacketed wire between the positive terminal and the magneto’s output pad, ensuring no more than 0.3 Ω resistance. The negative terminal must be grounded directly to the frame via a M6 bolt tightened to 12 Nm torque–avoid chassis paint contamination.
The kill switch circuit relies on a momentary NO (normally open) push-button. Connect its single terminal to the ignition coil’s negative line through a 1N4007 diode (cathode facing the coil) to prevent voltage spikes from damaging the CDI unit. Verify the diode’s forward voltage drop is 0.7V before securing connections with heat-shrink tubing.
For lighting, if equipped, wire the headlamp directly to the battery via a 30A fuse using 14 AWG wire–bypass the stator entirely to eliminate voltage fluctuations at idle. Label each wire with white shrink-wrap and permanent marker codes (IG, GRD, LT, SW) to streamline future diagnostics.
Before final assembly, perform a spark test by removing the spark plug, grounding the electrode to the engine block, and engaging the kick lever. A bright blue spark with a sharp snap sound confirms correct timing–adjust the CDI’s trigger wheel gap to 0.5 mm if sparks are weak or irregular.
Small Displacement Off-Road Engine Manual Ignition Wiring Guide
Begin by locating the magneto (alternator) coil output wire–typically a white or green conductor with thin insulation. Connect this directly to the CDI unit’s ignition input terminal, bypassing any regulator/rectifier components. Verify coil resistance between 200–600 ohms for proper spark generation; deviations indicate a faulty stator requiring replacement.
Wire the CDI’s ground to the engine casing using a 12–14 AWG bare copper wire, ensuring a clean, unpainted contact surface. Poor grounding causes intermittent firing or weak spark, leading to hard starts or misfires. Avoid routing near high-vibration areas to prevent fatigue breaks.
Attach the spark plug wire to the CDI’s high-voltage output, securing with dielectric grease to prevent moisture ingress. Route away from sharp edges and moving parts, maintaining a minimum 25mm clearance to prevent chafing. Inspect the wire’s insulation integrity every 50 operating hours–cracks or burns necessitate immediate replacement.
| Component | Wire Color | Function | Gauge (AWG) |
|---|---|---|---|
| Magneto Coil | White/Green | AC Output | 20–22 |
| CDI Ground | Bare Copper | System Ground | 12–14 |
| Ignition Coil (+) | Red/Black | 12V Supply | 16–18 |
| Kill Switch | Black/White | Ground Short | 18 |
Integrate a momentary-on kill switch between the CDI’s ground and a dedicated black/white wire. This creates an intentional short to disable ignition when pressed. Test functionality by engaging the switch while observing spark at the plug–absence confirms proper installation.
For engines with lighting coils (uncommon in manual-start configurations), isolate the yellow/blue wires at the harness connector. Cap them with heat-shrink tubing to prevent accidental shorts, which can overload the stator and cause ignition failure. Use a multimeter to verify no continuity exists between these and ignition circuit wires.
Routing all wiring through a protective loom reduces wear from heat and vibration. Secure with zip ties every 10–15cm, avoiding tight bends or loops that can induce interference. After assembly, bench-test with a multimeter: CDI should show ~100–200mA draw when activated, with no voltage drop exceeding 0.5V across connections.
Locating Critical Parts in a Manual-Ignition Electrical System
Begin by tracing the magneto coil–the primary power source in minimalist off-road machines. Positioned beneath the flywheel, it generates alternating current when the pedal activates the crankshaft. Verify continuity with a multimeter; resistances should read between 0.2–1.5 ohms for the charging coil and 100–300 ohms for lighting coils if present. A deviation suggests wire corrosion or a fractured winding.
Next, isolate the CDI unit, typically a compact rectangular module near the magneto. This component regulates ignition timing by processing signals from the pickup coil. Check for a 3–5 wire harness–any fewer indicates a capacitor-discharge system lacking external power reliance. Probe the black/white wire (ground) and the remaining leads; voltage spikes should register 200V+ during pedal engagement.
The ignition switch in bare-bones setups often doubles as a kill button. Look for a two-wire connection: one spliced to the CDI’s trigger input, the other grounded. Test by bridging these terminals–if the engine halts, the switch is functional. Rust on contacts mimics short circuits; clean with 1200-grit sandpaper or replace if pitting exceeds 0.5mm.
Inspect the spark plug cap and its resistor–omitted in some racing variants. Resistance should measure 5k–15k ohms; lower values (1k ohm) risk damaging the CDI’s internal circuitry. Route the high-tension lead away from metal frames to prevent induced interference, which manifests as erratic idling or misfires during acceleration.
For the ground circuit, prioritize the engine block connection. Use a 10mm bolt directly threaded into bare metal, not painted surfaces. Corrosion here mimics a dead battery–symptoms include dim lights or failure to fire. Apply dielectric grease to bolt threads to prevent future oxidation, ensuring current flow remains below 0.1 ohms for optimal performance.
Step-by-Step Connections for Stator and Spark Module
Locate the magneto coil wires–typically three: a ground (black/green), a lighting/alternator output (yellow), and an ignition trigger (white/red). Solder the white/red lead directly to the CDI unit’s trigger input, ensuring no frayed strands touch adjacent connections. Use heat-shrink tubing over exposed joints to prevent moisture ingress; verify insulation resistance with a multimeter (>1MΩ).
Ground and Power Distribution

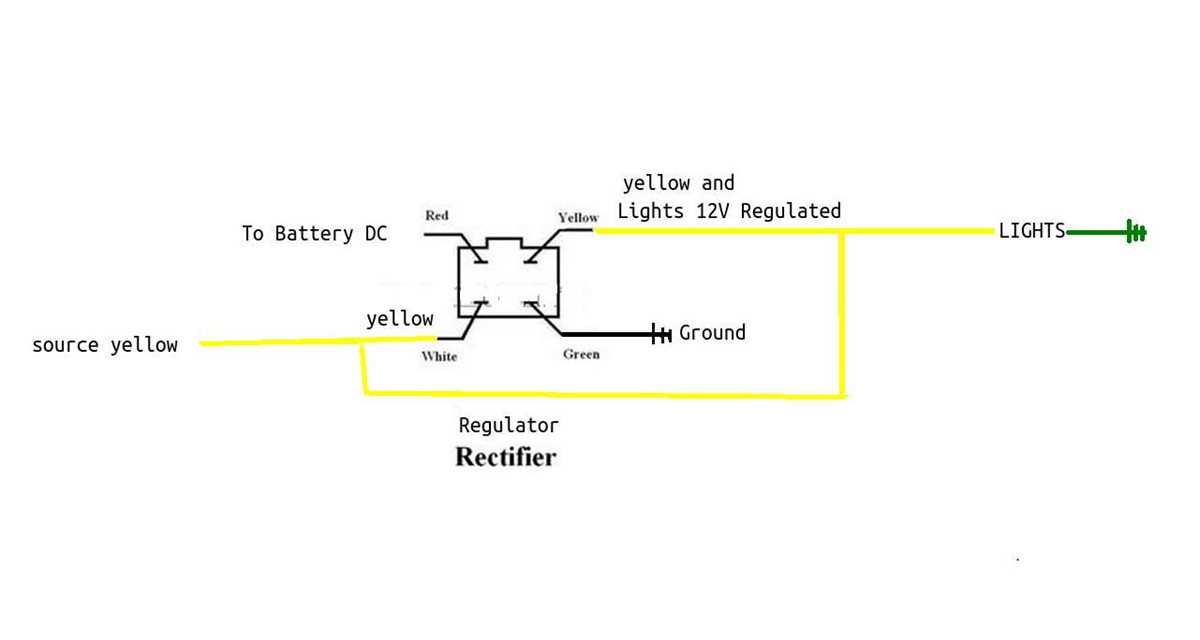

Attach the black/green wire to the engine casing via a dedicated bolt, scraping off paint or anodizing at the contact point for a clean electrical path. Route the yellow wire to the rectifier-regulator’s AC input, marking polarity if the stator outputs AC (most single-cylinder engines follow this). For DC lighting systems, combine the yellow output with a bridge rectifier before feeding the battery; omit this step if the system relies solely on AC headlights.
Connect the CDI’s power input to a 12V source–either the battery positive (if electric start is absent) or a separate ignition switch. Probe the trigger circuit with an oscilloscope: a clean 5-10V pulse per revolution confirms proper phasing. If misfires occur, swap the white/red lead with the yellow wire on the CDI; some aftermarket modules reverse these inputs.
Correct Placement of the Kill Switch and Ground Wire
Mount the kill switch on the left handlebar, within a 3–5 cm reach of the throttle grip, ensuring the button faces upward for instant access. Avoid locations prone to water splashes or excessive vibration, such as near the fork tubes or brake lever pivot. Use a waterproof rubber grommet to seal the cable entry point, preventing moisture ingress that can corrode connections over time.
The ground wire must terminate at a bare metal contact on the frame, preferably near the battery’s negative terminal. Clean the contact surface thoroughly with a wire brush to remove paint, rust, or oxidation–bare metal ensures a low-resistance path. Secure the connection with a stainless steel bolt (M6 or M8, depending on the frame) and star washer to prevent loosening from vibrations. Avoid attaching grounds to flexible components like fenders or subframes, as movement can break the circuit.
Testing Connections Before Final Assembly
Check continuity between the kill switch and ground point using a multimeter set to the 200-ohm range. A resistance above 0.5 ohms indicates a poor connection–re-clean surfaces or relocate the ground. Probe the kill switch in both “run” and “off” positions: the circuit should read near-zero resistance when active and infinite resistance when disengaged. If readings fluctuate, replace the switch or inspect for intermittent wiring breaks.
Route the ground wire along the main frame rail, securing it every 10–15 cm with zip ties to prevent chafing against sharp edges. Leave a 2–3 cm slack near bends to accommodate movement without strain. For spliced connections, use heat-shrink tubing with adhesive lining–standard electrical tape degrades under UV exposure and engine heat, risking shorts. Crimp terminals must be soldered afterward to prevent corrosion from capillary action.
Position the kill switch cable away from rotating parts (e.g., spokes, chain) and high-temperature zones like the exhaust manifold. If the wiring harness passes near the engine block, wrap it in silicone-impregnated fiberglass sleeving rated to 200°C. Avoid bundling signal wires (e.g., ignition, sensors) with power wires, as electromagnetic interference can cause erratic shutdowns. Separate them by at least 5 cm or use twisted-pair wiring for critical paths.
Finalize the setup by verifying the kill switch’s mechanical reliability. Apply firm, repeated presses while observing the engine response–delayed cutoff or partial engagement suggests internal wear or a misrouted ground wire. For dual-sport applications, wrap the switch housing in self-fusing silicone tape to mitigate dust ingress, which can jam the mechanism. Store tools (small socket set, crimpers) onboard during initial rides to adjust connections if issues arise.
