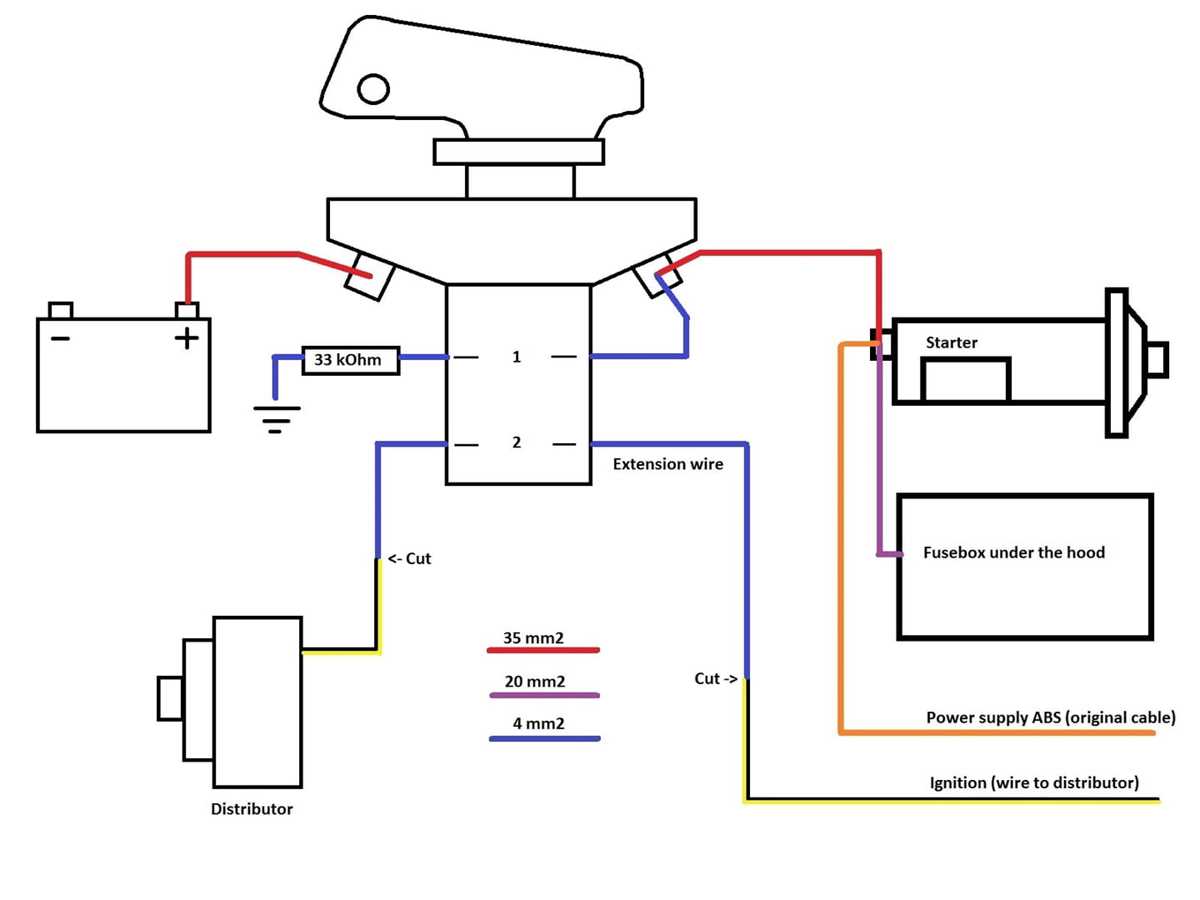

Complete Guide to Wiring a 12V Battery Cutoff Switch Step by Step
Begin by locating the primary energy source negative terminal under the vehicle’s hood or near the rear storage compartment. Use a 4 AWG cable for high-current applications, such as dual-battery setups in off-road vehicles or marine environments–thinner gauges risk overheating under sustained loads above 100 amperes.
Mount the activation lever within reach of the driver’s seat, ideally no more than 12 inches from the steering column. Secure it with stainless steel bolts to prevent corrosion from moisture or road salt. If installing in a confined space, verify clearance for rotation–minimum 2.5 inches sweep radius is required to avoid interference with adjacent components.
Connect the input stud of the isolation device directly to the main supply line using crimped copper lugs, not solder–solder joints weaken under vibration. For systems with alternator backfeed, insert a 200-amp ANL fuse between the energy cell and the disconnect to protect against surges. Skip this step only in deep-cycle configurations where charge cycles are controlled externally.
Grounding must terminate at a dedicated chassis point, not shared with electronics. Use a star washer between the lug and sheet metal to ensure a gas-tight connection. After securing all terminals, test the mechanism with a multimeter: resistance should read below 0.1 ohms when engaged; if higher, check for surface oxidation or loose fasteners.
For auxiliary circuits like winches or refrigerators, wire a secondary relay to activate only when the master disconnect is closed. Label all connections with heat-shrink tubing marked in bold text–mismatches during future maintenance are a leading cause of avoidable system failures.
Power Disconnect Relay Connection Guide
Locate the main positive cable from the storage cell and interrupt it directly before the vehicle’s electrical system. Use a 200-amp continuous-rated solenoid with tinned copper contacts to prevent corrosion under high loads. Mount the relay within 30 cm of the cell terminal to minimize voltage drop–calculate resistance: 0.003 Ω per meter for 4 AWG copper cable.
- Connect the relay’s common (COM) terminal to the storage cell’s positive post using a 4/0 AWG cable.
- Link the normally open (NO) terminal to the starter or distribution block with 2 AWG cable.
- Route the activation coil leads to a remote push-button or ignition-switched circuit–ensure the circuit can handle 1.8 watts (150 mA at 12 volts).
- Add a 20-amp fuse on the control circuit side to protect against short circuits.
Ground the relay’s frame directly to the chassis using a dedicated 6 AWG cable–avoid relying on factory grounds, which may corrode over time. Test the installation with a multimeter: measure 0.1 V or less across the relay when engaged. If voltage exceeds this threshold, re-crimp terminals and apply dielectric grease to connections.

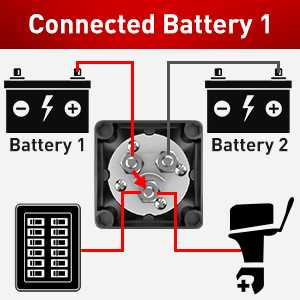

For dual-cell setups–common in RVs or marine applications–install separate relays on each positive line. Wire the activation coils in parallel so a single toggle breaks all current paths simultaneously. Place a 10,000 µF capacitor across the control circuit to absorb voltage spikes during disengagement, prolonging relay life.
- Mark all cables with heat-shrink labels identifying purpose (e.g., “MAIN FEED,” “ACTIVATION”).
- Seal connections with adhesive-lined shrink tubing–standard tubing fails under vibration.
- Create a bypass jumper on a 30-amp Anderson connector for emergencies; store it in a labeled toolbox.
Monitor the relay’s temperature during initial testing. Use an infrared thermometer: surface readings above 60°C indicate insufficient contact pressure. If overheating occurs, upgrade to a 300-amp solenoid with silver-plated contacts–copper-only variants degrade at sustained 200+ amp loads.
Essential Gear and Supplies for Installing an Isolation Device
Select a heavy-duty disconnect mechanism rated for at least 100 amperes continuous current–marine-grade brass or tin-plated copper contacts resist corrosion better than steel under humid conditions. Verify the toggle’s ingress protection (IP67 or higher) if mounting outdoors or near potential splash zones. Keep a multimeter with a minimum 600V AC/DC range and 0.5% accuracy to confirm circuit integrity before finalizing connections.
Use 4 AWG or thicker tinned copper cable for primary leads; shorter runs permit 6 AWG but never compromise on stranding–minimum 1,330 strands per conductor reduces voltage drop under load. Polyolefin heat-shrink tubing (3:1 shrink ratio) with adhesive lining seals terminals better than vinyl sleeves, preventing moisture ingress. Include a 60-amp fuse holder inline with the positive lead, positioned no more than 7 inches from the power source to protect against catastrophic faults.
A ratcheting crimper with dies sized for 4–2/0 AWG ensures cold-welded terminations; avoid soldered joints in high-current paths due to vibration fatigue. Insulated spade connectors with a 3/8″ barrel accommodate thicker cables and accept heat-shrink for strain relief. Nylon wire ties (0.15″ wide, 120 lb tensile strength) secure loom every 4 inches, preventing chafing on sharp edges. Wear nitrile gloves when handling terminals–skin oils accelerate oxidation on exposed copper.
Step-by-Step Guide to Installing an Energy Isolation Device
Select a heavy-duty rotary or solenoid-based isolator rated for at least 1.5 times the continuous current draw of your system. For most automotive applications, a 200-amp unit ensures sufficient headroom. Mount the unit within 18 inches of the power source’s positive terminal to minimize voltage drop.
Disconnect the ground strap first to prevent accidental short circuits. Use a 10mm wrench to loosen the negative clamp, then set it aside. Avoid letting the clamp touch any conductive surfaces while the positive side remains connected.
Strip 12mm of insulation from the incoming and outgoing cables. Crimp 8mm ring terminals using a hydraulic crimper–cheap pliers won’t achieve a gas-tight connection. Tin the joints with solder for corrosion resistance, but don’t overheat the cable to avoid insulation damage.
Critical Connection Sequence
| Step | Source Terminal | Device Terminal | Torque (Nm) |
|---|---|---|---|
| 1 | Positive post | Input stud | 8-10 |
| 2 | Output stud | Main fuse block | 7-9 |
| 3 | Ground reference | Chassis | 12-14 |
Apply dielectric grease to all terminal surfaces before fastening. Tighten bolts in a star pattern to ensure even pressure distribution. Over-torquing can strip threads; under-torquing risks high-resistance connections.
Test the installation with a multimeter set to continuity mode. Probe the input stud while toggling the isolator. A reading below 0.1 ohms confirms proper operation. If resistance exceeds this value, recheck crimps and terminal tightness.
For solenoid-based units, wire the activation circuit through an ignition-switched relay. This prevents accidental drain when the vehicle is off. Use 16-gauge wire for the control circuit and 12-gauge for the solenoid coil. Route all cables away from hot or moving components to avoid abrasion.
Final Validation Checklist
Verify no exposed strands touch adjacent terminals or chassis. Secure cables with loom or spiral wrap every 6 inches. Reconnect the ground strap last, ensuring it contacts bare metal–never paint–for optimal conductivity. Cycle the isolator five times before final use to confirm mechanical reliability.
Selecting the Optimal Power Isolation Device for Automotive or Industrial Use
Prioritize current rating as the first criterion. Most auxiliary electrical systems in passenger vehicles operate within 20-80 amperes continuous draw, while heavy machinery like tractors or emergency power units may demand 150-300 amperes. Verify the device’s interrupt capacity–ideally double the system’s peak load–to prevent contact welding during power surges. Industrial-grade units often carry UL or SAE certifications indicating compliance with severe duty cycles; consumer models rarely exceed 125% safety margins.
Choose between rotary toggle or solenoid-activated mechanisms based on accessibility needs. Rotary levers offer tactile feedback and require minimal mounting depth (typically under 30mm), making them suitable for exposed installations in marine environments or off-road vehicles where moisture resistance matters. Solenoids, though bulkier, enable remote actuation–critical for machinery where manual operation may pose safety risks (e.g., generator enclosures). Ensure solenoid coils tolerate voltage spikes; 24V coils on a 12V system will fail prematurely due to overheating.
Evaluate terminal configurations: M8 studs suit high-current applications, while spade connectors (6.3mm) simplify DIY retrofits but may oxidize in humid climates unless tinned. Look for dual-circuit variants if isolating both primary and secondary power feeds (common in dual-battery setups). Avoid single-pole devices in systems with parasitic loads exceeding 50 milliamps; residual current can drain energy storage overnight even when the device is “off.”
Thermal management differentiates reliable units. Automotive models often use brass or copper-silver alloy contacts rated for 125°C, while industrial variants employ ceramic insulators to handle 200°C+ environments. Check the derating curve–devices rated for 200A at 25°C may only support 120A at 85°C, a critical oversight in engine compartments where temperatures frequently exceed 70°C. For enclosed spaces, select units with ventilated enclosures or built-in heat sinks.
Assess mounting constraints. Surface-mounted levers need 45mm clearance from adjacent components to avoid accidental engagement; recessed installations require panel cutouts matching the manufacturer’s template within ±0.5mm tolerance to prevent vibration-induced wear. For discrete applications (e.g., vintage cars), consider micro-solenoids measuring under 50mm in diameter, though these typically max out at 100A. Always confirm ingress protection (IP) ratings: IP67 resists immersion, IP54 suffices for dusty environments, and IP40 offers basic splash resistance.
Match activation voltage to system specifics. Most devices trigger at 80-110% of nominal rating, but marine-grade units often include low-voltage lockout at 9.5V to prevent deep discharge that would strand equipment. For dual-voltage systems (e.g., 12V primary with 24V cranes), opt for devices with voltage-selection jumpers or independent coils. Remote-controlled variants add 5-10ms latency; ensure compatibility with system controllers if precise timing matters (e.g., automated load shedding).
Testing and Validation Before Deployment
Measure contact resistance with a milliohm meter–values above 0.5 mΩ indicate potential failure under load. Conduct a load test at 75% of the device’s rating for 15 minutes, monitoring for voltage drop exceeding 0.1V. For automatic devices, simulate low-voltage conditions using a bench supply to verify cutoff thresholds. Replace any unit showing signs of arcing (visible pitting on contacts) or inconsistency in switching times; these failures often occur without warning under 1,000+ cycles.
