Simple 12V DC Power Supply Schematic Guide with Circuit Layout

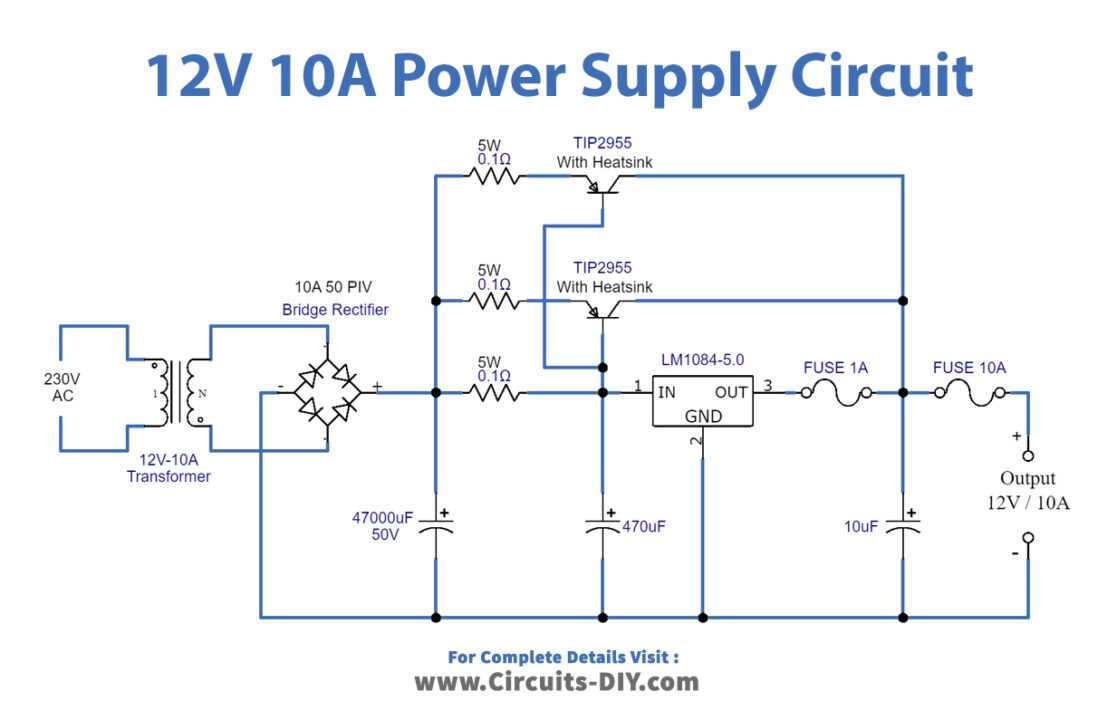

For reliable low-voltage electronics, a linear regulator-based configuration remains the simplest solution with minimal noise output. A basic setup requires a step-down transformer rated at 18V AC, a bridge rectifier (1N4007 diodes), and a smoothing capacitor (2200µF, 25V). Connect the transformer’s secondary to the rectifier input, then place the capacitor across the rectifier’s output terminals. A 7812 voltage stabilizer IC will ensure consistent 12V DC delivery under loads up to 1A, provided adequate heat sinking is attached.
Switch-mode alternatives dramatically improve efficiency for higher current demands. Use an LM2596 adjustable module, configured with a 33µH inductor, a 100µF input capacitor, and a 1000µF output capacitor. Set the feedback resistors (1KΩ and 3.3KΩ) to lock the voltage at 12V. This topology achieves 80-90% efficiency while handling up to 3A, but requires careful PCB layout to minimize electromagnetic interference.
For precision applications, consider a buck converter with synchronous rectification. The TPS5430 chip, paired with a 10µF ceramic input capacitor, a 47µH power inductor, and a 33µF low-ESR output capacitor, delivers 12V at currents exceeding 3A with ripple under 30mV. Add a 1µF bypass capacitor close to the IC’s VIN pin to suppress noise. Thermal performance improves with a 4-layer board, dedicating an inner plane to ground.
Testing any configuration requires a multimeter (DC voltage mode) and a dummy load resistor (12Ω, 10W). Verify ripple with an oscilloscope–linear designs should show
Building a Reliable Low-Voltage Energy Source
Start with a 230V AC to 15V AC transformer rated for at least 1.5 times your load current. For a 1A output, choose a 18VA core to prevent saturation under transient conditions. Avoid cheap toroidal units with thin wire–opt for copper windings with a diameter no less than 0.5mm to reduce resistive losses.
Bridge rectification requires four 1N4007 diodes or a single KBPC2510 module for currents above 2A. Mount diodes on a heatsink if ambient exceeds 40°C; derate current by 20% per additional 10°C above 75°C junction temperature. Place a 470μF/35V electrolytic capacitor immediately after the rectifier to smooth ripple–ESR below 0.2Ω is critical for stability.
Voltage regulation demands a LM7812 linear regulator for loads under 1A or an LT1083 for 3A+ applications. Bypass the input and output pins with 0.1μF ceramic capacitors (X7R dielectric) within 5mm of the regulator’s body to suppress high-frequency noise. For thermal management, attach a TO-220 heatsink with a thermal resistance below 5°C/W when dissipating more than 2W.
Load transients can destabilize the output. Add a 1000μF/25V low-ESR capacitor at the load terminals, paired with a 1Ω/1W resistor in series to dampen oscillations. For sensitive electronics, insert a π-filter: two 220μF/16V tantalum capacitors flanking a 10μH inductor to attenuate ripple below 5mVpp.
Short-circuit protection isn’t inherent in linear regulators. Fuse the input with a slow-blow 2A fuse and add a 15V Zener diode (1N4744A) across the smoothing capacitor to clamp voltage spikes. For adjustable outputs, replace the 7812 with an LM317, using 240Ω and 2.2kΩ resistors for a 12.5V nominal output–ensure resistor tolerances are 1% or better.
Efficiency drops in linear designs due to heat dissipation. For loads above 500mA, consider switching topologies like the LM2596 (buck converter) with a 47μH inductor and Schottky diode (SR360). Switching regulators achieve 75–90% efficiency but introduce high-frequency noise–shield the inductor with a ferrite bead and ground the case to the input ground plane.
Test stability under full load with an oscilloscope. Probe at the output capacitor; ripple should not exceed 50mVpp at 50Hz or 100Hz for bridge-rectified designs. Use a load resistor (e.g., 12Ω/10W) for benchmarking–transient response time should settle within 200μs. For battery backup, add a P-channel MOSFET (IRF9540) and diode OR-ing circuit to seamlessly transition between sources.
Basic Components Required for a 12-Volt Direct Current Source
Start with a transformer matched to your input voltage–typically a 230V AC to 12V AC step-down unit with a current rating 20-30% higher than your load demands. A 1A output transformer suffices for low-drain devices, while a 3A or 5A variant handles motors or LEDs without overheating. Verify core material: toroidal transformers minimize electromagnetic interference, though EI-core types are cost-effective and widely available.
Select bridge rectifiers with at least 50V reverse voltage tolerance and current capacity exceeding your transformer’s secondary rating. The 1N4007 series works for basic designs, but Schottky diodes (e.g., 1N5822) reduce forward voltage drop to ~0.4V, improving efficiency in compact builds. Heat-sink the diodes if ambient temperatures exceed 40°C or load currents surpass 1A.
Incorporate a filter capacitor: a 2200µF electrolytic for every 1A of load current, ensuring ripple stays below 100mV. Low-ESR variants (e.g., Nichicon UHE series) enhance performance in switching applications. For stability, pair it with a 0.1µF ceramic capacitor across the output to suppress high-frequency noise.
Add a voltage regulator like the LM7812–its built-in thermal overload protection suits steady-state loads up to 1.5A. For adjustable output, the LM317 requires an input-output differential of 3V; calculate resistor values using Vout = 1.25(1 + R2/R1). Prevent oscillations by placing capacitors (10µF input, 1µF output) within 5cm of the regulator’s pins.
Fuse the primary side with a slow-blow type sized at 120% of the transformer’s primary current. PCB traces should handle 2A/mm2 for copper weights under 1oz; widen traces near rectifiers and regulators to avoid thermal bottlenecks. Ground connections must converge at a single point to eliminate ground loops, especially in audio or precision equipment.
Step-by-Step Wiring of a Transformer-Based Low-Voltage Source
Select a step-down transformer with a 230V AC primary and a 15V AC secondary rating. Verify the secondary winding’s no-load output with a multimeter–it should measure between 16-18V AC to compensate for diode voltage drops during rectification. If the reading deviates, check for shorts or open windings before proceeding.
Solder a bridge rectifier (e.g., KBPC3510) to the transformer’s secondary terminals. Orient the AC inputs to the outer leads and the DC outputs to the inner pins. Confirm polarity: the positive terminal will be the pin marked with a “+” or a square pad on the PCB. For stability, mount the rectifier on a heatsink if the load exceeds 2A.
Connect a 1000µF electrolytic capacitor across the rectifier’s output. Ensure the negative lead goes to the ground trace and the positive to the DC rail. This capacitor smooths the ripple to under 1.5V peak-to-peak at full load. For stricter regulation, add a 0.1µF ceramic capacitor in parallel to suppress high-frequency noise.
| Component | Value | Purpose |
|---|---|---|
| Transformer | 230V/15V, 3A | AC step-down conversion |
| Bridge Rectifier | KBPC3510 | Full-wave rectification |
| Capacitor (Electrolytic) | 1000µF, 25V | Ripple filtering |
| Voltage Regulator | LM7812 | Stable 12V output |
Install an LM7812 regulator on the DC rail. Wire the input pin to the smoothed DC, the ground pin to the common ground, and the output pin to the load. Bolt the regulator to an aluminum plate if ambient temperatures exceed 50°C or if the current draw nears 1A. Without a heatsink, derate the maximum current to 500mA.
Terminate the output with a 2.1mm barrel jack or screw terminals. Use 18AWG wire for currents above 1.5A to prevent voltage sag under load. Test the output under load: at 1A, the voltage should remain within 11.8-12.2V. If it drops below 11.6V, check the transformer’s VA rating–upgrade to a 5A unit if necessary.
Add a 1N4007 diode across the regulator’s input and output pins, cathode to the input. This protects against reverse voltage if the input capacitor discharges into the output. For LED indicators, wire a 3mm red LED with a 1kΩ resistor to the output–it should illuminate when the source is active.
How to Select the Right Rectifier for Your Low-Voltage Conversion Unit
Prioritize a bridge rectifier for currents exceeding 1A. A single-phase bridge configuration reduces ripple by 50% compared to a full-wave center-tapped design, while handling higher loads without additional voltage drop. For 3A continuous output, select a bridge module rated for 6A or higher–Schottky diodes like SB560 offer 0.5V forward drop, minimizing heat in compact enclosures.
For transient loads or pulsed applications, ultra-fast recovery diodes prevent output spikes. The UF4007 (1A, 1000V) recovers in 75ns, outperforming standard rectifiers in high-frequency charging circuits. Pair it with a 1000µF smoothing capacitor to maintain
When space is constrained, single-chip solutions like the KBPC3510 integrate four diodes in a 10x10mm package, handling 35A surge currents. Mount it on a 1.5mm thick copper pour with thermal vias to dissipate 3W idle loss. For low-noise applications, linear pre-regulation with a 78L05 followed by post-smoothing eliminates high-frequency harmonics introduced by switching topologies.
Test rectifier performance under 2x nominal load for 30 minutes–case temperature should stabilize below 60°C. Use a 1N5822 for light loads (
