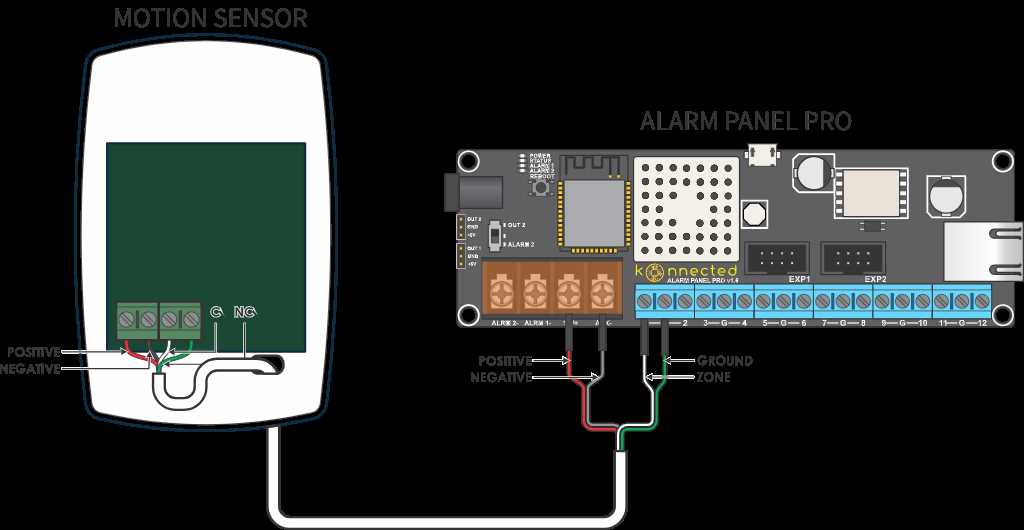

Complete 12V PIR Motion Sensor Wiring Guide with Circuit Diagram
Start with a direct power feed from a stabilized supply–never splice into uncontrolled circuits. Use a pair of 18 AWG stranded cables (minimum 0.75 mm² cross-section) for the input lead. Verify polarity with a multimeter: red to positive, black to ground. Most infrared modules tolerate 11–15 volts DC, but exceeding 16 volts risks permanent failure. A linear regulator (e.g., LM7812) adds safety if voltage spikes occur.
Mount the detection unit at a 2.1-meter height, angled downward 15 degrees to cover a 12-meter radius. Avoid placement near heat vents, direct sunlight, or areas with rapid temperature shifts–false triggers surge under these conditions. Secure cables with UV-resistant zip ties every 30 centimeters to prevent sagging. Use waterproof glands for outdoor setups, sealing entry points with neutral-cure silicone.
The alarm output typically sinks current–connect it to a relay coil (SPDT type) rated for 10 amperes at 24 volts AC or DC. For LED feedback, wire a 220-ohm resistor in series with a 5 mm red diode. Ground loops cause erratic behavior; isolate the sensor’s ground from heavy-duty circuits (e.g., motors) using a 1:1 isolation transformer or optocoupler (PC817).
Test latency after assembly: the delay between movement and signaling should stay under 2 seconds. If lag exceeds 3 seconds, inspect for voltage drop across connections–clean oxides from terminals with a fiberglass pen. Replace degraded cables immediately; frayed insulation under 6 watts causes intermittent failures.
Connecting a Low-Voltage Occupancy Detector: Step-by-Step Power Hookup
Begin by identifying the three terminals on the passive infrared unit: power input (+), ground (-), and trigger output. Most twelve-volt models use red for positive, black for negative, and yellow or orange for the signal lead. If colors differ, consult the datasheet–never rely on assumptions, as reverse polarity can destroy the board instantly.
Use a regulated supply that matches the device’s current draw; typical 12 V occupancy detectors pull 15–50 mA quiescent, spiking to 100–250 mA during detection. Measure actual draw with a multimeter–exceeding the onboard linear regulator’s 300 mA limit will require an external buck converter or a separate 5 V rail. Below is a quick reference for compatible supply specs:
| Input Voltage Tolerance | Minimum Current Rating | Recommended Fuse | Wire Gauge Range |
|---|---|---|---|
| 11–13.8 VDC | 350 mA (continuous) | 315 mA PTC or fast-blow | 22–28 AWG |
| 13.8–15 VDC (automotive) | 500 mA (short spikes) | 400 mA fast-blow | 20–24 AWG |
Terminal Hookup Order
Connect the negative lead last to minimize risk of shorts–if the unit has no polarity protection, a single slip can fry the circuit. Strip 5–6 mm of insulation, twist the strands tightly, and apply 60/40 rosin-core solder for corrosion resistance, especially outdoors or in humid environments. Avoid acid-core solder; residue corrodes copper over time.
For the signal output, match the trigger logic to the receiving device–most detectors default to active-high (3.3 V or 5 V pulse), but some require a pull-down resistor. Test with a logic probe: a brief high pulse confirms detection, while constant high indicates faulty adjustment or wiring. If connecting to a relay coil rated at 12 V, add a flyback diode (1N4007) in reverse bias across the coil terminals to suppress voltage spikes exceeding 100 V.
Secure all connections with heat-shrink tubing or liquid electrical tape–exposed conductors invite shorts and corrosion in damp conditions. Route wires away from moving parts and heat sources; sensor lenses are sensitive to infrared emissions, and nearby hot surfaces can cause false triggers. Verify functionality by covering the lens–output should cease within 3–5 seconds (factory timers vary). Adjust sensitivity and delay pots only after confirming stable power; inaccurate factory defaults often mask wiring errors.
Selecting Optimal Parts for Your Low-Voltage Detection System
Begin with a Fresnel lens module rated for 20–30 meters detection range–HC-SR501 variants handle passive infrared signatures reliably while minimizing false triggers from pets under 25 kg. Verify the relay module or transistor switching mechanism matches the load current; a solid-state relay (SSR) rated at 2A continuous draw prevents arcing on inductive loads like small DC pumps or LED strips exceeding 10W.
Source a regulated 1.2W buck converter if powering directly from an automotive or solar battery bank–linear regulators dissipate excessive heat under 0.5A loads. For standalone installations, integrate a 1000mAh lithium-polymer backup; ensure the charging IC supports under-voltage lockout at 2.8V to prevent deep discharge degradation during prolonged standby periods.
Critical Connectivity Choices
- Use 0.35mm² silicone-jacketed wire for signal paths to avoid voltage drop exceeding 0.1V over 5 meters–copper-clad aluminum alternatives corrode within 18 months in high-humidity environments.
- Select crimp terminals with tin-plated barrels for termination; solder joints risk embrittlement under thermal cycling below -10°C.
- Opt for waterproof enclosures rated IP66 if installing outdoors–polycarbonate variants resist UV yellowing better than ABS after 2-year exposure.
Prioritize modules with adjustable hold-time settings; default 5-second delays waste power in permanently monitored areas, while 30-second delays miss transient activity in high-traffic zones. Test ambient light rejection by verifying the photodiode’s cutoff threshold at 5 lux–cheaper units trigger erroneously during twilight conditions.
For zones requiring concealment, choose units with microamp standby consumption; some models drain 1–3mA continuously, depleting backup batteries within months of infrequent use. Pair with a latching circuit if integrating with alarm panels–momentary output signals require additional transistor buffering to drive 120dB piezoelectric sirens without false resets.
Calibrate sensitivity using a thermal reference target–an 8×8cm aluminum plate warmed to 37°C simulates human infrared emissions at 3 meters. Factory presets typically over-amplify signals, causing triggers from distant heat sources like vehicle engines or HVAC exhaust ducts; fine-tune via onboard trimpot for ±10% detection radius consistency.
Step-by-Step Connection Guide for Low-Voltage Detection Device to Switching Unit
Begin by verifying the input voltage rating of the switching unit matches the power supply output. Most modules supporting automated triggers tolerate 10–15V DC, but some require exact 11.5V for stable operation. Check the datasheet for clamping diode protection if the supply exceeds nominal limits to prevent damage during transient spikes.
Identify the detection device’s output terminals: signal, ground, and auxiliary power. The signal terminal typically sources a low-current trigger pulse (3–5mA) when movement is detected. Connect this directly to the switching unit’s control pin, ensuring polarity compatibility–reversing it may cause erratic behavior or module failure. If the switching unit lacks optical isolation, add a 1KΩ resistor in series to limit current draw.
Use stranded copper wire (0.2–0.5mm²) for all connections to accommodate vibration and flexing. Solid-core wire risks fatigue fractures at solder joints. Solder each junction with 60/40 rosin-core solder, applying heat for 3–5 seconds to avoid cold joints. Insulate each connection with shrink tubing (minimum 2:1 ratio) or electrical tape, overlapping by 50% to prevent short circuits in confined spaces like junction boxes.
Ground both the detection device and switching unit to a common reference point. Avoid daisy-chaining grounds to prevent noise coupling, which can cause false triggers. If the power supply shares a ground with other high-current devices (e.g., motors), route the ground wire directly to the battery negative terminal instead of a shared bus bar.
Test the circuit before final assembly. Temporarily bypass the switching unit by jumpering its load terminals to confirm the detection device outputs a consistent signal. Observe the signal on an oscilloscope if available; a clean square wave indicates proper operation, while jagged edges suggest electrical interference. If unstable, add a 10µF electrolytic capacitor between the signal and ground terminals to filter high-frequency noise.
Load-Side Configuration
Select a switching unit capable of handling the load’s inrush current. Mechanical relays tolerate 10× the nominal current for 20ms, while solid-state variants may require snubber circuits if driving inductive loads (e.g., solenoids). For loads above 5A, use a flyback diode (e.g., 1N4007) across inductive components to protect the switching unit from voltage spikes.
- For resistive loads (lights, heaters), connect directly to the switching unit’s output.
- For inductive loads, add a varistor (MOV) rated 20% above supply voltage between load terminals.
- For capacitive loads, insert a 10Ω resistor in series to limit turn-on surge current.
Finalize mounting with strain relief. Secure cables at both ends using zip ties or conduit clamps spaced ≤200mm apart. Avoid sharp edges on mounting surfaces–use grommets if passing through metal enclosures. Label each wire near its termination point for future maintenance. Power on the system and validate operation across the full ambient temperature range (-10°C to +50°C) if deployed in unconditioned environments.
