Complete Guide to 12V Trailer Wiring Harness Installation and Color Codes
Begin by matching the color-coded harness leads to their corresponding functions on the utility hauler. Ground (white) attaches to the frame, brown handles marker/running lamps, yellow manages left turn/signals, and green controls the right side. Voltage drop tests are mandatory–use a multimeter to confirm at least 11.8V at each connection under load before finalizing. Skipping this risks intermittent failures at highway speeds.
For 7-pin setups, the blue wire (auxiliary) must be isolated if unused–direct exposure to 12.5V systems can fry sensitive components. Standard connectors leave this pin floating, but aftermarket controllers often repurpose it for electric brakes or hydraulic actuators. Verify manufacturer specs; incorrect routing triggers false fault codes in newer tow vehicles with integrated trailer stability programs.
Wire gauge matters: 14 AWG suffices for tail lights (2-3A draw), but upgrade to 12 AWG minimum for brakes or winches (10A+). Solder joints last longer than crimp connectors–use marine-grade heat shrink to combat corrosion from road salt. Avoid daisy-chaining grounds; a single dedicated ground point near the tongue prevents voltage drop cascades.
Test all functions with a helper before towing: brake pressure (if applicable), turn distance visibility at 500 feet, and marker light functionality. Replace cracked lenses immediately–moisture ingress causes shorts. For LED upgrades, add a load resistor (10W, 50Ω) in parallel to prevent rapid flash cycles on older tow vehicles.
Understanding Your Vehicle’s Electrical Connection for Towing
First, locate the power outlet behind your tow vehicle’s rear bumper–this is where the harness plugs in. Most modern vehicles have a factory-installed port, but older models may require a custom adapter. Verify the connector type: common configurations include the 4-pin flat (basic lighting), 5-pin (adds reverse lights), 6-pin (includes auxiliary power), and 7-pin round (for larger loads like RVs). Matching the plug prevents signal interference and ensures all functions work reliably.

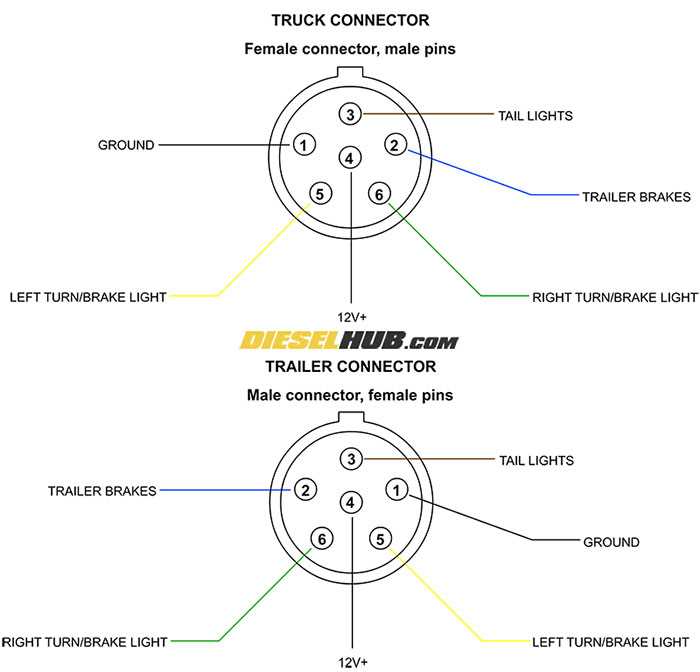

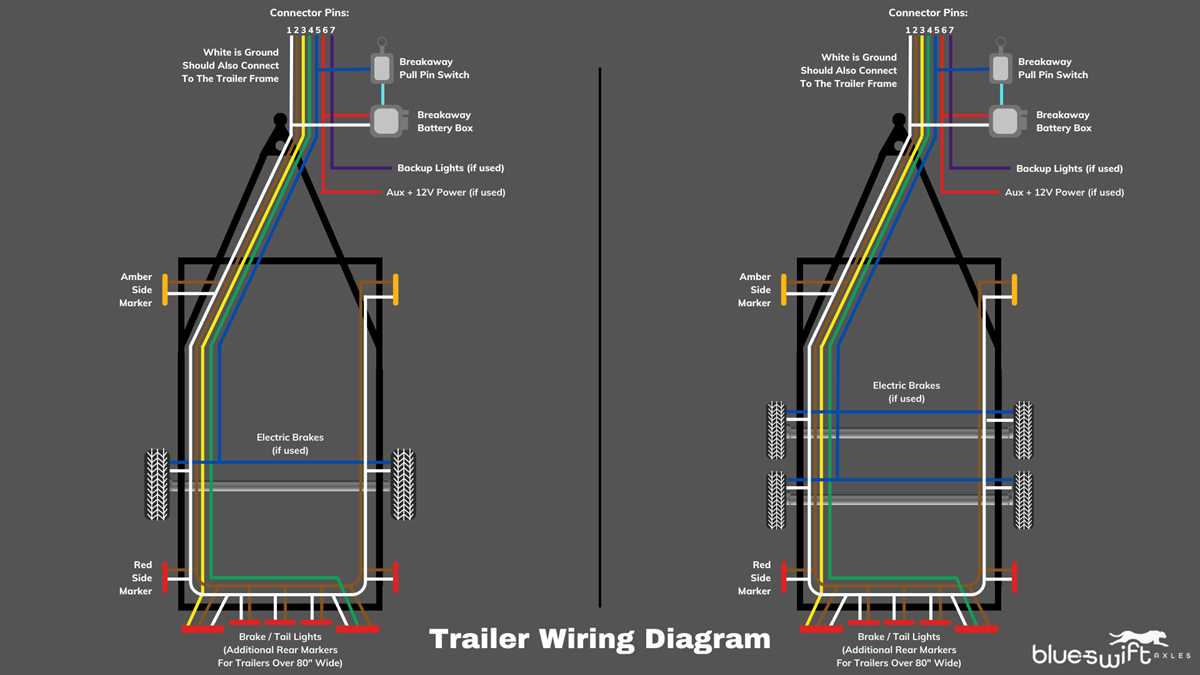

Identify each wire’s purpose before making connections. Standard color codes apply, though exceptions exist–always cross-check with the manufacturer’s specs. A typical setup includes:
- Yellow: Left turn/brake signal
- Green: Right turn/brake signal
- Brown: Running/tail lights
- White: Ground (critical for circuit integrity)
- Blue: Electric brakes (if equipped)
- Red: 12V auxiliary power (for charging or accessories)
Deviations from these colors often indicate aftermarket modifications–proceed with caution and test with a multimeter.
Ground the white wire directly to the tow vehicle’s chassis using a ring terminal and self-tapping screw. Avoid attaching it to painted surfaces; bare metal ensures a clean path for return current. For vehicles with aluminum frames, use a star washer to penetrate oxidation. Poor grounding causes flickering lights or intermittent failures–this step prevents 90% of common electrical issues.
Use dielectric grease on all connections to block moisture and corrosion, especially in wet climates. Apply a thin coat to male terminals before inserting them into the harness. For splices, solder joints hold up better than crimp connectors, though heat-shrink tubing with adhesive lining adds durability. Avoid electrical tape–it degrades over time and traps moisture.
For brake controllers, mount the unit within reach of the driver and connect it to the blue wire. Adjust the sync ratio (typically 4:1 to 7:1) based on load weight; heavier loads need proportionally less voltage. Test by actuating the brake pedal at 25 mph–wheels should lock without fishtailing. Incorrect calibration damages brake magnets or causes premature wear.
Install a fuse or circuit breaker near the battery to protect the auxiliary power line (red wire). A 20-amp fuse suits most small trailers; larger setups may require 30 amps. Overloading this circuit risks melting wires or starting a fire. Route the power line through a grommet in the firewall to avoid abrasion, and bundle it with existing cables using zip ties every 12 inches to prevent sagging.
Before finalizing, test every function with a circuit tester or plug in the load. Activate signals, brakes, and lights sequentially while observing the rear. Use a helper if needed–human error causes half of all wiring mistakes. Document any non-standard configurations, like LED lights (which draw less current) or zener diodes (to prevent voltage spikes), as they require special handling.
Regular maintenance prevents failures. Inspect connectors for corrosion every three months, especially after exposure to road salt. Replace frayed wires immediately; even a single damaged strand can disrupt the entire circuit. Store the harness in a dry place when not in use, and consider a protective cover for the plug to extend its lifespan.
Basic 4-Pin Connector Color Standards and Hookups
Always match the brown wire to the running lights–this is non-negotiable. Models vary slightly, but brown universally carries the marker and tail illumination signal. Connect it to the corresponding circuit on the tow vehicle’s harness, typically a 3-amp fuse-protected line. If substitution is unavoidable, use a wire with at least 18 AWG thickness to prevent voltage drop over distances exceeding 15 feet.
Yellow handles left-turn and brake signals combined; splice it directly to the tow vehicle’s left-turn/stop circuit, ensuring a clean, corrosion-free connection with a dielectric grease-coated butt connector. Green mirrors this setup on the right side. Cross-check both sides with a test light before finalizing–momentary shorts here can fry the vehicle’s relay module.
Ground Wire Criticals
White–the common ground–must terminate on a bare metal surface free of paint or rust, ideally near the coupler. Use a minimum 14 AWG wire for adequate conductivity; anything thinner risks intermittent failures under load. Bolt it securely with a star washer to penetrate corrosion-resistant coatings. Avoid relying on the frame alone: add a separate ground strap if factory welds show signs of fatigue.

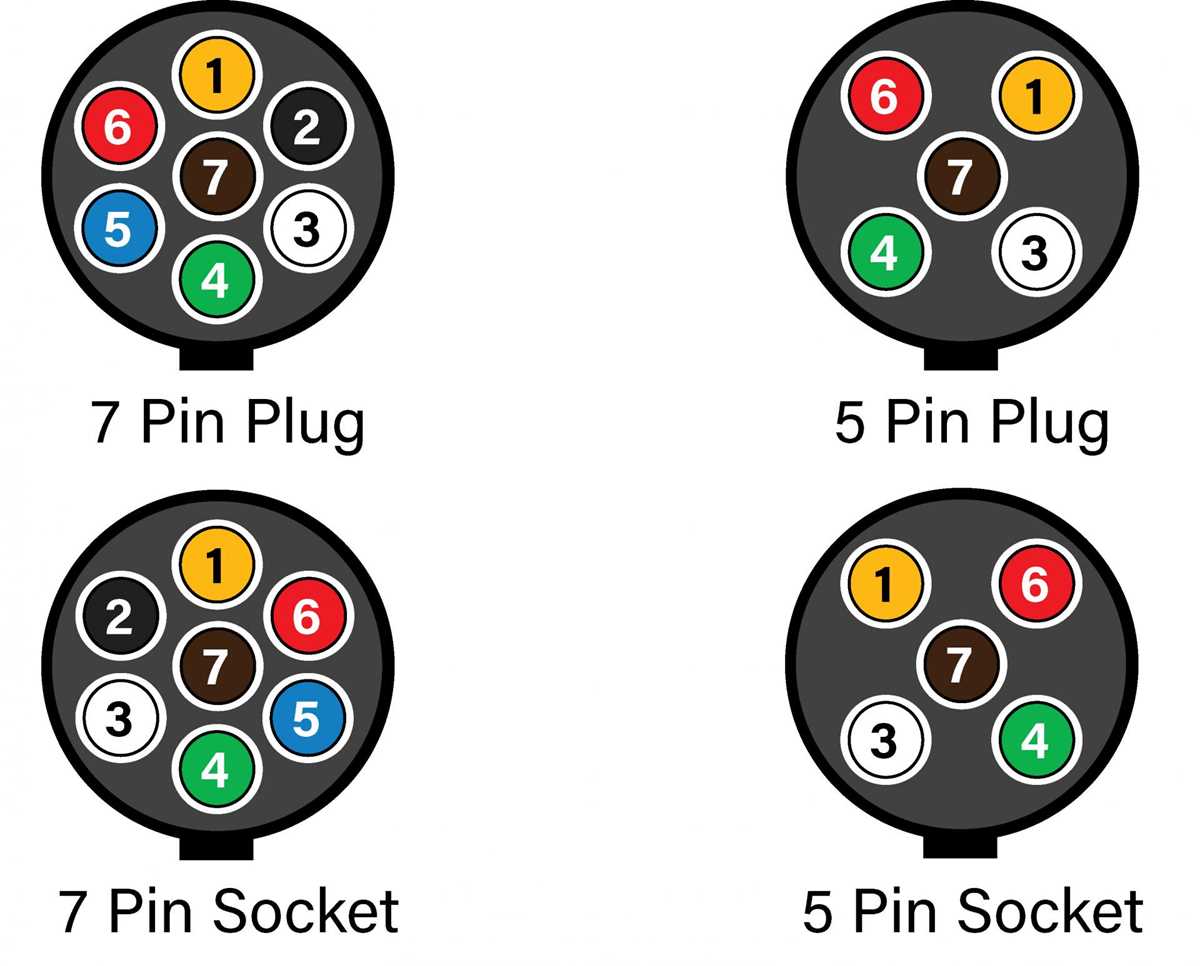

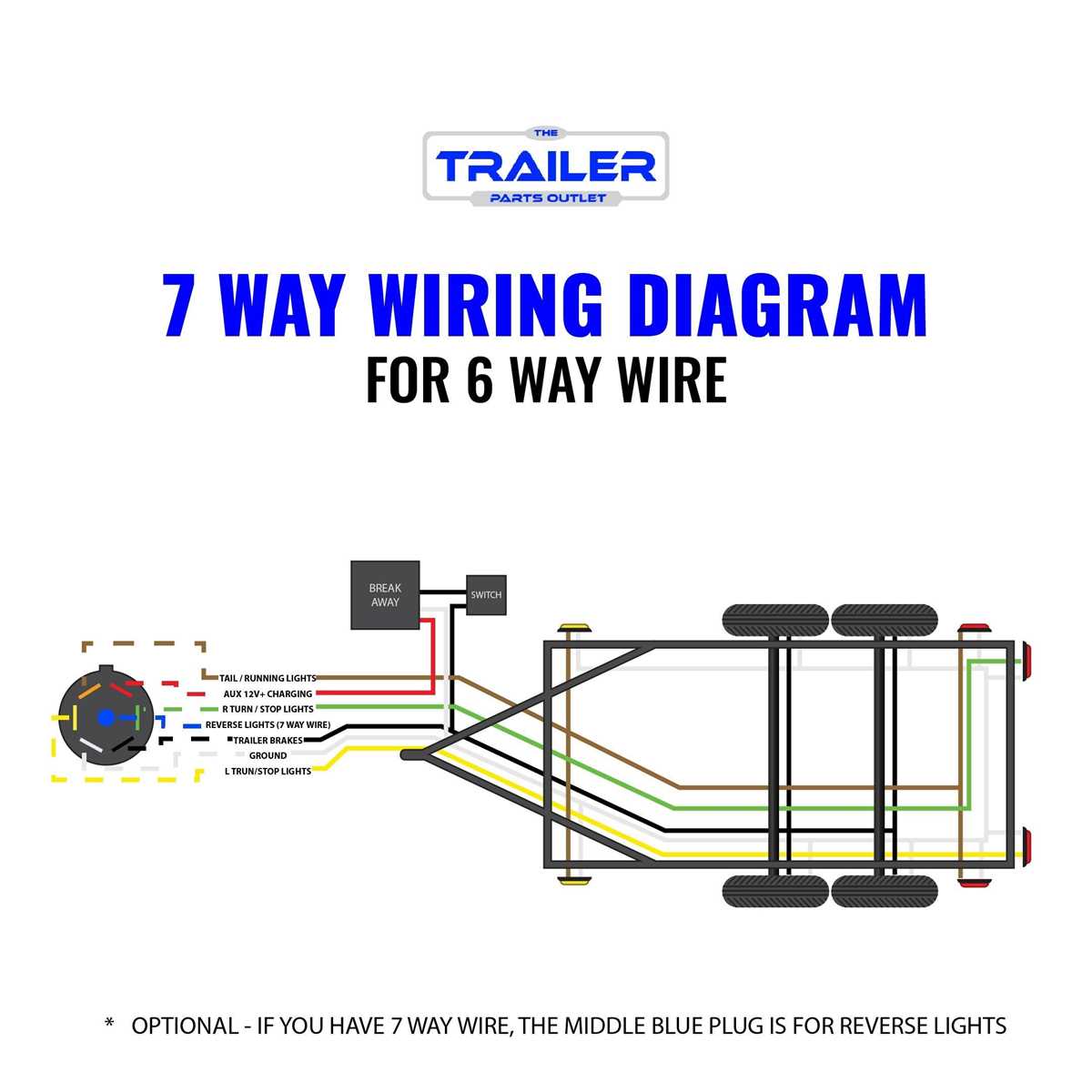

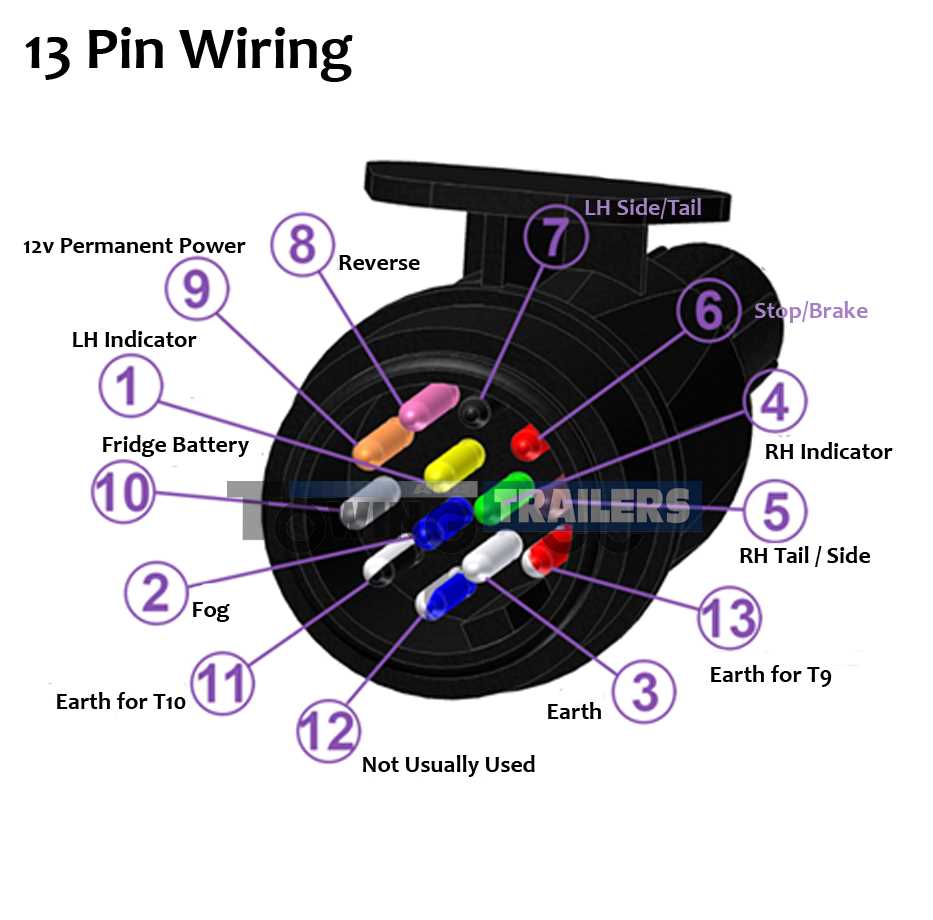

Step-by-Step 7-Pin Vehicle Connector Installation
Begin by securing a multimeter to verify voltage at the tow vehicle’s socket before connecting cables. Identify the correct pins using the standard color code: yellow (left turn), green (right turn), brown (tail lights), white (ground), blue (auxiliary), black (power), and red (brake signal). Test each pin for 12+ volts when activating the corresponding function–failure indicates a faulty circuit or blown fuse, requiring inspection of the vehicle’s harness or relay box.
Preparing the Connector and Harness
| Pin | Function | Wire Color | Test Voltage (V) |
|---|---|---|---|
| 1 | Left turn/stop | Yellow | 12-14 |
| 4 | Right turn/stop | Green | 12-14 |
| 2 | Tail/marker lights | Brown | 12-14 |
| 3 | Ground | White | 0 (continuity check) |
| 5 | Auxiliary circuit | Blue | Variable (if equipped) |
Strip 6mm of insulation from each wire, crimp a solder-seal terminal, then heat-shrink to prevent corrosion. For vehicles without a factory socket, splice wires directly into the taillight assembly using T-taps–avoid butt connectors for high-current circuits like brakes or power. Route wires through a flex conduit along the chassis, securing with zip ties every 30cm to prevent chafing against sharp edges or moving parts.
Final Connection and Testing
Attach the plug housing to the vehicle’s mounting bracket, ensuring the alignment tab faces upwards to prevent misconnection. Use dielectric grease on the pin contacts to inhibit moisture ingress. Activate each lighting function sequentially while observing the attached unit’s response–flickering or dim lights suggest a poor ground, requiring cleaning of the contact surface or relocation of the ground wire to a bare metal chassis point. For auxiliary circuits, confirm compatibility with the attached unit’s requirements (e.g., 10A fuse for 120W accessories) to avoid overheating.
Common Troubleshooting for Faulty Tow Vehicle Lighting
Check the ground connection first–corrosion or loose terminals are the most frequent culprits behind flickering or dead signals. Strip the wire, scrape the metal surface to bare material, and reattach with a crimp connector or solder. Temporary repairs with electrical tape fail under vibration; use heat-shrink tubing rated for outdoor use instead.
Test bulbs with a multimeter set to continuity mode. Even clear lenses can hide burned filaments. Swap suspect bulbs with known-good ones from another position–license plate or side markers often use the same base type. Replace entire socket assemblies if contacts are pitted or melted, not just the bulb.
Inspect harness connectors for bent pins or moisture ingress. Disconnect plugs, dry with compressed air, and apply dielectric grease before reconnecting. Tail light circuits typically share power with braking lights; isolate individual functions by probing with a test light while an assistant triggers each signal.
Verify fuse integrity beyond simply checking for breaks. Use a fuse tester or swap with a spare of identical amperage. A transient spike, like a loose alternator regulator, can blow fuses without leaving visible damage. Track voltage drops across circuits using a dedicated meter–any reading over 0.5V between battery and load indicates resistance points needing solder or replacement wire.
Examine wire routing for chafing against suspension components or sharp edges. Route alongside rigid structural members, securing every 18 inches with UV-resistant zip ties. Patch damaged sections with marine-grade splice connectors, not quick fixes like staple or household wire nuts.
For intermittent failures, tap components lightly with an insulated tool while circuits are active. A loose bulb socket or crimped connector will flicker under vibration, revealing the fault. Persistent issues after checks suggest a compromised junction box–disassemble and inspect printed circuit boards for hairline cracks or overheated traces.
