Complete 12V LED Work Light Wiring Guide with Schematic

Start by identifying your power source–a vehicle battery, portable battery pack, or 12-volt adapter. Ensure it delivers a stable 10-14V output to avoid flickering or overheating. Use a fuse rated at 10-15% above the maximum current draw of your fixture (e.g., 5A for a 20W bulb) placed within 7 inches of the positive terminal. This prevents short circuits while maintaining circuit integrity.

Select cables with a cross-section of at least 1.5mm² for runs under 3 meters and 2.5mm² for longer distances. Thinner wires cause voltage drops exceeding 0.5V, reducing brightness by 10% or more. Stranded copper wire is preferred over solid core–it resists vibration and fatigue from repeated flexing, common in mobile setups. Tin-plated terminals resist corrosion, especially in humid or outdoor conditions.

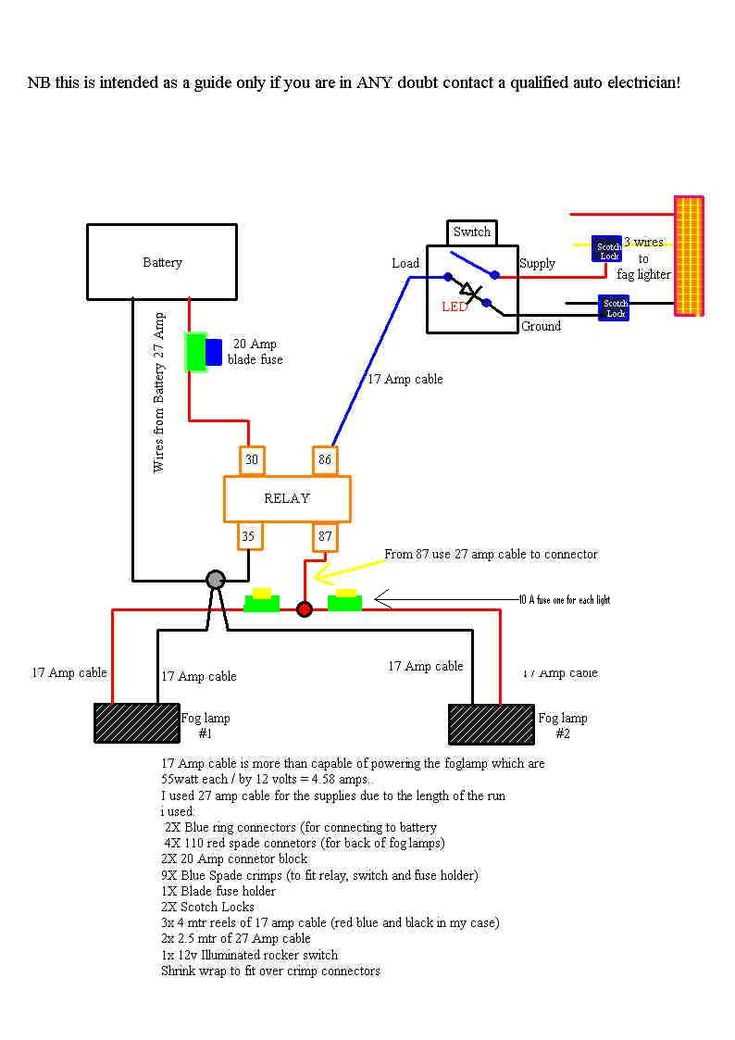

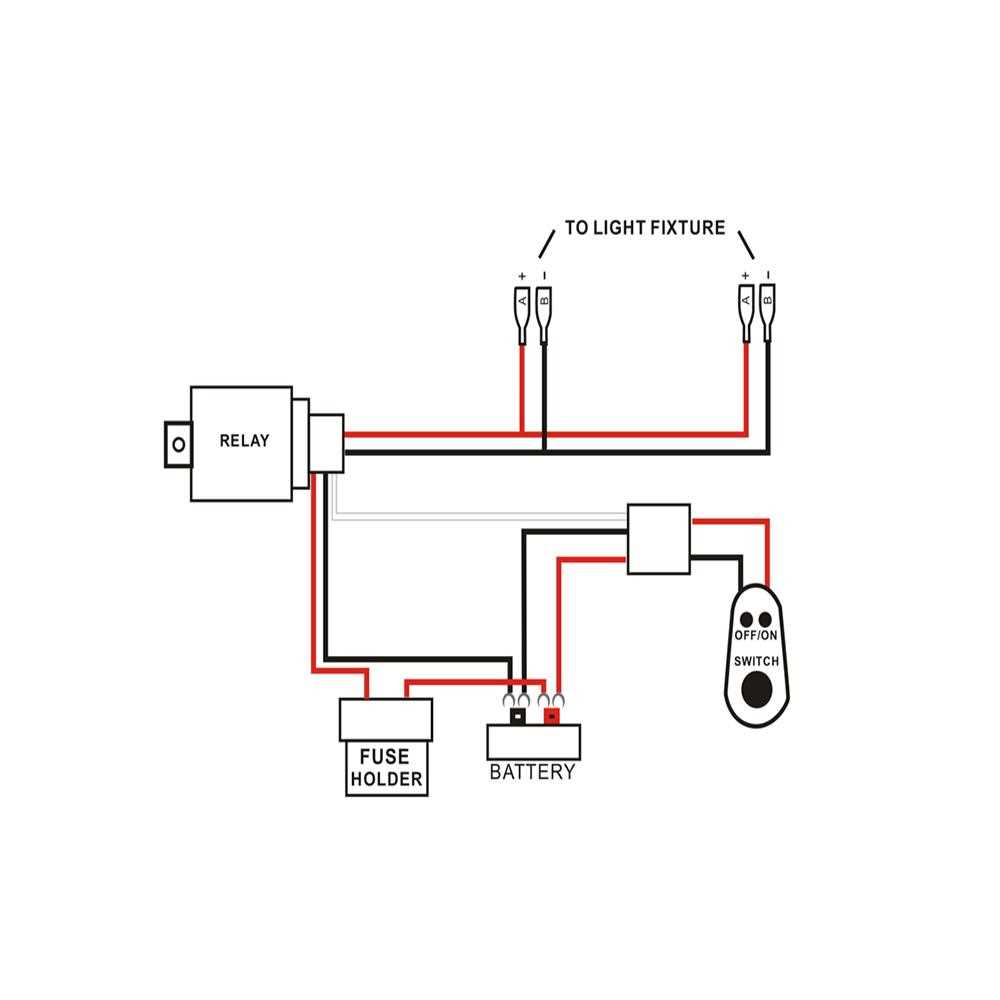

Map the circuit with three key components: switch, relay (if currents exceed 10A), and ground. For basic installations, connect the positive lead from the source to the switch, then to the illumination device, and finally to a chassis ground. Use crimp connectors rated for 20% above your expected load–soldering alone is unreliable under vibration. For multiple fixtures, parallel wiring ensures even voltage distribution. Test each connection with a multimeter before finalizing; a reading below 11.5V indicates a loose or undersized wire.

Avoid common mistakes: never splice wires with electrical tape–use heat-shrink tubing instead. Position the switch within easy reach but away from direct water exposure. If using a relay, a 30/40A SPDT model works for most applications, allowing manual override. For LED-based units, add a reverse polarity diode (e.g., 1N4007) across the terminals to protect against voltage spikes. Ground directly to the battery negative terminal or a clean metal surface–not painted or coated areas–to prevent poor conductivity.

Guide to Connecting Auxiliary Illumination on Low-Voltage Systems

Start with a 10A fuse between the power source and the first connection point to prevent overheating. Use 18 AWG copper wire for circuits under 5A and 16 AWG for loads up to 10A–thicker gauge reduces voltage drop over distances exceeding 3 meters. For multiple fixtures, wire in parallel rather than series to maintain consistent brightness; each unit should receive full system voltage directly. Ground all components to the chassis or a dedicated return path to avoid interference with other electronics.

Component Compatibility Reference

Fixture Type	Max Current Draw	Recommended Wire Gauge	Expected Voltage Drop (5m run)
LED strip (50cm)	0.5A	20 AWG	0.2V
Spot halogen	2.5A	16 AWG	0.6V
Flood incandescent	8.0A	14 AWG	0.8V

Solder all joints below 10A or use crimp connectors with heat shrink tubing for durability. Test polarity before final connections–reverse polarity can permanently damage LED elements. For mobile setups, secure wires with nylon ties spaced every 25cm to prevent vibration-induced shorts.

Selecting the Ideal Low-Voltage Illumination and Energy Supply

Opt for LED clusters rated between 200–800 lumens per unit for most tasks. Models with adjustable beam angles–typically 45° to 90°–allow precise coverage without overlighting. Verify IP65 or higher ingress protection if exposure to dust or moisture is expected, ensuring durability in demanding conditions.

Direct-wire fixtures to a deep-cycle battery with a 55+Ah capacity for extended runtime. Gel or AGM batteries resist vibration better than flooded types, making them preferable for mobile setups. Include a 10–15 amp fuse within 7 inches of the battery terminal to prevent short-circuit damage.

Matching Voltage Drop to Cable Gauge

Use 14 AWG copper wire for runs under 10 feet, switching to 12 AWG for distances up to 20 feet to maintain efficiency. Expect a 0.2V drop per 10 feet of 14 AWG wire, critical for maintaining brightness in auxilary setups. Always match the wire gauge to the accessory’s wattage; a 10W unit requires at least 16 AWG, while a 50W demands 10 AWG.

Select a regulated power adapter if tapping into a vehicle’s electrical system. Car chargers with 13.8V output prevent overcharging, extending bulb lifespan. For standalone setups, portable solar panels rated at 10–20W pair well with lithium-ion power stations, offering nighttime autonomy without grid reliance.

Testing and Mounting Strategies

Attach a multimeter set to 20V DC across the terminals before final connections; voltages below 11.5V indicate battery depletion. Mount units on aluminum backing plates to dissipate heat–LEDs lose 20% output if temperatures exceed 60°C. Secure fixtures with vibration-resistant mounts if used on machinery, preventing gradual loosening from engine pulses.

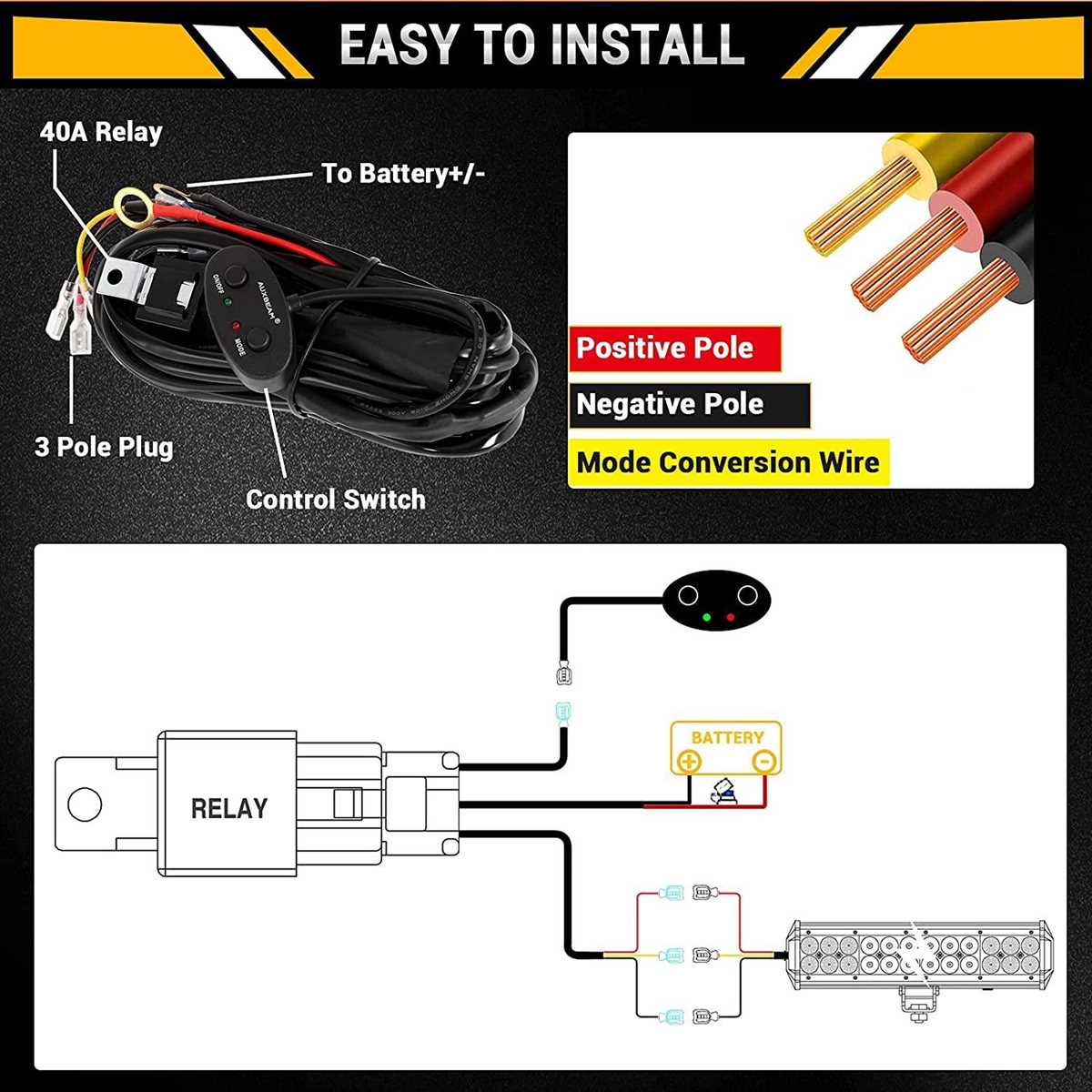

Equip toggle switches with internal illumination for visibility in dim settings, or install a relay if controlling multiple fixtures simultaneously. Keep the control switch within 6 feet of the user to minimize cable clutter, ensuring both convenience and safety during operation.

Step-by-Step Wire Connection for a Single Low-Voltage LED Auxiliary Lamp

Strip 6-8 mm of insulation from the ends of both the power feed and the fixture’s leads using a quality wire stripper. Twist the exposed copper strands tightly to prevent fraying, then slide a 4–6 mm piece of heat-shrink tubing onto each lead before soldering. Align the positive (typically red) lamp lead with the switched live feed, and the negative (usually black) lead with the chassis or common return. Apply rosin-core solder; once cool, slide the tubing over the joint and shrink it with a heat gun until a glossy, moisture-proof seal forms. Repeat for the second connection.

• Test continuity with a multimeter set to ohms;
• Secure the fixture’s housing with vibration-resistant mounts–avoid routing wires near sharp edges or rotating parts.
• Fuse the live feed at the battery with a 3A blade fuse no farther than 15 cm from the terminal to protect the circuit.
• Use 18AWG stranded copper wire for lengths under 3 m; step up to 16AWG for longer runs to minimize voltage drop.

Installing a Control Toggle for Your Low-Voltage Auxiliary Beacon

Select a momentary or latching switch rated for at least 10A to handle the amperage draw of a typical halogen or LED auxiliary beacon without overheating. Position the toggle within 30cm of the power source–longer runs increase voltage drop, which can dim LEDs or shorten bulb life. Use 16-gauge stranded wire for connections; solid wire becomes brittle under vibration.

Cut the supply line between the battery and lamp. Never splice into the ground cable–corrosion at the chassis connection can create voltage leaks that drain the battery overnight. Crimp both cut ends with fully insulated butt connectors; solder alone cracks under mechanical stress. Slide heat-shrink tubing over each connection before crimping to seal out moisture.

Mounting the Toggle Securely

Drill a 12.5mm hole for a standard panel switch; trace the template on masking tape to prevent paint chips. Insert the switch from inside the panel so the locking nut sits flush against the mounting surface. Use star washers under the nut to bite into the metal and prevent loosening from engine vibration. Route wires through a plastic grommet if they pass through sheet metal.

Connect the supply line from the battery to the center lug of the switch. Attach the wire leading to the beacon to either outer lug–polarity does not matter for a simple on/off toggle. Secure the switch body with the provided nut; overtightening strips threads, leaving the switch wobbly. Apply dielectric grease to the switch terminals before final tightening to block corrosion.

Testing for Safe Operation

Turn the vehicle ignition to “accessory” but leave the engine off to verify the switch controls the circuit independently. Flip the toggle; the beacon should illuminate instantly without flicker. Use a multimeter set to 20V DC scale to confirm 11.8–12.6V at the lamp terminals–voltages below 11.5V indicate excessive resistance in connections or undersized wire gauge.

If voltage tests pass but the beacon remains dim, inspect the ground connection; a corroded chassis point acts like a high-value resistor. Clean the mating surfaces with a wire brush, coat with zinc-rich grease, and retighten. Recheck current draw with a clamp meter–typical halogen units pull 4–6A, LEDs 0.2–0.8A. Excessive amperage suggests a short or failing bulb; replace faulty components before finalizing the installation.

Connecting Multiple Auxiliary Lamps: Series vs. Parallel Configurations

Always opt for a parallel arrangement when installing multiple low-voltage luminaires. In this setup, each unit receives the full system voltage–critical for maintaining consistent brightness and preventing dimming as more fixtures are added. For example, a 12-volt power source will deliver the same 12V to every connected lamp, regardless of quantity. Series connections, by contrast, divide the total voltage across all units, resulting in progressively weaker illumination and potential failure if one component malfunctions.

Voltage drop becomes pronounced in series circuits as the number of luminaires increases. A single 5-meter cable run with three halogen bulbs wired in series might show the following behavior: the first bulb receives only 8V, the second 3V, and the last barely glows with 1V–rendering the latter two nearly useless. Parallel circuits eliminate this issue, ensuring equal voltage distribution even over extended cable lengths, provided wire gauge is appropriately selected to minimize resistance losses.

Current handling requirements differ dramatically between the two methods. In series, the same current flows through each luminaire, but the total current draw remains low–ideal only for very low-power setups. Parallel connections, however, distribute current based on each unit’s resistance, so adding more fixtures increases total amperage drawn from the power source. A typical 20W auxiliary lamp draws approximately 1.67A individually; connecting five in parallel would demand 8.35A. Always verify your power supply’s rated output exceeds the cumulative load by at least 20% to account for startup surges and voltage fluctuations.

• Series pros:
  • Simplified connections (single path for current)
  • Lower total current draw from source
  • Minimal wire gauge requirements
• Series cons:
  • Unequal brightness distribution
  • Single point failure disrupts entire circuit
  • Performance degrades with additional units
• Parallel pros:
  • Consistent illumination across all units
  • Redundancy–failure of one luminaire doesn’t affect others
  • Scalable without performance degradation
• Parallel cons:
  • Higher total current draw requires robust wiring
  • More complex installation (multiple connections)
  • Power supply must handle increased load

Wire gauge selection is critical in parallel arrangements to prevent overheating and voltage loss. For a 10-foot run supplying five 20W luminaires in parallel, use 12 AWG copper wire to keep voltage drop below 3%. Thinner 16 AWG wire would result in a 7% drop, causing noticeable dimming at the farthest fixture. Use an online voltage drop calculator, inputting wire length, gauge, load amperage, and source voltage to determine optimal conductors for your specific layout.

Fuse each parallel branch individually with a rating slightly above the luminaire’s maximum draw. A 1.67A lamp should use a 2A or 2.5A fuse–this protects the circuit without nuisance blows during transient surges. Series circuits require only a single fuse sized for the total current, but this leaves the entire system vulnerable to faults in any single component. Always include a master fuse at the power supply output to protect against short circuits regardless of configuration.

Test all connections with a multimeter before finalizing installation. Measure voltage at each luminaire in series–expect descending values as distance from the source increases. In parallel, verify each unit receives the full system voltage within a 0.5V tolerance. Check for cold solder joints or loose terminals, which create resistive losses mimicking voltage drop. Properly secured connections prevent intermittent operation and ensure long-term reliability under harsh operating conditions like vibration or temperature cycling.
