How to Build a 12V to 6V DC Converter Step-by-Step Circuit Guide
Use a LM2596 switching regulator module when efficiency exceeds 90% and output current requirements stay below 3A. Configure the feedback resistors (R1=4.7kΩ, R2=2.2kΩ) to drop 12.6V input to 6.3V stabilized output, ensuring ripple below 50mV. Add a 100μF electrolytic capacitor at the input and a 47μF tantalum capacitor at the output to suppress transients.
For loads exceeding 3A, replace the LM2596 with a XL4015 or MP2307 buck IC. Both handle up to 5A with integrated MOSFETs, reducing component count. Mount a heatsink on the IC if ambient temperatures exceed 50°C or if continuous output exceeds 4A. Use 18AWG wiring for input/output traces to minimize voltage drop.
When linear regulation is acceptable for noise-sensitive applications, employ an LM317 adjustable LDO. Set R1=240Ω, R2=1.2kΩ to achieve 6V output from 12V supply. Add a 1N4007 diode in reverse across the LM317 to protect against inductive kickback. Note: efficiency drops to 50%, making this solution unsuitable for battery-powered systems.
Verify stability by checking the output with an oscilloscope under varying loads (no-load to full-load). If ringing exceeds 200mV, increase the output capacitor to 100μF or add a small ceramic capacitor (0.1μF) in parallel. For EMI-sensitive environments, insert a ferrite bead on the input line and shield the inductor with a grounded copper foil wrap.
How to Build a Step-Down Voltage Regulator for Dual-Supply Systems

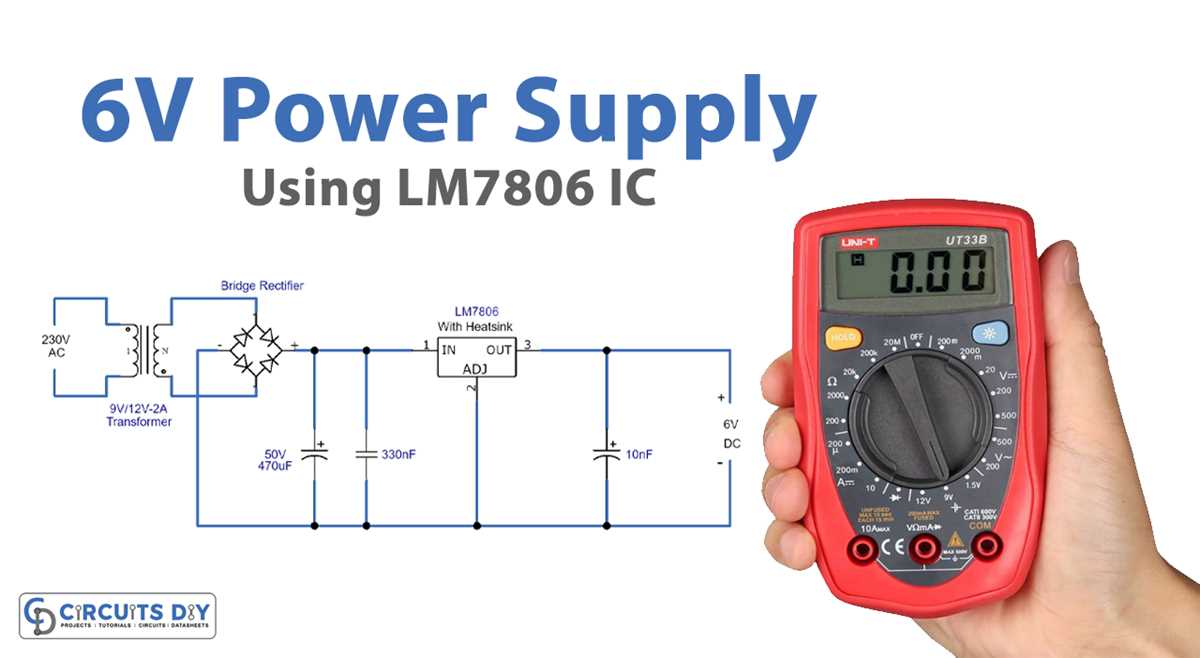

For a reliable 12-to-6 volt reduction, use a fixed-output linear regulator like the LM7806. Connect the input to the higher potential via a 100μF electrolytic capacitor to suppress transients, and place a 1μF ceramic capacitor at the output for stability. Ground the middle pin directly to the system’s reference. This setup delivers a steady 5.8–6.2V output at currents up to 1A, sufficient for small microcontrollers or LED arrays without switching noise.

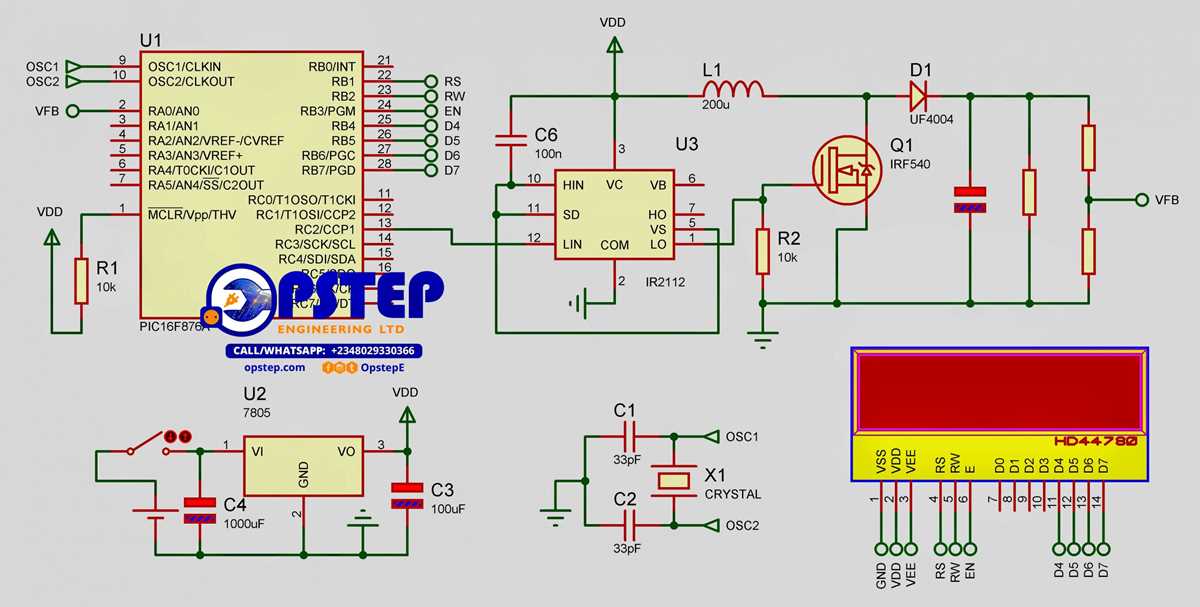

Avoid linear regulators if efficiency is critical–disperse heat with a heatsink when drawing over 300mA. For higher loads, replace the LM7806 with a DC-DC buck module (e.g., MP2307). Add a 470μH inductor and a Schottky diode to minimize losses; a 22μF output capacitor ensures low ripple. Adjust feedback resistors to fine-tune output to exactly 6.0V, verified with a multimeter before attaching payloads.
When space is limited, use a TinySwitch-III (e.g., TNY278) with an isolated flyback topology. Wind a 12-turn primary and a 6-turn secondary on an EFD15 core, using 0.3mm enameled wire. Connect a 1N5819 diode at the output and a 10μF/25V capacitor to filter pulses. This approach supports up to 3W while isolating the load from the source–ideal for battery-powered sensors in noisy environments.
For adjustable precision, implement an LM2596-based switching supply. Configure the feedback network with a 10kΩ resistor in series with a 5kΩ trimpot, allowing output tweaks from 3V to 10V. Add an LED with a 1kΩ resistor to indicate power-on; position it after the inductor to avoid false signals during transients. Test under load–measure the output under 500mA draw to confirm stability before final assembly.
If noise sensitivity is a concern, opt for a ferrite bead in series with the output. For variable loads, include a 1N4007 across the regulator’s input/output to clamp back-EMF from inductive components. Use thick traces (2oz copper) on custom PCBs for currents above 1A, or employ soldered 18AWG wire on protoboards. Always verify ripple with an oscilloscope–target
For ultra-low quiescent current, deploy a MAX639. Drive a P-channel MOSFET as the pass element, reducing dropout to 300mV while consuming
Step-by-Step Component Selection for a Voltage Reducer
Choose an inductor with a saturation current at least 30% higher than the maximum load current. For a 1A output, select a 1.3A or greater inductor to prevent core saturation under transient loads. Ferrite core inductors with low DCR (e.g., <0.2Ω) minimize power loss. Check the inductance value range: 22µH to 100µH works for most 100kHz to 500kHz switching regulators. Lower inductance increases ripple current but speeds transient response.
Key parameters to verify:
- Saturation current (Isat): Must exceed peak switch current
- DC resistance (DCR): Lower values reduce losses
- Switching frequency compatibility: Avoid inductors with self-resonant frequencies within 10× of the regulator’s operating frequency
- Physical size: Smaller inductors increase thermal resistance
Select an input capacitor with a voltage rating of at least 25V and low ESR (Equivalent Series Resistance), preferably <50mΩ for 1A applications. Ceramic capacitors (e.g., X7R dielectric) in values from 10µF to 47µF work well. Place the capacitor as close as possible to the regulator’s input pins to suppress voltage spikes. For higher ripple currents, use multiple capacitors in parallel to share the load and reduce ESR effects.
For the output capacitor, prioritize low ESR to minimize output ripple. A 22µF to 100µF ceramic capacitor with a 10V rating is typical. Larger values reduce ripple but may slow load transient response. Verify the capacitor’s ripple current rating matches or exceeds the maximum load current. In noise-sensitive applications, add a small 0.1µF capacitor in parallel to filter high-frequency noise.
Use a Schottky diode with a reverse voltage rating of at least 20V and a forward current rating exceeding the maximum load current. Example: A 1N5822 (3A, 40V) is suitable for 1A loads. Avoid silicon diodes due to higher forward voltage drops (0.7V vs. 0.3V for Schottky). The diode’s recovery time must be faster than the regulator’s switching frequency to prevent efficiency losses. For optimal performance, select a diode with a low reverse leakage current.
Calculating Inductor and Capacitor Values for Stable Low-Voltage Regulation
Begin by selecting an inductor with a saturation current at least 30% higher than the peak current of your load. For a 1A output, use a 1.5A-rated inductor to prevent core saturation under transient loads. The inductance value (L) directly influences ripples–target 30-50µH for 200-500kHz switching frequencies, balancing size and efficiency. Smaller inductors increase ripple amplitude but reduce footprint; larger inductors smooth current but may limit transient response.
Capacitor selection hinges on two metrics: equivalent series resistance (ESR) and ripple current rating. Use low-ESR ceramic capacitors (X5R or X7R dielectric) for the output stage–values between 22µF and 100µF effectively suppress voltage spikes. For bulk energy storage, add a 220µF electrolytic capacitor in parallel, ensuring its ripple current rating exceeds the inductor’s peak-to-peak ripple current. Below is a reference table for common load currents:
| Load Current (A) | Inductance (µH) | Output Capacitor (µF) | Ceramic Type |
|---|---|---|---|
| 0.5 | 47-68 | 47 | X7R |
| 1.0 | 33-47 | 68-100 | X5R |
| 2.0 | 22-33 | 150 | X7R |
| 3.0 | 15-22 | 220 | X5R |
To calculate inductance: L = (Vin – Vout) × D / (f × ΔIL), where D is duty cycle (Vout/Vin), f is switching frequency, and ΔIL is ripple current (typically 20-40% of load current). For a 12V-to-6V step-down with 500kHz switching and 0.3A ripple target: L = (12-6) × 0.5 / (500k × 0.3) ≈ 20µH.
Input capacitors must handle high ripple currents–use a 10µF ceramic capacitor (voltage rating ≥ 2×Vin) in parallel with a 47µF electrolytic. The ceramic handles high-frequency transients; the electrolytic stabilizes bulk energy delivery. Place both capacitors within 1cm of the switching element to minimize trace inductance.
For output capacitance: Cout = ΔIL / (8 × f × ΔVout), where ΔVout is acceptable ripple (typically 1-2% of Vout). A 1% ripple at 6V (60mV) with 30% load ripple (0.3A) and 500kHz switching requires: Cout = 0.3 / (8 × 500k × 0.06) ≈ 12.5µF. Round up to 22µF for safety.
Thermal considerations dictate component placement–mount the inductor and output capacitors away from heat-producing elements like MOSFETs or diodes. Use 2oz copper pours for high-current traces to minimize resistance. For critical loads, add a small LC filter (1µH + 10µF) downstream to eliminate residual switching noise.
Verify stability by measuring open-loop gain and phase margin with a network analyzer. Target a phase margin >45° at crossover frequency (~1/10 of switching frequency). If phase margin drops below 40°, increase output capacitance or adjust the compensation network’s resistor/capacitor values. For fixed-frequency designs, a Type III compensation network (2 poles, 2 zeros) ensures robust transient response.
PCB Layout Strategies to Suppress Interference in Step-Down Power Stages
Prioritize a solid ground plane beneath the switching regulator and its associated components. Keep the plane uninterrupted, especially under the inductor, diodes, and input/output capacitors. A fragmented ground increases loop inductance, amplifying radiated emissions. For dual-layer boards, reserve one entire layer for ground; on multi-layer designs, dedicate a layer exclusively to ground, avoiding any signal or power traces crossing it.
Place input and output capacitors as close as physically possible to the regulator’s power pins. Use ceramic capacitors with X7R or X5R dielectric for their stable capacitance over temperature and voltage. Values between 10 µF and 47 µF are typical; combine with a smaller 0.1 µF ceramic placed directly at the input pin to bypass high-frequency noise. Ensure land patterns match the capacitor’s case size to minimize parasitic inductance; consider microvias under the capacitor pads for multilayer boards.
Minimize the area of the high-current switching loop formed by the inductor, diode, and output capacitors. Route traces wide (at least 1 mm per ampere) and short to reduce resistance and inductance. Avoid 90° bends; use 45° angles or smooth curves. Place the diode adjacent to the inductor to shorten the return path. If space constraints force separation, use a ground plane stitch via near the diode’s cathode to provide a low-impedance path back to the input capacitor’s ground.
Separate analog and digital components whenever possible. Analog grounds should converge at a single point, ideally near the input capacitor. Keep traces carrying PWM edges away from sensitive analog traces; maintain at least 2 mm clearance. If traces must cross, do so at right angles to minimize capacitive coupling. Shield sensitive traces with ground pours on adjacent layers, connecting the pours to the main ground plane with multiple vias spaced ≤ 5 mm apart.
Use star grounding for critical components. The switching regulator’s ground pin should connect directly to the ground plane with a short, wide trace or via. Avoid daisy-chaining ground returns; instead, route each critical component’s ground return individually back to a common star point. This prevents ground bounce from one component from affecting others. For multi-phase stages, each phase’s ground return should connect to its own star point before joining the main ground plane.
Mount external components exclusively on one side of the board to prevent parasitic coupling between layers. If dual-sided placement is unavoidable, stagger components so they do not align directly above one another. Shield switching nodes with a ground pour on the opposite layer, stitching the pour to the main ground plane with vias spaced ≤ 3 mm apart. For through-hole components, use relief pads to reduce thermal stress and ensure reliable solder joints; avoid acute angles in the relief pattern to prevent solder mask lifting.
