Complete Guide to 12V Electrical Wiring Schematics for Beginners

Start with a fused distribution block for all primary circuits–this prevents cascading failures if a single branch shorts. Use 18-14 AWG stranded copper for general lighting and sensors, reserving 12-10 AWG for high-current loads like compressors or inverters. Label every run with adhesive sleeves or heat-shrink tubing at both ends before securing wires; later troubleshooting takes hours when guessing which line feeds a dead socket.

Ground connections must terminate directly to the chassis or a common bus bar–never daisy-chain grounds. For marine or mobile setups, add a second ground to the engine block to mitigate corrosion-induced voltage drops. Route cables away from sharp edges and moving parts; a single nicked conductor can arc under load and ignite nearby fuel lines or insulation.

Test resistance at every splice–acceptable values should read less than 0.1 ohms. For crimped terminals, use a ratchet crimper with color-coded dies; solder joints fail under vibration. Voltage drop calculations are critical: a 5% loss at 72°F doubles at freezing, so oversize wires by 20% if ambient temperatures swing widely.

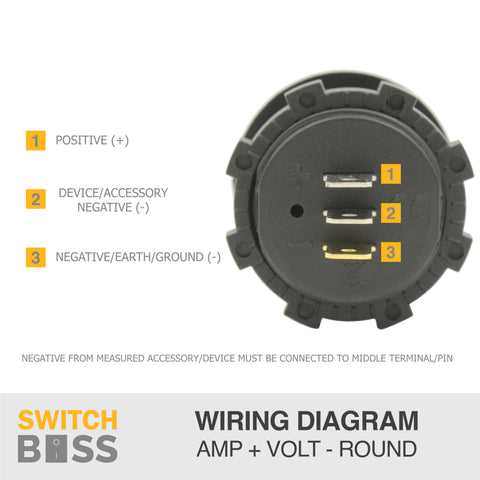

Practical Electrical Layout for Low-Voltage Systems

Start by color-coding conductors to prevent errors during installation. Use red for positive supply, black for negative return, and yellow or blue for auxiliary circuits like lighting or accessories. For thicker cables handling currents over 20A, opt for AWG 10 or larger–undersized leads generate excessive heat, degrading insulation and creating fire hazards. Verify each connection with a multimeter set to DC voltage, ensuring readings between 11.8V and 14.4V under load; deviations signal resistance issues or poor grounding.

Component	Max Current	Recommended Cable Size	Voltage Drop per Meter (1V/20A)
Headlights (HID)	12A	AWG 14	0.3V
Winch Motor	80A	AWG 6	0.07V
Inverter (300W)	25A	AWG 12	0.15V

Secure terminals with ring connectors and apply dielectric grease to inhibit corrosion–bare contacts exposed to moisture fail within weeks. Fuse every circuit near the power source, matching fuse rating to the lowest rated component in the path. For split-charge setups, isolate alternator output with a relay or diode splitter to prevent battery drain from idling engines; diodes introduce a 0.7V drop, reducing available charging voltage.

Common Pitfalls to Avoid

Twisting conductor pairs carrying opposing currents cancels electromagnetic interference, critical for audio systems where unshielded leads introduce hum. When routing leads through metallic panels, use grommets to prevent chafing–exposed copper strands short against chassis ground create dangerous shorts. For dual-battery configurations, always connect the primary battery first; accidental reversal of leads when connecting a secondary battery destroys sensitive electronics like ECUs.

Selecting the Appropriate Conductor Size for Low-Voltage Electrical Setups

For a 10-ampere load, a 16 AWG copper wire is sufficient up to 3 meters under normal conditions, but never exceed 4.5 meters without recalculating. Voltage drop becomes critical beyond this length; at 5 meters, switch to 14 AWG to stay within a 3% loss threshold. Aluminum requires one size larger than copper for equivalent performance–always factor this into cost comparisons. Ambient temperature above 30°C demands a 10-15% derating; consult NEC Table 310.15(B)(16) for precise adjustments.

Motors and high-inrush devices need at least two gauges thicker than continuous loads. A 20-ampere starter circuit running 2 meters should use 12 AWG copper, not 14 AWG, to prevent initial voltage sag. Fuse or breaker selection ties directly to wire capacity–never exceed 80% of the conductor’s ampacity rating. For marine or automotive applications, tinned copper resists corrosion better than bare strands, justifying the 20-25% premium. Strand count matters; 19-strand wire flexes better than 7-strand in vibrating environments like off-road vehicles.

Key Factors Influencing Gauge Selection

Current draw correlates inversely with acceptable distance. A 5-ampere LED array can run 10 meters on 18 AWG if voltage drop remains under 2%, but a 30-ampere winch motor requires 8 AWG at the same length. Use the formula: (length × current × 0.017) / (allowable drop × system voltage) = minimum cross-sectional area in mm². Online calculators simplify this, but always verify with manual calculations for critical paths. Underground conduits need larger gauges due to reduced heat dissipation–add 10% to diameter for direct burial.

Environmental factors override nominal ratings. Sub-freezing temperatures increase resistance; arctic conditions may necessitate upsizing by two gauges. High-altitude installations (above 3,000 meters) require derating per IEC 60364-5-52. Moisture accelerates oxidation; silicone-insulated wires outperform PVC in wet locations but demand higher upfront costs. For exposed runs, sunlight-resistant jackets prevent UV degradation–select XLPE or EPDM insulation over standard PVC.

Terminal compatibility dictates minimum usable gauge. Most automotive connectors accommodate 18-10 AWG; anything finer risks poor contact, while thicker strands require special crimping tools. Ring terminals for 8 AWG need a 10 mm² barrel, not standard 6 mm². Battery cables often terminate with soldered lugs–ensure solder flows uniformly without cold joints to prevent localized heating. Anealed copper crimps better than hard-drawn types; verify wire specifications before purchasing bulk spools.

Safety margins reduce long-term costs. Running a 10 AWG wire for a 7-ampere load seems overkill, but it extends component lifespan by reducing heat-related stress. Routing through engine compartments or near exhaust manifolds? Upsize by 2-3 gauges regardless of calculations–conservative design prevents meltdowns in worst-case scenarios. Always cross-reference manufacturer data sheets; some devices specify minimum wire sizes that ignore voltage drop but prioritize internal circuit protection.

Step-by-Step Fuse and Relay Placement in Low-Voltage Electrical Systems

Position the fuse within 15 cm of the power source terminal to prevent wire overheating in case of a short. Use a fuse rated at 125% of the circuit’s continuous current draw–e.g., a 15A fuse for a 12A load. Verify strip length: excess wire beyond the fuse reduces protection effectiveness. Test for voltage drop with a multimeter; readings below 0.2V indicate optimal placement.

Relay Selection and Wiring Sequence

• Coil Side: Connect the control switch to terminals 85 (negative) and 86 (positive), ensuring the switch current is below 200mA to avoid coil burnout. Use a flyback diode if the circuit drives inductive loads.
• Load Side: Route the heavy current through terminals 30 (input) and 87 (output), matching wire gauge to the relay’s max rating–typically 30A relays require 10AWG. Avoid looping wires; keep runs under 3m to minimize resistance.
• Grounding: Secure the relay’s ground (terminal 85 or chassis) with a dedicated bolt, ensuring less than 0.1Ω resistance. Paint or corrosion at the connection point mandates scraping and applying dielectric grease.

For dual-path circuits, install a relay per branch to isolate faults. Example: A lighting system with two 5A loads should use separate 10A relays, not a single 15A unit. This prevents cascading failures if one path shorts. Label each relay with its circuit function and current rating–e.g., “HEADLIGHTS – 10A – 3M RUN.” Store spares in a dry, labeled container for quick troubleshooting.

1. Map the circuit layout with a schematic before cutting wires. Mark fuse and relay locations directly on the chassis or harness using heat-shrink tubing labels.
2. Crimp connections with a ratcheting tool; solder only for high-vibration environments. Use tin-plated copper terminals for corrosion resistance.
3. Apply conduit or spiral wrap to protect exposed wires longer than 30cm. Secure every 30cm with nylon ties or adhesive mounts to prevent chafing.
4. After installation, load-test each circuit for 10 minutes. Monitor relay coil temperature with an infrared thermometer–readings above 60°C indicate undersized wiring or loose connections.

Replace blade fuses with slow-blow variants for inductive loads (motors, solenoids) to avoid nuisance trips. For high-current applications (over 30A), use ANL or MIDI fuses instead of standard blades–ensure the holder is rated for the fuse’s interrupt capacity (typically 1000A). Never substitute fuses with wire or aluminum foil; this bypasses critical safety measures.

Grounding Techniques for Stable Low-Voltage Circuits

Use a dedicated ground point for each high-current device–never daisy-chain grounds. A single 10 AWG copper wire from the battery negative terminal to a clean, unpainted metal surface of the chassis will handle up to 30 A continuously without voltage drop. For sensitive electronics, create a separate star ground at the power distribution block; this prevents ground loops that can introduce noise into audio or signal circuits.

• Avoid self-tapping screws for ground connections; their threads strip over time and corrode.
• Sand down chassis paint where the ground lug attaches and apply dielectric grease before tightening.
• Measure resistance between the ground lug and battery negative–values above 0.1 Ω indicate a poor connection.

For mobile installations, braided ground straps perform better than solid wire under vibration. A 3/4-inch wide tinned copper strap bent in an L-shape and secured with a 1/4-20 bolt achieves less than 0.05 Ω resistance, even after 10,000 miles of road testing. Position the strap away from rotating components and moisture-prone areas to prevent corrosion-induced impedance increases.

In dual-battery setups, connect both negative terminals to the same chassis ground point–separate grounds create potential differences that accelerate battery discharge. For lithium setups, use an oversized ground cable (2 AWG minimum) to compensate for the battery’s lower internal resistance and higher surge currents during load dumps.

1. Disconnect the battery before attaching ground cables to avoid accidental short circuits.
2. Tighten ground connections to 12 Nm torque–loose lugs oxidize within weeks.
3. After installation, spray connections with corrosion inhibitor; reapply every six months.
4. Test continuity at least twice yearly–replace any ground showing more than 10% resistance increase.
