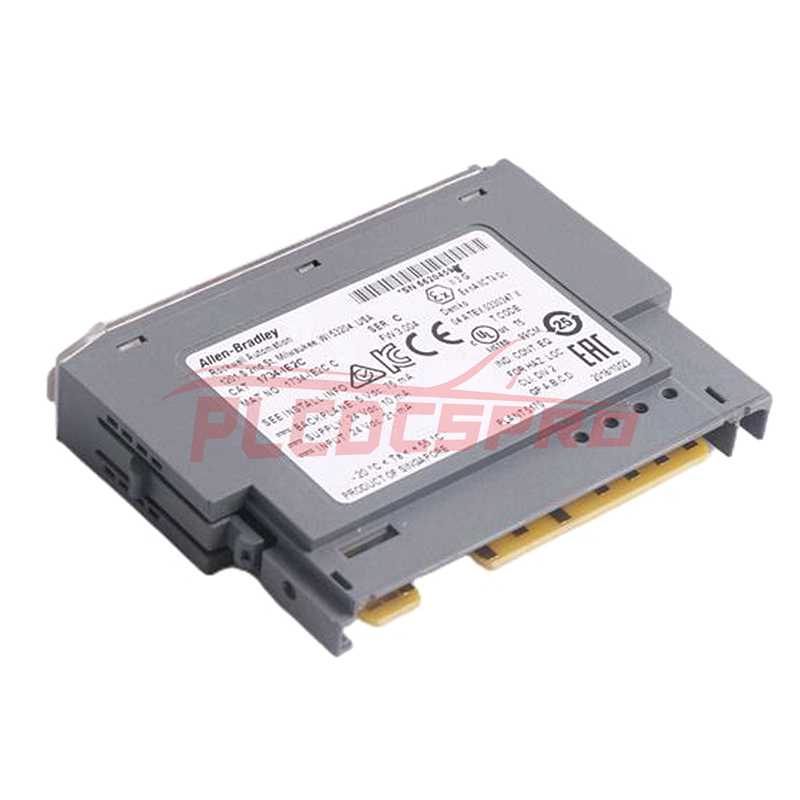

Complete Wiring Guide for 1734 IE2C Module Connection and Configuration
Start by connecting the primary data line (SDA) to pin 8 on the master module and pin 4 on the peripheral device. Ensure both components share a common ground–connect GND on the master to GND on the slave to avoid signal instability. Use a 4.7 kΩ pull-up resistor between SDA/SCL lines and VCC (3.3V or 5V, depending on module specifications) to maintain proper logic levels. Verify voltage compatibility; mixing 3.3V and 5V devices without a logic converter risks permanent damage.
For clock synchronization (SCL), wire pin 7 on the master to pin 5 on the peripheral. Avoid long cable runs–keep connections under 2 meters to prevent signal degradation. If longer distances are unavoidable, employ twisted-pair wiring with shielding and consider an I2C extender module. Power the peripheral device independently if it draws more than 100mA to prevent voltage drops on the communication lines.
Test connectivity with a logic analyzer or oscilloscope before deploying full systems. Probe the SDA/SCL lines to confirm square waveforms and the absence of noise. If communication fails, check for incorrect pull-up values (too high causes weak signals; too low increases current draw) or misaligned addresses. Address conflicts–where multiple peripherals use the same I2C identifier–require reprogramming or hardware pull-down resistors on address selection pins.
Reduce interference by routing SDA/SCL traces away from high-frequency components and motor drivers. Use 0.1µF decoupling capacitors near power pins on both master and slave boards to filter voltage fluctuations. For multi-device setups, daisy-chain peripherals in a bus topology, ensuring no more than 8 devices share a single bus to stay within the protocol’s 7-bit address limit without performance penalties.
Practical Connection Guide for the Point I/O 2-Channel Integrator Module
Connect the module’s shield terminal to a grounded chassis point using a 14 AWG or thicker copper wire. Avoid daisy-chaining shields; each cable must terminate directly to the same earth point as the power supply ground to prevent induced noise.
Use 22 AWG twisted-pair cabling for both signal pairs, maintaining a consistent twist rate of at least 12 turns per foot. Keep the pair lengths balanced within 10 mm. Route the pairs away from motor leads, transformers, or VFD cables by a minimum of 30 cm for low-voltage setups and 1 m for high-voltage lines.
Terminate the positive and negative leads of each channel at the corresponding device using crimp ferrules sized for 22-16 AWG wire. Strip 6 mm of insulation, then insert fully into the ferrule before crimping with a ratchet tool to ensure gas-tight joints. Confirm pull resistance of at least 2.5 kg.
Label each conductor at both ends with durable, heat-shrink tubing marked with channel designation (A+/A–, B+/B–) and device ID. Use a Brady BMP21 or equivalent label printer with polyester ribbon for longevity in industrial environments. Verify labels resist 85 °C ambient and solvents like isopropyl alcohol.
For passive devices, connect the module’s 24 VDC output terminal to the device’s power input using a separate 18 AWG lead. Calculate total current draw–each channel supports up to 150 mA, with a combined limit of 250 mA. Breaker or fuse protection must trip at 300 mA within 0.5 seconds.
Test continuity and polarity immediately after termination. Set a digital multimeter to diode mode, probe each pair at the module and device ends. Expect a forward voltage drop of ≤ 0.6 V for correct polarity; open circuits or reversed readings require re-termination.
Seal unused channel openings with M12 dust caps rated IP67 or higher. Apply thread-locking compound (Loctite 242) to metal-threaded caps to prevent loosening from vibration. Store spare caps in moisture-resistant bags with desiccant packs.
Document every connection in a single A3-sized schematic. Include wire gauge, ferrule part numbers (e.g., Phoenix Contact AI 1,5-8), shield grounding points, and breaker ratings. Save the file as a PDF/A-2b format to ensure long-term accessibility without CAD software.
Key Components for Industrial Communication Interface Module Setup
Start with a compatible Programmable Logic Controller (PLC) backplane that supports I/O expansion slots–ensure it matches the Point I/O series specifications. A mismatch in bus protocols (e.g., DeviceNet vs. EtherNet/IP) will prevent module recognition.
Select a termination resistor (120Ω) for the communication bus if the module operates in a daisy-chain topology. Omitting this component causes signal reflection, leading to intermittent data loss or corrupted packets. Verify the resistor’s rating for the environment–industrial-grade resistors withstand temperatures up to 85°C.
Critical Hardware Elements

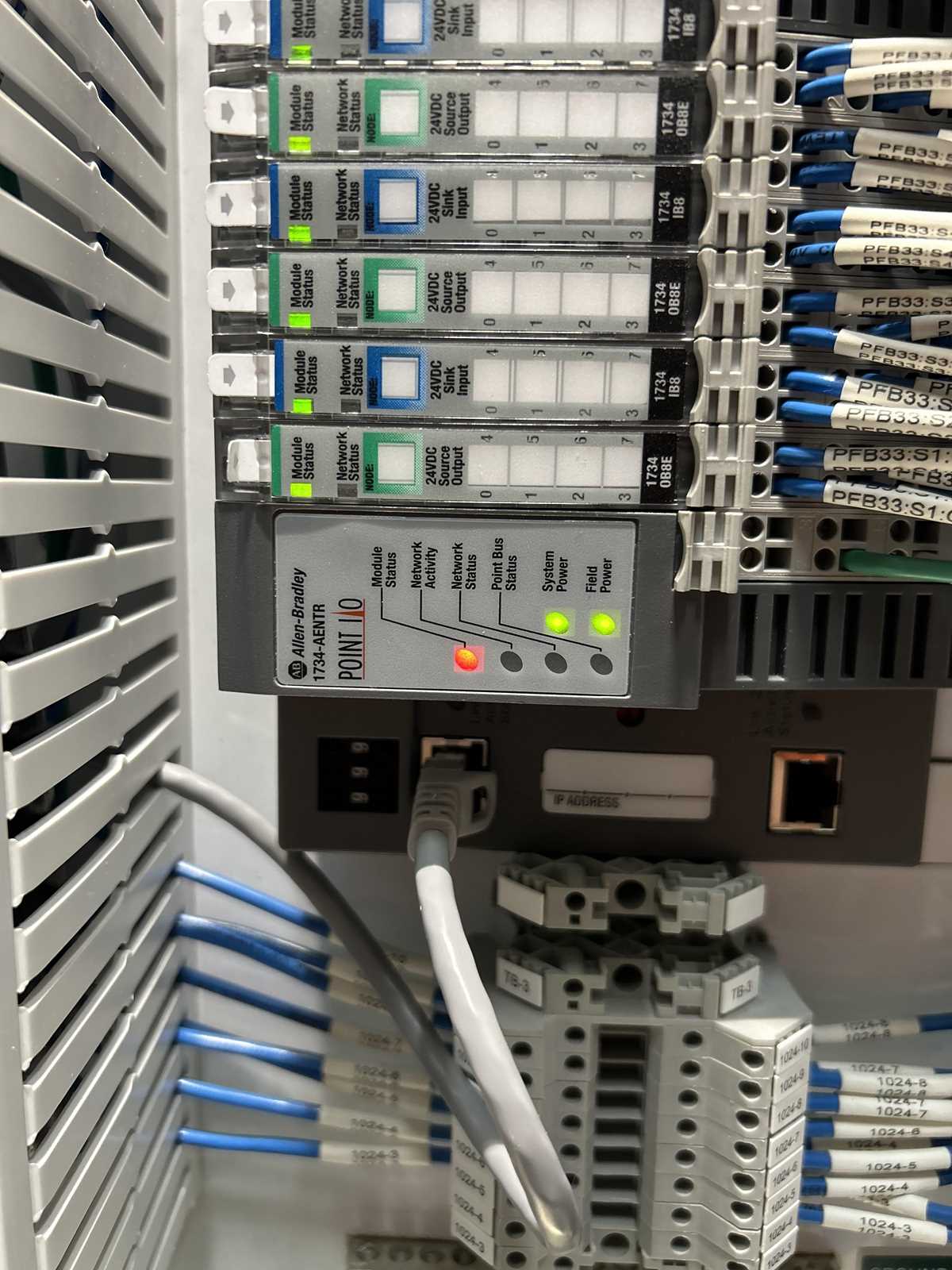

- Bus adapter: Confirms physical layer compatibility; opt for models with built-in diagnostics for real-time fault detection (e.g., short circuits, open wires). Avoid generic adapters lacking LED status indicators.
- Power supply: Modules typically require 24VDC (±10%). Calculate total current draw (including all connected sensors) to prevent voltage drops–use a regulated PSU with a minimum of 2A output.
- Shielded twisted-pair (STP) cable: Reduces electromagnetic interference (EMI) in noisy environments. AWG 22-18 gauge balances flexibility and signal integrity. Ground the shield at one end only to avoid ground loops.
For encoder or sensor connectivity, use M12 or M8 connectors with IP67-rated protection. Pinouts must align with the module’s signal requirements–reverse polarity fries internal circuits. Pre-assembled cables with pre-crimped terminals save time but double-check terminations with a multimeter.
Integrate a network switch if linking multiple modules in a ring or linear topology. Managed switches offer VLAN segmentation and QoS prioritization, but unmanaged switches suffice for basic setups. Ensure the switch supports 100Mbps full-duplex to handle real-time data without latency.
- Match the module’s baud rate with the master device–standard options include 125kbps, 250kbps, or 500kbps. Mismatched rates cause communication failures.
- Label all cables and connectors during installation to trace faults quickly. Use heat-shrink tubing for exposed terminals in high-vibration areas.
- Update firmware via the controller’s software suite before deployment–factory defaults may lack critical patches for error handling.
Test the setup with a bus analyzer to monitor packet collisions or CRC errors. Free tools like Wireshark work for Ethernet-based modules, while proprietary software (e.g., RSLogix) provides deeper diagnostics for fieldbus protocols. Document baseline performance metrics for future troubleshooting.
Configuring Point I/O Analog Input Module with CompactLogix Controller
Begin by verifying the module’s power requirements: the 1769-PA2 or equivalent 24V DC supply must deliver minimum 400 mA at the backplane for stable operation. Connect the positive lead of the external power source to the V+ terminal (pin 1) on the module’s power connector, and the negative lead to V- (pin 2). Avoid mixing backplane power with field-side connections–this causes erratic readings and potential hardware damage. Use 18 AWG or thicker copper conductors for the power feed to prevent voltage drop under load.
For signal termination, identify sensor type first: current (4-20 mA) or voltage (0-10V). Wire the sensor’s positive output to channel input terminal (pins 3, 5, 7, or 9 for channels 0-3), and the return/signal common to the adjacent C- terminal (pins 4, 6, 8, or 10). Refer to the following pinout matrix for correct pairing:
| Channel | Signal (+) | Common (-) |
|---|---|---|
| 0 | Pin 3 | Pin 4 |
| 1 | Pin 5 | Pin 6 |
| 2 | Pin 7 | Pin 8 |
| 3 | Pin 9 | Pin 10 |
Shielding demands attention–twist signal wires with their commons at twist rate of 6-8 turns per foot to minimize interference. Ground the shield only at the controller side; looping it to multiple points creates ground loops. If routing near high-noise sources (VFDs, motors), increase separation to minimum 12 inches or use metal conduit with continuous bonding. For long cable runs (>50 ft), switch to 4-20 mA transmitters–voltage signals degrade significantly over distance.
In Studio 5000, navigate to Controller Tags > Module Configuration. Select the module, then map each channel to a REAL data type tag with scaling preconfigured (e.g., 0-10V to 0-4095 raw counts). For precise calibration, enable filters (20 ms default) to reduce signal noise, but increase delay if monitoring slow-changing processes (e.g., temperature). Validate connections by forcing 10V or 12 mA from the sensor calibrator–tag values should update within ±0.1% of expected range.
Troubleshooting Erratic Readings
If channels exhibit drift or spikes, measure resistance across C- to V- with module powered off–values below 10 Ω indicate a shorted channel. Check for reversed polarity on signal wires; even momentary miswiring burns internal fuses (replaceable via Rockwell’s Series C modules). For intermittent disconnections, inspect the terminal block screws–torque to 7 in-lbs using a calibrated driver; loose connections cause intermittent faults resembling failed hardware.
Standard Interface Connections and Signal Specifications for Point I/O Analog Current Module
Connect terminal 0V (COM) to the common ground reference of the control system to ensure stable signal transmission. Avoid sharing this return path with high-power circuits to prevent noise interference, which can distort readings. Use shielded twisted pair (STP) cabling for all analog inputs, grounding the shield at a single point near the module to minimize electromagnetic interference.
Terminals CH0+ and CH0– accept 4–20 mA current loops for channel 0. Wire the positive lead (+) of the sensor or transmitter to CH0+ and the negative lead (–) to CH0–. Ensure the loop resistance does not exceed 500 Ω, as higher values can trigger voltage drops beyond the module’s 24 V DC compliance range. For 2-wire transmitters, power the device directly from the module’s internal supply by jumpering V+ to CH0+.
Power Supply and Internal Regulation
Supply 24 V DC (±5%) to terminals V+ and 0V (COM) using a dedicated power source with a minimum 50 mA capacity per channel. The module’s internal regulator tolerates transient spikes up to 30 V for 10 ms without damage, but sustained overvoltage risks permanent failure. Fuse the power feed at 500 mA to protect against short circuits. Avoid connecting V+ to any other terminal, as incorrect polarity may destroy the input circuitry.
Terminal SHLD must be bonded to the system’s signal ground plane, not the safety ground, to prevent ground loops. If the shield is left floating, induced noise can exceed 50 mV peak-to-peak, corrupting low-level signals. For installations longer than 50 meters, use an isolated ground bar at the control panel and daisy-chain all shields to this single point. Never connect SHLD to 0V or V+, as this can create unintended current paths.
Diagnostic and Configuration Pins
Terminal DIAG outputs a 0–10 V DC signal proportional to the detected fault state, with 0 V indicating normal operation and 10 V signaling an overrange or fault condition. Wire this to a monitoring PLC input or analog meter for real-time diagnostics. The module internally clamps this output to 11 V; exceeding this value with external loads below 1 kΩ risks damage. For HART communication, connect CH0+ to the HART modem’s positive terminal and 0V to its return, ensuring the modem’s impedance stays between 250–600 Ω.
Configure channel scaling via the module’s embedded web server or Studio 5000 software by selecting the appropriate range (e.g., 4–20 mA, 0–20 mA). Default scaling assumes a 4–20 mA loop; applying 0 mA to a channel scaled for 4–20 mA will result in a –25% reading error. Calibrate zero and span using precision current sources: inject 4 mA at CH0+ and adjust zero, then inject 20 mA and set span. Recalibrate annually or after replacing sensors to maintain ±0.1% accuracy.
