Complete 1940 Ford Electrical Wiring Diagram and Restoration Guide

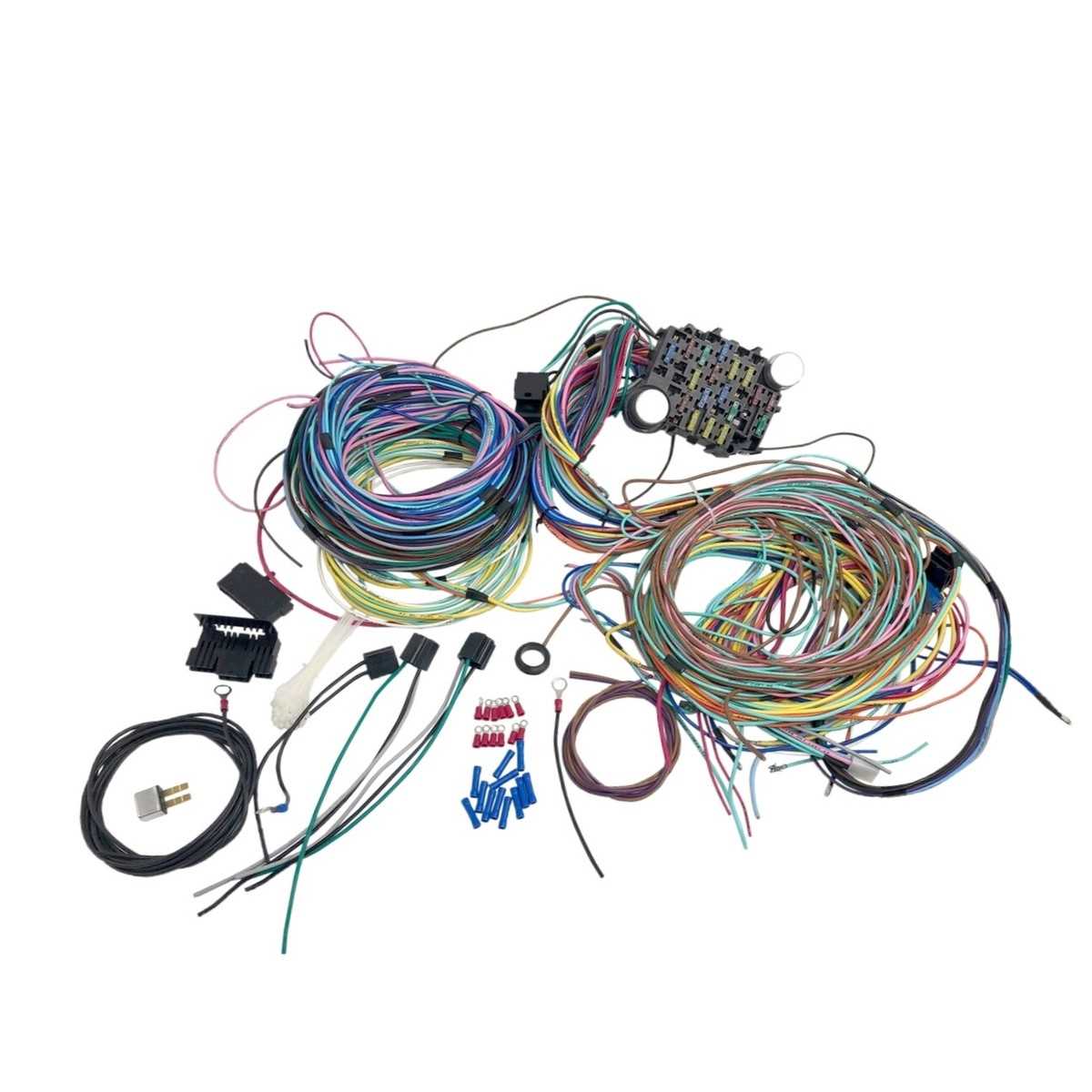

Locate the original harness routing under the dashboard at the firewall bulkhead–this connection point is critical for current flow to the ignition coil, gauges, and lighting controls. Use color-coded reproductions of the factory loom for accurate replication: black with white tracer carries low-voltage current to the instrument cluster, while green with yellow stripe supplies power to the tail lamps. Verify continuity with a multimeter before reassembly to prevent voltage drops.
Remove the battery ground strap first when servicing fuse blocks or switches. Replace brittle insulation on older wires with heat-shrink tubing rated for automotive applications–standard PVC degrades under oil and heat exposure. Solder each terminal after crimping, then wrap electrical tape around connections at risk of vibration to eliminate shorts.
Trace the main feed wire from the ammeter to the glove compartment junction–this node distributes current to the headlamp switch and windshield wiper motor. Correct amperage draw is 8-10A under load; deviations indicate corroded terminals or improper wire gauge. Use 18-gauge copper core for lighting circuits and 14-gauge for charging system components.
Test all bulbs with a 6-volt test light–the dimmer switch may fail silently, causing partial illumination. Replace the voltage regulator if the battery overcharges, as the original electromechanical units often stick closed. Reinforce chassis grounds near engine mounts using braided copper straps instead of thin wire to ensure stable operation.
Restoring Classic Vehicle Electrical Systems: A Hands-On Reference
Begin by isolating the battery ground cable–corrosion at the terminals often mimics circuit failures. Remove the negative clamp first to prevent accidental shorts while probing connections. Vintage schematics label this as “B-” or “GRD,” but physical inspection reveals whether the cable splits near the firewall or terminates directly to the chassis rail behind the driver’s side fender.
Trace the main harness feed from the ammeter (labeled “A” on period blueprints) back to the voltage regulator splice. Early models use a cloth-wrapped bundle entering the passenger compartment through a grommet just left of the steering column; later units route beneath the floorboards. Strip 1/4 inch of insulation, twist strands tightly, and crimp with a non-insulated 16-18 gauge butt connector–soldering risks melting the wax-coated paper separator inside the wires.
Troubleshooting Intermittent Dashes
Dim or flickering dashboard lamps usually indicate a compromised terminal at the light switch. Access the switch by removing the headlight dimmer knob–threaded onto a 1/4-inch shaft–then unscrew the retaining nut behind the instrument cluster. Clean the thin brass fingers inside the switch with 1200-grit sandpaper, bending them slightly outward to ensure tension. Replace the entire switch if the phenolic base shows cracks; no modern analogs exist.
For turn signal troubles, locate the flasher relay mounted near the glove box hinge–original units are cylindrical, ~1.5 inches tall, with two spade terminals. Swap with a 12V thermal flasher from a 1950 Chevy taskmaster if replacements are unavailable; the resistance values (±0.3 ohms) remain compatible despite visual differences. Verify the signal bulb sockets with a multimeter: 3 candlepower bulbs read 0.5 ohms when cold, 2.2 ohms when warm.
Heat-sensitive wires like the generator field lead (white, 14-gauge) require special handling. Wrap any exposed sections with silicone-impregnated fiberglass tape instead of electrical tape; factory insulation crumbles when disturbed. Secure splices with adhesive-lined heat shrink (1/2-inch diameter), applying heat until the inner glue visibly oozes–this prevents moisture ingress at flex points, particularly near the generator pulley where vibration accelerates fatigue.

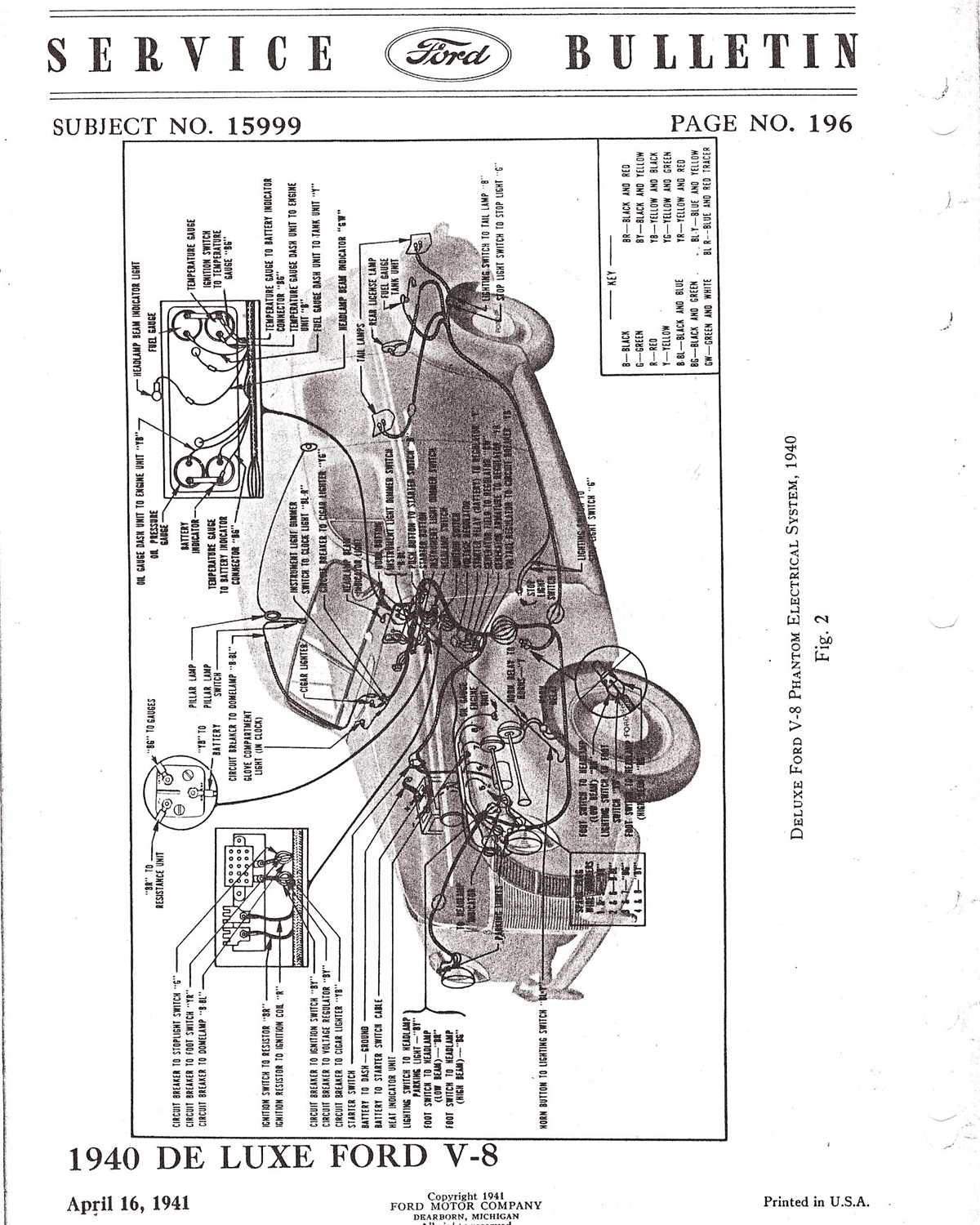

Tracing and Decoding the Original Electrical Harness Configuration
Begin by identifying the main harness bundle beneath the instrument panel. The central loom on vintage models branches into three primary sections: dashboard feeds, engine connections, and rear lighting circuits. Use a voltage tester to confirm live paths before handling–older insulation degrades unpredictably.
Key junction points cluster near the firewall, often wrapped in cloth tape. The left-side bundle typically serves headlamps, horn, and battery feed, while the right-side handles ignition, gauges, and charging circuits. Mark each wire with labeled tape at these intersections; factory color coding fades or discolors over decades.
| Original Color | Standard Function | Common Variations |
|---|---|---|
| Black | Ground | May appear dark brown due to aging |
| Red | Battery positive | Can oxidize to pinkish hue |
| Green | Headlamp switch feed | Often turns yellow-green |
| Yellow | Tail lights | Prone to brittleness |
| White | Ignition feed | May darken to cream |
Check under-seat connections for rear lamp conduits–original harnesses route through the frame rail with rubber grommets. These sections frequently suffer from rodent damage or accidental pinching during bodywork. Probe each wire with a multimeter set to continuity; resistance readings above 2 ohms indicate compromised connections.
Charging system leads terminate at the generator/regulator junction. The field wire (usually blue) connects regulator terminal “F” to generator “A”; voltage regulator wires (often purple or brown) link to battery positive. Inspect these for fraying near terminals–vibration loosens them over time.
Gauge circuits run through the firewall via a small harness plug. The fuel sender uses a single wire (typically light green), while temperature and oil pressure use paired wires (often dark green and tan). Verify sender resistance: fuel senders should read 10-73 ohms when empty to full, temperature senders 100-10 ohms cold to hot.
Tracing erratic behavior? Focus on the fuse block–original splices near the voltage regulator are notorious failure points. The original inline fuse for headlamps sits near the dimmer switch. Replace soldered connections with crimped terminals using heat-shrink tubing to prevent future corrosion.
For obscured pathways, gently separate harness sections by removing door sills or kick panels. Factory harnesses secured with metal clips; avoid cutting these during disassembly. When reconnecting, match original wrap materials–modern electrical tape traps moisture, accelerating conductor corrosion.

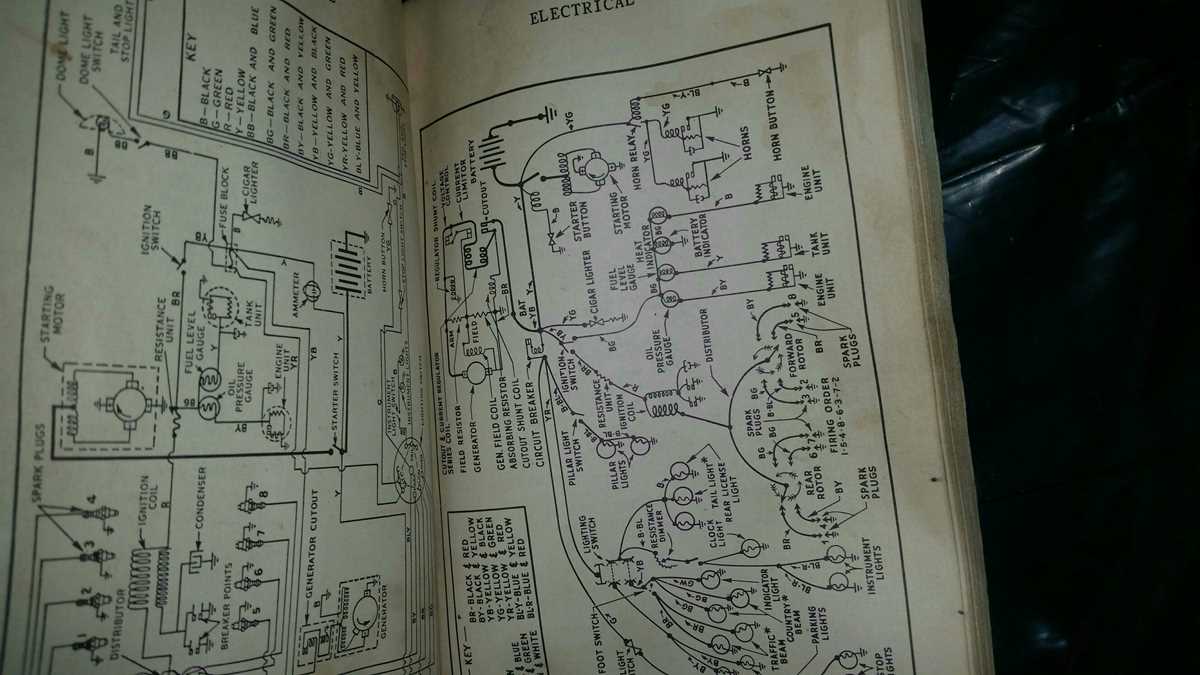

Step-by-Step Color-Coded Wire Identification for Classic Vehicle Revival
Begin by isolating the main harness loom from the chassis ground. Trace each strand starting at the firewall bulkhead, noting color stripes and fabric braid details. Original schematics mark power feeds in yellow with red tracer–locate these first, as they connect to the voltage regulator and ignition switch. Verify continuity with a multimeter set to ohms; resistance should read near zero for intact leads.
Identify lighting circuits using green with white stripe (headlamps) and brown with black stripe (tail lamps). Cross-reference found colors against factory service bulletins–discrepancies often indicate prior repairs. For gauges, the purple wire supplies the fuel sender, while light blue with black tracer carries oil pressure signals. Label every connection with heat-shrink tubing marked in permanent ink before severing old terminals.
Focus on the instrument cluster next. The black wire with orange stripe powers the ammeter, while the dark green lead grounds the voltage stabilizer. Remove the dash assembly to access hidden splices–corrosion here mimics failed components. Use a soldering iron for repairs, then wrap joints in high-temp electrical tape overlaid with wax-impregnated cloth for authenticity and moisture resistance.
Trace accessory feeds: white with blue stripe activates the horn relay, red with green stripe energizes the radio (if equipped). For turn signals, expect light green with black tracer (front) and dark green with white tracer (rear). Replace any brittle wire sheathing with modern cross-linked polyethylene, but retain original routing for proper heat dissipation and mechanical protection.
Complete the process with chassis-grown circuits. The black wire with yellow stripe connects to the starter solenoid, critical for reliable engagement. Test all repairs under load using a 12V battery charger set to 20A–dim lights or erratic gauge behavior reveals hidden shorts. Document every modification in a bound notebook, including photographs of complex junctions, for future reference.
Electrical Faults in Vintage Automobiles: Diagnostics and Repairs
Begin by inspecting the fuse block for corrosion or loose connections–common failure points in older circuits. A multimeter set to continuity mode will confirm if a fuse is intact without relying on visual inspection alone. Replace blown fuses with the exact amperage rating; using higher values risks overheating and fire hazards. Corroded terminals can mimic short circuits–scrape contacts clean with a wire brush and apply dielectric grease to prevent future oxidation.
Trace the harness route from the battery to the ignition switch, checking for chafed insulation where cables pass through bulkheads or near sharp edges. Even minor abrasions can expose conductors, leading to intermittent shorts under vibration. Use heat-resistant loom or spiral wrap to reinforce vulnerable sections, securing it with zip ties spaced every 6–8 inches to prevent sagging. Avoid electrical tape for permanent repairs–it degrades over time and traps moisture.
Identifying Hidden Shorts in Complex Loops
If a circuit trips repeatedly after replacing components, isolate branches by disconnecting sections systematically. Start with accessories (lights, gauges) before moving to critical paths like the charging system. A short in the voltage regulator’s field coil will drain the battery even when the engine is off–measure resistance between the coil’s terminals to confirm integrity (typically 2.5–5 ohms).
For persistent shorts, disconnect the ground strap from the battery negative terminal and attach a test light to the terminal. If the light illuminates when probing the harness, the short is upstream of the battery. Probe each major junction (e.g., starter solenoid, ammeter) to narrow the fault location. Pay special attention to splices–factory solder joints often fail due to age. Resolder connections with rosin-core flux, avoiding acid-core types that corrode copper.
- Disconnect the battery’s positive lead before probing live circuits.
- Label all connectors before unplugging to avoid reassembly errors.
- Check for pinched wires where harnesses bend around moving parts (e.g., under the dash).
- Test switches with an ohmmeter–contaminated contacts may read normal resistance but fail under load.
Headlight dimming or flickering often points to a failing generator rather than wiring. Verify the generator’s output by revving the engine to 2000 RPM; voltage at the battery should stabilize between 13.8–14.5 volts. If readings drop below 12.5 volts, replace the voltage regulator or brushes–common wear items in DC generators. Avoid adjusting the cutout relay unless familiar with its calibration; incorrect settings can damage the ammeter or battery.
Preventing Recurring Faults
- Upgrade deteriorated cloth-insulated leads with cross-linked polyethylene (XLPE) wire–it withstands heat and abrasion better than original materials.
- Install a fused main disconnect switch for prolonged storage–this isolates parasitic loads that drain older batteries.
- Route new cables away from exhaust manifolds and moving linkage to prevent heat damage and chafing.
- Use crimp connectors with adhesive-lined shrink tubing instead of twist-and-tape splices for joints exposed to moisture.
Document all repairs with photographs or sketches to avoid confusion during future troubleshooting. Mark problematic areas on the harness with colored heat shrink or tags noting the issue (e.g., “short–resoldered 8/2024”). Recheck resistive loads like turn signals–older flasher units often fail when voltage drops due to shorts elsewhere in the system. Replace them with modern electronic units if issues persist.
