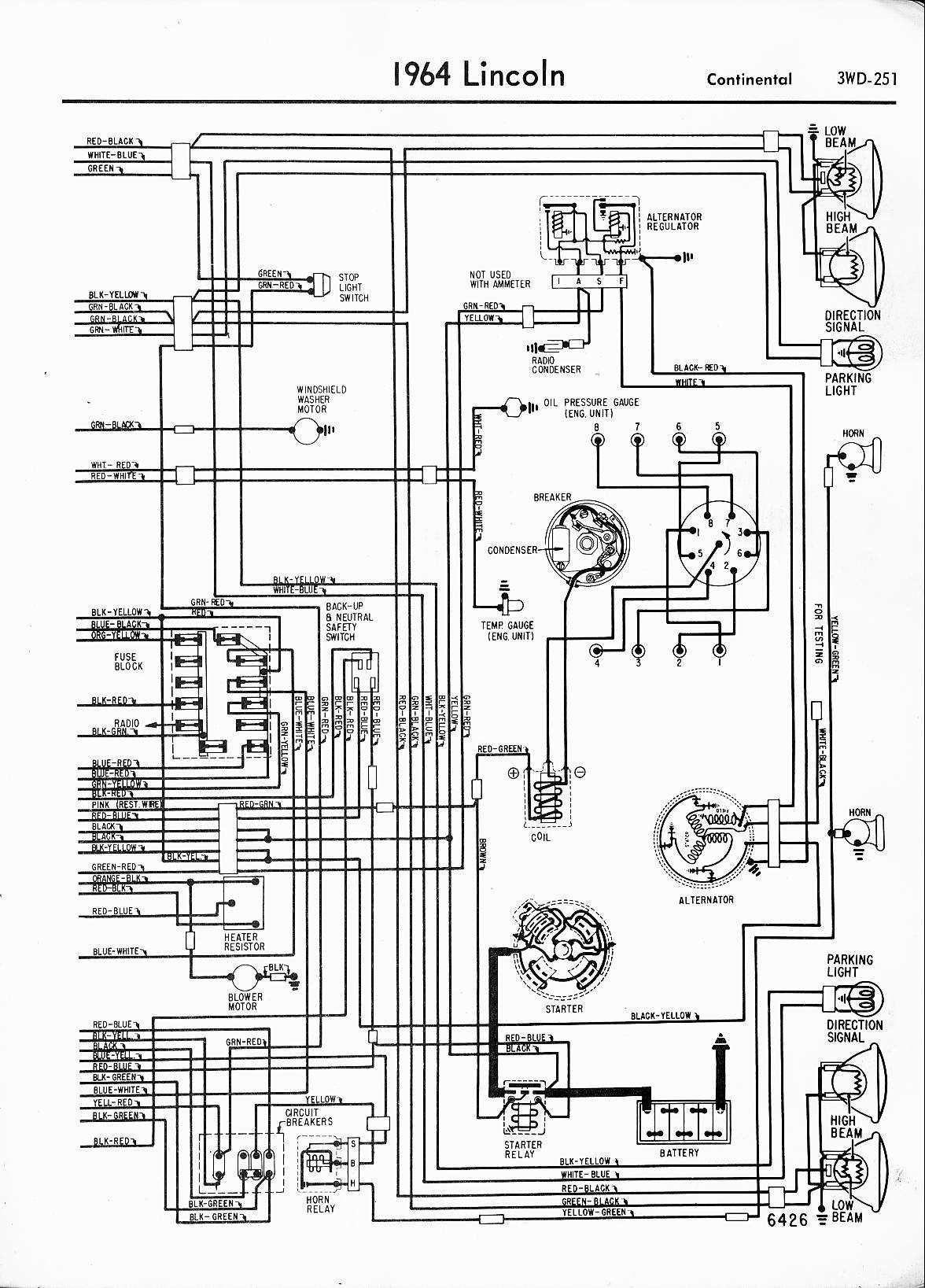

Complete Electrical Wiring Guide for 1964 Lincoln Continental Restoration

Start by locating the under-dash fuse block near the driver’s side kick panel–this is the nerve center for the vehicle’s circuits. The factory layout splits into five primary bundles: lighting, ignition, charging, accessories, and instrumentation. Use a multimeter set to 20V DC to verify power at each fuse socket before probing downstream; expected readings should range between 12.0–13.8 volts. If voltage drops below 11.5V on the hot side, trace the red wire with yellow stripe back to the battery terminal–corrosion at the solenoid connection is a frequent failure point.

For turn signal circuitry, focus on the flasher relay mounted behind the instrument cluster. The original unit is a thermal bimetal type; replacements must match the 14-amp rating to prevent rapid cycling. The wiring harness splits into left and right branches at the steering column connector–a six-pin plug secured with a spring clip. Label each pin before disconnecting: pins 1 and 4 carry power, 2 and 5 ground the bulbs, while 3 and 6 link to the hazard switch. Install a bypass wire from pin 3 directly to the brake pedal switch if rear signals fail to illuminate during braking.

The air conditioning compressor clutch wire (light blue with white stripe) terminates at a pressure switch near the accumulator. Check continuity across the switch contacts at 30 psi; below 25 psi, the circuit opens to prevent damage. The blower motor resistor block, tucked beneath the glove box, uses three distinct resistance paths–error codes don’t exist, but a dim dash light when the fan is set to low speed confirms a burned-out resistor. Replace the block with the updated part number ending in -B for improved heat dissipation.

Headlight high/low beam operation routes through a foot-operated dimmer switch under the brake pedal. The switch’s internal contacts wear unevenly; depress the pedal halfway through its travel and listen for a faint click–absence indicates replacement is needed. Fog light wiring (optional on early models) branches off the main lighting harness just forward of the radiator support–look for a two-wire green plug. If fog lamps flicker, inspect the relay inside the front fender, which often fails due to moisture ingress.

To diagnose parasitic battery drain, unplug the voltage regulator behind the glove box and measure current draw at the battery negative post. Values above 0.05 amps point to a stuck relay or shorted diode in the alternator’s rectifier bridge. For ignition troubles, follow the pink ignition wire from the key cylinder to the starter solenoid–the wire’s insulation frays near the exhaust manifold heat shield, requiring high-temp loom replacement. Always disconnect the battery ground cable before servicing to avoid triggering the seatbelt warning buzzer, which draws power even when the car is off.

Classic Sedan Electrical Blueprint Manual

Begin by locating the main fuse block under the dashboard near the driver’s door. This panel houses 14 fuses, each rated between 8 and 30 amperes. Label them immediately using masking tape and a permanent marker–ambiguity here leads to hours of troubleshooting later. Use a multimeter set to continuity mode to verify each fuse before proceeding.

• Fuse #3 (10A) controls the headlamp switch–test continuity by probing the blade terminals with the switch in both “on” and “off” positions.
• Fuse #7 (20A) powers the instrument cluster; a frequent failure point due to age-related corrosion on the printed circuit board.
• Fuse #12 (15A) handles the turn signal circuit–if blinking erratically, inspect the flasher relay behind the kick panel first.

Trace the ignition circuit from the starter solenoid to the ballast resistor–this 1.5-ohm component often fails, causing hard starts. Replace it with a modern ceramic-bodied unit if the original wire-wound type shows signs of overheating. The resistor’s output wire (pink with a black stripe) splits into two paths: one to the coil, the other to the voltage regulator. Verify both branches carry 9-12 volts during cranking with the engine cold.

The charging system relies on a 40-amp alternator and an external regulator mounted on the firewall. Test the regulator’s “A” terminal voltage with the engine at 1,500 RPM–it should read between 13.8 and 14.5 volts. If readings exceed 15 volts, replace the regulator immediately to prevent damage to the 50-amp main battery cable, which connects to the starter solenoid via a 3/8-inch stud. Clean this connection annually using dielectric grease to prevent voltage drop.

1. Disconnect the battery’s negative terminal before servicing any circuits.
2. Use rosin-core solder for repairs–inferior substitutes melt at lower temperatures.
3. Store original schematics in a sealed polyethylene bag to prevent moisture absorption.
4. Label wires with heat-shrink tubing instead of tape–UV degradation causes adhesive failure within 18 months.
5. Retain the original harness clamps; modern zip ties compress insulation over time, leading to short circuits.

Finding the Full Electrical System Blueprint for the Classic 1964 Model

Begin with the vehicle’s original factory service manual, where the electrical schematic spans pages 12-1 through 12-24. These archives, often overlooked, include color-coded conductor paths and connector pinouts specific to each circuit, eliminating guesswork when tracing faults.

For direct access, seek reproductions from specialized automotive literature vendors–particularly those focused on American luxury marques. The most reliable editions feature annotations correcting minor factory errors, such as mislabeled ground points under the driver’s side kick panel (marked G-103 in the legend).

Underground forums dedicated to vintage electrical restoration host thread archives containing high-resolution scans of rare supplementary diagrams. One notable example details the trunk-mounted voltage regulator layout, including the infrequently documented bypass resistor values (0.5Ω) for load balancing.

The under-hood fuse block merit close inspection; its layout mirrors the harness routing guide on page 8-7 of the supplementary electrical troubleshooting addendum. Note that the 20-amp circuit breaker for the power seats (CB-4) shares a bus bar with the courtesy lamp relay–an often-missed crossover that causes intermittent shorts.

When dissembling the dashboard, label each terminal cluster with painter’s tape inscribed with the corresponding designation from the schematic. The instrument panel illumination feed (circuit YL-18) frequently frays near the steering column tilt mechanism due to repeated flexing, a failure point not always illustrated.

For vehicles equipped with the optional speed control system, an auxiliary harness branches near the firewall bulkhead (connector C-211). This segment, absent from most standard diagrams, includes a 3-pin junction for the vacuum actuator solenoid, requiring 18-gauge wire with cloth insulation matching the period specifications.

Verify each ground strap connection against the chassis map; earlier production units utilized a singular braided strap at the transmission crossmember, while later builds introduced a secondary strap at the rear subframe. Corrosion at these points mimics open-circuit symptoms, complicating passive component diagnostics.

If reconstructions prove incomplete, reverse-engineer the harness by following conduit sleeves from the firewall to the tail assembly. Pre-cut lengths exist: 14.5 feet for the main harness, 6.2 feet for the rear lighting loom, and 3.8 feet for the under-dash bundle. Cross-reference these measurements with period-correct wire gauge charts to ensure proper current carrying capacity.

Identifying Key Electrical Connections in the Front and Rear Lighting Systems

Locate the headlight harness behind the driver-side inner fender panel–two primary wires (bright green with yellow stripe and dark green with white stripe) feed the high and low beams. Verify continuity with a multimeter at the bullet connectors before reconnecting; corrosion here mimics bulb failure. For turn signals, trace the yellow wire bundle from the steering column to the front parking lights–the dual-filament bulbs share a common ground (black wire) at the chassis rail near the bumper bracket.

Rear Lighting Circuit Checks

• Identify the tail light socket cluster by following the red wire loom from the trunk junction block–bright red (brake), orange (turn), and brown (running) wires terminate here.
• Test the flasher relay output at the hazard switch: probe the light blue wire for 12V pulses when toggled.
• Inspect license plate illumination by accessing the white wire at the trunk lid hinge–ensure the ground (bare copper) bonds to the unpainted metal surface.
• For reverse lamps, the purple wire pair at the transmission switch must show 12V when shifted into reverse–bypass the neutral safety switch if voltage is absent.

Isolate intermittent failures by back-probing connectors while wiggling the harness–chafed insulation often hides at the rear leaf spring mounts.

Locating the Ignition and Crank Signal Pathways for Fault Diagnosis

Begin by disconnecting the battery’s negative terminal to prevent accidental shorts. Use a multimeter set to continuity mode to probe the pink wire at the ignition switch’s “BATT” terminal–this should register zero resistance to the positive battery post. If readings fluctuate or exceed 0.5 ohms, inspect the fusible link (often a 18-gauge red segment) behind the firewall near the starter solenoid; corrosion here mimics switch failure.

Trace the purple/yellow stripe from the ignition switch’s “IGN” pin to the coil’s positive terminal. Verify voltage (~12V) at both ends with the key in “RUN”; drops below 10.5V indicate a compromised ballast resistor (white ceramic block adjacent to the coil) or loose connections in the engine harness. For cranking circuits, follow the yellow wire from the switch’s “START” terminal to the starter solenoid’s S-post–intermittent engagement often stems from a pitted relay contact or frayed wire at the steering column’s ignition ring.

Check ground integrity by clipping the multimeter’s negative lead to the starter housing and probing the switch’s black ground wire; resistance should stay under 0.1 ohms. If readings spike, clean the mounting surfaces where the solenoid bolts to the engine block, ensuring bare metal contact. For persistent no-crank conditions, bypass the neutral safety switch temporarily by jumping the purple and yellow wires at the switch connector–successful start confirms a faulty inhibitor circuit.
