Complete Electrical Wiring Guide for the 1964 Volkswagen Beetle
Begin by locating the central fuse box under the dashboard on the driver’s side–this houses the main connections for the original harness. Label each wire with masking tape before disconnecting anything; OEM schematics use a four-color code (black, blue, red, yellow) supplemented with thin tracer lines. If replacing a frayed section, match the gauge precisely–most circuits run 1.5 mm², while the generator-to-battery feed requires 4 mm².
Check the voltage regulator mounted on the firewall–common failure point in early models. Clean the brass contact points with fine sandpaper and apply dielectric grease to prevent oxidation. The headlight circuit includes a inline fuse holder near the bulb housing; verify it’s rated at 16A. Dim headlights often trace back to corroded grounds at the front torsion bar or poor contact at the bulb socket.

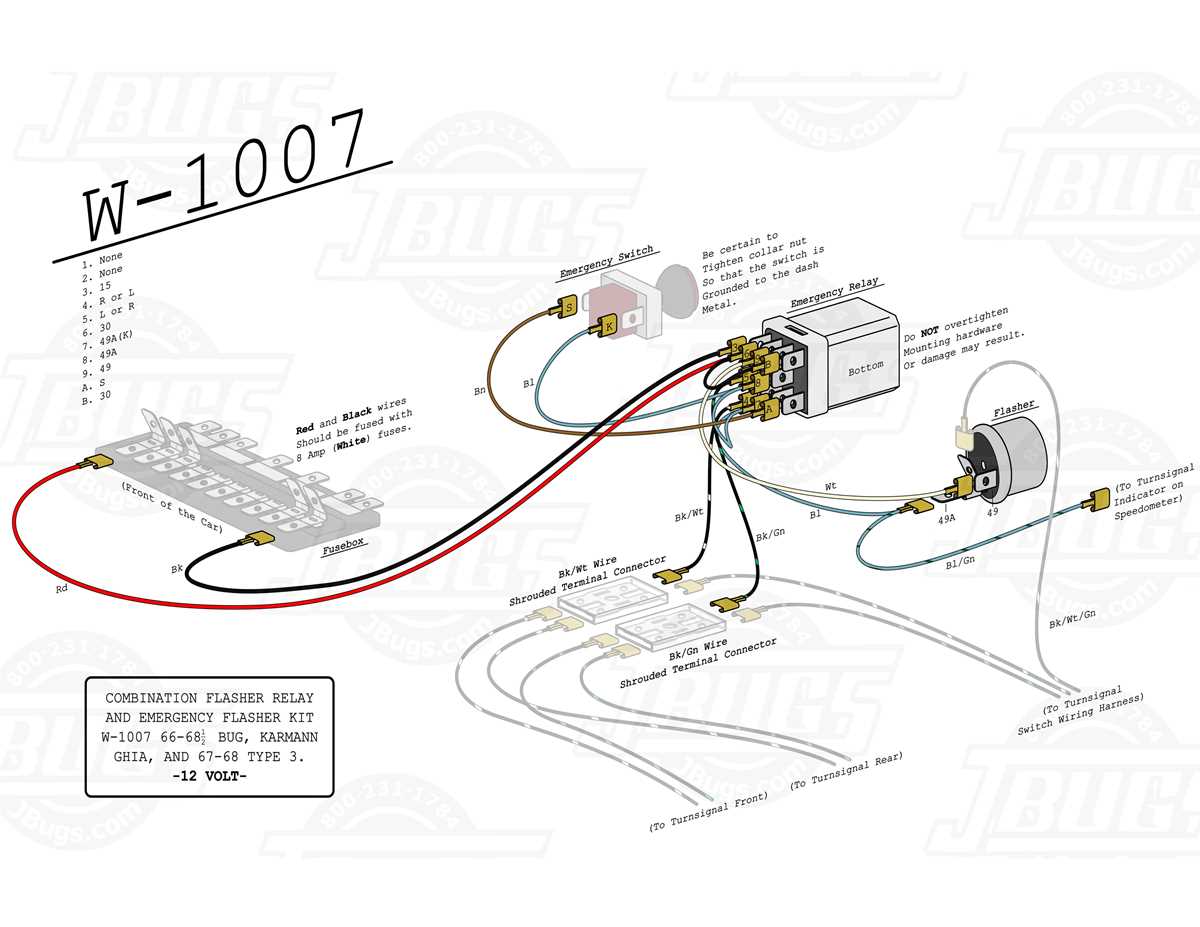

For turn signals, test the flasher unit (a cylindrical relay behind the speedometer). If signals blink too fast or not at all, swap the relay first–it’s a $5 fix. Rear lights share grounds with the taillight assembly; corrosion here mimics bulb failure. Remove the lens, sand the metal contacts lightly, and reinstall with conductive paste.
Tracing ignition issues? Start with the coil’s primary lead (thick black wire) and follow it to the distributor’s condenser. Spark plugs must gap at 0.6 mm; wider gaps overwork the stock coil. The alternator’s field (thinner green wire) requires 5-7 ohms resistance–exceeding this means the brushes are worn.
Print a full-color factory schematic from the Bentley manual (pages 24-3 to 24-5) and overlay your repairs on it. Color-coded highlighters help track live circuits without guesswork. Always disconnect the battery’s negative terminal first–reversing polarity destroys the generator diodes.
Classic Beetle Electrical System: Step-by-Step Repair Manual
Locate the fuse box under the dashboard on the driver’s side–it houses six ceramic fuses rated at 8A each. Label each fuse with masking tape: headlights (front left), tail lights (rear right), ignition, horn, wipers, and interior lights. Replace blown fuses with identical amperage; never exceed specifications.
Trace the main harness from the battery to the ignition switch along the inner fender. Use a multimeter to test continuity between the positive terminal and the switch’s “30” terminal (thick red wire); resistance should read below 0.5 ohms. If resistance spikes, strip corroded connectors and apply dielectric grease before reassembling.
Common failure points:
- Deteriorated rubber grommets where wires pass through the firewall–inspect for fraying.
- Oxidized bullet connectors near the front turn signals–clean with fine-grit sandpaper.
- Loose ground straps behind the rear seat–secure with star washers for better conductivity.
The voltage regulator mounts on the left inner fender. Test its function by running the engine at 2000 RPM and measuring output at the battery terminals–acceptable range is 13.8–14.5V. If readings fluctuate, replace the regulator without adjusting; modern solid-state units drop into the same bracket.
Dashboard Cluster Troubleshooting
Remove the two Phillips screws holding the speedometer. Behind it, check the thin brown wire for breaks; this feeds all dashboard lights. Re-solder joints if the bulb dimmer fails–original 3mm bulbs use a 14V rating. For non-functional gauges, probe the sender units first: oil pressure at the block (0–90 psi), temperature near the thermostat (150–250°F), and fuel level behind the rear seat (0–30 ohms).

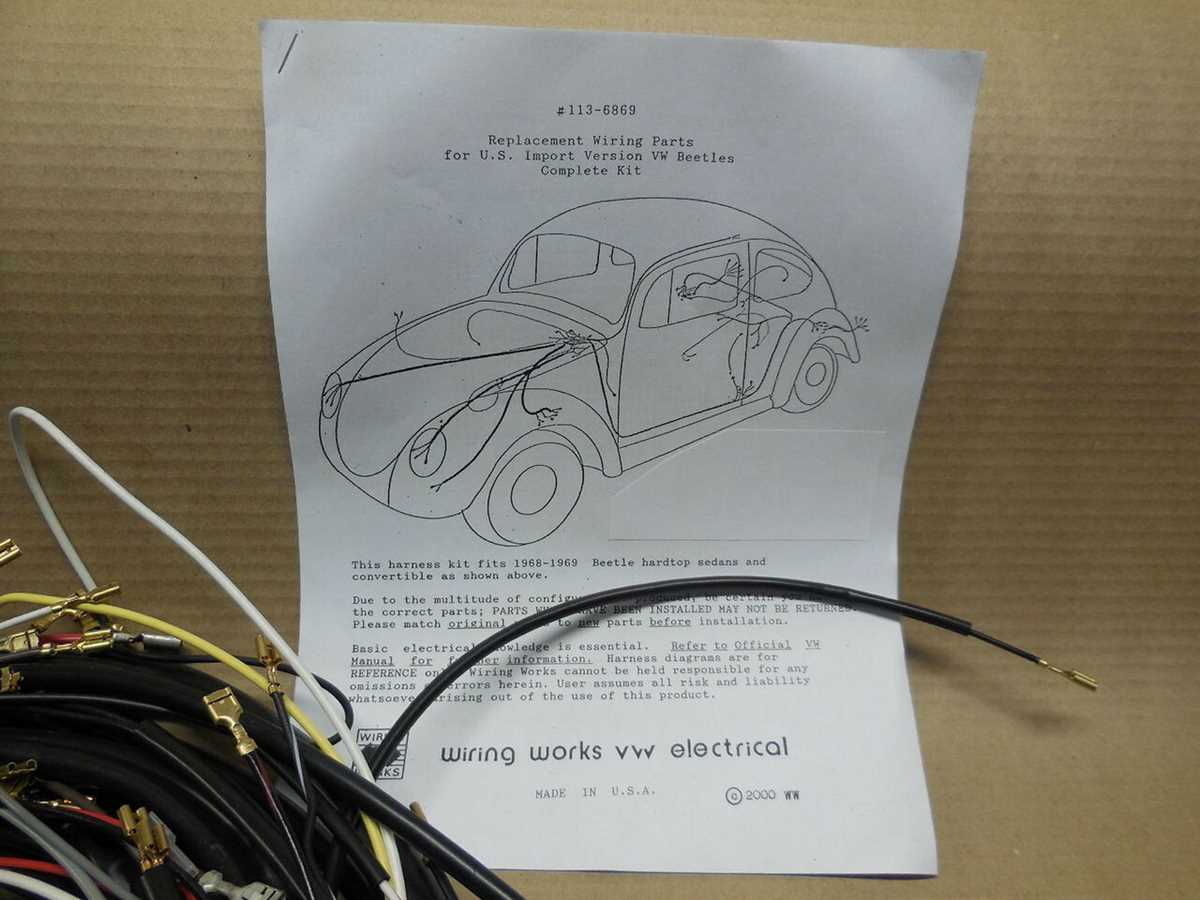

Reproduction harnesses often omit the radio suppression capacitor near the coil–install a 2.2μF 250V capacitor between the coil’s positive terminal and ground to prevent ignition noise. Route all wires above the brake lines to prevent chafing; secure with plastic zip ties spaced every 8 inches.
Final checklist before road testing:
- Flash all exterior lights, including reverse lamp.
- Engage the starter with the ignition key–verify no sparks jump at the battery terminals.
- Drive 1 mile at 30 mph, then pull over and touch all major connectors–none should exceed 140°F.
Finding Critical Electrical Link Points in the Classic V-Type Air-Cooled Sedan
Begin under the rear deck lid where the main fuse block mounts to the left of the engine compartment. Three primary bundles exit this junction: the thick red lead (battery-positive) splitting toward terminals 30 and 15 on the ignition switch, a brown return strap looping under the transmission tunnel to starboard grounding points, and a violet harness bridging the voltage regulator. Severed solder lugs here often mimic ignition failure–probe each splice with a continuity tester before reassembly.
Trace the instrument cluster loom behind the speedometer housing. A six-pin connector feeds bulbs and gauges; pins one (yellow) and three (black-white) handle illumination, while pin six (red-black) carries generator voltage–look for corroded copper strands, especially where the harness enters the firewall grommet. Thread crimps compress easily under steering column vibrations, causing voltage drop to warning lights. Secure every join with heat-shrink sleeves rather than electrical tape.
Locate the front apron harness beneath the left headlight bucket. Blue-yellow wires supply power to turn signals, brown leads return through fender-mounted choke resistors, and white-blue pairs run uninterrupted to parking lamp filaments. Disconnect at the original bullet connectors; replace any cracked insulation with automotive-grade cross-linked polyethylene tubing. Label each branch with tape markings matching the original schematic color codes–avoid relying on memory during routing.
Step-by-Step Fusebox Circuit Tracing for Early VW Beetle Variants
Locate the fusebox near the steering column under the dashboard. Remove the protective cover by unscrewing the single retaining screw to expose the fuse terminals. Count the four fuses from left to right–these correspond to distinct electrical branches: headlamps, tail lights, horn, and ignition systems.
Identify the fuse ratings embossed on each ceramic body:
- First fuse: 8A (low-beam headlights and dash indicators)
- Second fuse: 16A (high-beam headlights)
- Third fuse: 8A (tail lights and license plate illumination)
- Fourth fuse: 16A (horn and ignition coil)
Trace the red wire leading from the battery-positive terminal to the fusebox. It splits into two strands: one feeds the ignition switch, the other supplies the lighting circuit. Verify continuity with a multimeter–readings should match battery voltage (12.6V) when ignition is off.
For tail light circuits, follow the brown-yellow striped wire from the third fuse terminal. It routes through the rear harness grommet, splitting into three branches: left rear bulb (5W), right rear bulb (5W), and license plate bulb (3W). Confirm bulb wattage before testing–mismatches indicate incorrect bulb installation.
Inspect the fourth fuse branch by probing the green wire. It powers the horn relay and coil. If the horn fails, test the relay first by bridging the relay socket contacts–if the horn sounds, replace the relay. If not, check the horn ground connection at the front valence panel.
Always re-secure the fusebox cover after testing. Loose screws risk terminal misalignment, causing intermittent shorts. Label each wire with masking tape during disassembly to prevent confusion during reassembly.
Tracing and Repairing the Ignition Circuit on a Classic Air-Cooled Volkswagen
Locate the coil and distributor first–these are the core components of the system. The coil sits on the firewall, identifiable by its cylindrical shape and high-tension lead. Disconnect the battery before touching any terminals to prevent shocks or shorts. Probe the coil’s primary terminals with a multimeter set to ohms; readings between 1.5 and 3.0Ω confirm a functional primary winding. A deviation signals internal failure–replace the coil immediately.
Follow the harness from the coil to the distributor using a flashlight. The braided lead connects to the distributor’s central post, often concealed under a rubber grommet. Strip back 5mm of insulation at the termination point if corrosion or fraying is visible. Apply dielectric grease to cleaned connections before crimping new terminals if replacement is needed. Avoid soldering–heat can damage the original cloth-insulated leads.
The points and condenser sit inside the distributor. Remove the rotor and dust cover to access them. Check the points gap with a feeler gauge; set to 0.016 inches (0.4mm) for optimal spark. If the points are pitted or discolored, replace them along with the condenser–failure here causes misfires and hard starting. The condenser’s case should be grounded; a loose or corroded mount disrupts the entire circuit.
| Component | Normal Resistance/Value | Failure Symptoms |
|---|---|---|
| Coil primary | 1.5–3.0Ω | No spark, weak spark |
| Coil secondary | 5,000–15,000Ω | Misfires under load |
| Points gap | 0.016 in (0.4mm) | Rough idle, backfiring |
| Condenser | Infinite (open) when tested | Points arcing, rapid wear |
Trace the low-voltage feed from the ignition switch to the coil. The brown/black stripe lead typically routes through a single terminal block near the steering column. Corrosion here mimics coil failure–scrape the terminal and apply contact cleaner. If voltage drops below 10V at the coil with the key on, inspect the fuse block and switch for loose connections.
Inspect the high-tension lead from the coil to the distributor. The original push-on connector at the distributor cap often degrades–look for cracks or carbon tracking. Replace the entire lead if resistance exceeds 10kΩ per foot. Route the new lead away from the exhaust manifold to prevent heat damage. Secure it with original-style clamps spaced every 12 inches.
Check the spark plug wires last. Pull each boot off the plug and distributor cap; resistance should measure 3,000–10,000Ω per foot. Higher readings indicate internal breaks–replace the entire set if one fails. Number each wire before removal to avoid cross-firing. Route wires in the original sequence: 1-4-3-2 clockwise from the #1 mark on the distributor.
Tools and Materials Needed
Multimeter with ohmmeter function, feeler gauges, dielectric grease, contact cleaner, crimping tool, replacement terminals (1/4″ spade), high-tension lead kit, spark plug wire set. Avoid cheap universal parts–use OEM-spec components from suppliers like VW Heritage or CB Performance.
Reconnect the battery and test for spark at each plug wire before reassembly. Crank the engine while holding a plug wire 1/4 inch from the block–a healthy system produces a strong blue arc. Weak or orange sparks indicate unresolved issues in the coil, distributor, or ground paths. Recheck all connections if problems persist–heat cycles often expose intermittent faults.
