Complete Electrical Wiring Guide for the 1966 Volkswagen Beetle Schematic

Start by securing a factory-spec harness map for the 1.3-liter air-cooled model–this is the only reference that eliminates guesswork. Original schematics from Bentley Publishers (part No. WHD-ENG) remain the most reliable source, matching OEM pinouts exactly. Avoid aftermarket manuals that omit ground plane details or fuse ratings critical for compatibility.

Identify key ignition components first: the distributor solenoid, voltage regulator (mounted behind the dashboard), and ignition coil with dual posts. Wrong connections here will fry the rectifier or trigger intermittent misfires. Label every spade connector with heat-shrink tubing–generic tools like wire strippers often damage fragile 22-gauge leads.

Trace the lighting circuit separately. Headlights share a common power bus with parking lamps but route through separate two-stage relays. Swap corroded socket plates immediately; 5-watt bulbs on vintage circuits overheat if terminals show pitting. For turn signals, verify the flasher unit’s 4-prong orientation–reversed polarity disables hazard warnings entirely.

Test continuity with a 12-volt test light, not a multimeter–ground paths in unibody models shift unpredictably. Focus on the wiper motor ground strap first; a loose connection here mimics capacitor failure and kills dashboard gauges. Stock radio harnesses require a grounding loop through the backbone tube–skip this and noise suppressor capacitors won’t engage.

Replace brittle harness sections with cross-linked polyethylene cable (same as OEM Saarland wiring). Solder every splice, then crimp with Panduit heat-activated solder sleeves–standard butt connectors corrode within 18 months. Route wires above the floor pan away from header pipes and strictly follow grommet channels; bypassing chassis clips guarantees moisture ingress at harness bends.

Consult the color-coding table before touching anything: green/yellow (low beam), brown/white (brake lights), and striped earth straps are non-negotiable. Swap the entire fusebox if melt marks appear; 8-amp ATO fuses will blow above 10 amps, failing to trip on older ceramic types.

Electrical Layout for Classic VW Type 1 Models

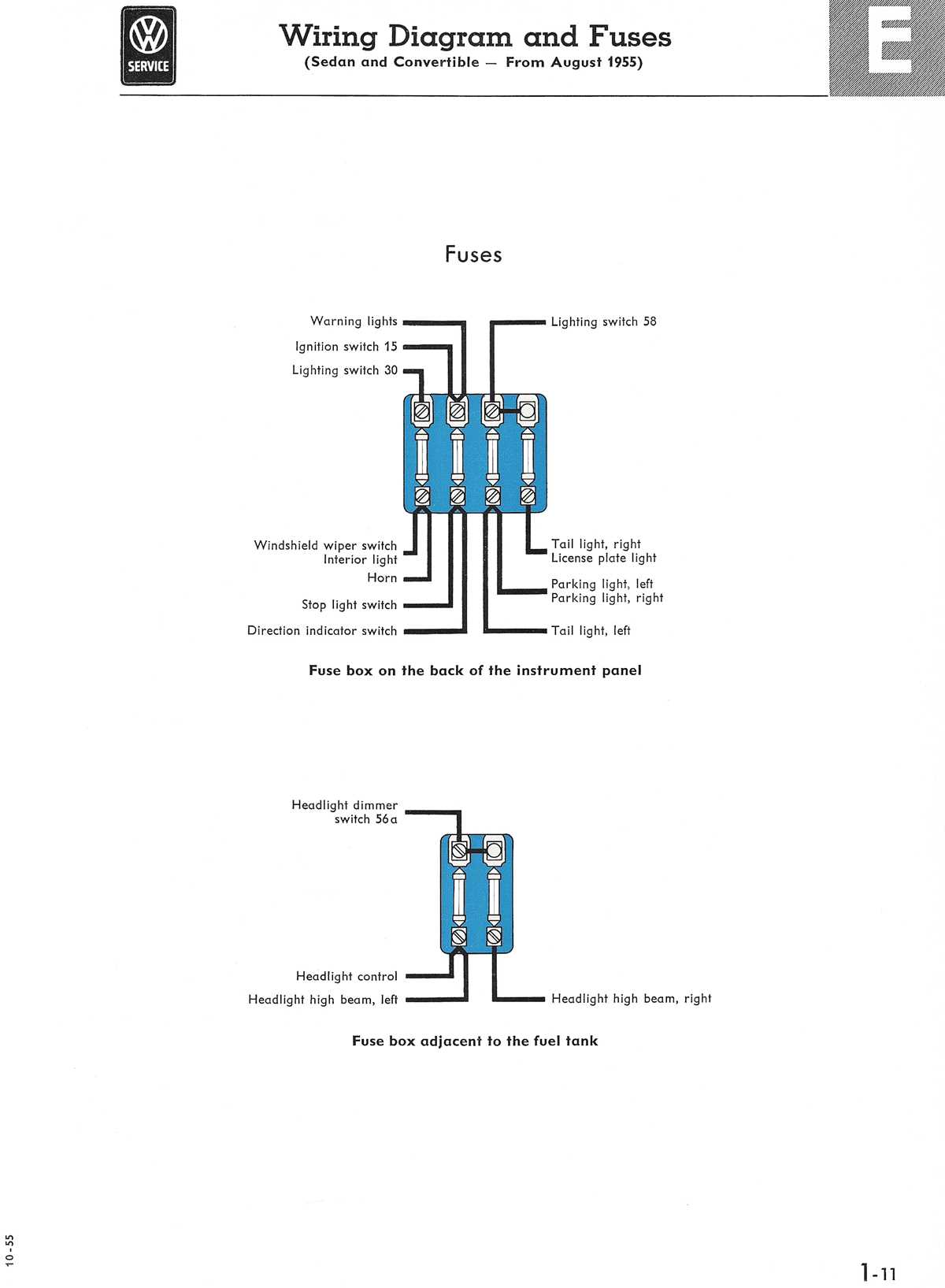

Start troubleshooting by disconnecting the battery ground cable to prevent accidental shorts. Locate the fuse panel beneath the dashboard on the driver’s side–its porcelain fuses are rated at 8 or 16 amps, depending on the circuit. Verify each fuse’s continuity with a test light before replacing, as corrosion on the fuse clips often mimics blown fuses.

Trace the main harness from the battery’s positive terminal along the chassis tunnel to the voltage regulator. The regulator on air-cooled models uses three terminals: B+ (battery), D+ (dynamo), and DF (field). Clean the connections with a wire brush and apply dielectric grease to prevent oxidation–failure here causes erratic charging or total power loss.

The headlight circuit relies on a four-prong bulb socket: low beam (left), high beam (right), and two ground prongs. A common failure occurs when the dimmer switch’s contacts wear, requiring disassembly and light sanding of the contact points. Replace the entire switch if corrosion is visible.

For turn signals, check the flasher relay mounted near the steering column; it’s a round metal canister with two spade connectors. If bulbs stay on solid, the relay’s bimetallic strip is stuck–tap it lightly or swap with a known-good 12V unit. The hazard switch uses a separate relay behind the speedometer.

Interior lighting depends on a door-activated plunger switch screwed into the B-pillar. If the dome light stays off, remove the switch and test for continuity with the door open. Lubricate the plunger mechanism with silicone spray to restore smooth operation.

Ignition wiring connects the coil to the distributor via a suppressed resistance cable. If the engine cranks but won’t start, measure voltage at the coil’s positive terminal–it should read battery voltage with the key on. Replace the ignition switch if voltage drops below 9V.

Ground straps bolted to the engine block and chassis often corrode, causing intermittent electrical gremlins. Remove, clean to bare metal, and reattach all grounds with star washers to ensure a solid connection. For persistent issues, run a dedicated 10-gauge ground wire from the battery negative to the transmission case.

Tracing the Factory Harness Path for a Classic Air-Cooled Sedan

Begin with the chassis number stamped on the front firewall–specifically under the spare tire well on early models. This identifier confirms whether your vehicle follows the original European or U.S.-spec harness routing. Match these digits against factory service bulletins: chassis 116000001-116200000 denote pre-August revisions, while 117000001 onward include updated earth straps and bulb socket revisions.

Pull the rear seat cushion and peel back the floor mat to expose the main bulkhead connector. The harness exits the passenger compartment here, splitting into three distinct looms: one feeds the rear lights and license plate illumination, another branches to the fuel sender and brake light switch, while the third curls beneath the parcel shelf toward the brake master cylinder. Look for cloth-wrapped bundles tied with waxed cotton lacing; vinyl sheathing indicates a later aftermarket alteration.

Follow the dashboard loom upward behind the speedometer housing. Two spade connectors–one white, one black–mate with the instrument cluster; a third red-violet lead snakes left to power the turn signal flasher canister mounted near the steering column support. Trace these leads back to the ignition switch terminal board, noting the signature twist-lock bullet connectors that distinguish OEM harnesses from reproductions.

Inspect the front trunk area where the battery tray resides. A braided copper strap grounds the negative terminal directly to the chassis rail; absence of this strap or crimped ring terminals suggests corrosion-prone workarounds. The front lighting loom exits the main harness near the torsion tube, secured by a single metal clip, then splits into headlamp, side marker, and horn leads. Locate the horn relay tucked behind the left headlight bucket–factory harnesses route leads through a grommet at the top rather than cutting notches into the fender.

Cross-reference your findings against the official workshop manual’s fold-out plate, typically pages 24-29 for early editions. Factory diagrams use a grid overlay with numbered terminals; verify each splice matches the corresponding wire gauge–0.5mm² for lighting circuits, 1.5mm² for battery feeds. Colors adhere strictly to DIN 47002: brown for earth, red for switched power, black-green for ignition, and striped leads denote fused circuits.

Swap suspect connectors immediately if heat-shrink insulation feels brittle or solder joints show crystallization–replacement pins cost under a dollar apiece but prevent voltage drop visible on a multimeter as a 0.2V or greater discrepancy between fuse block output and load-side terminals. Archive photographs of each disconnection; factory harnesses are symmetrical yet uniquely routed left-to-right, making reassembly guesswork expensive when tracking misplaced leads.

Decoding Color Markings in the Classic Volkswagen’s Electrical Setup

Start by locating the main harness behind the dashboard–solid black wires supply ground (-), while red with a thin tracer denotes the primary power feed from the battery. Avoid confusing brown (tail lights) with brown/white (brake light switch); cross-wiring here will disable rear illumination entirely. Use a multimeter to verify continuity before reconnecting components, as faded markings often mislead.

Blue handles high-beam circuits, but its blue/black variation controls the low-beam relay–swapping these burns the headlight bulb filaments within seconds. For turn signals, green (left) and yellow (right) must never intersect; a mixed connection triggers both sides simultaneously. Test blinkers by manually bridging the flasher relay socket–no response indicates a severed lead, typically near the steering column.

Instrument cluster wiring relies on white/black (fuel gauge sender) and gray/red (temperature sender); reversing polarity damages the gauges permanently. The violet wire at the ignition switch carries unswitched voltage to accessories–tapping into it for aftermarket additions risks draining the battery if the key is off. Always disconnect the ground strap before probing live circuits to prevent accidental shorts.

For horn circuits, black/yellow activates the relay while black/white grounds the horn itself–test by jumping the relay socket directly. Fuse assignments differ: red/black protects the wiper motor, red/brown safeguards the heater blower. Label each wire with masking tape during disassembly, noting original positions–restoration errors double troubleshooting time.

Step-by-Step Guide to Tracing Ignition Circuit Pathways

First, disconnect the battery’s negative terminal to eliminate any risk of short circuits. Locate the coil (a cylindrical component near the distributor) and identify its two primary terminals–marked “+” (battery side) and “-” (distributor side). Using a multimeter set to continuity mode, probe the “+” terminal and follow the red-colored lead back to the ignition switch. Check for breaks by comparing resistance readings against the factory spec (0.5–1.5 ohms for uninterrupted paths). If resistance exceeds 2 ohms, inspect connectors for corrosion or frayed strands; clean contacts with 600-grit sandpaper and dielectric grease.

Verification and Common Pitfalls

Component	Expected Voltage (Key ON)	Troubleshooting Steps
Coil “+” terminal	~12V	If absent, trace fuse #5 (8A) and ignition switch contacts
Distributor points	0V (closed), ~12V (open)	Check gap (0.016″); adjust with feeler gauge if outside tolerance
Condenser (capacitor)	N/A	Test with multimeter: 0.2–0.5 µF; replace if outside range

For the “-” terminal, trace the black lead to the distributor’s contact points. Measure voltage drop across points when closed–readings above 0.2V indicate pitted contacts or misaligned springs. Replace worn components with OEM-spec parts (Bosch 0 227 100 103 for breaker points). Reconnect the battery only after verifying all connections; start the engine and monitor the ammeter for steady charging (10–15A at idle).
