Complete 1967 Volkswagen Beetle Electrical System Wiring Guide
Start with the fusible link near the battery. Many errors trace back to corroded or improperly crimped connections here. Clean terminals with a wire brush and verify continuity before troubleshooting further. The link protects the main harness and should show near-zero resistance when tested with a multimeter.
Locate the three-position ignition switch cluster behind the instrument panel. The feed wire (usually black with white stripe) splits into ignition, accessory, and starter circuits. If accessories fail, check the switch terminals for burn marks–replacements require exact alignment to avoid misrouting.
Headlight circuits rely on a relay tucked near the headlight bulbs. Failure often stems from melted solder joints on the relay base. Use a 10-gauge wire (red/black) to bypass common points of weakness. Grounds for the headlights attach to the front chassis rail–ensure they’re free of paint or rust.

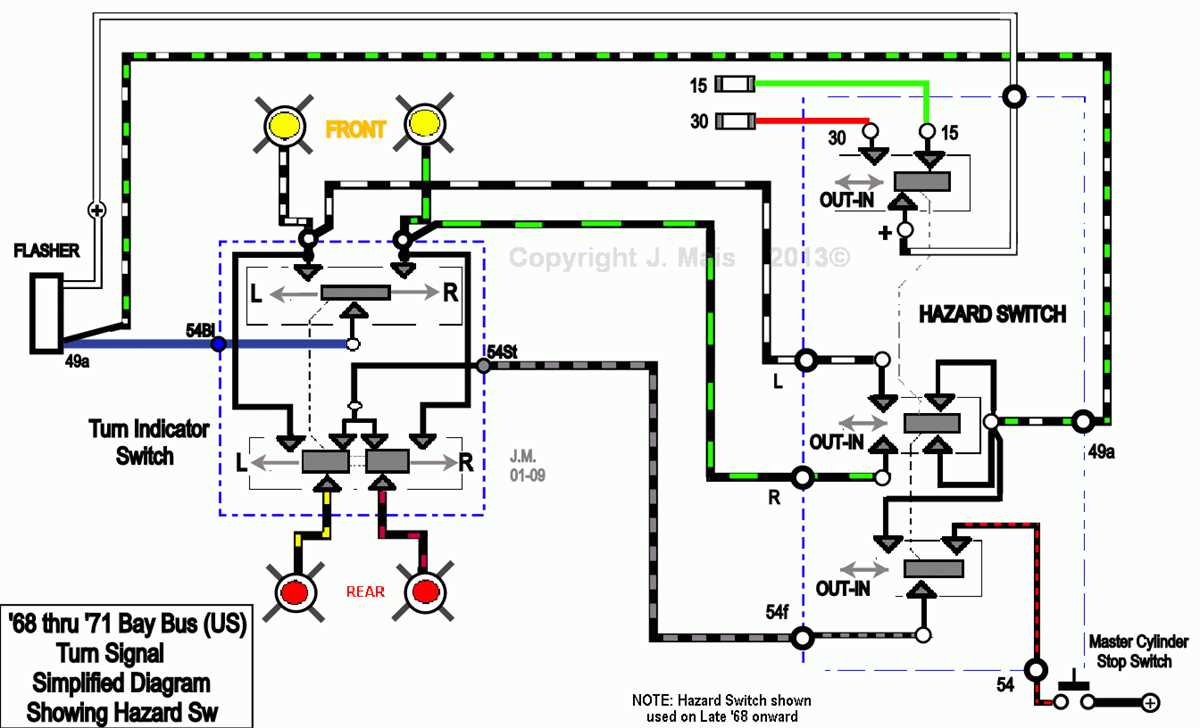

The turn signal flasher unit sits above the steering column. If signals blink erratically, the flasher may need replacement, but first confirm the hazard switch isn’t stuck. The brake light circuit merges with turn signals at the rear light assemblies–inspect the yellow/green wire for fraying near the bumper mounts.
For alternator issues, test the voltage regulator output at the D+ terminal (typically 13.8–14.4V). A failing regulator often mimics a bad alternator. The field wire (black/red) must have a solid connection to the brush assembly–loose contacts cause intermittent charging.
Interior lights and horn share a fused circuit. If both fail, inspect the fuse block under the dash. The horn button completes the ground path–corrosion here prevents activation. Use dielectric grease on connections to prevent future oxidation.
When rewiring, avoid solid-core wire for moving parts (e.g., door jambs, steering column). Stranded 12-gauge wire resists fatigue better. Label all wires during disassembly–color codes alone aren’t reliable. Store schematics on paper (not digital) to avoid loss during power outages.
Restoring Classic VW Electrical Systems: A Hands-On Approach
Begin by disconnecting the battery terminals to prevent shorts during inspection. Label each wire with masking tape–note the color, terminal it connects to, and the component it powers. Original harnesses deteriorate due to brittle insulation; replace only if cracks expose copper. For temporary fixes, heat-shrink tubing slides over damaged sections, but ensure it’s automotive-grade to withstand vibrations.
Test the voltage regulator first. A faulty unit causes erratic charging or overcharging, frying bulbs and coils. Use a multimeter: connect the red probe to the “D+” terminal and black to ground. With the engine running at 2,000 RPM, readings should stabilize between 13.8–14.2 volts. If inconsistent, swap the 175-gram regulator; aftermarket units often misalign with stock alternators.

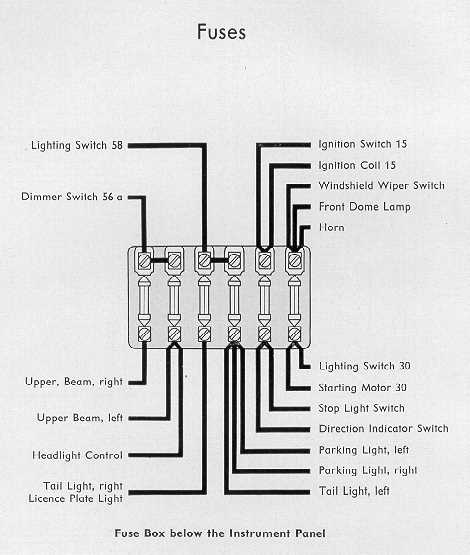

Trace the fuse block connections. Early models use a six-fuse setup under the dashboard. Each fuse corresponds to a circuit–headlights, turn signals, wipers–and corrosion here is common. Sand corroded terminals with 600-grit paper, then apply dielectric grease to prevent recurrence. Replace burnt fuses only after addressing the short; a 10-amp fuse blowing repeatedly indicates a grounded wire near the front bumper or under the passenger seat.
| Color Code | Component | Wire Gauge |
|---|---|---|
| Black/Green | High-beam switch | 1.5 mm² |
| Red/Black | Battery to solenoid | 4.0 mm² |
| Brown/White | Tail light ground | 0.75 mm² |
Inspect the ignition switch cluster. The three-position key assembly distributes power to accessories, ignition, and starter. Loose contacts here mimic coil failure symptoms–backfires, hard starts. Remove the switch from the column and squeeze terminal spades gently with pliers. Reassemble with contact cleaner, not WD-40; petroleum-based products attract dust, worsening resistance.
Check the horn relay under the hood. Corrosion accumulates on the 8mm mounting bolt, interrupting the ground path. Clean the bolt threads and chassis contact point with a wire brush. If the horn still fails, jump the relay terminals briefly–an 8-ohm resistance across the coil should trigger the horn. Silence confirms a bad relay; replace it with a Bosch equivalent, not a universal relay, to avoid mismatched voltage spikes.
Test the brake light circuit before condemning the switch. Two wires–white and black–exit the pedal assembly. Probe the white wire while pressing the brake; it should show 12V. If absent, the switch needs replacement. Avoid bending the plunger mechanism during installation; misalignment causes premature failure. For bulbs, use 23-watt dual-filament units–aftermarket LED equivalents often trigger hyperflashing due to low current draw.
Tools and Spares for Field Repairs
Carry these in the glovebox: 4-inch needle-nose pliers, crimp connectors (red/blue/yellow), a 0–20V digital multimeter, and a roll of electrical tape rated for 80°C. For longer trips, pack a spare voltage regulator and a set of 14-AWG wires–splices during operation should never exceed 3 inches. Avoid soldering on original harnesses; heat degrades the insulation further. Instead, use crimp-and-seal connectors; liquid electrical tape seals moisture ingress.
Matching the Right Electrical Schematic to Your Classic Volkswagen Variant
Begin by locating the chassis number stamped on the rear luggage compartment floor, near the spare tire well. Models produced before August 1967 carry a sequence starting with 117, while later units begin with 118. This distinction determines whether to reference the early or late production release charts – failure to verify will lead to mismatched connections in the lighting, ignition, or charging systems.
Inspect the fusebox configuration: pre-August editions use a horizontal layout with four blade fuses, whereas post-August variants switch to a vertical five-fuse arrangement. The voltage regulator also differs–early builds integrate a mechanical relay, while later ones adopt a transistorized unit. Cross-check these components against schematic sections labeled “Electrical Equipment” (Ch. 9) in the official factory repair manual; diagrams for the two production runs are not interchangeable.
Key Harness Layout Differences
Trace the main loom from the dashboard to the rear tail lights. A telltale sign of the early schematic is a single 6-terminal connector at the headlight switch; the updated version splits this into two separate 3-terminal plugs. Additionally, the generator warning light circuitry diverges–older diagrams show a direct path through the ignition switch, while the revised layout introduces a dedicated relay. Use a multimeter to confirm continuity at terminal DF on the generator; readings should align with the voltage values specified in the corresponding version.

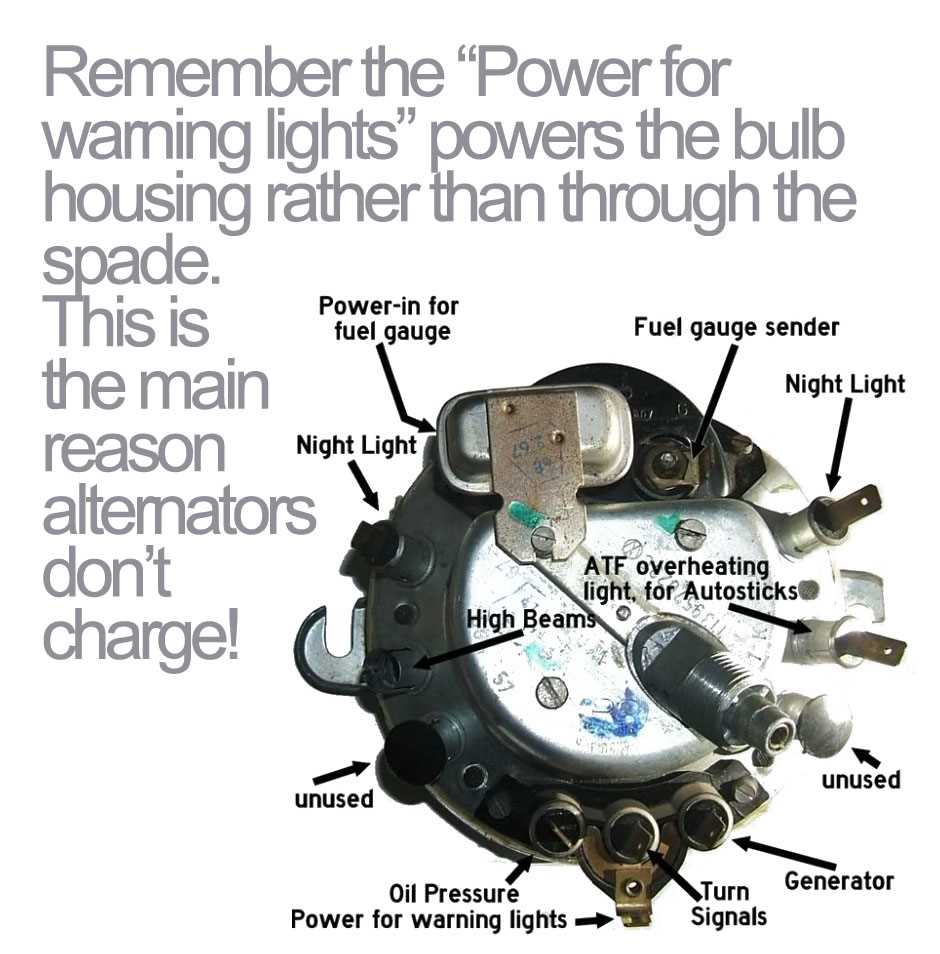

If modifying auxiliary equipment (e.g., aftermarket radio or fog lights), consult the “Special Equipment Wiring” addendum. Official blueprints omit these modifications, but reproductions by publishers like Bentley or Haynes often include them. Ensure the gauge cluster matches the schematic–specifically, the fuel sender wiring, which switched from a variable resistor (early) to a bimetallic strip (late) design, requiring distinct calibration curves.
Step-by-Step Guide to Mapping and Identifying Electrical Connections in a Classic Air-Cooled Sedan
Disconnect the battery first–ground terminal last–to prevent short circuits while examining the harness. Use a multimeter set to continuity mode to verify each lead’s path from origin to terminal. Start at the fuse box; label each fuse slot with its corresponding circuit using masking tape and a fine-tip marker. Avoid assumptions: cross-reference with a factory schematic to confirm color codes, as aftermarket repairs often introduce variations.
Trace each bundled cable from the engine compartment rearward. Separate the harness into manageable sections–front lighting, ignition, charging, and rear lighting–working on one at a time. Secure loose strands temporarily with zip ties to prevent tangling. For wires entering the cabin through the firewall, mark entry points with numbered tags to track their destinations beneath the dashboard.
Identify ground points early. Classic sedans rely on chassis grounds; clean rust or paint from attachment bolts before testing conductivity. Scrape paint from the chassis if readings exceed 0.5 ohms resistance. Note that some circuits share a single ground–label these carefully to avoid misdiagnosis during reassembly.
Labeling Techniques for Accuracy
Use heat-shrink tubing or adhesive-backed labels for permanent identification. Wrap each label twice around the wire at both ends–near connectors and splices–to ensure durability. For spliced or repaired sections, document the original color and the modification (e.g., “BLU/YEL → RED (splice 1985)”); this prevents confusion during future troubleshooting.
Photograph each step with a macro lens, focusing on connector pinouts and harness routing. Overlap shots to cover the entire path from source to load. Store images in a folder named by circuit (e.g., “Charging_System”) with sequential filenames. Cross-reference photos with labels to create a visual index.
Verification Before Reassembly
Reconnect the battery temporarily and test each circuit in isolation. Toggle switches one by one while observing indicator lamps or using a test light. For circuits with relays (e.g., headlights), manually trigger the relay coil with 12V to verify operation without relying on the switch. Any unresponsive components should be isolated for further inspection.
Double-check connections at bulbs, sensors, and motors. Remove each bulb and probe the socket terminals to confirm voltage arrives as expected–6V or 12V depending on the era’s modifications. For sensors (temperature, oil pressure), ensure a clean, corrosion-free surface before reconnecting. Replace any questionable connectors with modern spade or bullet terminals crimped with a ratcheting tool.
Compile all labeled wires, photographs, and test notes into a single reference binder. Include a simplified schematic drawn by hand for quick reference, highlighting deviations from factory specs. Update this document whenever modifications are made to maintain accuracy for future maintenance.
