Complete Guide to Wiring the Turn Signal Switch on a 1967 Ford Mustang
Locate the wires starting at the base of the steering column–two thin lines, one green with a yellow stripe and one yellow with a green stripe. These connect directly to the multi-function lever terminals labeled *LH* and *RH*. Verify continuity with a multimeter; readings should show zero ohms when the stalk is activated. If resistance exceeds 0.5 ohms, clean contacts with 400-grit sandpaper or replace the entire stalk assembly.
Trace the thicker black wire from the column harness down to the firewall grommet. There, it splits into three branches: a solid black lead to the fuse block, a black-with-white-stripe to the hazard flasher relay, and a black-with-orange-stripe to the brake switch. Confirm each branch’s integrity by probing both ends under load; voltage should match battery levels when the ignition is on.
Identify the flasher canister–mounted near the fuse panel on the driver’s side kick panel. The canister has three spade terminals: *B* for constant 12 V, *L* for left circuit load, and *R* for right. Use a test light: clip the ground to chassis, probe *B*–light should glow bright. Probe *L* and *R*; the bulb should pulse in sync with the stalk movement. Replace the canister if pulses are irregular or fail entirely.
Inspect the lighting module beneath the dash–it houses the small electronic relay that governs sequential operation on higher-trim models. Four color-coded leads emanate: *L* (light green/white stripe), *S* (light blue/black stripe), *TR* (dark green/yellow stripe), and *TF* (dark green/white stripe). Disconnect the harness, check each wire for nicks or corrosion; strip ends, apply dielectric grease, and crimp fresh terminals if needed. Reconnect in exact order to avoid shorting the module.
Ground path integrity is critical–trace every black or black-striped lead back to its chassis connection point. Scrape paint from mounting screws until bare metal shows; apply marine-grade grease to prevent oxidation. Tighten screws to 8-10 ft-lbs using a torque wrench; loose grounds cause intermittent operation. After securing, recheck stalk function–left stalk should illuminate front and rear bulbs sequentially within 0.3 seconds of activation.
Classic Ford Flasher Control Hookup Guide
Replace the original lever mechanism with a modern 3-prong flasher relay (Part #FC61) to eliminate flickering issues. Connect the B (battery) terminal on the relay to the fusible link wire (red with yellow stripe) running to the ignition switch, using a 16-gauge soldered joint wrapped in adhesive-lined heat shrink.
Route the L (load) terminal to the brown wire cluster entering the steering column harness–this carries current to the front and rear lamps. Secure this splice with a crimp connector rated for 20A, then cover it with electrical tape and a zip tie for strain relief where the wire exits the column.
Ground the P (pilot) terminal directly to the metal chassis near the pedal bracket using a ring terminal and #10-32 bolt; scrape away paint for bare metal contact. If the indicator dash lamp stays lit constantly, swap the P and L terminals to reverse polarity–this configuration matches the factory pulse timing for hazard operation.

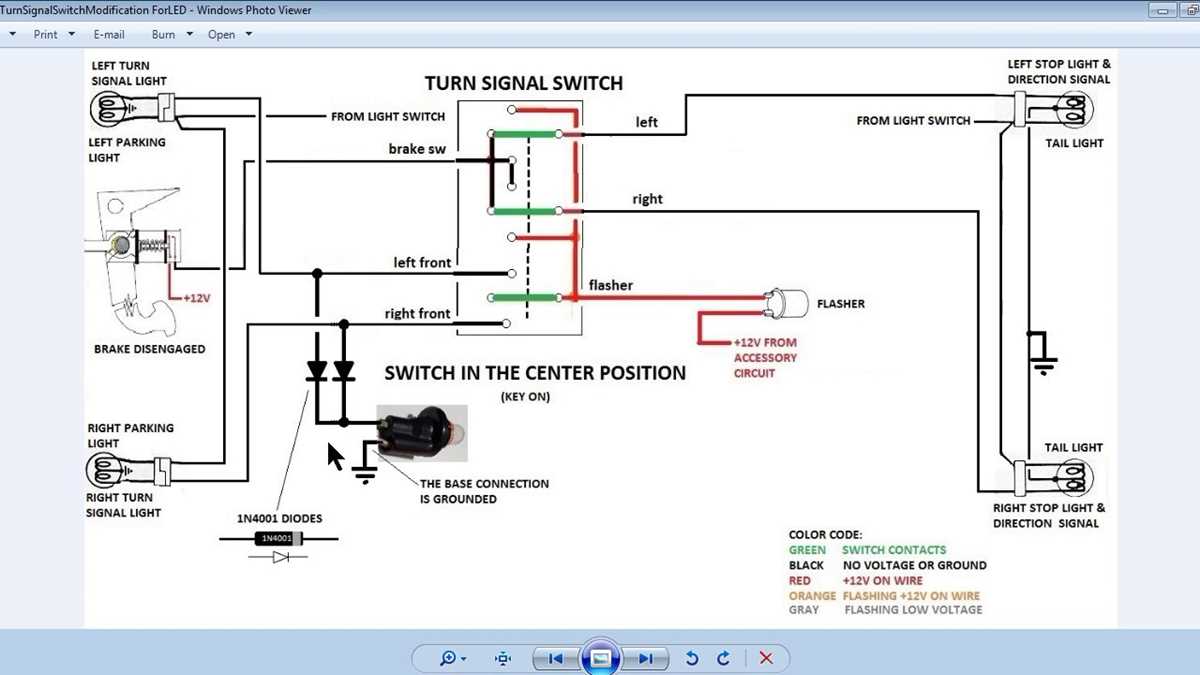

For sequential lamp setups (factory option on later builds), retain the original sequence valve solenoid under the dashboard and splice its trigger wire (dark green) into the flasher relay’s L terminal. Use a diode (1N4001) in-line to prevent backfeed into the main circuit.
Test functionality by activating the brake pedal–both rear flashers should illuminate solidly without interfering with the flasher cycle. If one side remains dark, trace the circuit through the bulb socket sockets; the most common failure points are corroded socket springs or a cracked lens housing moisture.
Label all splices with marked heat shrink tubing–RYG for relay inputs and DG/BK for dash outputs–to simplify future troubleshooting. When reassembling the column shroud, ensure no wires are pinched between the metal housing and plastic covers; a single crushed strand can cause intermittent faults.
Keep a multimeter set to continuity mode handy to verify all paths before energizing the circuit. The factory manual specifies 12.8V at the flasher terminals with the ignition on, dropping no more than 0.3V under load–any deviation points to excessive resistance in connections or undersized gauge wire.
Identifying the Lever Assembly and Circuit Connections

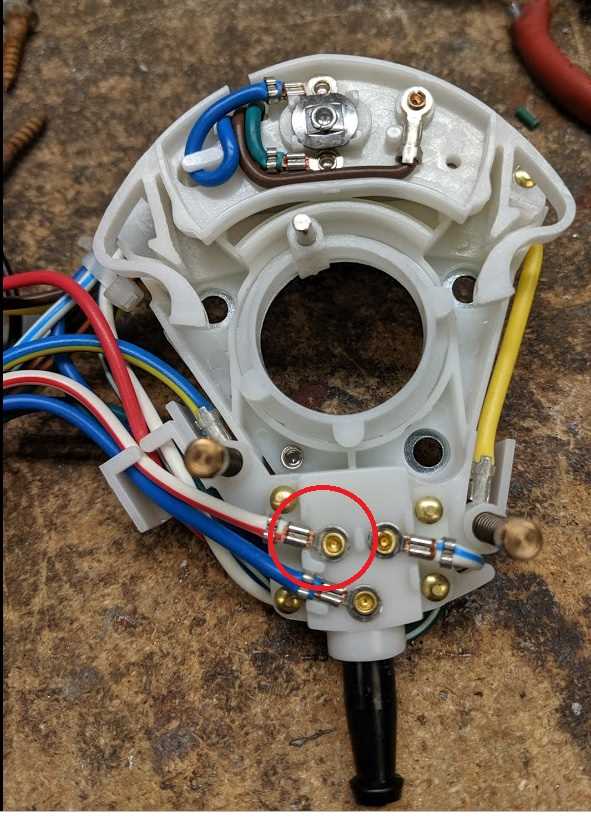

Begin by removing the steering column shroud–typically secured with three screws–to access the multi-function lever base. The upper section detaches first, revealing two critical connectors: a rectangular 7-pin plug and a smaller 2-pin socket, both color-coded as follows:
| Connector Pin | Wire Color | Function |
|---|---|---|
| 1 (7-pin) | Dark Green | Front left lamp |
| 2 (7-pin) | Light Blue | Front right lamp |
| 3 (7-pin) | White | Hazards feed |
| 4 (7-pin) | Black/Yellow | Brake light override |
| 5 (7-pin) | Red/Black | Cruise control disengage |
| 6 (7-pin) | Brown | Dash indicator bulb |
| 7 (7-pin) | Yellow | Flasher unit power |
| 1 (2-pin) | Black | Ground |
| 2 (2-pin) | Purple | Ignition-switched 12V |
Trace the harness from the lever base toward the firewall grommet; a single screw holds the harness bracket in place. Disconnecting here allows full inspection of the loom without dropping the steering column. Look for brittle insulation on the white and brown wires–common failure points causing intermittent dash illumination.
Troubleshooting Hidden Junctions
Under the dashboard, locate the two inline connectors near the fuse block: one for the front lamps (green/blue wires) and one for the rear lamps (yellow/brown wires). Probe these junctions with a multimeter; voltage should appear only when the lever is engaged. If not, check the flasher relay–mounted left of the steering column–before assuming harness damage. Replacement relays restore proper cycling without recoding.
Tracing the Original Electrical Route for Emergency and Stop Lamps
Begin by locating the flasher relay beneath the dash near the steering column–the dual-filament bulbs in the taillights share a single ground wire (black with a yellow stripe) that terminates at the rear light assemblies. Disconnect the battery before probing to prevent shorts. Use a multimeter set to continuity mode to verify the ground path from each bulb socket to the chassis; resistance should read below 0.5 ohms.
The brake pedal linkage activates the stop lamp circuit through a dedicated push-button switch mounted on the pedal bracket. Trace the purple wire (with a white stripe) from the switch to the left rear lamp–this wire splits at the trunk junction block, feeding both sides. If bulbs illuminate only partially, check for corrosion at the junction or a loose connector at the pedal switch. Replace the switch if pressing the pedal fails to complete the circuit.
- Emergency flashers engage via a separate flasher unit, typically positioned near the fuse block. The hazard relay sends power through a light green wire (with a red stripe) to the four-way switch, then branches to the front and rear lamps via the same circuits used for directional signals.
- Inspect the flasher relay socket for melted terminals–common in aged harnesses. If hazards flash erratically or not at all, swap the relay first before probing deeper.
- The front parking lamps share a circuit with the emergency lights; confirm the brown wire (with a white stripe) at the headlight switch routes correctly to the front marker bulbs.
At the rear, the dual-filament taillight bulbs require precise voltage separation. The left-side lamp draws brake current via a purple wire (white stripe) and hazard/stop illumination through a light green/red stripe wire. Right-side wiring mirrors this but swaps colors–purple/yellow stripe for brake, light green/orange stripe for hazards. Use a test light to back-probe the bulb socket terminals while cycling the brake pedal and hazard switch to isolate faulty legs.
Corner cases include intermittent dimming or bulb burnout–these often stem from frayed wires inside the trunk hinge grommet. Peel back the harness wrap and splice in fresh 18-gauge wire if insulation has degraded. For consistent failures on one side, focus on the trunk harness junction block; brittle solder joints here crack under chassis flex during driving, requiring reflowing with rosin-core solder.
Decoding Wire Color Schemes in Classic Circuit Layouts
Begin by locating the main harness connector beneath the steering column–this cluster houses eight distinct conductors, each marked with a factory-standard color identifier. Use a multimeter set to continuity mode to verify connections before assuming color assignments, as aftermarket splices or restorations may alter original coding. Black (BLK) serves as the ground return across nearly all auxiliary circuits, while green (GRN) with a white tracer (WHT) typically routes to the left-side lamp assembly. Red (RED) carries fused voltage from the ignition circuit, distinguishing it from yellow (YLW), which supplies power directly from the battery feed.
- White (WHT) – primary feed to front lamp filaments; often splits into a smaller gauge gray (GRY) branch for side-marker synchronization.
- Blue (BLU) – acts as the master control lead, toggling between steady illumination and pulsed flash via the stalk lever.
- Light green (LT GRN) – interrupts the flasher relay coil during hazard activation, overriding directional inputs.
- Brown (BRN) – rare in early models, occasionally appears as a dedicated dashboard indicator return path.
Trace each conductor back to its origin point–three-inch segments near the firewall grommet reveal splice points where color transitions occur. Isolate suspected faults by disconnecting the steering column plug and probing each terminal against chassis ground: a reading below 0.5 ohms on BLK confirms uninterrupted grounding. Cross-reference observed colors with factory service bulletins for your vehicle’s build date, as mid-year revisions saw subtle variations–early production models omit the BRN wire entirely, substituting it with a striped violet (VIO/WHT) alternative.
Use heat-shrink tubing color-matched to original codes when repairing damaged sections rather than relying on generic replacements. Label both ends of any spliced segment with indelible marker before soldering, incorporating symbols to denote function alongside color (e.g., “→LF” for left front lamp). Store a physical reference card inside the glove compartment listing all confirmed color-function pairings alongside fuse ratings–this eliminates guesswork during future diagnostic routines.
