Complete Wiring Guide for the 1970 Volkswagen Beetle Electrical System
Start with the main harness connection at the fuse block–terminal 30 (battery positive) feeds directly to the ignition switch. Trace the red/black stripe lead to verify continuity before proceeding. If voltage drops below 11.5V at this point, inspect the battery cables for corrosion at the grounding points on the chassis near the left rear fender.
For turn signal troubleshooting, isolate the flasher relay (round, two-terminal unit) mounted beneath the dash. Swap it with a known-working replacement to rule out relay failure. The left/right circuits split at the multifunction switch; check the brown/white and brown/green wires for shorts, especially where they pass through the front bulkhead grommet.
Headlight operation relies on two relays: one for low beam (terminal 86, yellow/black wire), another for high beam (terminal 86, yellow/red). Voltage should appear at these terminals only when the stalk switch is engaged. If one beam fails, probe the relay sockets–corrosion here is a common failure point.
The generator charging circuit uses a separate regulator (external for models with 6V systems, internal for 12V). Test voltage at the D+ terminal (blue wire) while the engine runs; readings below 13.5V indicate a weak rotor or faulty brushes. Disconnect the field wire (brown/white) during testing to prevent regulator damage.
Critical grounding points include the battery negative strap (right front fender) and the engine-to-chassis braided strap. Sand these contacts to bare metal if resistance exceeds 0.1 ohms. For intermittent issues, flex wiring looms near door hinges and under the rear seat–these areas develop cracked insulation over time.

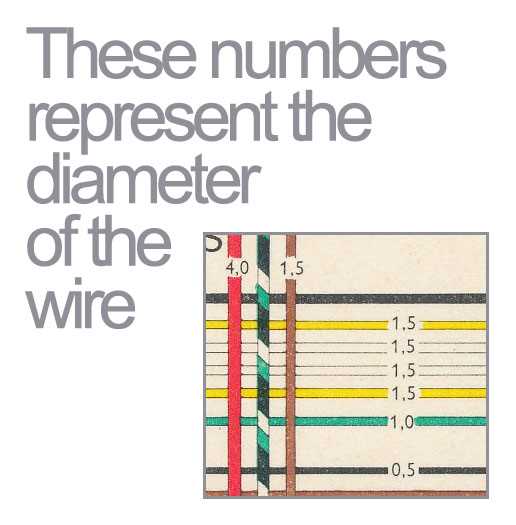

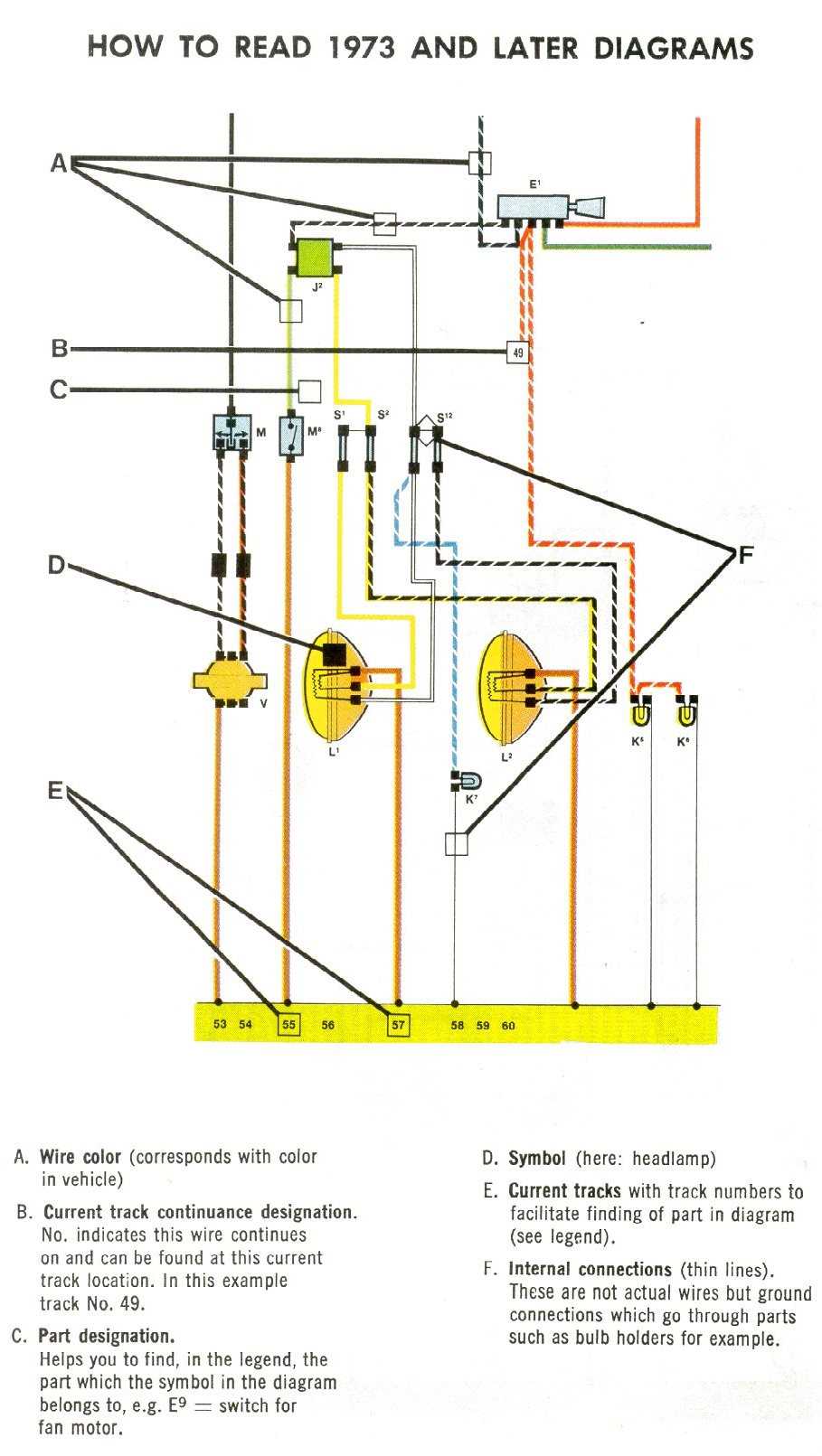

Access factory schematics via the chassis number prefix: Type 1 models use a single-page layout, while later split-window versions incorporate an additional rear wiring harness. Printed copies from Bentley Publishers or Haynes manual #151 offer clearer labeling than faded OEM diagrams. Color codes match DIN standards: red/white for constant power, brown for ground, blue for lighting circuits.
How to Trace Electrical Circuits in a Classic VW Model: Step-by-Step
Locate the fusebox under the dashboard near the driver’s side kick panel–the early air-cooled variant uses blade-style fuses labeled with amperage ratings (typically 8A for lights, 16A for the ignition). Verify continuity with a multimeter set to 200Ω; any reading above 5Ω indicates corrosion in the connector or a break in the harness. Replace suspect terminals with new tinned copper spade connectors to prevent future oxidation.
Identify the color-coding on the harness: red/blue for the ignition feed, yellow for the headlight switch, brown for ground. Trace each wire from the source to its destination–ignition coil, taillights, or horn relay–using a repair manual that specifies splice points. If the original insulation is brittle, wrap exposed sections with adhesive-lined heat shrink tubing and seal with a heat gun.
Check the turn signal flasher unit mounted behind the speedometer; faulty units cause erratic blinking. Test by swapping with a known-good flasher (6V for earlier models, 12V for later). If the dashboard warning light stays on, inspect the hazard switch for stuck contacts–clean with electrical contact cleaner or replace the switch entirely.
Examine the generator/alternator output wire (thick green on most models). Connect a voltmeter between the battery positive terminal and the output terminal while the engine runs at 2000 RPM; readings below 13.8V suggest a failing voltage regulator or weak brushes. Adjust the regulator by bending the internal contact spring, but replace if adjustment fails to hold.
Reassemble the dash after repairs, ensuring all grounding points–particularly the ones behind the speedometer and on the chassis near the battery–are free of paint or rust. Use star washers to improve conductivity. Recheck all circuits before starting the vehicle; a final voltage drop test across each fuse confirms proper load distribution.
Locating the Fuse Block and Relay Layout in a Classic VW Type 1
Check beneath the dashboard on the driver’s side–directly above the pedals–to find the main fuse block. The panel snaps off with minimal force; pry carefully at the edges to avoid cracking the brittle plastic. This model uses ceramic fuses labeled A1 through A5, with A3 typically reserved for the headlight circuit and A4 handling the turn signals. A small sticker on the inside of the panel door lists the amp ratings: 8A for the low beams, 16A for the high beams, and 5A for the instrument cluster. Replace any blown fuse with an exact amp match; underrating risks overheating, overrating allows excessive current to flow.
Relay Placement Reference
| Relay Function | Location | Wiring Terminals |
|---|---|---|
| Headlight flasher | Behind fuse block, secured by single 8mm bolt | 88 (input), 87 (output), 30 (constant power) |
| Horn | Left inner fender, near battery tray | 30 (input), 87 (output) |
| Turn signal | Mounted on steering column support bracket | 49 (input), 49a (output), C (ground) |
Trace each relay socket back to the harness connector with a multimeter set to 12V DC continuity; probe the designated terminals listed above. If no voltage registers at terminal 30, inspect the fusible link between the battery positive and the harness–located 12cm from the starter solenoid–replace if melted or discolored.
Decoding Electrical Connections in a Classic 1960s Volkswagen Model
Locate the main harness behind the dashboard panel near the steering column. The primary feed cables follow this scheme: red/black (terminal 30, battery-positive) supplies constant power, while brown (terminal 31) grounds all circuits. Trace the white/black (terminal 15) for ignition-switched power–this line energizes accessories only when the key is turned. Mismatched colors here disrupt starter and lighting functions.
Lighting and Indicator Connections
Headlamp pairs split into high (white/green) and low beams (white/red). Attach these directly to the multi-pin socket beneath the headlamp housing–no intermediary splices. Tail lights use black/yellow (running) and black/white (brake), both terminating at the rear harness connector. Directionals merge from brown/white (front) and brown/green (rear) into the flasher relay under the glove box. Swap any reversed wires here to prevent rapid clicking or no blink response.
Instrument cluster feeds split at the speedometer plug: green/yellow (fuel), blue/red (temperature), and green/white (charging). Verify each bulb holder matches its color-coded slot–reversing causes false gauge readings. Fuse box entries parallel the harness routes; inspect 8A (headlamps) and 16A (accessories) for proper insertion. Loose clips here melt insulation and drop voltage to critical systems.
How to Test and Troubleshoot the Ignition Circuit
Disconnect the battery negative terminal before testing any components to prevent short circuits or accidental engine cranking. Use a multimeter set to 20V DC to verify power at the ignition coil positive terminal. With the key in the “ON” position, you should read close to 12 volts–anything below 10V indicates a fault in the supply line, fuse, or ignition switch.
Check the coil resistance with the multimeter set to ohms. For a standard points-type system, primary coil resistance should measure 1.5 to 3.0 ohms, while secondary resistance ranges between 6,000 and 15,000 ohms. Values outside these ranges suggest a failed coil requiring replacement. Test with the coil disconnected to avoid false readings from parallel circuits.
Inspect the distributor condensor (capacitor) by removing it and testing for continuity. Set the multimeter to the highest resistance scale; a good condensor will show infinite resistance initially, then drop to near zero before rising again if charged. A condensor reading zero or infinite resistance continuously has failed and must be replaced to prevent ignition points from burning.
Test ignition points by setting the multimeter to ohms and probing across the points with them closed. Resistance should be near zero. Open the points manually; resistance should jump to infinite. Any deviation indicates pitting, corrosion, or misalignment, requiring cleaning with emery cloth or replacement. Gap points to 0.016 inches (0.4 mm) using a feeler gauge.
Troubleshooting Spark Delivery
Remove a spark plug wire and insert a spare spark plug, grounding the electrode to the engine block. Crank the engine; a strong blue spark confirms proper ignition output. Weak orange sparks or no spark demand further testing of coil output, distributor rotor, or high-tension leads. Test wires individually by repeating this process with each plug wire disconnected at both ends.
Examine the distributor rotor for cracks, burns, or excessive wear. With the cap removed, check that the rotor tip aligns with the correct distributor cap terminal when the points open. Rotate the engine by hand if needed; misalignment causes misfires. Replace the rotor if resistance across its conductive path exceeds 1,000 ohms when tested with a multimeter.
Verify ignition timing using a timing light. Connect the light’s inductive pickup to the number one spark plug wire, and clip the power leads to the battery. Start the engine and aim the light at the timing marks on the pulley/flywheel. The mark should align with the specified degree (typically 5–8° BTDC at idle). Adjust the distributor by loosening its hold-down clamp and rotating it until correct timing is achieved.
- If no spark occurs, test the ignition control module (if equipped) by bridging the ignition switch wire to the coil positive terminal while bypassing the module. A spark confirms a faulty module.
- Check vacuum advance operation by revving the engine–timing should advance smoothly. Erratic or no advance indicates a faulty vacuum diaphragm or disconnected hose.
- Inspect all ground connections, particularly at the ignition coil and distributor. Clean and tighten to ensure proper current flow.
