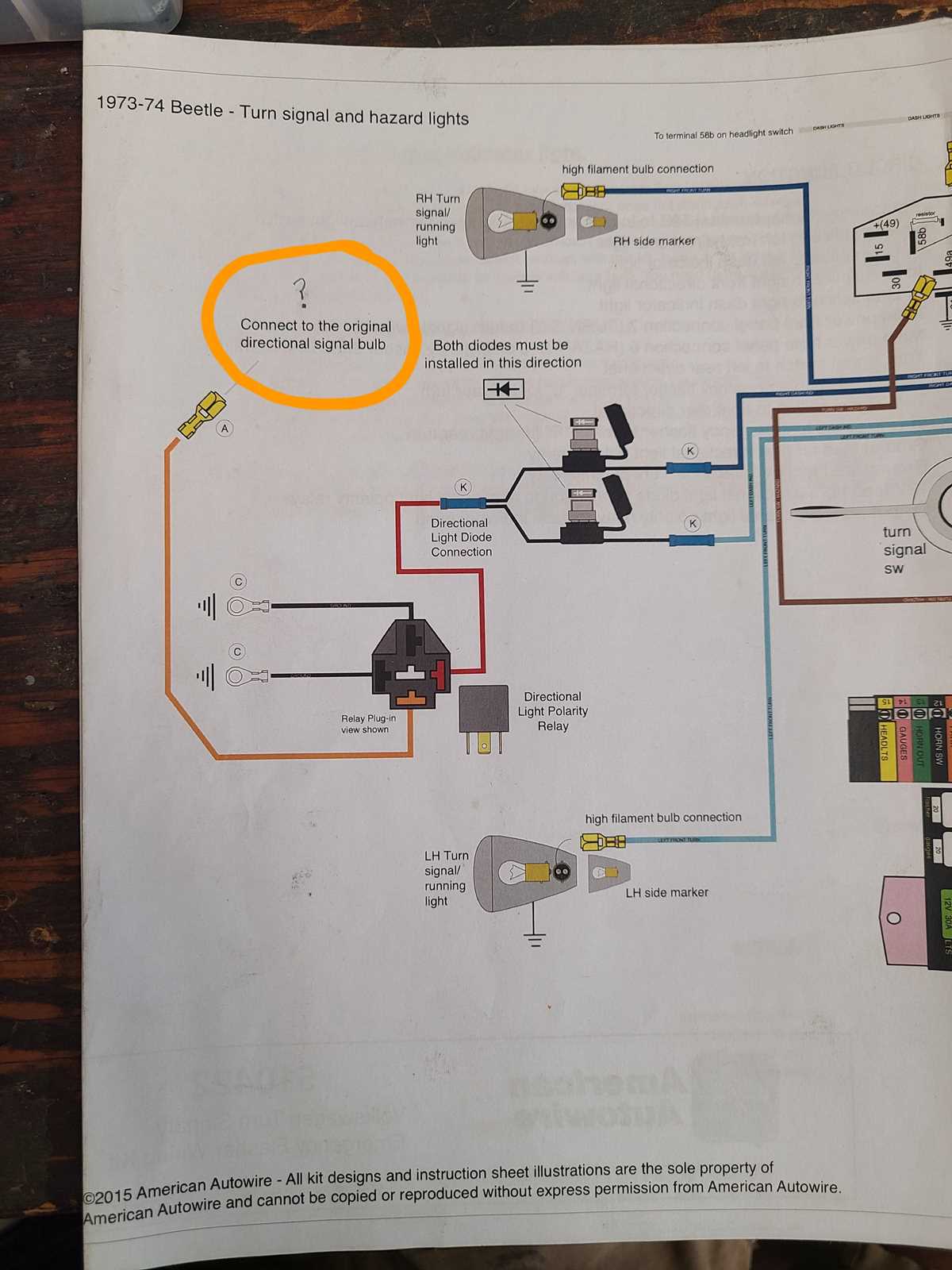

1974 Volkswagen Beetle Turn Signal Wiring Schematics and Troubleshooting Guide
Start by locating the flasher relay under the dashboard–usually mounted near the steering column on early German-made models. The relay for this year’s production is a three-pin type marked Hella 00341407; newer relays may fit physically but fail electrically due to differences in load rating. Clip the original connector and verify continuity between pins 49 (input) and 49a (output) using a multimeter set to ohms; infinite resistance indicates internal failure.
Trace the left-side filament supply wire–a yellow/black conductor running from the steering switch through the front harness grommet into the door pillar. At the left fender, the wire transitions to a blue/white splice feeding both bulbs; ensure this joint is sealed with adhesive-lined heat-shrink tubing, not electrical tape, which degrades under exposure. Replace any corroded butt connectors with TE 1-883717-1 female terminals to prevent voltage drop.
Behind the instrument cluster, the hazard circuit shares the same black/brown earth return–but relies on a separate Bosch 6RA 002 196-001 flasher unit. Disconnect the battery negative cable before probing; accidental contact between the hazard switch and ignition terminal will blow the 8A fuse, leaving both systems dead. Mark each terminal with UV-sensitive highlighter to avoid misrouting during reassembly.
For bulbs, specify Philips 12961PY 21W wedge-base units; aftermarket replacements often use thinner filaments prone to premature vibration failure. Secure bulb sockets with star washers to prevent loosening over rough pavement. If the indicator cancels only after wheel rotation exceeds 45 degrees, adjust the steering wheel boss eccentric cam by rotating clockwise one tooth until engagement occurs earlier.
Electrical Schematic Guide for Classic Air-Cooled Volkswagen Lighting Circuit
Begin by locating the flasher relay under the dashboard–the silver cylindrical unit near the steering column–which controls blinker timing. Label wires before disconnecting: green (left), yellow (right), and brown (ground) are standard for this model year. Use a multimeter to verify continuity on each wire; resistance should read near zero ohms between the relay socket and bulb socket.
Inspect the hazard switch wiring if the system fails to activate. The switch taps into both blinker circuits simultaneously, typically using two additional wires (black with colored stripes) bridging left and right sides. A common failure point occurs where these wires connect to the three-prong switch terminal; corrosion here mimics bulb failure.
Troubleshooting Specific Faults
For intermittent operation, check the ground connection at the taillight assembly. Remove the lens and clean the contact surface with fine-grit sandpaper–factory paint often interferes with conductivity. Ensure the bulb socket’s brass tabs are bent slightly outward to maintain pressure against the bulb base.
The steering column stalk circuit includes a canceling cam that disengages the blinker after a turn. If the signal remains engaged, remove the steering wheel and inspect the cam’s plastic teeth for wear. Replace the entire stalk assembly if teeth are missing–individual components are not serviceable.
Wire Routing and Alternative Paths
Trace wires from the front fenders through the chassis tunnel to the rear lights. Avoid drilling new holes; route replacement wires through existing grommets. When splicing, use heat-shrink connectors instead of solder alone–vibration causes cold solder joints to fail. For aftermarket LED upgrades, bypass the flasher relay with an electronic flasher to prevent hyperflashing.
Choosing the Right Electrical Bundle for Your Classic Air-Cooled Volkswagen
Locate the original fuse box under the dashboard–this is your starting point. The factory harness for this model year splits into three primary sections: front lighting, rear lighting, and interior circuits. Confirm the bundle includes connectors for the front fender-mounted lamps; these often degrade first due to road debris.
Examine the color coding on the replacement bundle:
- Brown – Ground
- Black/White – Left front marker
- Black/Green – Right front marker
- Red/Black – Brake lights
- Yellow – License plate illumination
Verify the bundle matches these exact stripes–aftermarket copies sometimes swap Black/Green with Black/White, causing cross-feeds.
Inspect the harness grommets where the wires pass through the firewall. The correct bundle uses thick rubber grommets with relief cuts; thin plastic sleeves signal a low-quality copy. Measure the wire gauge–front lighting circuits should be 16 AWG, while tail and interior runs can drop to 18 AWG. Anything thinner risks overheating at the bullet connectors.
Check for molded connectors at the rear lamp clusters. The OEM bundle uses two 6-pin rectangular connectors with locking tabs; universal replacements often substitute circular connectors, which won’t seat properly. Pull gently on each terminal–anyone that detaches without releasing the tab is a defective clone.
Compare the length of the bundle against the vehicle’s layout. The front section should reach the headlamp buckets with 2–3 inches to spare; the rear portion must extend beyond the bumper mount by at least 4 inches. Short harnesses force splicing, introducing corrosion points.
Test the harness before final installation. Connect a 12V test light to each circuit–have a helper activate the corresponding switch. The left parking lamp should illuminate steadily without flicker; if it pulses, the flasher relay tap is misrouted. Recheck the relay socket–terminal 49 should show intermittent continuity when toggled.
Secure the bundle to the chassis using original-style nylon P-clips. Avoid zip ties near moving suspension components; aftermarket bundles often omit these clips, requiring separate purchase. Space the clips every 12 inches along straight runs, closer around bends.
Apply dielectric grease to every connector–especially the front marker sockets, notorious for water intrusion. Seal the firewall grommet with butyl tape to prevent moisture migration into the passenger compartment. Store the old bundle to compare against future replacements; color fades uniformly on genuine OEM wiring, while counterfeits show inconsistent aging.
Step-by-Step Directional Lamp Switch Hookup Guide
Begin by disconnecting the vehicle’s battery negative terminal to prevent short circuits. Locate the steering column’s multi-function lever–identify the four primary wires: power feed (typically red or black), left output (yellow), right output (green), and hazard indicator link (white/black stripe). Use a multimeter to verify voltage on the power feed wire (12V+); if absent, trace the fuse box for a blown 10A protection unit. Strip the wire ends ¼ inch, twist strands tightly, and crimp bullet connectors for secure attachment–avoid solder unless working in a vibration-free zone, as heat shrinkage may weaken joints over time.
| Wire Color | Function | Terminal Type | Verification Tip |
|---|---|---|---|
| Red/Black | Input voltage source | Spade (female) | Test with ignition ON |
| Yellow | Left-side illumination path | Bullet (male) | Ground chassis for continuity |
| Green | Right-side illumination path | Bullet (male) | Check front/rear bulb sockets |
| White/Black Stripe | Emergency flashers circuit | Ring terminal | Toggle hazard switch during test |
Insert the lever’s connector plug into the harness–match each bullet terminal to its corresponding socket without forcing alignment, as misfits risk intermittent function. Reattach the battery, activate ignition, and cycle the lever to confirm dashboard indicator synchronization: both sides should flash at 60-120 cycles per minute. If one side remains inactive, inspect bulb filaments for burnout or socket corrosion; corrosion often appears as white powdery residue and requires baking soda rinse followed by dielectric grease application for future moisture resistance. For persistent issues, probe relay contacts with a 12V test light–absence of illumination indicates a faulty flasher relay needing direct replacement with a three-pin mechanical variant.
Mapping the Illumination Pathways in Classic VW Lighting Systems
Begin by locating the flasher relay beneath the dashboard near the steering column–typically a cylindrical or rectangular unit with two spade connectors. Disconnect the battery’s negative terminal before probing any connections to prevent short circuits. Use a multimeter set to continuity mode to verify the relay’s operation: the circuit should complete when activated, producing an audible click. If silent, replace the relay before proceeding.
Trace the feed from the relay’s output terminal to the corresponding color-coded wire (usually green/black or green/red stripe). Follow this lead to the front harness connector adjacent to the headlamp bucket. Separate the wiring loom carefully–excessive force can damage brittle insulation on original harnesses. At the connector, identify the two pins responsible for the front marker lamps; these typically align with positions 3 and 5 on the plug. Probe each pin with the multimeter while manually toggling the stalk switch to confirm voltage presence (12V) during activation.
Examine the rear conduit by accessing the main harness bundle near the torsion tube crossmember. Isolate the yellow/black and yellow/green wires–these carry the pulsed current to the tail assembly. Cut away any corroded tape wrappings, as moisture often infiltrates here, causing intermittent failures. At the taillight housing, validate the ground connection: a weak or oxidized contact (most commonly at the stud mounted to the body) will disrupt the entire sequence. Scrape clean the mating surfaces and secure with a new star washer to ensure solid conductivity.
For stubborn cases, bypass the existing loom by running a fresh 16-gauge wire directly from the relay to the lamp socket. Solder all joints and seal with heat-shrink tubing–electrical tape degrades over time. Test the system under load with a test bulb before final reassembly: erratic blinking often indicates a poor ground or failing switch. Replace the stalk switch if flickering persists, as internal contacts wear out after decades of use.
