Complete Ford F100 Electrical System Wiring Guide for 1978 Model
Begin by locating the original wiring harness routing under the dashboard. The main fuse block sits near the steering column on the driver’s side, shielded by a black plastic cover. Remove this cover to access the primary connections–terminals 30, 15, and X feed critical circuits. Label each wire with its color code and function before disconnecting anything. Copper corrosion is common; clean terminals with a wire brush and apply dielectric grease to prevent future oxidation.
The headlight circuit relies on a sealed beam relay mounted on the firewall. If headlights flicker, inspect the relay’s 85 and 86 pins for loose connections. The turn signal flasher unit is adjacent to the fuse block–replace it if signals blink erratically. Trace the brake light wires along the frame rail; ground faults here often mimic bulb failures. Use a multimeter to test continuity rather than guessing replacements.
For the charging system, focus on the alternator’s two wire connectors–the larger red wire (main output) and the smaller exciter wire (usually blue). Test voltage at the battery with the engine running–expect 13.8 to 14.4 volts. If readings are low, check the voltage regulator under the hood. The starter solenoid’s large battery cable must be secured tightly; a loose connection generates excessive heat and drains power.
Interior circuits like gauges and the heater fan share a ground near the firewall’s passenger side. If gauges fluctuate, sand the ground point and reattach it with star washers. The blower motor resistor block is behind the glove box–access it by removing the lower dash panel. Replace the resistor if the fan only operates on high speed. Mark all connectors with tape labels to avoid mix-ups during reassembly.
Electrical Schematic for Classic Pickup: Hands-On Reference
Begin with the firewall connector block–identify the red/light blue (R/LB) wire as the constant 12V feed from the battery. Trace it backward to the solenoid’s “I” terminal, ensuring the connection isn’t corroded; clean with 400-grit sandpaper if resistance exceeds 0.2 ohms. Skip generic circuit testers; use a dedicated 10A load tool to verify the feed under cranking conditions.
Locate the instrument cluster’s printed circuit behind the speedometer. The thin brown/tan (BR/TN) trace connects to the voltmeter; if the gauge reads erratically, inspect for hairline cracks with a 10x magnifier. Replace the entire board if cracks exceed 2mm–solder repairs fail within 18 months. Factory terminals (AMP part #147101-1) must be crimped with a ratcheting tool, not pliers, to avoid intermittent faults.
The charging system’s voltage regulator mounts on the passenger-side fender. Disconnect the battery before probing–stator output (yellow wires) should show 13.5–14.2V AC at 2,000 RPM. If readings drop below 12.8V, remove the alternator’s rear cover; test diode trio continuity with a fluke 87V on the 20mV scale. Replace the rectifier if any diode reads OL in both directions.
Lighting & Auxiliary Circuits
Headlight grounds terminate at the driver’s-side inner fender. Scrape paint to bare metal–clean connection prevents dimming under load. Test turn signals by measuring voltage drop across the flasher relay (Trico part #FL37); a drop above 0.4V indicates internal contact pitting. Swap the relay if fast flash persists after bulb replacement.
Power window motors draw 8–12A per switch operation. If either window stalls, check the inline 20A fuse (located behind the glovebox) before disassembling the door panel. Probe the motor’s purple/black (PP/BK) wire with a 50A clamp meter–current spikes above 30A signal armature binding; replace the motor assembly rather than lubricating gears.
Fuel gauge sender resistance ranges from 10Ω (empty) to 73Ω (full). Bypass the sender by connecting a 100Ω resistor between the tan wire and chassis ground; if the gauge jumps to “full,” the sender is faulty. Replacement senders (Motorcraft part #D8TZ-9275-A) must be submerged in 1 gallon of test fuel for 24 hours before installation to prevent seal failure.
Aftermarket stereos often fry the ignition-switched pink/black (PK/BK) circuit. Verify the red fuse (fusebox location C3) hasn’t blown. For installations, wire through a 15A relay with the coil triggered by the original PK/BK feed–never splice directly. Use 14-gauge TXL wire for speaker runs to prevent meltdown under 2Ω loads.
Finding Key Electrical Links Behind the Instrument Panel
Start by removing the lower dashboard trim panel. On the driver’s side, this section typically clips into place with six plastic retainers–use a flat pry tool to release them carefully without breaking the tabs. Once removed, you’ll expose the fuse block mount and the primary bundle of wires routed toward the steering column and firewall.
The most critical connections hide behind the fuse box. Trace the thickest cable–usually a black or dark brown braided sleeve–this is the main power feed from the battery. It splits into two directions: one branch heads upward to the ignition switch, while the other feeds the turn signal canceller and lighting control module. Label each split with masking tape before disconnecting anything.
Directly beneath the steering column, locate the multi-pin connector for the dash gauges. This plastic plug, often beige or white, has 12–14 terminals. Check for corrosion or melted plastic–common failure points in older vehicles. If terminals appear greenish, clean them with electrical contact cleaner and a small wire brush, then apply dielectric grease to prevent future oxidation.
On the passenger side, behind the glove compartment, a separate harness services the blower motor resistor and heater controls. This 5–6 wire bundle ties into the climate control switch via a rectangular plug. If the heater fan only works on high speed, focus here–usually the issue stems from a burnt resistor coil, which can be bypassed temporarily for testing.
Near the center console, if equipped, a ground strap secures the dash frame to the chassis. This single bolt often loosens over decades, leading to intermittent electrical gremlins like flickering lights or erratic gauge readings. Remove, clean, and retighten it with a 10mm wrench. Use star washers to ensure a solid connection.
For models with factory air conditioning, an additional harness snakes behind the climate controls. Its three-wire plug feeds the compressor clutch relay and pressure switches. Suspect this area if the AC fails to engage–test each wire with a multimeter set to 12V DC, probing the relay socket while cycling the ignition.
Always disconnect the battery negative terminal before probing or unplugging connectors. Work in sections: verify each circuit’s function before moving to the next. Keep a notebook handy to sketch connections–photographs may not capture subtle routing differences.
Identifying Color Codes for Headlight and Taillight Circuits
Locate the light blue (LBU) wire for the high beam circuit on the truck’s main harness, typically connected to the headlight switch’s B+ terminal. For low beams, trace the yellow (YEL) wire–this links directly to the dimmer relay or switch output. If auxiliary lights are installed, check for a dark green (DKG) or striped yellow/black (YEL/BLK) as a factory splice point; third-party setups may use white (WHT) as a ground return. Taillight circuits follow a separate path: running lights use brown (BRN) wires, while brake and turn signals rely on red (RED) and light green (LTGN) respectively–verify these at the rear junction block near the fuel tank.
Use a continuity tester to confirm circuit integrity, especially if corrosion is visible at the bullet connectors. For late-model upgrades, aftermarket wiring kits often introduce orange (ORG) for fog lights or purple (PPL) for backup lights–cross-reference these with the original harness schematic to avoid shorts. When rewiring, group wires by function (e.g., BRN for all tail/running lights) and secure with non-conductive loom to prevent chafing near sharp edges or the exhaust.

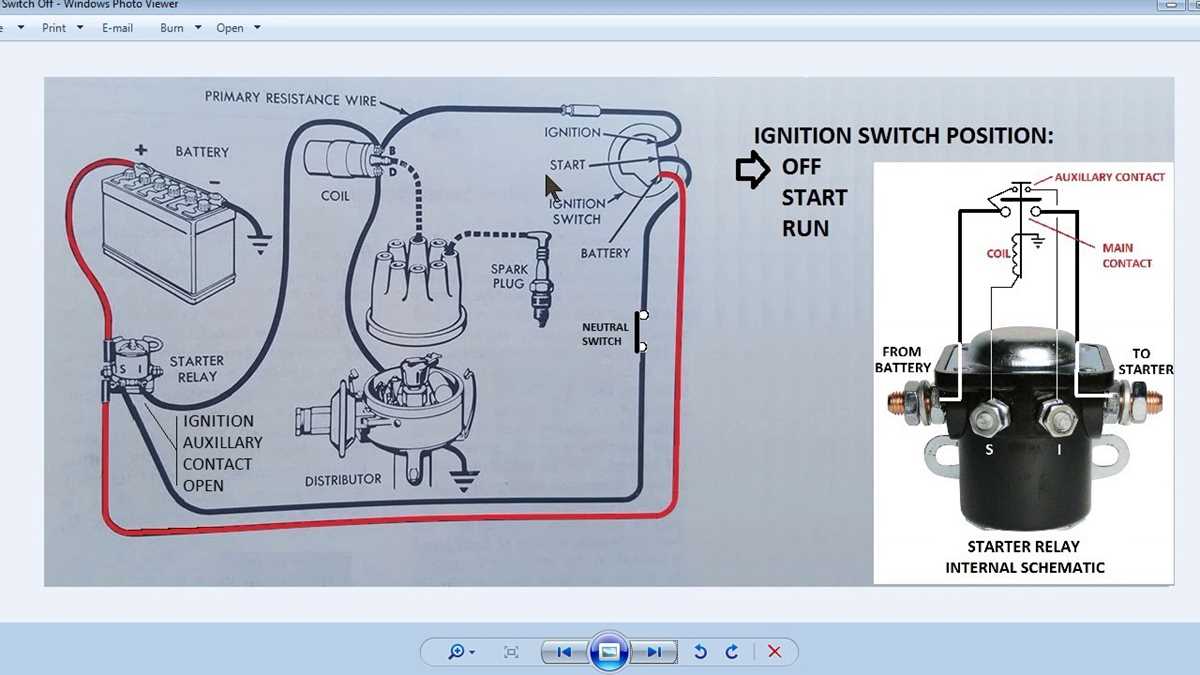

Tracing the Ignition Switch Wire Path and Common Failure Points
Begin by locating the ignition switch beneath the steering column shroud–typically secured by two or three screws. The harness connector will have five or six terminals: BAT (battery), IGN ( ignition), ST (start), ACC (accessory), and one or two ground/reference wires. Use a multimeter set to continuity mode to verify the path from the switch to the fuse block, solenoid, and starter relay. Probe the BAT terminal while turning the key to “ON”–voltage should read 12V consistently. If readings fluctuate or drop below 10V, inspect the pigtail wires for fraying near the firewall grommet.
The most frequent failure occurs at the START circuit between the ignition switch and the starter solenoid. Follow the red/yellow or purple-striped wire from the switch connector through the firewall to the solenoid–resistance should not exceed 0.5 ohms. Corrosion often accumulates at the solenoid’s “S” terminal; remove the nut, clean with electrical contact cleaner, and apply dielectric grease before reassembly. Check the fusible link–a melted section here causes intermittent no-start conditions. Replace the entire link segment (not a splice) if melted insulation is visible.
Critical Junctions and Voltage Drop Tests
| Junction | Expected Voltage (Key ON) | Failure Signs |
|---|---|---|
| Ignition Switch BAT Terminal | 12.2–12.8V | Below 11V, dim dash lights |
| Fusible Link Output | 12.0–12.6V | Flickering dashboard |
| Starter Solenoid “S” Terminal | 11.5V (momentary) | Clicking noise only |
| Ballast Resistor | 9–10V | Engine stalls during crank |
Perform voltage drop tests across each junction–connect the multimeter’s positive lead to the power source and the negative lead further down the circuit. Acceptable drop: for 12-gauge wire, for 14-gauge. Exceeding these values indicates a corroded terminal or undersized wire. Pay special attention to the accessory circuit–dash lights drawing excess current can melt the ACC wire insulation inside the column. If accessories fail but the engine cranks, reroute the ACC circuit through a 15A fuse directly from the battery.
Inspect the ignition switch mounting plate for cracks–stress fractures near the actuator rod can misalign the tumblers, preventing the key from fully engaging the START position. Lubricate the plate with powdered graphite; avoid petroleum-based products as they attract dust. Replace the switch if the actuator rod shows excessive play (over 2mm lateral movement). For intermittent stalling, bypass the ballast resistor temporarily–a direct 12V supply to the coil should confirm resistor failure if the engine runs smoothly.
