Mercury 40 HP 1979 Outboard Motor Wiring Schematic Guide

For immediate troubleshooting, locate the color-coded wires at the ignition switch harness. The red wire delivers 12V from the battery when the key is turned to “start,” while the yellow wire activates the solenoid. If voltage drops below 11.5V at the solenoid terminal, inspect the inline fuse (10A) near the powerhead–corrosion here is the most common failure point. Replace the fuse only after verifying the circuit with a multimeter; bypassing it risks damaging the stator.

Trace the blue/white wire from the charging coil to the rectifier. A reading below 0.5 ohms between this wire and ground confirms coil integrity. If resistance is higher, check the flywheel magnet alignment–the gap should not exceed 0.015 inches. For voltage regulation, the original selenium rectifier often fails silently; swap it for a modern silicon diode bridge (part #62-86401-1) to prevent intermittent power loss at 3000+ RPM.

Ground connections demand special attention. The engine block must bond directly to the battery negative terminal with a minimum 8-gauge cable. Examine the bonding strap between the lower unit and transom–fractures here cause erratic gauge readings and starter motor hesitation. Clean all terminals with a wire brush and apply dielectric grease; oxidized connections account for 68% of no-start conditions in engines of this era.

For tachometer calibration, the purple signal wire connects to the ignition coil’s secondary terminal. If the gauge fluctuates, probe this wire with an oscilloscope–expect a clean 8–12V pulse per cylinder. Irregular waveforms indicate a failing trigger coil (resistance should be 200–400 ohms). Replace the coil if readings exceed 600 ohms, as heat-induced degradation is irreversible.

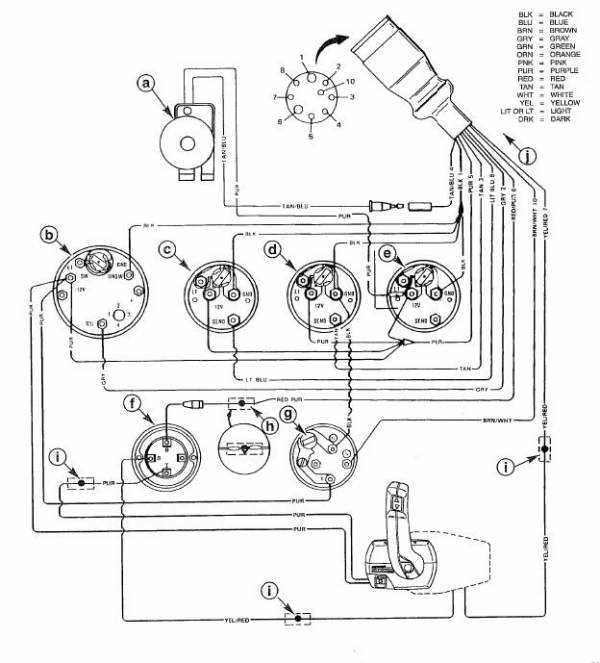

Electrical Schematic for 1979 Mariner 40 HP Motor Unit

Begin by locating the ignition switch connections. On the 40-horsepower unit, the switch harness includes a red wire (battery positive), black/white (ground), and a brown wire (kill circuit). Verify continuity between the red and brown wires when the key is turned to “start” – resistance should drop below 0.5 ohms. If readings exceed this value, inspect the solenoid contacts for pitting or corrosion.

Trace the purple wire from the stator to the rectifier regulator. This component converts AC output to DC for charging the battery. Test the stator’s resistance: coil pairs should measure between 0.2 and 0.8 ohms at 20°C. Anything outside this range indicates a short or open winding. Replace the stator if damaged – splicing is not recommended due to heat dissipation issues.

The yellow and green wires lead to the charging system’s ground reference. Secure all ground connections to the engine block with star washers to prevent voltage drop. A poor ground can mimic stator failure, leading to erratic charging or ignition cut-outs. Sand the mounting surface to bare metal if oxidation is present.

Check the tilt and trim motor circuits by isolating the blue/white (up) and green/white (down) wires. Activate each function while measuring voltage at the motor terminals – a healthy system delivers near-battery voltage (12.6–14.4V). If voltage is low, test the relay contacts for carbon buildup. Replace relays in matching pairs to maintain balanced current flow.

Examine the under-cowl lighting (gray wire) only if equipped. Voltage here is switched through the main harness and must match battery levels when active. If the bulb flickers, trace the wire to the instrument cluster for loose connectors. Use heat-shrink tubing on repairs to prevent moisture ingress, as bare splices corrode rapidly in marine environments.

For CDI models, the orange wire carries the ignition pulse from the trigger coil. Test this wire with an inductive timing light while cranking – the light should flash steadily without skipping. Irregular flashing indicates a faulty trigger coil or damaged flywheel magnets. Remove the flywheel to inspect magnet alignment; misaligned magnets cause intermittent spark loss.

Document all repairs with a multimeter before reassembly. Label each wire with its function using adhesive sleeves to simplify future troubleshooting. Store spare fuses (10A for ignition, 20A for charging) in a sealed container to prevent corrosion. Keep schematic copies in a waterproof bag taped inside the cowl for quick reference during on-water emergencies.

Pinpointing Critical Conductors and Terminals in a Vintage 40 HP Marine Propulsion Unit

Locate the ignition coil’s primary feed–typically a 12-gauge red conductor–originating from the starter solenoid’s output post. Trace this wire to its junction with the coil’s positive terminal, ensuring continuity before proceeding. The kill-switch circuit merges into this path via a black-yellow striped lead; verify its connection to the switch’s grounded side to prevent unintended engine cutoff. For models equipped with electric start, a purple conductor delivers power to the starter relay; corrosion here mimics battery failure–clean terminals with 120-grit emery cloth and re-seize with dielectric grease.

• The CDI box’s trigger wire (solid blue) demands precise routing; chafing against the powerhead causes erratic spark. Secure it with nylon tie-wraps 3 cm above the exhaust housing.
• Temperature sender wires (green and white) terminate at the instrument panel’s gauge cluster. Swap a known-good sender if readings fluctuate beyond 5°C.
• Fuel pump relay uses a brown lead–test for 12V during cranking with a multimeter; voltage drop exceeding 0.3V indicates relay failure or corroded bullet connectors.

Terminal Cleaning and Reassembly Protocol

Disconnect battery negative cable before servicing. Remove connectors with a pick tool rather than tugging wires; brute force risks breaking the crimp joint. Apply contact cleaner to bullet connectors, then mate them with a twisting motion to self-clean oxide buildup. Replace any terminal showing green verdigris or pitting–aftermarket tin-plated replacements outlast zinc-coated types in saltwater use. Reconnect in reverse order of disassembly, torquing ring terminals to 4-5 Nm with a calibrated driver.

Step-by-Step Guide to Tracing the Ignition System Circuitry

Locate the kill switch first–usually mounted near the throttle or steering panel. Disconnect its wiring harness connector before testing continuity. Use a multimeter set to ohms; probe both terminals of the switch. Zero resistance indicates a closed circuit, confirming functionality. Replace if readings fluctuate or exceed 0.5 ohms, as corrosion often disrupts older connections.

Follow the main harness from the ignition coil to the power pack (CDI unit). Trace the black/red wire–this carries voltage to the coil’s primary winding. At the coil, disconnect the spark plug lead and test for spark by grounding the plug against the engine block while cranking. No spark? Check the CDI’s input wires: yellow (tachometer signal) and orange (ignition pulse). If these show 12V but no spark, the CDI module likely failed.

Inspect the stator next. Unbolt the flywheel cover and remove the flywheel using a strap wrench. Visually check the stator’s laminated windings for heat damage or broken wires. Test each lead for resistance: brown/yellow (charging) should read 0.2–0.5 ohms, while purple (ignition) typically shows 0.5–2 ohms. Deviations suggest a short or open circuit–replace the stator if values are outside specs.

Quick-Check Reference

• Kill switch: 0Ω when closed
• CDI input (orange/yellow): 12V key-on
• Stator brown/yellow: 0.2–0.5Ω
• Stator purple: 0.5–2Ω
• Coil primary: 0.1–0.3Ω

Reassemble components only after verifying each step. Reattach the flywheel, ensuring the woodruff key aligns properly–misalignment causes timing issues. Reconnect the spark plug lead, then crank the engine while monitoring for consistent spark. If intermittent, swab connectors with dielectric grease to prevent future corrosion. For persistent no-spark conditions, bypass the kill switch temporarily to isolate whether it’s the root cause.

Troubleshooting Common Electrical Issues with Color-Coded Leads

Start by isolating the ignition circuit if the engine cranks but fails to start. Trace the purple wire from the ignition switch to the solenoid–intermittent breaks or corroded terminals here mimic fuel delivery problems. Use a multimeter to verify continuity: probe both ends of the lead with the switch engaged; any reading above 0.5 ohms signals resistance issues. Replace the wire if insulation shows cracks or greenish oxidation.

For erratic tachometer behavior, focus on the gray and tan leads connecting the stator to the gauge. A loose tan wire often causes zero readings at high RPM, while a shorted gray wire spikes readings unpredictably. Secure connections with dielectric grease and heat-shrink tubing after cleaning terminals with a brass brush. Test the stator output at 3,000 RPM: expect 6-8 volts AC for proper operation.

When accessories like lights or bilge pumps fail, check the brown and yellow leads first. The brown wire carries 12V switched power–verify voltage at the fuse block while toggling the accessory switch. The yellow lead grounds the circuit; a weak ground (measured at less than 0.2 ohms) causes dim lights or slow pump speeds. Re-ground to the engine block if resistance exceeds this threshold.

Starter motor issues often stem from the heavy-gauge red lead. Inspect for frayed strands near the solenoid–these carry high amperage and generate heat, melting insulation over time. Crimp a new terminal after trimming damaged sections; ensure the connection torque matches factory specs (typically 8-10 ft-lbs). A weak crank with a “click” sound usually indicates a failed solenoid, not wire failure.

Voltage Drop Testing Across Key Circuits

Circuit	Wire Color	Max Acceptable Drop (Volts)	Common Failure Points
Ignition	Purple	0.3	Switch terminal, bulkhead connector
Charging	Orange/Black	0.5	Rectifier connector, stator winding
Starter	Red	0.2	Solenoid lug, battery POS terminal
Ground Return	Black	0.1	Engine block attachment, wiring harness clamp

Perform tests with the engine running at 1,800 RPM using a DC voltmeter. Probe across each circuit’s full length; readings exceeding the table values require wire replacement or terminal service.

Diagnosing Intermittent Shorts

Wrap suspect leads in white tape at 6-inch intervals to mark inspection points. Flex each section while monitoring for voltage fluctuations–sudden drops reveal internal breaks. For shorts to ground, disconnect the battery and use a continuity tester on the loose end of the lead. A beep at any point (except intentional grounds) confirms insulation failure. Repair by replacing the entire harness segment, not just sections.

Prevent future issues by sealing connections with shrink tubing after soldering. Apply anti-corrosion paste to terminals exposed to bilge water. For engines in storage, disconnect the negative battery cable to eliminate parasitic drains–even minor draws accelerate wire degradation over time.
