Complete 1983 Chevy Silverado Wiring Diagram and Electrical Guide

Locate the engine compartment harness layout under the hood first–this segment governs critical circuits like ignition, starter relay, and charging system. Reference the fuse block connections on the driver’s side firewall; mismatched wires here often cause intermittent power loss. Trace the main power feed from the battery terminal to the solenoid–corrosion at this junction reduces voltage by 15–20%, triggering dashboard warning lights.

Inspect the instrument cluster wiring behind the dash. The pink wire delivers 12V keyed power to gauges, while the orange/black stripe connects to the oil pressure sender. Swap the sender if readings fluctuate–common failure point in models with mileage exceeding 120K. Verify the turn signal stalk connector; loose pins here disable both blinkers and hazard lights due to shared ground paths.

For rear lighting issues, focus on the trailer wiring harness. The brown wire powers tail lights, but splits into brown/white stripe for brake lights–swap bulbs first, then test socket continuity with a multimeter. Replace the step-down converter near the license plate if brake lights stay dim; this component drops voltage from 12V to 6V for the original sealed-beam setup.

Headlight problems? Check the dimmer switch mounted on the floorboard. The yellow wire switches between low and high beams–replace the entire switch if eroding contacts cause flickering. The alternator output (heavy-gauge red wire) requires a minimum of 13.5V at 1500 RPM; less indicates stator failure. Clean the ground strap connecting the engine block to the frame–oxidation here mimics charging system faults.

For aftermarket stereo installations, bypass the in-dash fuse link. The purple/white stripe carries constant 12V–tap this directly at the ignition switch to prevent draining the battery. Isolate the speakers’ ground wires; shorts here blow the 10A radio fuse. Use a relay kit for amplifiers–factory wiring lacks capacity for currents above 30A.

Restoring Your Classic Pickup’s Electrical Blueprint: A Step-by-Step Reference

Start by locating the fusible links under the dashboard near the steering column. These 14-gauge orange wires protect critical circuits–two feed the ignition, one powers the headlights, and the last supports the instrument cluster. Test continuity with a multimeter before assuming they’re intact; corrosion at the crimp connectors often mimics a blown link.

Trace the headlight harness from the dimmer switch. The high-beam circuit runs through a 12 AWG yellow wire, low-beam uses an 12 AWG light blue, and the parking lights follow an 18 AWG brown. At the firewall grommet, verify the 8-pin connector: pins 1 (yellow) and 4 (light blue) must show 12 V with the switch engaged. If voltage drops below 11.5 V, replace the bullet connectors–stock ones degrade under 40 amps.

Instrument Cluster Pinout Values

Function	Wire Gauge	Color Code	Expected Voltage	Test Point
Fuel Sender	20 AWG	Tan	0–90 Ω	Fuel pump relay slot 6
Oil Pressure	20 AWG	Dark Blue	5–8 PSI min	Sender terminal
Voltmeter	18 AWG	Pink	13.2–14.6 V	Ignition coil “+”
Temperature Sender	18 AWG	Dark Green	80–240 Ω	Coolant temp sensor

Disconnect the battery before servicing the turn-signal flasher module. The module mounts on the left inner fender and uses three terminals: power (14 AWG pink), brake switch input (18 AWG white), and output to lamps (16 AWG dark green/white stripe). Swap in a solid-state relay rated 30 A if the stock bi-metallic flasher varies from 60–120 pulses per minute at 14 V.

Check the ignition coil resistance. Primary winding should read 1.0–1.3 Ω across the “+” and “-” terminals, secondary winding 6,500–10,000 Ω from the “-” terminal to the tower contact. Any deviation indicates a short that will misfire under load. Replace the coil if sluggish starts persist after confirming the ballast resistor (1.35 Ω) is uncompromised.

Ground Locations & Cleaning Procedure

Strip paint and rust from ground straps using a 3M Scotch-Brite pad. Prime bare metal with zinc chromate, then torque eyelets to spec:

Strap Location	Fastener	Torque (lb-ft)	Wire Gauge
Battery negative to frame	M8 × 1.25	15–18	4 AWG
Engine block to firewall	¼-20	12–15	10 AWG
Starter housing to frame	M10 × 1.5	25–30	8 AWG

Install a 15 A inline fuse 6 inches from the alternator’s “Bat” terminal. The stock setup lacks protection; a shorted diode trio will melt 10 AWG wiring before the regulator trips. Aftermarket regulators should match the internal voltage sense–14.1 V at 3,000 RPM with no load.

Finding the Factory Electrical Blueprint for Underhood Components

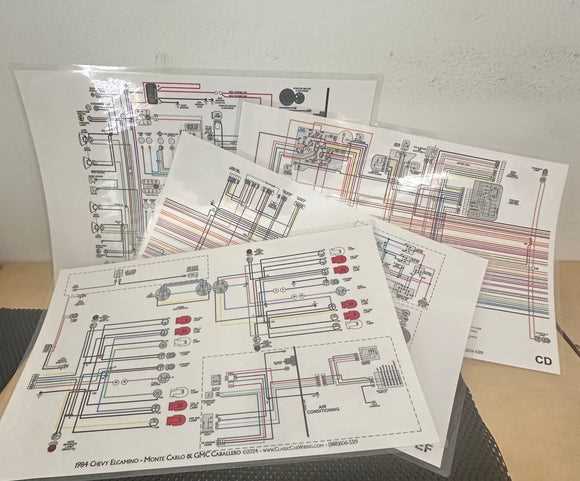

The most reliable source for the original electrical schematic is the vehicle’s service manual, specifically the section labeled “Electrical Troubleshooting” or “Engine Bay Layout.” These documents were issued by the manufacturer and include exact terminal identifications, color codes, and circuit paths for all underhood components. If the printed manual is unavailable, search for OEM-issued CDs or microfiche archives at automotive libraries or specialty restoration shops.

Identify the component group number assigned to underhood systems–typically GM classified these as Group 9D or similar variants–before attempting downloads from third-party repositories. Many aftermarket sites group schematics incorrectly, leading to mismatched connectors or missing fuse allocations. Verify the file corresponds to the exact model variant (e.g., C/K series, 10/20/30 designation) and engine size (4.3L V6, 5.0L, 5.7L, etc.), as minor differences exist between configurations.

For direct tracing without schematics, begin at the fusible link junction near the battery tray. This link is color-coded in heavy-gauge orange or red-stripe wire and branches into primary circuits for ignition, charging, and lighting. Use a multimeter in continuity mode to follow current paths; probe the backside of connectors rather than piercing insulation to avoid false readings. Record findings in a diagram sketched on graph paper, noting:

• Wire gauge (thickness correlates with current capacity)
• Terminal designations (e.g., “Bat,” “F,” “Acc,” “Ign”)
• Ground points (usually unpainted chassis mounts near the radiator support)

Critical sensors and actuators under the hood include:

1. The coolant temperature sender (two-wire, often purple and tan)
2. The oil pressure switch (single wire, typically blue or dark blue)
3. The distributor pickup coil (harness with shielded braid)
4. The throttle position sensor (part of the carburetor loom)
5. The charging system voltage regulator (embedded in alternator on some variants)

Each requires distinct pin-outs; mixing them causes incorrect sensor readings or non-start conditions.

If physical schematics are inaccessible, consult vintage repair forums where enthusiasts have uploaded scanned diagrams. Filter posts by user reputation–prioritize those including photographs of original manual pages with clearly legible labels. Avoid “memory saver” tools during tracing; they can keep control modules powered, distorting readings or corrupting ROM. Instead, remove the negative battery clamp and use an auxiliary power pack for radio presets.

Color codes follow a standardized scheme but degrade over time. Typical codes include:

• Pink – ignition feed
• Yellow – headlight switch feed
• Dark green – fuel pump relay trigger
• Light blue – instrument panel illumination
• Brown – courtesy lights or trailer harness

Document any deviations; aftermarket repairs often substitute generic colors (e.g., white replacing orange), which alters expected circuit behavior.

When diagnosing ignition-related faults, trace the coil feed wire from the ignition switch (white wire) to the coil positive terminal, then follow the secondary lead (black wire) to the distributor cap tower. Ground-side coil circuits (two thin wires, usually brown or dark green) route directly to the internal engine block, bypassing chassis grounds. Interruption here mimics distributor failure; test with a jumper wire to isolate.

For charging system verification, isolate the alternator’s “Bat” terminal (large red wire) and “F” terminal (smaller exciter wire, often orange). Connect a voltmeter across the battery terminals while running; voltage should rise to 13.8–14.5V. If readings are lower, probe the voltage regulator (external on some models) or inspect the fusible link for resistance. Inspect the harness loom near the exhaust manifold; heat damage often melts sheathing, exposing bare conductors that short intermittently.

Decoding Critical Electrical Bundle Junctions and Signal Paths

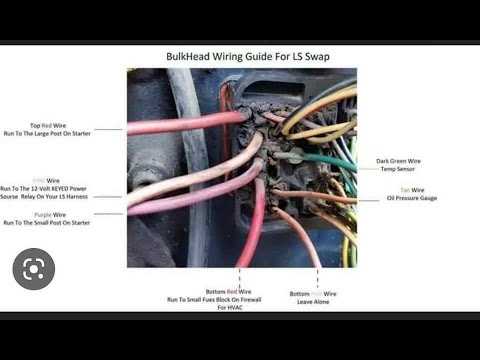

Locate the main engine compartment junction block beneath the dashboard on the driver’s side–typically secured by a single bolt near the firewall. Its plastic housing contains two rows: the upper carries high-current feeds, while the lower distributes ignition-switched circuits. Pin A2 (red stripe) delivers constant 10-gauge power direct from the battery terminal; verify with a multimeter–voltage should hold at 12.6V with engine off. Pin B7 (yellow stripe) triggers the fuel pump relay; a missing signal here often traces to a corroded 20-pin bulkhead connector under the master cylinder. Clean each terminal with a fiberglass pen, then apply dielectric grease before reinserting.

Inspect the tail lamp harness at the vehicle rear–focus on the gray plastic connector behind the left taillight assembly. Pin 3 supplies brake light voltage; jumper it to chassis ground with a test lamp while depressing the pedal–illumination confirms continuity through the brake switch in the cab. Pin 5 (brown stripe) handles reverse lamp activation–resistance should read below 0.5 ohms when engaged. Replace any oxidized terminals with tin-plated copper spade lugs crimped at 16-18 lb-ft torque.
