Complete Wiring Diagram Guide for the 1984 Porsche 911 Electrical System
If you’re restoring a lightweight, rear-engine coupe from the early ‘80s, the original wiring schematic is your most critical reference. Without it, tracing circuits becomes guesswork–especially under the dashboard, where relays and sensors for fuel injection and climate controls converge. Factory manuals often omit subtle revisions between production years, so verify all ground points against chassis numbers.

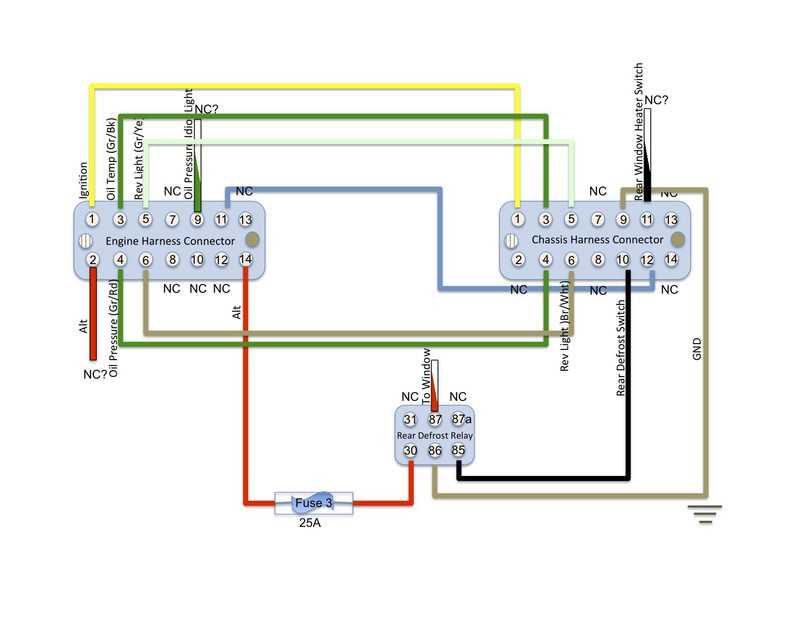

Start with the fusebox: locate the central harness connector (typically a 25-pin plug near the driver’s kick panel) and cross-reference each pin with the legend. Errors here can fry the instrument cluster or ECU. For the ignition system, note the ballast resistor wire–it’s color-coded differently from the standard 12V feed and carries only 9V to the coil. Confuse them, and you’ll bake the points or coil.
The headlamp circuit uses a separate relay for high/low beams; the harness splits near the firewall with two 1.5mm green wires leading to the bulbs. Mix them up, and one filament stays dark. Tail lights share a ground bus at the rear valence; corrosion here mimics bulb failures. Test continuity with a multimeter, not a probe–voltage drop across rusted terminals can mislead.
For diagnostics, map each switch’s output voltage: turn signals toggle 12V pulses at the stalk, while the horn relay closes at 0Ω. Cruise control wiring (if equipped) hides under the glovebox, with four thin wires–two purple, two orange–feeding the vacuum servo. Swap these, and the system either surges or cuts out entirely.
Avoid aftermarket schematics unless verified; many reverse-engineer from later models, introducing mistakes. Stick to the original microfiche or a physical manual extracted from a parted-out donor. Only these contain factory revisions for emissions upgrades, which affect the A/C compressor clutch, oxygen sensor heater, and idle stabilization circuitry.

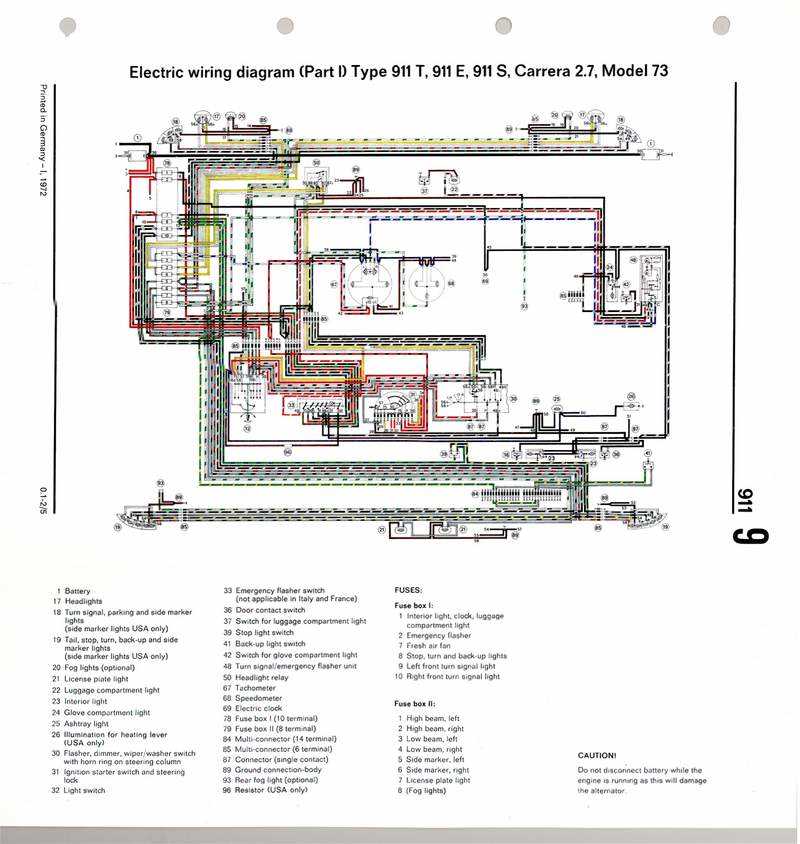

Electrical Schematic Reference for Early G-Series Coupes
Locate the fuse panel beneath the dashboard on the driver’s side–black plastic cover snaps off without tools. Label each fuse position directly on the lid with a fine-tip marker; the original numbering differs from later models. Fuse 12 controls the fuel pump relay; replace it immediately if voltage drops below 11.8V during cranking.
Trace the main harness along the chassis rail behind the rear seats. At the junction box near the battery, separate the thick red wire from the thinner striped leads–these supply ignition and auxiliary circuits respectively. Label both ends before disconnecting; the red feed shows 0.3 ohms resistance to the coil positive terminal.
Critical Ground Points and Voltage Readings
Clean the ground strap attached to the transmission bellhousing; corrosion here mimics starter solenoid failure. Measure across the strap and chassis with a multimeter set to continuity; values above 0.2 ohms require replacement. Another key ground sits beside the driver-side taillight–remove road debris and apply dielectric grease to maintain conductivity.

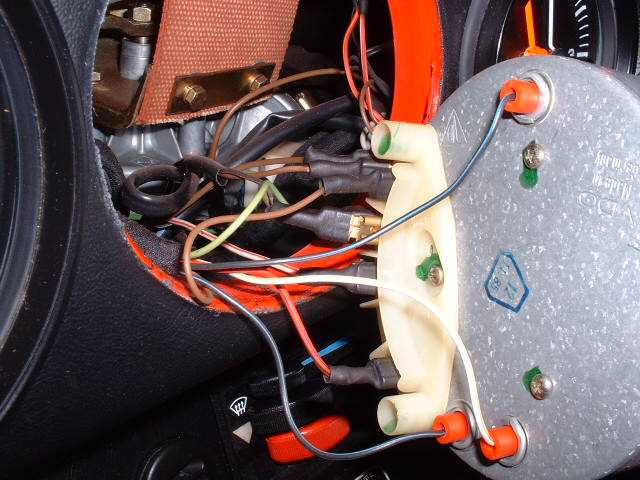

Check the instrument cluster gauge sender connections at the rear of the engine bay. Disconnect each plug, inspect for brittle insulation, and probe pin 3 on the temperature sender harness with the ignition on–correct reading is 1.5V at 85°C engine temperature. Deviations indicate a faulty sensor or shorted wire behind the dash.
Harness Repair Techniques
Identify brittle sections by gently flexing the harness near heat sources–the area above the exhaust header cracks most commonly. Use heat-shrink tubing sized 4mm larger than the original wiring; slide it over the intact section before splicing. For splices near moving components, twist strands clockwise and solder without flux residue–residue attracts moisture and accelerates corrosion.
Label each connector housing with its circuit number using archival quality tape. The climate control servo plug is especially fragile; unclip it by pressing the sides while rotating counterclockwise. Store removed plugs in sealed bags with silica packets to prevent terminal oxidation during extended repairs.
Verify repaired sections with a load test–cycle accessories through their full range while monitoring voltage at the connector. Headlight relay circuits should draw 8.5A at 13.2V; lower readings reveal hidden high-resistance connections requiring another pass with the heat gun and soldering iron.
Locating the Precise Electrical Schematic for Your Classic 1984 Carrera Variant
Begin by identifying the exact model derivative of your vehicle–SC, Carrera, or Turbo–as each variant commands distinct fuse layouts, relay positions, and harness branching. The factory workshop manual, specifically volume four (electrics), remains the most reliable reference, though original copies are scarce. Third-party publishers like Bentley Publishers offer reprinted volumes with updated page numbering, but verify compatibility against known VIN ranges to avoid mismatches.
Key Differences Across Model Years and Trims
- SC (2.7L and 3.0L engines): Features simpler ignition systems with Bosch K-Jetronic fuel injection, requiring fewer sensor connectors than later variants. The main harness splits near the fuse box into three primary branches: engine bay, instrument cluster, and rear lighting. Check for ground point G104 behind the driver-side kick panel, often corroded in coastal climates.
- Carrera (3.2L engine): Introduces a more complex harness with additional connections for the DME computer, idle control valve, and oxygen sensor. The fuse layout expands to accommodate higher amperage demands, with fuse #15 dedicated to the DME system. Look for a brown/black striped wire at connector X2/12 as a diagnostic reference point.
- Turbo (3.3L engine): Incorporates a wastegate actuator circuit and intercooler pump wiring not found in other trims. The relay board doubles in size, housing relays for the fuel pump, ignition, and cooling fan. The brown/yellow wire at terminal X11/7 marks the intercooler pump trigger–absence here indicates a severed connection or failed actuator.
For digital alternatives, subscribe to the Pelican Parts technical archive, which houses high-resolution scans of original schematics indexed by VIN. Avoid generic “universal” diagrams–the 1984 Carrera’s turn signal harness, for example, reverses polarity at the hazard flasher relay compared to the 1985 model, leading to misdiagnosis of bulb failures. If tracing circuits manually, use a multimeter in continuity mode rather than visual inspection alone; the factory wrapped wires in cloth tape prone to fraying, creating intermittent shorts invisible to the naked eye.
Step-by-Step Approach to Interpreting the Fuse Box and Relay Layout
Locate the vehicle’s central electrical distribution panel–typically mounted beneath the dashboard or inside the engine bay–and remove its protective cover. Identify the fuse assignments by cross-referencing the embossed labels on the panel with the legend in the official service manual, focusing on amperage ratings and circuit descriptions. Mark each fuse slot with a piece of masking tape and note its function before proceeding, as misplacement during reinstallation risks short circuits or component failure.
Trace each relay’s position by matching its numbering to the schematic, paying attention to the pin configuration–most relays in classic models use a standard 4- or 5-pin layout, though some high-current systems (e.g., fuel pump, cooling fan) may incorporate heavier-duty variants. Test relays using a multimeter in continuity mode: probe pins 85 and 86 for coil resistance (typically 50–120Ω) and pins 30 to 87 for closed contacts under activation. If resistance exceeds 0.5Ω or the switch fails to engage, replace the relay immediately–corroded contacts or degraded coils are common failure points in systems over 30 years old.
Verify power distribution by backprobing fuse terminals with a voltage tester while the ignition is in the “ON” position. Expect 12V at the input side of all fuses; absence indicates a break in the supply line, often traced to corroded junction points (e.g., firewall bulkhead connectors) or a failing alternator. For relays, apply 12V directly to the coil pins (85–86) while monitoring output (30–87) for voltage drop–values below 11.5V suggest internal resistance. Document discrepancies in a table pairing fuse/relay IDs with observed voltages for systematic troubleshooting.
Mapping Electrical Pathways for Engine Cranking and Spark Sequence Elements
Begin by locating the battery positive terminal on the vehicle’s schematic–typically marked as “30” in early air-cooled systems. Follow this line to the starter solenoid contact, where a high-current relay engages the Bendix drive. Verify the continuity of this path using a multimeter set to 200-amp scale; resistance should not exceed 0.2 ohms. If readings fluctuate, inspect the cable lugs for corrosion or loose crimping, particularly at the engine block grounding points.
Next, isolate the ignition switch outputs. On pre-OBD models, the switch distributes power to three critical branches: accessory (terminal “X”), ignition-on (terminal “15”), and start engagement (terminal “50”). Terminal “50” feeds directly into the starter solenoid trigger circuit; trace this wire back to its first junction, usually a bullet-type connector near the firewall. Check for voltage drop here–any loss above 0.3V suggests a compromised connection, often due to heat-fatigued plastic insulation.
For the coil circuit, follow the path from terminal “15” to the ignition control unit (ICU). Pre-contact-breaker systems split this signal into a ballast resistor bypass during cranking, then revert to the resistor for sustained operation. Measure the voltage at the ICU input pin during key-on; expect 11.5–12.5V. If voltage sags below 10V, test the resistance of the ballast resistor (nominally 1.2–1.5 ohms) or inspect the wiring harness for chafing against the exhaust heat shields.
| Component | Pin Assignment | Expected Voltage (Key-On) | Failure Mode |
|---|---|---|---|
| Starter Solenoid | 50 (trigger) | 10.5–12.5V | High-resistance connection at firewall grommet |
| Distributor Pickup | Green/Black (signal) | 0.1–0.3V AC | Sheared wire at flex joint near oil cooler |
| Ignition Coil Primary | + (terminal 15) | 6–8V (running) | Cracked epoxy potting inside coil |
At the ignition module, confirm the signal wire from the distributor pickup coil shows 0.2–0.4V AC when rotated by hand–this indicates proper triggering. If absent, examine the harness where it routes over the engine tinware; repeated thermal cycling often causes wire strands to fracture near the connector, leaving only a few conductive fibers intact. Replace the entire segment rather than splicing; solder joints here fail predictably within 12–18 months.
Ground paths demand special scrutiny. The engine block serves as the primary return, but additional straps connect the transmission bellhousing and rear subframe. Disconnect these straps and measure resistance to the battery negative post–values above 0.5 ohms indicate corrosion in the mounting bolts or stripped threads. Clean all contact surfaces with a stainless-steel brush, then apply dielectric grease before reassembly. Forgetting this step leads to erratic tachometer readings and extended starter engagement times.
For the fuel pump circuit, trace the relay control wire from the ICU to the pump relay coil. This signal should pulse during initial key-on for 2–3 seconds, then silence unless the engine rotates. If the pump runs continuously, suspect a short in the relay control wire to terminal “30”–a common failure where the harness rubs against the chassis rail behind the driver’s seat. Use a wire probe to isolate the short without damaging adjacent wires; insulation faults here often mimic fuel delivery issues.
Finally, verify the alternator field circuit. Power from terminal “15” must reach the voltage regulator, which then modulates the rotor coil current. Test the regulator output by measuring voltage at the alternator “F” terminal with the engine off; it should match battery voltage. If zero, inspect the fusible link in the main harness–a melted link here is often misdiagnosed as a failed alternator, while the actual issue lies in the under-dash connector where the harness bundles split.
