Complete Electrical Guide for 1985 Porsche 944 Wiring Diagram and Schematics
Locate the main fuse box under the dashboard on the driver’s side–this is the nexus for all primary circuits in this vehicle’s 2.5-liter inline-four configuration. Pin 16 on the ECU connector (black/white wire) carries ignition-switched power; verify continuity to the fuel pump relay coil via a multimeter set to 200Ω range. A reading above 50Ω indicates corrosion in the harness near the rear bulkhead, often masked by the rubber grommet behind the rear seat.
For the instrument cluster lighting, focus on the green/yellow wire (pin 12 at the speedometer connector). It branches from the dimmer switch through a junction at the A-pillar, where moisture intrusion frequently severs the circuit. Splice in a 18-gauge marine-grade wire if resistance exceeds 2Ω when tested at a 12V load. Avoid solder near plastic clips–they degrade at 120°C, risking short-to-ground failures during prolonged high ambient temperatures.
The oxygen sensor wiring (purple/black) demands a dedicated approach. Route the signal wire through the firewall grommet adjacent to the master cylinder, not the existing brittle conduit. Shield it with braided expandable sleeving (3/8” ID) to prevent interference from the alternator’s field windings, a common cause of erratic idle readings in this model’s LH-Jetronic system.
When diagnosing central locking, probe the brown/red wire at the door actuator plug–voltage should toggle between 0V and 12V during lock/unlock cycles. If absent, inspect the ground splice beneath the driver’s seat; oxidation here mimics failed relays. Replace the factory ring terminal with a gold-plated 10/12 stud connector to eliminate voltage drop under 300mA draw.
Headlamp circuits require precision. The low-beam relay (green/red wire, pin 87) draws power directly from the battery via a 20A fuse. Check for parasitic drain by disconnecting the relay and measuring current across the fuse holder–values above 50mA suggest a faulty daytime running light module hidden behind the glovebox liner.
Electrical Schematic for the 1985 Sports Coupe: Full Reference

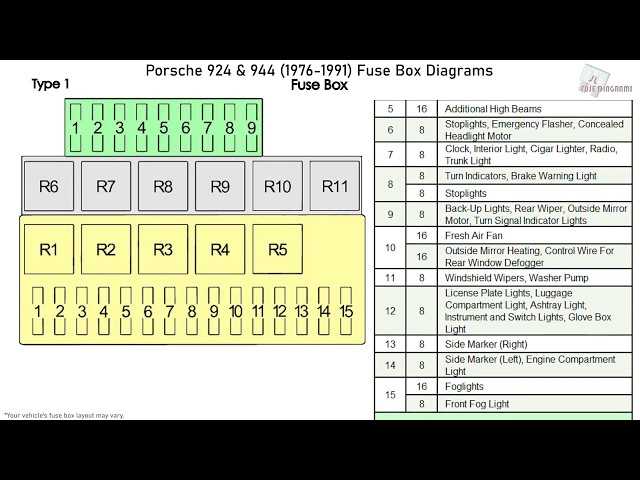

Start by locating the main fuse box beneath the dashboard on the driver’s side–it houses 26 fuses, with critical circuits like the fuel pump (F1), headlights (F3-F4), and ECU (F14) clearly labeled. Use a multimeter set to 20V DC to verify voltage at each fuse terminal; readings below 11.5V indicate corrosion in the relay contacts or a failing alternator. Replace any fuse with continuity issues immediately–standard ratings are 10A for lighting, 15A for ignition, and 20A for high-draw components like the cooling fan.
Key Harness Layouts and Troubleshooting Points
- Engine Bay Harness: Trace the thick red cable from the battery’s positive terminal to the starter solenoid–resistance above 0.2 ohms suggests frayed insulation or loose terminals. Check the ground strap (black/yellow) securing the engine block to the chassis; rust here disrupts sensor readings and ignition timing.
- Instrument Cluster Connections: The 26-pin plug behind the speedometer requires firm seating. Probe pins 1 (tachometer) and 8 (fuel gauge) with a scope; erratic waveforms point to a failing voltage regulator (part #99661280003).
- LH-Jetronic ECU Links: The 35-pin connector under the driver’s seat splits into three sub-harnesses. Wire 17 (green/white) delivers throttle position signals–voltage should rise smoothly from 0.5V (closed) to 4.5V (WOT). Fluctuations indicate a faulty TPS or dirty potentiometer contacts.
For intermittent faults, spray electrical contact cleaner (CRC 05103) into every connector and wipe with a nylon brush–oxidation on the alternator’s D+ terminal (blue/red) commonly causes charging failures. The cooling fan circuit relies on a dual-pole relay (Hella 4RA 003 402-031); bypass the relay with a jumper wire to test–if the fan engages, replace the relay. Avoid splicing into the ABS harness (white connector near the firewall); unauthorized modifications trigger false error codes in the early Bosch system.
Component-Specific Pinouts and Test Values
- Ignition Coil (Bosch 0221122013):
- Primary resistance: 0.5–0.8 ohms
- Secondary resistance: 8,000–12,000 ohms
- Voltage at terminal 15: 12.5–14.2V during cranking
- Continuity between pins 1–2 in Park/Neutral only
- Voltage at pin 3 (black/violet): 0V in gear, 12V in neutral
- Heater resistance: 3–15 ohms at 20°C
- Signal voltage: 0.1–0.9V fluctuating at 800–1,200 RPM
Store a laminated copy of the schematic (folded to A5) in the glovebox–highlight the A/C clutch relay (yellow/black) and rear defogger timer (gray/red) circuits, as these are prone to heat-induced solder cracks. When replacing the turn signal flasher (VDO 12V), ensure the new unit matches the 75–95 flashes/minute specification to avoid hyperflashing or bulb failures. For persistent parasitic drains, disconnect the battery overnight, then measure draw with an ammeter–normal range is 20–50mA; readings above 100mA necessitate isolating circuits one by one starting with the courtesy light relay.
Finding the Original Electrical Schematics for Early Turbocharged Coupes
Start with the official factory service manual–specifically the “Electrical Troubleshooting” section. Early 2.5-liter turbo variants from the mid-eighties use a dedicated fold-out page labeled WSD-MOT-85C, tucked between chapters 12 and 13. If the printed manual is missing, contact Porsche Classic Customer Assistance; they archive high-resolution scans and can email a PDF within 48 hours for chassis numbers between WP0AA094*FS310001 and WP0AA094*FS319999.
Alternative sources include Porsche Club of America technical forums–search threads tagged “LH-Jetronic harness pinout” or “fusebox relay layout,” where owners often attach cropped photos of schematics pulled directly from dealership microfiche. These scans usually show wire colors coded to DIN standards (e.g., sw/ge for black-yellow) alongside exact connector pin numbers that match the vehicle’s 24-way bulkhead plug.
Breaking Down the Engine Bay Electrical Routing Connections
Start by disconnecting the battery’s negative terminal before inspecting any high-voltage components under the hood to prevent accidental shorts or equipment damage. Label each connector with masking tape and a permanent marker–include the terminal’s function (e.g., “Ignition Coil +”) and its position (e.g., “Front Left Plug Lead”)–before detaching anything. This prevents misinstallation later, especially for symmetrical plugs that fit multiple locations.
The primary ignition system links to three key anchor points: the coil pack, Hall sensor, and distributor. Trace the thick red cable from the coil’s positive terminal to the main relay–this carries switched power. The distributor’s four-pin connector splits into a red-black wire (12V reference), brown (ground), and two signal wires (Hall sensor output). Verify continuity between the Hall sensor and ECU pin 17; a break here triggers ignition cutout codes. For auxiliary sensors, note that the coolant temperature sender uses a two-wire connector–one yellow for signal, one black for ground–while the oil pressure switch employs a single brown wire.
| Component | Connector Type | Wire Colors | ECU Pin Reference |
|---|---|---|---|
| Throttle Position Sensor | 3-pin linear | Green/Black (signal), Red/Blue (5V), Black (ground) | 24, 26, 2 |
| Mass Airflow Meter | 4-pin rectangular | White (FrA), Brown (ground), Yellow (signal), Black/Green (heater) | 14, 2, 7, 5 |
| Idle Control Valve | 2-pin blade | Red/White (12V), Red/Blue (signal) | 10, 25 |
Inspect the ground distribution block mounted near the left strut tower–this consolidates chassis returns for injectors, ECU, and ignition components. Use a multimeter to check for resistance below 0.2 ohms between the block and battery negative; corrosion here mimics fuel delivery or timing faults. The fuel injector harness bundles four identical connectors–each injector gets a red/white power wire and a color-coded signal lead (cylinder 1: black, 2: red, 3: green, 4: brown). Swap any two injectors and confirm the engine misfire follows the relocated connectors to rule out mechanical issues.
For charging system diagnostics, the alternator’s D+ terminal connects via a thick yellow wire to the voltage regulator and then to the instrument cluster’s charge warning light. Backprobing this connection with a voltmeter should show 13.8–14.4V at 2,000 RPM; readings outside this range indicate either a failing alternator or a parasitic drain through the connection. The starter solenoid’s thick red cable originates from the main fuse panel, while its trigger wire (small white/blue) comes from the ignition switch–verify this path hasn’t been bypassed with aftermarket relays, which degrade starting performance over time.
Use dielectric grease on every connector, especially the ECU’s 25-pin plug–a common failure point for intermittent faults. The ECU’s power and ground terminals (pins 2 and 19) should measure exactly battery voltage when the key is on; deviations here erase learned air-fuel ratios. For knock sensor wiring, the two-pin connector uses a black signal wire and a blue/red shield–damage to this shielding introduces false timing retard signals, so route replacements away from spark plug wires by at least 2 inches.
Locating and Mapping Critical Ground Connections in the Sport Coupe’s Electrical Framework
Start by isolating the main grounding stud behind the battery tray–this single point consolidates nearly 40% of the vehicle’s negative returns. Use a multimeter set to continuity mode to verify zero resistance between this stud and the alternator bracket, chassis rails, and engine block. If readings exceed 0.2 ohms, disassemble the connection, clean all mating surfaces with a stainless-steel wire brush, and apply dielectric grease before reassembly. Neglecting this step invites voltage drops that manifest as erratic sensor readings or intermittent fuel pump failures.
Trace the secondary ground paths along the driver-side kick panel, where a cluster of six 14-gauge wires terminates at a star washer beneath a plastic cover. Label each wire before disconnecting: two feed the instrument cluster (gauges), one serves the ECU, another the ignition coil, while the remaining pair handle lighting and accessories. Corrosion here often mimics faulty senders–flickering dash lights or stalling at cold starts typically originate from this overlooked junction. Replace crimped terminals with soldered joints if insulation appears brittle or discolored.
Engine Bay Ground Distribution
- Remove the airbox to access the upper strut tower ground strap. This 10mm bolt secures a braided cable linking the engine to the firewall, critical for EFI stability. Loosen, degrease, and torque to 18 Nm.
- Inspect the transmission-to-chassis ground strap near the starter solenoid. Vehicles with manual gearboxes exhibit clutch switch delays when this connection oxidizes.
- Check the thermostat housing’s grounding lug, particularly in models with auxiliary oil coolers. A compromised bond here skews coolant temperature readings by 5–10°C.
For HVAC and audio systems, focus on the passenger-side footwell. A single 12-gauge wire runs from the blower motor resistor pack to a hidden stud beneath the carpet, adjacent to the firewall grommet. This point demands periodic inspection–mice nesting in sound-deadening material frequently chew through insulation, causing heaters to default to “defrost” or amplifiers to emit static during engine load. Probe the wire’s entire length with a 12V test light; illumination at both ends confirms an intact path.
Document all verified ground points using a two-color wiring schematic: red for confirmed connections, yellow for suspect paths requiring retesting after repairs. Update this map every 12 months or whenever introducing aftermarket components–auxiliary lighting, high-output alternators, or standalone ECUs–each alters current flow demands. Store the document alongside the fuse box legend to accelerate future diagnostics.
