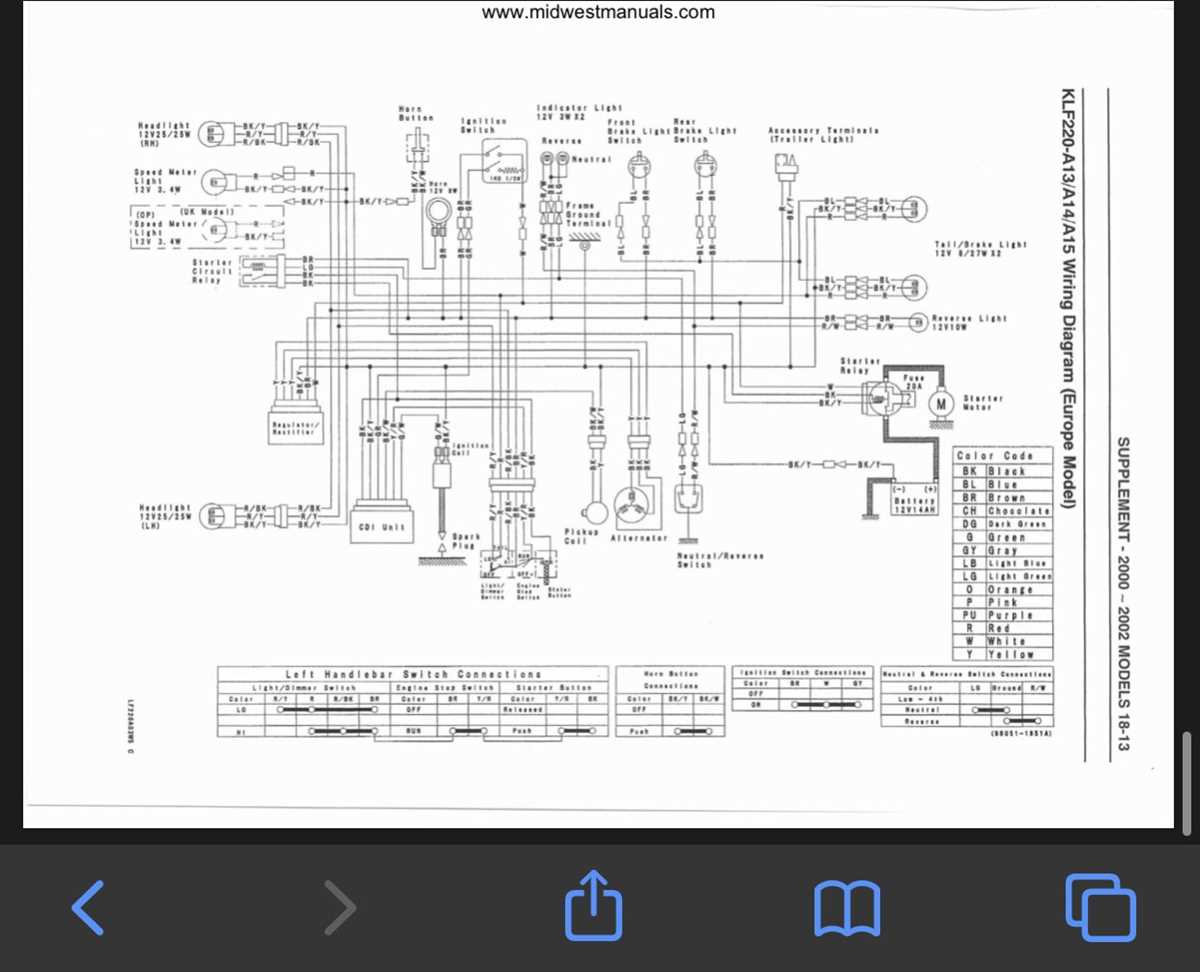

Complete Wiring Schematic for Kawasaki Bayou 220 ATV 1988 Model
The quad’s ignition system starts with the CDI box located near the left-side panel. Connect the black/yellow wire from the stator to terminal C on the CDI unit. Skip factory splices–run a dedicated 16-gauge red wire directly from the ignition switch to the CDI’s B+ input to avoid voltage drop under load. The yellow wire from the alternator output must feed into the rectifier’s AC posts; verify resistance between posts reads 0.3–0.6 ohms with a multimeter before securing connections.
Headlight circuit demands attention: replace the stock 35W bulb with a 55W H4 halogen if riding trails at night. Route new 12-gauge wires from the handlebar switch to the lamp housing–use waterproof Deutsch DT connectors at splices. The brown wire grounds the entire front lighting assembly; attach it to the frame’s steering stem bracket with a 6mm star washer, not a painted surface. Battery charging loop requires a 10A inline fuse on the red wire between the rectifier and battery positive terminal; omit it only if troubleshooting starter draw issues.
For fuel injection retrofits, disregard the carburetor wiring completely. Mount the ECU beneath the seat pan; connect the gray/red wire from the throttle position sensor to the ECU’s TPS input and calibrate at 0.5V idle, 4.5V wide-open. The MAP sensor’s pink wire needs a 5V reference from the ECU, not the stock 12V supply–install a separate 2A fuse for this circuit. Always bench-test the electrical harness before final assembly, probing each pin with a continuity tester set to 200Ω range.
Trailer wiring adapters often fail due to insufficient gauge–run 10-gauge wires from the taillight connectors back to the battery, not the existing harness. Isolate the turn signal flasher unit; wire it to a toggle switch on the handlebar if hauling payloads over 200 lbs. Ground the auxiliary equipment–winches or GPS mounts–directly to the engine block, never the bodywork. Use dielectric grease on every terminal once connections are verified and torque all ring terminals to 8 in-lbs.
Electrical Schematic for the 1988 ATV Model Guide
Start by locating the main harness connector near the battery; it’s a 6-pin plug labeled “A” with wires in red, black, yellow, green, white, and blue. Match these to the ignition switch terminals–red carries 12V from the battery, black is ground, yellow triggers the starter solenoid, green powers the headlight circuit, white feeds the taillight, and blue controls the ignition coil.
Check the stator output wires–three thin leads: one yellow (AC power), one white (signal for the regulator), and one black/red (ground return). The yellow wire must register ~20V AC at 3000 RPM with no load. If voltage drops below 15V, replace the stator or inspect the flywheel magnets for demagnetization. Avoid splicing; solder and heat-shrink all repairs to prevent moisture intrusion.
Trace the CDI box inputs: a 4-pin connector with white/blue (pulse generator), black/red (ground), red/white (charging coil), and black/yellow (ignition trigger). The pulse generator wire should produce a clean ~1.5V AC signal at idle. If erratic, swap the CDI; aftermarket units often misfire due to incompatible advance curves. OEM part #21119-1067 fits without modification.
Inspect the rectifier-regulator’s two connectors–one 3-pin (white, yellow, black/red) for AC input and one 2-pin (red, black) for DC output. At 5000 RPM, the DC side must hold 14.2–14.8V. If fluctuating, probe the yellow AC wires; a shorted diode often leaks below 13.5V. Replace the entire unit if internal resistance exceeds 0.5 ohms on any lead.
For turn signals, follow the flasher relay’s three wires: light green (signal), orange (power), and dark green (ground). The relay clicks at 70–90 beats per minute; faster pulses indicate a shorted bulb or corroded socket. Substitute with a mechanical relay if the electronic unit fails–polarity matters on the light green and orange connections.
Test the horn circuit by jumping the red/yellow wire (from the fuse) to the blue/red horn lead–air gap adjustment affects volume, not continuity. If silent, verify the 10A fuse; factory wiring often shorts at the handlebar switch due to chafed insulation. Replace the switch assembly if voltage drops below 11.5V at the horn terminal.
Final checks include the kill switch (black/white wire to ground) and brake light circuit (white wire with red stripe). The kill switch must open the circuit when pressed; resistance above 1 ohm causes intermittent stalling. Brake lights require the rear brake lever microswitch to close fully–adjust the pedal stop screw if the light stays on permanently.
Finding the Primary Electrical Connectors on Your Classic ATV
Begin by removing the left-side plastic panel beneath the seat–four 10 mm bolts secure it. Directly behind, you’ll expose the main harness junction: a rectangular black connector with 14 terminals, labeled JP6 in factory schematics. This block links the ignition switch, solenoid, and CDI unit. Trace the thick red/white wire back 15 cm to locate the fuse holder; corrosion here often causes hard starts.
Inspect the engine’s right rear for the smaller 6-pin connector (JP4), hidden behind the oil cooler. It bridges the stator, voltage regulator, and kill switch–dirt ingress here mimics charging failures. Disconnect using a flathead screwdriver on the retaining clip; shake out debris before reattaching. The white/red lead indicates AC output from the stator coils.
Check under the front fender for the headlight connector–a two-terminal plug with orange and black wires. Resistance above 0.3 ohms between terminals confirms bulb circuit issues. Replace the 15 amp fuse inline with this circuit if headlights flicker at idle. Mark connections with masking tape before disassembly to avoid cross-wiring.
Step-by-Step Guide to Interpreting the Ignition Circuit Schematic
Locate the ignition coil connections first–trace the thick red wire from the coil’s positive terminal to the main fuse, then follow its path to the ignition switch. Use a multimeter set to 20V DC to verify voltage at the coil’s positive terminal while cranking the engine; expect readings between 9.5V and 12.5V. If readings drop below 8V, inspect the fuse, switch contacts, and ground connections for corrosion or loose terminals. The black wire with a yellow stripe (ground return) must connect to a clean, unpainted metal surface on the engine block or frame; sand the contact point if needed to ensure conductivity.
Test the kill switch functionality next: disconnect the orange wire at the handlebar switch and check for continuity between the wire and ground when the switch is in the “run” position–no continuity indicates a broken circuit. Replace the switch if resistance exceeds 2 ohms. Examine the CDI unit’s pin assignments: the white wire carries pulse signals from the stator, while the brown wire links to the pickup coil–probe these with an oscilloscope to confirm a consistent 1.5V AC waveform at idle. If signals appear distorted, replace the stator or inspect the flywheel’s magnet alignment for gaps wider than 0.5mm.
How to Test the Stator and Regulator-Rectifier Wires for Continuity
Disconnect the battery and set your multimeter to the continuity or ohms setting. Probe the stator output wires (typically yellow) in pairs–check resistance between each combination: A-B, A-C, and B-C. A functional stator will show readings between 0.2 and 2.0 ohms; anything outside this range signals a short or open circuit. For the regulator-rectifier, test each input wire (usually three yellow) against the ground (green) while disconnected–no continuity should exist. If continuity is detected, the component is faulty.
Key Resistance Values
| Component | Wire Pair | Expected Range | Fault Indication |
|---|---|---|---|
| Stator | Yellow-Yellow | 0.2–2.0 Ω | OL or <0.1 Ω |
| Regulator-Rectifier | Yellow-Green | OL (Open Loop) | Any resistance |
Inspect connectors for corrosion or bent pins; clean with electrical contact cleaner if needed. Reinstall all connections securely, then retest with the engine off. If issues persist, compare results with a known-good unit or consult the service manual for exact specifications.
Identifying and Tracing the Lighting Circuit Wires for Headlights and Taillights
Locate the main lighting harness near the battery compartment–it branches into two distinct circuits: one for the front lamps and another for the rear assembly. The headlamp circuit typically uses a white wire with a red stripe (14-gauge) for high beam and a white wire with a black stripe (14-gauge) for low beam, both originating from the ignition switch. Trace these wires visually or with a multimeter set to continuity mode, ensuring they connect directly to the bulb sockets without splices. If resistance exceeds 0.5 ohms, inspect connections for corrosion or loose terminals, particularly at the handlebar switch and under the fuel tank.
For the taillight and brake light, follow the green wire with a yellow stripe (12-gauge) from the rear fender harness. This wire powers both functions but splits at the rear lamp socket: the brake circuit uses a green wire with a red stripe (16-gauge) that engages when the pedal is depressed. Use a test light to verify voltage (12V) at the socket when the ignition is on and the brake is applied. If the rear light flickers, check the ground wire (black with a white stripe), which often corrodes at the frame mounting point.
- Headlamp sockets: Look for brittle insulation on the yellow/red stripe wire–replace if cracked.
- Brake light switch: Bypass the switch with a jumper wire to isolate faults in the pedal-activated circuit.
- Running light relay: If equipped, tap into the blue/white wire at the fuse box for consistent power.
When tracing wires, disconnect the battery and use a tone generator to avoid shorting circuits. Label each wire with masking tape as you identify it–note that the ATV’s alternator may induce residual current even with the key off, so probe cautiously. For intermittent faults, wiggle the harness near stress points (forks, swingarm pivots) while monitoring voltage; chafed wires often fail under vibration. If replacements are needed, match wire gauge exactly–undersized wires overheat under load.
