Complete Wiring Diagram Guide for 1992 Ford Explorer Repair and Troubleshooting
Download the complete circuit layout before attempting repairs–partial diagrams mislead. The vehicle’s harness splits into three main sections: primary power distribution, lighting circuits, and sensor networks. Each branch terminates at specific junction points, labeled C100, C200, and C300 in factory manuals. Bypass generic online versions; verified schematics mark wire gauges (18, 20, or 14 AWG) and color codes with stripes, not just solid hues.
Common failure zones cluster around the fuse block near the driver’s footwell. Test continuity at relay sockets R1 and R4–corrosion here mimics dead battery symptoms. Probe using a low-impedance multimeter; high-impedance devices give false positives. For stereo and dashboard illumination circuits, note the pink/yellow striped wire carries 12V constant, unlike the light green/black wire, which activates only with ignition.
Ground points G101 and G102 (located behind the driver’s seat and beneath the front passenger kick panel) accumulate rust. Clean with baking soda paste, not sandpaper–abrasion enlarges terminal contact areas, increasing resistance. For intermittent faults, check the bulkhead connector near the firewall; wires here chafe against the metal edge. Secure with spiral wrap, not electrical tape–tape degrades within 18 months.
Replacement harnesses from aftermarket suppliers often omit fused links in the engine bay. Install in-line fusible links on the battery positive and starter circuits–factory schematics denote these as #FL1 and #FL2. Skip this step only if the vehicle has zero aftermarket accessories; even a 120W audio system demands upgraded wiring.
Electrical Schematic for the 1993 Model Off-Roader: Hands-On Reference

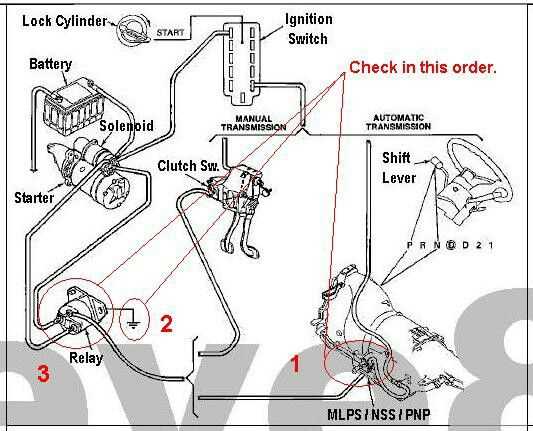

Trace the ignition system circuit starting at the battery positive terminal, following the red cable to the starter solenoid, then the ignition switch (located behind the steering column). From the switch, current runs through the fusible link (orange wire, 12-gauge) to the ignition coil (black/orange stripe). Check continuity between the coil’s positive terminal and the distributor’s ignition module (gray connector) if the engine cranks but won’t start. Resistance between coil pins should read 0.5–1.5 ohms; anything above 3 ohms indicates a failing coil.
For headlight circuits, the left and right beams share a common ground at G101 (chassis rail near the radiator support). Low beams run through the 30-amp fuse (position 10 in the interior fuse panel), then split via a gray/black wire to the multifunction switch. High beams activate through a separate 20-amp fuse (position 6), routed via a light blue wire. If one beam fails, probe the switch connector pins: pin 2 (low beam) should show 12V when active, pin 4 (high beam) should show the same with the brights engaged. Corrosion at the bulkhead connector (driver’s side firewall) often disrupts signal–clean with electrical contact cleaner and dielectric grease.
Power windows rely on a 25-amp circuit breaker located in the under-dash fuse block (row B, slot 4). Each door’s motor draws power through a harness spliced behind the kick panel (passenger side). The driver-side master switch controls voltage distribution via purple/yellow wires; passenger switches use purple/white. If a window works only from one switch, check the corresponding wire at the motor connector–brittle insulation near the door hinge frequently causes shorts. Replace the harness segment if chafing exposes bare copper.
Locate the throttle position sensor (TPS) connector (three-pin, gray housing) on the throttle body. Backprobe pin A (black/light blue wire) for 5V reference when the key is on; pin B (gray/red) should vary from 0.5V (closed throttle) to 4.5V (wide open). A fixed reading signals a failed TPS or a broken signal wire–replace the sensor if adjustment screws show no voltage change. The idle air control (IAC) valve (black/orange and tan/light blue wires) connects to the PCM via a separate harness; verify continuity to ground on the tan/light blue wire if idle surges persist.
Identifying the Right Electrical Blueprint for Your Early ’90s Sport Utility Variant
Begin by examining the vehicle identification number (VIN) on the dashboard near the windshield or inside the driver’s door jamb. The eighth character in the 17-digit code reveals the exact trim and powertrain configuration. For instance, a “U” signifies the 4.0L V6 engine, while “T” denotes the 4.0L with automatic transmission. Cross-reference this with an official manufacturer’s manual or a trusted aftermarket guide like Chilton or Haynes–both often include variant-specific schematics indexed by VIN prefixes.
Check the fuse box lid or under-hood emissions label for a printed label code. These codes, typically a series of letters and numbers (e.g., “92C-14A002-AB”), correspond to internal engineering documents that detail the correct circuit layout. Contact a dealership parts department with this code to request the precise schematic; many will provide a PDF if quoted the exact identifier. Avoid generic online “one-size-fits-all” diagrams–early SUVs often had mid-year wiring revisions that universal guides omit.
Locate the build date on the safety compliance certification label inside the driver’s door. Production changes occurred in late August: models built before had separate ignition and starter relays, while later builds combined them. This split necessitates different wire routing and connector pinouts–verify the build week to avoid mismatched repairs. A vehicle assembled in week 34 uses a distinct harness compared to one from week 36, despite identical badging.
Use a multimeter set to continuity mode to trace suspect circuits if diagrams clash. Probe connector pins listed in the variant’s service manual against the VIN-specific wiring colors–not every third-party schematic accounts for optional trailer wiring or anti-lock brake retrofits. Pin 3 on the instrument cluster’s 12-pin connector, for example, switches between pink (base model) and pink/black (XL trim) depending on whether cruise control was factory-installed. Mark discrepancies directly on a printed draft with highlighter.
Archive the verified diagram in a folder labeled with the VIN’s last six digits. Include photos of the vehicle’s fuse panel layout and under-dash harness connectors–critical details like wire gauge (often printed on insulation) or connector type (e.g., Weather-Pak vs. Metri-Pack) get lost in text-only resources. Keep a spare copy on a USB drive in the glove compartment for roadside diagnostics.
Step-by-Step Procedure for Tracing Electrical Circuits Using the Vehicle’s Schematic
Locate the fuse box layout on the schematic’s first page–it identifies each fuse’s amperage and circuit designation (e.g., “Fuse 12 – 15A – Headlamps”). Cross-reference the fuse number with the corresponding color-coded wire indicated in the legend (red/orange for ignition-switched, yellow/black for lighting). Use a multimeter set to continuity mode to probe the fuse terminals while the key is off; if continuity exists, the circuit is grounded, requiring further isolation of components downstream.
Isolate the circuit under investigation by disconnecting the battery’s negative terminal first, then the component’s electrical connector. Trace the wire’s path from the fuse box to the component using the schematic’s grid references (e.g., “C101 – Left Headlamp Connector”). If the wire splits (e.g., into a relay or sensor), note the junction’s identifier on the diagram and verify each branch with a voltage test. For relays, pull the relay and use a test light to confirm power at terminal 85 (relay control coil) when the switch is activated.
Common Circuit Points and Diagnostic Values
| Component | Wire Color | Expected Voltage (Key ON) | Test Point |
|---|---|---|---|
| Headlamp Low Beam | Yellow/Black | 12-14V | Connector C101 Pin 1 |
| Fuel Pump Relay | Dark Green/Orange | 12V (momentary) | Relay Socket Pin 87 |
| Blower Motor Switch | Light Blue/White | 0V/12V (toggle) | Switch Connector S103 Pin 3 |
For intermittent faults, flex the harness along suspected sections while monitoring voltage drop with the multimeter in mV mode–drops above 100mV indicate internal corrosion or broken strands. At ground points (e.g., G101 near the driver’s side fender), scrape the grounding surface clean and re-secure; resistance should read below 0.5 ohms. If the schematic shows a splice (e.g., “S123 – Blower Motor Feed”), back-probe the splice with a T-pin to confirm power reaches all branches without voltage loss.
Replace standard fuses with a fused jumper wire rated 5A above the original fuse’s value when testing high-draw circuits (e.g., cooling fans). Never exceed 20A; exceeding risks wire overheating. For relay-controlled circuits, swap the suspect relay with a known-good unit of identical pin configuration (e.g., Relay R4 – Horn, Terminals 85/86/87/30). If the issue persists, focus on the relay socket’s wiring or the switch supplying control voltage to terminal 85.
Diagnosing Electrical Faults in Early Model SUVs: Key Indicators and Schematic Markings
Begin troubleshooting by inspecting the fuse block beneath the dashboard on the driver’s side. The 1991-93 variant uses color-coded relays and fuses labeled in the service manual under “Power Distribution.” Look for melted plastic, discolored terminals, or a sulfurous odor–clear signs of overload. Replace fuses with exact amperage ratings; upgrading to higher values risks damaging connected circuits. Use a multimeter set to continuity mode to verify integrity before reinstalling.
Common failures occur in the ignition system due to corroded connectors at the distributor, coil pack, and starter solenoid. Schematic symbols for these components include:
⏚Ground connection (often dashed line)⚡Coil (zigzag inside a rectangle)⏳Resistor (rectangular zigzag)⚡ ⚡Spark plug wires (bold lines with cross-marks)
Clean contact points with electrical-grade sandpaper, then apply dielectric grease to prevent future oxidation. If resistance readings exceed 5 ohms on the ignition coil primary circuit, replace the coil immediately.
Lighting System Anomalies and Corresponding Diagram Symbols
Headlight failures often stem from a faulty multifunction switch or dimmer relay. Locate the relay panel under the hood labeled “LIGHTING” in the service schematic–symbolized by:
↔️⚡Relay (rectangle with internal coil and contact points)▭Fuse (rectangle with internal line)
The multifunction switch controls high/low beams, turn signals, and hazard lights. Test switch continuity using the ohmmeter function; resistance should drop to near zero when engaged. If readings fluctuate, replace the switch assembly. Corrosion on the bulb socket ground terminal (marked ⏚ in schematics) is another frequent culprit–scrub with contact cleaner and a wire brush.
Taillight circuits are prone to water intrusion through cracked housings or faulty gaskets. On the schematic, taillights are represented by with trailing dashed lines indicating wiring paths. Check for voltage drop at the bulb socket using a test light–absence of illumination suggests an open circuit. Inspect wiring harnesses near the rear bumper for chafing, particularly where they pass through the tailgate hinge.
Instrument Cluster and Sensor Circuit Diagnostics
The speedometer, fuel gauge, and temperature indicators rely on the vehicle speed sensor (VSS) and sender units. Schematic symbols include:
Erratic readings typically indicate a failing VSS (mounted on the transmission) or corroded connections at the instrument cluster plug. Disconnect the negative battery terminal before probing cluster pins–incorrect voltage can damage the stepper motors. Test the VSS with an oscilloscope; a sinusoidal waveform confirms proper function. For fuel/temperature senders, compare resistance values against the service manual’s baseline chart–deviations over 15% necessitate sender replacement.
Blown instrument cluster fuses (marked ▭ on diagrams) often cause total panel failure. Check the “INSTRUMENTS” fuse in the central panel; the manual specifies a 10A rating. If the fuse blows repeatedly, trace the circuit for shorts–commonly occurring at the bulkhead connector where wires transition from engine bay to cabin.
Parasitic drain issues frequently originate from the glove box lamp or underhood light staying illuminated. The schematic represents lamps as with a dotted line border. Remove the glove box door switch and test for continuity–failure to open the circuit when the door closes confirms a bad switch. For underhood lights, inspect the hood latch microswitch symbolized by . Clean contacts with emery cloth and adjust actuator alignment if misaligned. If unresolved, measure current draw with the vehicle off–values above 50mA indicate an active faulty circuit.
