Detailed Harley Davidson Sportster 1992 Electrical System Wiring Guide

Start by locating the main harness connector behind the left-side cover. The 1990s Evolution model’s wiring splits into three primary segments: ignition, lighting, and charging circuits. Use a multimeter set to 20V DC to verify power at the ignition switch–red wire (hot) should register 12.6V with the key in the ON position. If voltage drops below 11.8V, inspect the battery terminals for corrosion or loose connections.

Trace the yellow wire from the ignition switch to the fuse block. The 15A fuse (fourth slot from the left) protects the lighting subsystem. A blown fuse often points to a short in the headlight or taillight assemblies–test for continuity between the yellow and black/white ground wires. Replace any damaged connectors with sealed spade terminals (AMP 63811-1) to prevent moisture ingress.

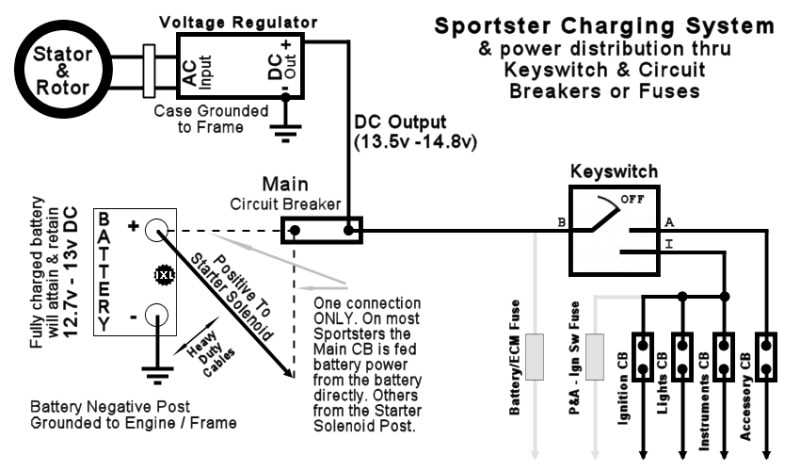

The alternator output–purple wire–should read 13.5–14.5V at 3000 RPM when tested at the voltage regulator. If readings fluctuate or exceed 15V, the regulator/rectifier likely requires replacement. Disconnect the stator wires (black/orange and black/white) before removal to avoid damaging the engine case threads. Use a torque wrench set to 12 ft-lbs for reinstallation.

For turn signal diagnostics, check the flasher relay (gray module under the seat). The brown wire (input) must show 12V when activated, while the light green and orange wires (outputs) should pulse at 60–120 cycles per minute. Failed relays often cause rapid blinking–swap with a known-good unit for confirmation. Ensure all bulb sockets are free of oxidation; apply dielectric grease before reassembly.

If the starter engages but the engine cranks slowly, measure voltage at the solenoid’s red/white wire during ignition. A drop below 9.5V indicates excessive resistance in the battery cables or solenoid contacts. Replace braided cables if resistance exceeds 0.2 ohms. Clean the starter motor brushes with emery cloth and check for worn commutator bars–replace the unit if groove depth exceeds 0.5mm.

Harley-Davidson Electrical Blueprint: A Hands-On Walkthrough

Start by locating the main harness connectors behind the left side cover–match pin colors to the factory schematic in the service manual. Brown wires with yellow stripes control the turn signals; misrouting them causes flashing on both sides. Verify the ignition coil connections with a multimeter: primary side should read 2.5–3.5 ohms, secondary 8,000–12,000 ohms. Values outside these ranges indicate internal shorts.

Disconnect the battery before probing the charging circuit. The voltage regulator’s red wire must show 13.8–14.4V with the engine at 2,000 RPM. If readings drop below 13.2V, check the stator’s three yellow leads–each pair should measure 0.1–0.5 ohms. Higher resistance suggests a broken coil, requiring stator replacement. Clean the regulator ground connection with emery cloth to prevent voltage drop.

Common Pitfalls in Circuit Tracing

• Front brake light switch often corrodes–test continuity with the brake lever pressed. No click? Replace the switch; temporary fixes fail under heat.
• Headlight relay clicks but bulb stays dark? Remove the headlight shell, inspect the black/orange wire for chafing near the fork tube. Wrap exposed sections with liquid electrical tape.
• Neutral light glows faintly when running? The neutral switch’s gray wire may short to ground. Isolate it from the frame with shrink tubing.

For intermittent stalling issues, focus on the run switch and spark plugs. The orange wire feeding the kill switch should toggle between open and ground; a faulty switch keeps the circuit closed, cutting ignition. Remove spark plugs, inspect electrodes for oil fouling–normal gap is 0.038–0.043 inches. Reset gaps with a wire feeler gauge, avoiding pliers that chip porcelain.

Trace the left handlebar controls for dim or flickering signals. The flasher unit’s brown wire should pulse 60–75 times per minute. If pulses slow, bypass the flasher with a jumper–signals will stay steady, confirming failure. Replace the unit; adjustments void stock turn-signal timing. For horn malfunctions, jump the green/white wire at the horn to battery positive–if it sounds, the button contacts need scraping.

1. Label every disconnected connector with masking tape and a marker–”ECM plug A,” “stator plug 3.”
2. Use a test light for live circuits, not a voltmeter–it reveals load issues under real-world resistance.
3. Heat-shrink all splices; electrical tape degrades in two years under vibration.
4. Avoid jumper wires for diagnostics–direct battery contact fries modules.

Critical Tools and Parts

Essential gear: a 10-amp fuse tester, DeoxIT spray for terminals, and a 12V LED bulb with alligator clips. The LED blinks rapidly if polarity is reversed, saving ignition switches from accidental burnout. Keep a spare starter relay–symptoms mimic battery failure. For ECM checks, a 27-pin breakout harness speeds pinpointing; no breakout? Probe connectors with sewing needles wrapped in tape to avoid shorting adjacent pins.

Final step: after reassembly, spin the engine with the clutch engaged and run a secondary coil test. Spark should jump a 0.16-inch gap consistently. Weak spark? Swap the coil with a known-good unit. No spark? Recheck the ignition control module’s black wire–corrosion here mimics total ignition failure but only costs a wire brush to fix.

Finding Critical Electrical Link Points on an Early ’90s Harley Evo Model

Start beneath the fuel tank by tracing the main harness bundle running along the frame backbone. The 14-pin plug interfaces directly with the ignition module–look for a black rectangular connector sealed with rubber grommets. This junction handles signals from the ignition switch, turn signals, and neutral light. If corrosion is present, clean terminals with contact cleaner and dielectric grease before reassembly.

Behind the left side cover, two smaller connectors serve the charging system. The voltage regulator plugs into a 3-pin socket with red, green, and black wires. Disconnecting this before removing the cover prevents damage to the pins. The stator wires terminate in a 2-pin bullet connector nearby–ensure these remain insulated from the frame to avoid shorts.

Near the rear fender mount, locate the tail light harness connection. A 4-way plug links the brake light, running lights, and license plate illumination. Check for brittle insulation common in older models; electrical tape or shrink tubing can reinforce worn sections. The rear turn signals branch from this same harness, identifiable by their orange and black leads.

The headlight assembly uses a large 6-pin connector with yellow, blue, white, and black wires. This junction also integrates the high/low beam relay and front turn signals. When separating, pull the locking tab straight to release–twisting can bend the pins. A subtle click confirms proper reconnection after inspection.

Beneath the seat, the fuse block anchors the entire system. Four spade-terminal fuses protect circuits: ignition (10A), lights (15A), accessories (10A), and charging (20A). Replace blown fuses with identical amperage; higher ratings risk wire damage. Label each fuse slot during removal to avoid misplacement.

For troubleshooting intermittent issues, probe the ground points near the battery tray. A single braided strap connects to the frame, while smaller wires ground the ignition coil and lights. Sand off paint or corrosion at attachment points, then secure with star washers to ensure conductivity. Loose grounds often mimic faulty components–check tightness before replacing parts.

Step-by-Step Diagnostic Approach for Harley Ignition Circuit Problems

Isolate the ignition coil by disconnecting its two-pin connector. Set a multimeter to 20k ohms and probe the coil’s primary terminals–readings should be 3-5 ohms. If resistance deviates, replace the coil immediately; hesitation or misfire often stems from internal coil failure rather than loose connections.

Check the sensor module’s ground path by tracing the black/green wire from the stator to the frame. Corroded or loose chassis grounds mimic fuel delivery faults because the power command signal weakens. Scrape paint off the mounting point, re-secure with a star washer, and seal with dielectric grease.

• Measure voltage at the ignition switch output terminal: key ON should show battery voltage (12.5-14.5V). If voltage droops below 12V, inspect the circuit breaker and main fuse link–fatigue fractures in these components cause intermittent cutoff.
• Verify spark plugs by installing known-good NGK DCPR8E or equivalent; worn plugs misfire under 50% throttle but mask themselves under load.
• Test the stator output by back-probing the yellow wires at the regulator connector: AC volts should exceed 30V at 1500 RPM. Readings below 25V confirm stator degradation.

Examine the handlebar kill switch. Remove the right-hand switch housing and inspect the red wire at the switch contact. A faulty switch grounds the ignition feed intermittently–swap the switch if continuity fluctuates when toggling.

Verify the ECM ground splice. Locate the gray/white wire at pin 17 of the 32-pin connector–trace it to the engine block. Poor grounding here manifests as erratic tachometer readings. Clean the block contact surface and reinstall the bolt with a thread-locking compound.

1. Disconnect the battery negative terminal before any probe work to prevent short circuits.
2. Use a digital probe set to continuity mode to test wire integrity–pinch or scrape damage often hides under insulation.
3. Record all resistance and voltage readings; deviations greater than 10% from specs indicate component fatigue.
4. Replace any connector showing green oxidation–corrosion increases resistance and creates false failures.

Inspect the voltage regulator’s blue wire at the 4-pin connector while the engine runs. Voltage should stabilize between 13.8-14.5V. Fluctuations below 13V or spikes above 15V confirm regulator failure–replace the unit and retest.
