Complete Wiring Diagram Guide for 1994 Club Car DS Gas Models
For immediate troubleshooting, start by locating the fuse panel under the dashboard. Model DS carts with internal combustion systems (IC) have a 15-amp main fuse – check it first if power fails completely. Secondary circuits rely on relays: the ignition relay (white/black wire) controls fuel pump activation, while the gray/yellow wire feeds the solenoid. Replace any blown fuses with exact amperage ratings to prevent overload.
Inspect the ignition coil connections if engine cranks but won’t start. The primary circuit uses a brown wire from the coil’s negative terminal to the distributor, with the positive terminal wired to a red/white lead from the ignition switch. Corrosion here disrupts spark delivery. Clean terminals with contact cleaner and retighten. Verify voltage at the coil’s positive terminal – minimum 12V must register during cranking.

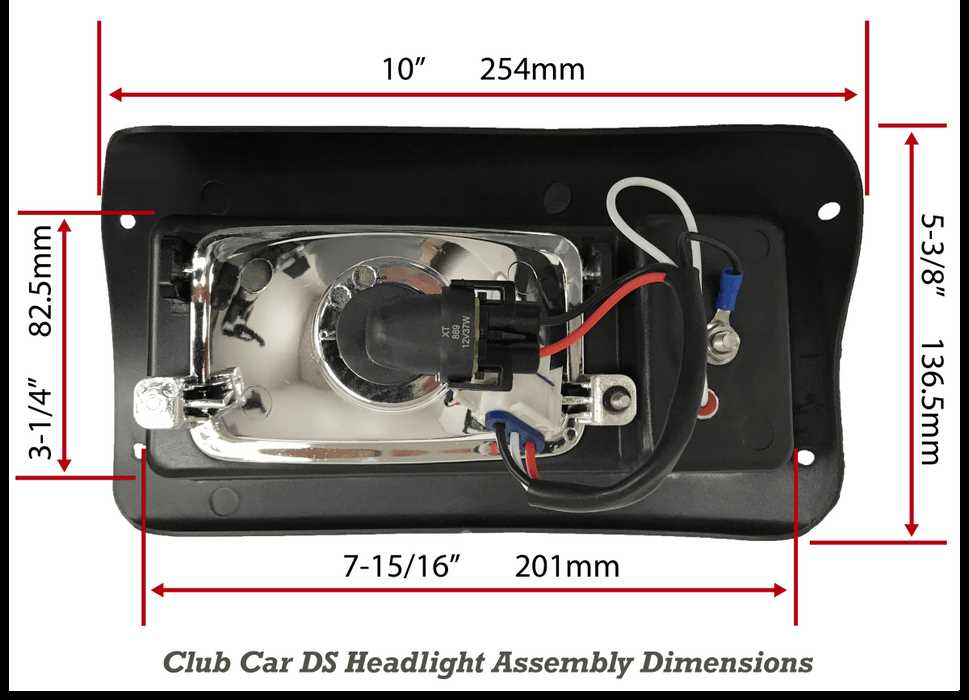

Headlight issues trace to a dual-filament bulb (H4 socket). Low beams activate via black/red, high beams switch through black/white. Check the dimmer switch mounted behind the brake pedal: a malfunction here shorts both circuits, draining the battery. Override the switch temporarily by jumping black/orange to black/white – if lights work, replace the switch.
The charging circuit uses a stator with three-phase output (yellow wires) routed to a rectifier under the rear body panel. Each yellow wire should show AC voltage (~14-18V) at idle; no voltage indicates stator failure. The rectifier converts AC to DC, feeding a red lead to the battery’s positive terminal. Test rectifier diodes with a multimeter in diode mode – readings above 0.5V suggest a faulty unit requiring replacement.
Brake lights rely on a momentary switch wired to dark green (supply) and light green (output). If lights stay on, adjust the switch plunger – excessive travel causes premature wear. Tail lights share a common ground (black) with chassis bolts near the rear axle; corroded grounds trigger intermittent failures. Sand the contact points and secure with star washers for reliable conductivity.
DS Model Internal Combustion Electrical Schematic Guide
Locate the ignition switch harness (purple/white wire) at the dash panel’s lower left corner–this connects directly to the solenoid’s “S” terminal. Verify continuity with a multimeter before bypassing for testing, especially if the engine cranks but fails to start. Common failure points include corroded ground straps near the battery tray; replace with 4-gauge tinned copper wire for longevity.
Key Components and Troubleshooting
Trace the red wire from the voltage regulator to the alternator’s output post. Voltage should read 13.8–14.4V at 2,000 RPM; lower readings indicate a faulty regulator. The yellow wire (accessory circuit) often shorts near the headlight socket–insulate with heat-shrink tubing if fraying is observed. For intermittent stalling, check the gray wire (fuel pump relay trigger) at the ECU connector; a 0.5-second delay in activation suggests relay contact erosion.
Brake light circuit (green/red wire) draws 12V through the brake pedal switch–ohm-test for 0.3Ω resistance to ground when depressed. Excessive resistance causes ABS module faults in later hybrid models using the same chassis. The orange wire (choke heater) requires 8–10V to maintain proper carburetor temperature; deviations may cause cold-start flooding. Always disconnect the battery’s negative terminal before probing live circuits to prevent ECU damage.
Auxiliary circuits, including the horn (black/white wire) and windshield wiper (blue wire), share a 20A fuse–replace with a slow-blow variant if intermittent failures occur. The black/orange wire (neutral safety switch) must show infinite resistance when the shift lever is in neutral; finite resistance confirms a faulty switch. For 36V-to-12V conversion kits, reroute the solenoid’s “B+” terminal through a 200A breaker to prevent voltage spikes from damaging onboard electronics.
Locating Critical Parts in the Vintage DS Model Electrical Layout
Start by isolating the ignition switch–labelled KEY SWITCH–on the dashboard’s right side beneath the steering column cover. Trace its red wire (10-gauge) directly to the solenoid’s upper terminal; a loose or corroded connection here causes intermittent starting failures. Check the solenoid’s lower terminal for a black/white striped wire leading to the starter motor–verify continuity with a multimeter (resistance under 0.5 ohms).

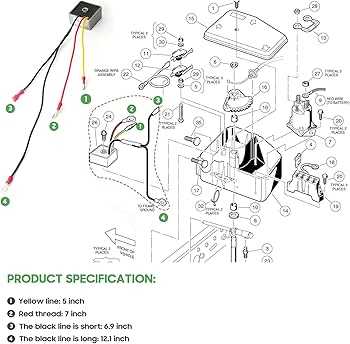

Examine the voltage regulator mounted near the engine’s flywheel housing. Its three terminals–B+, F, and D+–must be secured with ring terminals and free of oxidation. A reading of 13.8–14.4V at the battery posts during engine operation confirms proper function; deviations indicate regulator or alternator issues. Replace the regulator if voltage fluctuates beyond ±0.2V at 2000 RPM.
Inspect the neutral safety switch located behind the shifter mechanism. Its two wires (yellow and blue) should show continuity only in neutral or park; test with a multimeter while manually manipulating the shift lever. A faulty switch prevents starting in gear–bypass temporarily by jumping the switch’s connector to verify before replacement.
- Fuel pump relay: Situated behind the glove box, labelled RELAY 2. Swap with the horn relay (identical part) to test; if the pump primes, replace the relay.
- Coil pack harness: Black (ground) and pink/yellow (12V trigger) wires attach to the ignition coil. Ensure the connector’s locking tab clicks–intermittent spark often stems from a broken tab.
- Lighting circuits: Headlights connect via a 15A inline fuse near the battery tray. Use a test light to probe the wiring loom; dim lights typically signal a short between the bulb socket and brown/green ground bus.
Test the battery cutoff switch–installed on early DS variants–by toggling while monitoring voltage at the starter solenoid. If voltage drops below 11.5V, clean the switch contacts with 600-grit sandpaper and dielectric grease. For models without a switch, add a 200A fuse holder inline on the positive battery cable to prevent fires from short circuits in the frame-mounted wiring loom.
For troubleshooting the charging system, connect a voltmeter to the battery terminals. With the engine off, voltage should read 12.4–12.6V. Start the engine and rev to 1500 RPM–voltage should climb to 13.5–14.5V within 10 seconds. Slower voltage rise suggests a weak alternator stator; exciter wire (yellow) resistance should measure 0.4–0.8 ohms between the regulator and stator. Replace the stator if resistance exceeds 2 ohms.
Step-by-Step Guide to Interpreting Your Vintage Utility Vehicle Electrical Schematic
Locate the power source symbols first–battery icons typically appear as two parallel lines with a plus and minus sign. Trace these lines outward to identify the main fuse block, usually marked by a rectangle with internal diagonals. Verify the fuse ratings against the legend; 20-30 amp fuses are standard for primary circuits, while 5-10 amp protect accessory branches.
Follow the ignition switch path next. On most schematics, it’s depicted as a circular symbol with labeled terminals (B, S, R, A). Connectors B and S handle starter relay engagement, while R and A route current to lights and accessories. Cross-reference terminal labels with the vehicle’s harness plugs; mismatches here often cause no-start conditions.
Examine the solenoid relay representation–a coil and contact symbol near the starter motor icon. Two small wires (one from ignition switch, one from battery) feed the coil, while the large output cable connects directly to the starter. Voltage checks at these points should read 12V when cranking; discrepancies point to relay failures or corroded connections.
| Component | Schematic Symbol | Expected Voltage (Key ON) | Troubleshooting Step |
|---|---|---|---|
| Battery Terminal | Parallel lines (+/-) | 12.6–12.8V | Clean corrosion; load test if below 12.4V |
| Ignition Switch (B) | Circle: B label | 12V | Check for burnt contacts if no voltage |
| Solenoid Output | Coil + thick line | 12V during crank | Tap starter manually to verify engagement |
Lighting circuits branch from the ignition switch’s accessory terminal. Headlamps appear as bulbs with filament symbols, tail lights as bulbs with dual filaments. Follow the ground paths–bolted connections should show zero resistance with a multimeter; any reading above 0.5 ohms indicates a poor grounding strap.
Identify the voltage regulator–a triangle with internal Zener diode symbol. Wires from the alternator (three-phase symbol) converge here. Test output at the battery post while running: 13.8–14.4V confirms proper charging. Lower readings suggest a failed rectifier bridge or loose alternator belt.
Accessory circuits like turn signals and horn share color-coded wires–yellow with stripes for left signals, green with stripes for right. Use a tone generator on the harness side to verify continuity through switches; interrupted tones reveal broken wires or faulty switch contacts.
Common Error Sources
Fuse holders corrode first–scrub contacts with baking soda and re-seat fuses. Starter relays develop internal resistance; replace if coil draws over 0.3 ohms. Dashboard wirings fray near hinge points; re-terminate with solder sleeves rather than crimp connectors for longevity.
Troubleshooting Electrical Problems in the 1993 DS Internal Combustion Cart
Inspect the ignition switch connector first. Corrosion at the six-pin plug (located behind the dash panel on the driver side) frequently causes intermittent starting failures. Remove the switch assembly, clean terminals with electrical contact cleaner, and apply dielectric grease before reassembly. Pay attention to pin positions–misalignment during reconnection can mimic solenoid failure.
Check the charging circuit if the battery drains overnight. The voltage regulator (mounted near the engine’s flywheel cover) often fails silently, allowing uncontrolled alternator output. Use a multimeter to verify regulator voltage output between 13.8–14.4V at 2000 RPM. If readings exceed 15V, replace the regulator immediately to prevent battery electrolyte boiling and electrical component damage.
Examine the headlight and taillight circuits for dim or flickering operation. The common ground point (beneath the seat frame, near the rear axle) corrodes over time, especially in humid climates. Scrape the ground surface to bare metal, secure with a stainless-steel bolt, and protect with anti-seize compound. For consistent brightness, bypass factory-installed resistors and wire lights directly to a fused relay triggered by the ignition circuit.
Identifying Common Harness Wear Points
Focus on the main harness where it passes through the chassis rail near the fuel tank. The abrasive metal edge wears through insulation, exposing wires to ground shorts. Wrap the harness with high-temperature tape or relocate it using plastic loom for protection. This section also carries signals for the fuel pump and senders–intermittent fuel delivery often traces back to this chafed segment.
Verify the solenoid’s small control wires (blue and white) if the engine cranks but doesn’t start. These wires connect to the ignition interlock and seat switch, both prone to connector oxidation. Disconnect, clean, and crimp new terminals if existing ones show greenish deposits. Bypassing the seat switch with a jumper wire (for testing only) confirms whether this safety feature is causing the no-start condition.
Test the reverse buzzer circuit if it sounds continuously or not at all. The switch (mounted on the transaxle) uses a microswitch that deforms under normal use. Adjust the actuator arm by bending it slightly toward the gear lever–factory settings often loosen after 500 operational hours. If adjustment fails, replace the switch; cost is under $15, avoiding unnecessary harness tracing.
Inspect the glow plug relay (turbocharged models) when cold starts exceed 10 seconds. The relay coil deteriorates, preventing proper voltage delivery. Locate the relay behind the dash, adjacent to the hour meter. Swap it with a known-good 12V automotive relay during testing–identical pin configuration and amp rating simplify diagnosis without requiring specialty parts.
