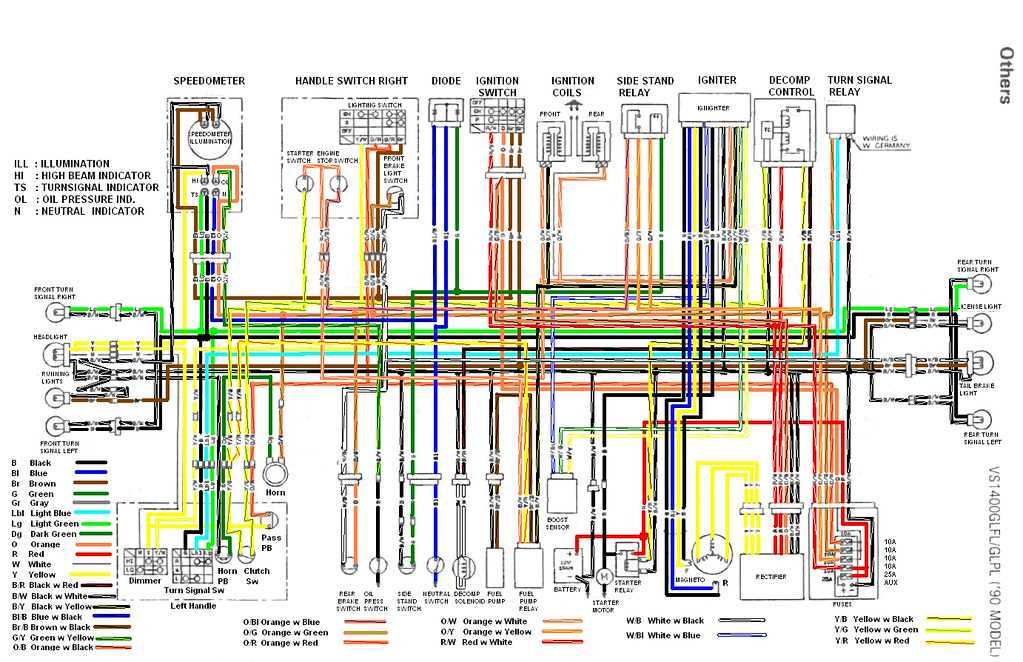

Complete Wiring Diagram Guide for 1994 Suzuki Intruder 1400 Models

Start by locating the main fuse box under the seat–it houses relays for ignition, lighting, and fuel injection. Trace the red wire (battery positive) from the 30A main fuse to the ignition switch, then follow its branch to the starter solenoid via a yellow/black stripe. If the bike cranks but won’t start, inspect the gray wire at the fuel pump relay for continuity; a break here cuts fuel delivery entirely.

Headlight issues often stem from the dual-filament bulb’s brown/white ground wire. Verify its connection to the frame near the steering stem–corrosion here mimics bulb failure. For turn signals, the flasher unit (behind the left side cover) uses a purple/white input wire; if signals flash erratically, test this wire’s voltage with a multimeter while activating the switch (should read 12V in pulses).

The charging system’s gray stator wires converge at the regulator/rectifier (mounted near the battery). Probe the white output wire–healthy readings should exceed 14V at 3000 RPM. If lower, disconnect the stator and check resistance between each gray wire and ground (spec: ~0.2–1.0 ohms). Higher values indicate internal stator failure.

For instrument cluster power, the wire loom carries an orange wire from the ignition switch; a blown 10A fuse here kills speedometer, fuel gauge, and warning lights simultaneously. The neutral light’s green wire loops through the gearbox’s neutral switch–if it stays on while riding, the switch is stuck, risking starter engagement while in gear.

Electrical Schematic for VL1500CH Cruiser

Locate the main fuse block beneath the left side panel–it houses the 30A main fuse, ignition relay, and five auxiliary fuses (10A–20A). Trace the red wire from the battery positive terminal to the fuse block, ensuring no corrosion at the crimp joints; use dielectric grease during reconnection. The ignition switch outputs three circuits: red/yellow (accessory), yellow/black (ignition), and brown/white (starter solenoid)–verify continuity with a multimeter at 12.6V before engine crank.

• Headlight circuit: 55/60W dual-filament bulb wired via orange/white (high beam), orange (low beam), and black/white (ground). Check resistance across filaments–should read 0.5Ω–1.2Ω.
• Turn signals: flasher relay (green/white input, green output) feeds amber bulbs (21W) through gray and gray/black wires. Replace relay if flash rate exceeds 120 cycles/min.
• Alternator output: white/red wire connects to voltage regulator; AC voltage should measure 13.8–14.5V at 3k RPM. Regulator failure causes overcharge or no-charge conditions–test with load applied.
• Fuel pump: fed by blue wire from ECM; 12V pulse confirms proper injection timing. Bench-test pump resistance–1.5Ω–3.0Ω expected.

Grounding Points

Three primary grounds (black wires) cluster near the frame: swingarm pivot (engine), rear fender (tail light), and front downtube (instruments). Sand each contact surface to bare metal, then secure with star washers; loose grounds induce intermittent failures. Use a dedicated 10-gauge wire to bypass the stock harness if resistance exceeds 0.2Ω.

Finding the Electrical Schematic in the Repair Guide

Check the rear section of the official repair manual, typically labeled “Appendix” or “Technical Data.” Most manufacturers group schematics here, separating them from mechanical procedures. If the manual lacks a table of contents for diagrams, flip through the last 30-50 pages–look for pages with thin borders or distinct grid lines.

Use the index to cross-reference terms like “circuit layout,” “connector pinouts,” or “color codes.” Some manuals list schematics under “electrical system” or “harness routing.” If terms are unfamiliar, scan for abbreviations: “ECU,” “IGN,” or “ALT” often point to relevant sections.

• Engine control unit: Look for a rectangular block with labeled pins.
• Fuse block: Identified by small boxes with numbers or amperage ratings.
• Grounds: Usually marked with a downward triangle or “GND.”
• Relays: Square symbols with internal coil and switch diagrams.

Schematics span multiple pages when systems are complex. Locate the page transition markers–arrows, labels like “continued on pg. 42,” or dotted lines connecting sections. For this model, the main harness diagram splits into:

1. Left handlebar controls (headlight, turn signals, horn).
2. Instrument cluster (gauges, warning lights).
3. Engine bay (stator, regulator, sensors).
4. Rear lighting and accessories (taillight, license plate lamp).

Deciphering Symbols and Wire Colors

Compare the legend–usually a small box on the first schematic page–to avoid misinterpretation. Common symbols include:

• Solid lines: Wires (color-coded; e.g., B = black, Y = yellow).
• Dashed lines: Shielded cables or signal wires.
• Crossed lines: No electrical connection (unlike a junction).
• Diodes: Arrow-shaped components with a bar at one end.

Track each wire’s path from source to destination. For example, the alternator’s three-phase output (typically orange, white, and green wires) merges into the regulator before splitting to the battery and other circuits.

Prioritize troubleshooting by focusing on high-current paths first. The starter circuit diagram shows red wires (thick gauge) connecting:

1. Battery positive (+).
2. Starter solenoid.
3. Ignition switch.
4. Ground (often a black wire to engine block).

Weaker connections here cause hard starting or intermittent power loss.

Alternative Sources for Schematic Verification

If the manual’s diagram is unclear, consult:

• Factory service bulletins–sometimes include revised schematics.
• Online forums (search for PDF uploads; filter by file type).
• Aftermarket repair CDs–companies like Haynes or Clymer reproduce schematics.

Print the diagram and mark each wire with a highlighter as you trace it in person. Pay extra attention to splices or connector blocks–these are common failure points. For example, the 12-pin connector near the battery often corrode; check continuity with a multimeter.

For quick reference, photograph or photocopy the schematic, then fold the copy into a small envelope taped inside the bike’s toolkit. Label critical circuits–like ignition or fuel pump wires–with a fine-tip marker directly on the paper. Avoid marking the original manual to preserve resale value.

Pinpointing Critical Elements in the Bike’s Circuit Blueprint

Locate the ignition switch first–it anchors the system, typically positioned near the left handlebar cluster. Trace its wiring harness to the main fuse block (usually a 30A fuse) and verify continuity with a multimeter; resistance readings should not exceed 0.5 ohms for reliable current flow.

Identify the stator’s output leads–three yellow wires exiting the engine case. These carry alternating current to the rectifier/regulator, where voltage stabilizes between 13.8–14.5V at 3,000 RPM. Any deviation suggests either stator degradation (open circuit) or regulator failure (consistent under/overcharging). Test with the engine running, probing each yellow wire individually.

The CDI unit (black box beneath the fuel tank) processes crankshaft sensor signals before triggering the ignition coils. Disconnect its 5-pin connector and inspect for corroded terminals. Pin assignments: red (power), black/white (ground), black/yellow (sensor input), blue/white (coil trigger), and green (kill switch). Swap with a known-good unit if misfires persist after confirming clean connections.

Headlight circuits often split into high/low beams with distinct relays. The high-beam relay (near the battery) activates a dual-filament bulb via a blue wire, while low beam uses a yellow/red striped lead. Check relay sockets for 12V at terminal 86 (coil) and 30 (common) when the switch is toggled–no voltage indicates a faulty stalk switch or broken fuse (typically 15A).

Examine the turn signal flasher module (silver cylinder adjacent to the fuse box). Its red input wire should deliver steady 12V; output wires (orange/white for left, light green/red for right) pulse at 60–120 cycles per minute. Replace if signals hyperflash or remain solid, ensuring the self-canceling mechanism’s gray wire (connected to the speedometer) feeds back correct vehicle speed data.

Tracing the Ignition System Circuit Route

Start at the ignition switch terminal marked “BAT” (usually a red wire). Verify continuity from this point to the main fuse (30A) using a multimeter set to ohms–resistance should read below 0.5Ω. If readings exceed this threshold, inspect the harness for corrosion or chafing, particularly near the steering column where vibration accelerates wear. Replace any compromised sections with 12-gauge copper wiring to maintain voltage stability across the system.

The next segment routes from the switch’s “IG1” terminal (typically black with a yellow tracer) to the ignition coil’s positive input. Trace this path meticulously, noting junctions where the circuit branches to the pulse generator and engine control module (ECM). Use a factory service manual’s color code chart–deviations from documented hues often signal prior repairs with mismatched gauge wires, which can cause voltage drop under load. At each connector, clean terminals with contact cleaner and apply dielectric grease to prevent future oxidation.

Critical Junction Points

Component	Wire Color	Test Point	Voltage (Key ON)
Ignition Coil (+)	Black/Yellow	Coil connector	11.8–12.4V
Pulse Generator	Blue/Yellow	ECM pin 12	4.5–5.5V (pulsing)
Kill Switch	Black/White	Handlebar connector	0V (open), 12V (closed)

Test each point with the ignition on (engine off). Pulsing signals require an oscilloscope for accurate diagnostics–multimeters may show erratic readings. If the pulse generator’s voltage is absent, verify the ECM’s ground circuit (solid black wire) to the chassis, ensuring resistance below 0.1Ω.

From the coil, follow the secondary circuit (thick orange wire) to the spark plug cap. Measure spark output by grounding a spare plug against the cylinder head while cranking–consistent blue sparks confirm a functional path. Weak or yellow sparks indicate either a failing coil or high-voltage leakage; inspect the boot and cap for carbon tracking, replacing them if resistance exceeds 5kΩ. The ground-side coil wire (green) must terminate directly to the engine block, not routed through other components–any intermediate connections risk induced voltage spikes.

Final checks include the sidestand interlock (grey/white wire) and neutral switch (light green). Both circuits must open (infinite resistance) when the transmission is in gear or the sidestand is down to prevent starter engagement. Bypass these switches temporarily by jumpering their outputs to ground–if the engine starts, the switches require replacement. Label all disconnected wires with masking tape and document each step to avoid reconnection errors, which can damage the ECM or trigger limp-mode operation.
