Complete Wiring Schematic for 1995 Chevrolet 1500 Truck Electrical System
Start by locating the main fuse block under the dashboard on the driver’s side–pin F2 is critical for the ignition system. If the engine cranks but fails to start, trace the pink/black wire from the ignition coil to the ECM; corrosion at connector C101 near the firewall is a frequent issue. Replace any damaged terminals with Packard 56-series for consistent conductivity.
For power window failures, check the dark blue/white wire at switch S301–voltage should read 12V with the key in the ON position. If absent, inspect the orange fuse (F3) rated at 20A in the underhood distribution box. A common oversight involves the ground strap G102 beneath the battery tray; ensure it’s free of rust and secured with a 10mm bolt.
The anti-lock brake module requires a steady signal from the gray/yellow wire at pin 12 of connector C202. If the ABS light stays illuminated, probe this circuit with a multimeter set to DC voltage–readings below 11V indicate a short or a faulty sensor. Replace the wheel speed sensor if resistance exceeds 2k ohms.
For heater blower motor issues, verify the tan wire at relay R401 delivers 12V when the fan switch is engaged. If not, test the black/orange wire at the HVAC control assembly–interruptions here often stem from a worn potentiometer. Use a 4.7k ohm resistor as a temporary bypass to isolate the problem.
When diagnosing turn signal malfunctions, focus on the light green wire at the hazard flasher unit. A pulsing voltage (1-3Hz) confirms proper operation; absence suggests a bad flasher relay or a broken circuit at splice S104. If the left and right signals operate independently but the hazards don’t, inspect the brown wire at the steering column connector for fraying.

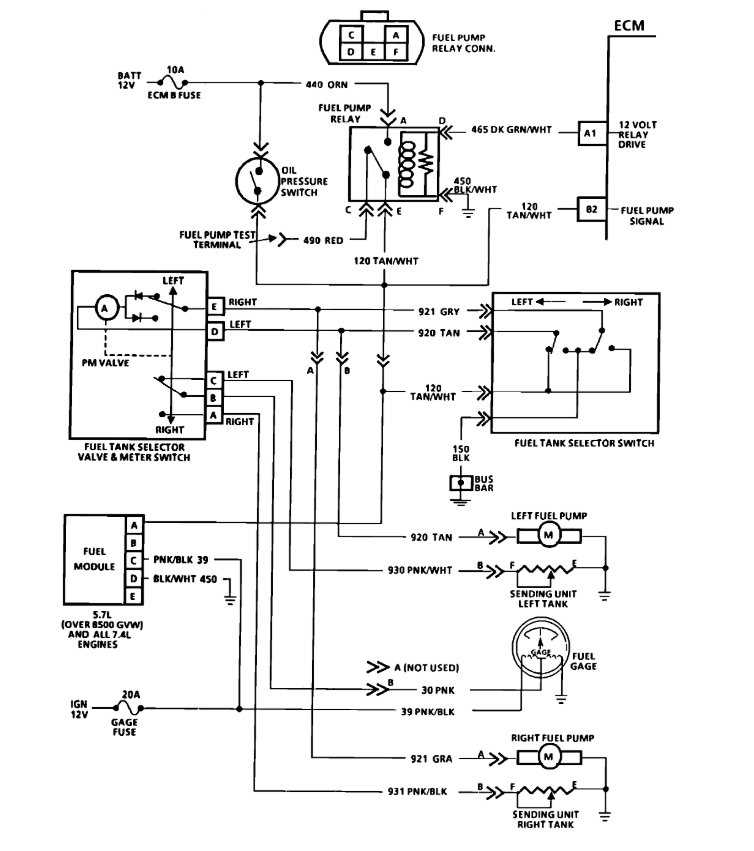

For fuel pump relay testing, jump the dark green/white wire at terminal 85 to ground–if the pump primes, the relay is defective. If not, follow the gray wire to the inertia switch; a tripped switch requires manual reset. Always disconnect the battery before replacing wiring harness sections to prevent accidental shorts.
GM C/K Series Electrical Schematics: Hands-On Reference
Locate the under-hood fuse block near the driver-side strut tower–label “F5” controls the fuel pump relay; jumper pin 87 to 30 with a 10-gauge wire to bypass ignition switch faults when fuel pressure reads zero psi on the Schrader valve.
Trace the pink/black (PK/BK) injector feed circuit from the ECM pin C1-16 to each cylinder; a 0.5 Ω variance between any two injectors indicates a corroded terminal at the intake manifold harness splice, commonly found behind the throttle body on V8 engines.
| Connector Pin | Wire Color | Component | Voltage (KOEO) |
|---|---|---|---|
| A10 | Dark Green/White (DK GN/WH) | Vehicle Speed Sensor | 0–5 V pulse |
| B3 | Yellow/Black (YL/BK) | Throttle Position Sensor | 0.5–4.5 V |
| C2 | Light Blue/Black (LT BU/BK) | Mass Air Flow Signal | 0–5 V |
Strip the ignition coil pack wires at the firewall grommet–resistance should measure 0.8–1.5 kΩ per coil; anything above 2 kΩ requires replacing the entire pack, not just the coil-on-plug boot.
Back-probe the OBD-I diagnostic connector: pin H (red/white wire) carries serial data at 160 baud; clip a bench oscilloscope set to 5 V/div to verify clean square waves before condemning the PCM for a no-start condition.
Ground Path Validation
Scrape paint off the engine block’s bellhousing mating surface below the starter nose; attach the negative DMM lead here and probe each ECM ground reference (G101 & G102)–acceptable voltage drop is under 0.1 V at 10 A draw.
Key Junctions for the Primary Electrical Bundle
Begin under the dashboard near the steering column–there sits the central bulkhead connector, a 72-pin plug encased in black plastic with a latch. Disengage the clip using a flathead screwdriver, then separate the two halves carefully; pulling too hard risks damaging the internal pins. Label each side before disconnecting for easier reassembly later.
The firewall pass-through houses two critical multi-pin connectors–one for the engine control module and another for the instrument cluster. The larger, 80-pin ECM connector is located closer to the brake master cylinder, while the smaller, 24-pin gauge cluster connector rests higher, adjacent to the throttle cable. Both are secured by plastic locks that require a quarter-turn twist to release.

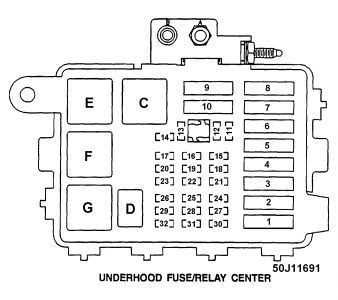

Trace the bundle along the driver-side inner fender toward the front of the engine bay. Here, you’ll find the main fuse block and its adjoining harness plugs. Three primary connectors attach to the fuse box: a red 6-pin for constant power, a brown 8-pin for switched circuits, and a gray 12-pin for various sensors. Mark each connection with masking tape before unplugging to avoid confusion during reconnection.
On the passenger side, the harness splits near the blower motor housing. One branch leads to the HVAC controls–a 12-pin white connector–and the other extends toward the cabin’s rear. The rear branch includes a 16-pin plug for the door locks, power windows, and mirror controls; this connection often hides behind the kick panel cover, secured by two T20 Torx screws.
The transmission control module receives its power and signal bundle via a 32-pin connector located beneath the air intake box. This plug is black with a peculiar L-shaped tab; squeezing both sides simultaneously releases it. Avoid forcing it–misalignment here causes erratic shifting or complete transmission failure.
Beneath the driver’s seat, a lesser-known but vital harness junction links the seatbelt tensioners and airbag system. This bundle terminates in a yellow 4-pin connector and a separate 2-pin gray plug for the seat occupancy sensor. Both are held in place by a single 10mm bolt; remove it cautiously to prevent straining the delicate wires.
Hidden behind the glove box, the body control module (BCM) interfaces with the primary harness through a 64-pin blue connector. This plug manages lights, horn, wipers, and alarms–disconnecting it without battery isolation can corrupt the BCM’s memory. Use a 9V battery backup or jumper the power feed before separating the halves to preserve settings.
Finally, inspect the underhood rear bulkhead near the battery. A heavy-gauge orange cable terminates here, feeding the starter solenoid and alternator. This connection is crimped, not soldered–inspect for corrosion or loose strands, which cause voltage drops and hard starts. Clean with a wire brush if oxidation is present, then secure the nut with a torque wrench to 12 ft-lbs.
Mapping Power Line Pathways and Terminal Varieties Under the Hood
Start with the main fuse block–mounted on the driver’s side strut tower–and follow the heavy-gauge red cable toward the battery. The positive lead splits into two branches: one feeds the starter solenoid via a 4-gauge ring terminal crimped with a heat-shrink sleeve, the other routes to the alternator’s B+ post through an 8 mm stud secured by a flanged nut. These joints tolerate no corrosion; scrape both contact surfaces with a wire brush until bare metal shows, then coat with dielectric grease.
Trace the chassis ground strap backward from the engine block to the cab firewall. The strap terminates in a single-hole eyelet compressed onto a 10 mm bolt shared with the transmission housing. Remove the bolt, sand the mounting pad, reinstall the strap between two flat washers, and torque to 35 ft-lb. Check voltage drop across the joint with a multimeter set to mV scale; readings above 50 mV indicate an incomplete bond and require cleaning or replacement of the strap.
Identify weather-pack connectors by their grey or tan plastic bodies and square-shaped, gendered terminals. Pull back the secondary locking tab with a pick before unplugging; prongs bend easily. Lubricate internal seals with silicone paste to prevent water intrusion. For Metri-Pack terminals–common on the distributor and oxygen sensor–use a terminal pick to lift retention barbs before extraction; insert male pins with a slight tilt to align crimped wings with the housing slot.
Label every branch with masking tape and a fine-point marker before disassembly. Note twisted-pair cables feeding the crankshaft position sensor; maintain their relative twist within 6 mm of the connector to block electromagnetic interference. Reassemble harness clips in reverse order, snapping plastic tabs fully into radiator-core support holes and valve cover grooves to prevent chafing against moving components.
Identifying Dashboard and Instrument Cluster Circuitry Color Codes
Begin by locating the tan wire with a black stripe–this is the primary ignition feed for the instrument panel. It delivers 12 volts when the key is turned to the “run” position and connects directly to the back of the speedometer cluster. Verify continuity with a multimeter before proceeding.
Trace the orange wire (often labeled “O” or “ORN”) from the fuse block to the cluster; it supplies power for the warning lights and gauges. If voltage is absent, check fuse #14 (10A) in the interior fuse panel. This circuit also feeds the fuel gauge via a pinkish-orange wire at the sending unit connector.
The gray wire with a black stripe controls the left turn signal indicator. It originates from the hazard/turn signal flasher module and terminates at the cluster’s illumination bulb socket. A solid gray wire nearby handles the high-beam indicator–confusing these can disable both functions.
Ground Paths and Common Failure Points
The instrument cluster relies on three ground points: a black wire at the left kick panel (G100), a second near the steering column (G112), and a third on the firewall-mounted ground strap. Corrosion at these junctions causes intermittent gauge failures–clean terminals with a wire brush and apply dielectric grease.
Purple wires (solid or striped) carry variable resistance signals from the fuel tank, coolant temperature, and oil pressure senders. Use a scan tool or ohmmeter to confirm sender readings match expected ranges: 0-90 ohms for full-to-empty fuel levels, 10-100 ohms for cold-to-hot coolant. A shorted purple/white wire to ground will peg the temperature gauge.
For backlight dimming, the light green wire with a white stripe adjusts the cluster’s brightness via the headlight switch. If the dash lights glow excessively bright or fail to dim, test the rheostat’s continuity–replace the switch if resistance exceeds 5k ohms at the full-dark setting.
Data Link Connector (DLC) Related Circuits
The tan/black wire at pin 2 of the DLC interfaces with the vehicle’s ECM; it dims the instrument lighting when the headlights are activated. Interruption here prevents the “twilight sentinel” feature from functioning and can disable the chime module. A solid brown wire handles the fuel data line–verify it’s not tangled with airbag-related yellow wires to avoid triggering false SRS codes.
