Nissan Pathfinder 1995 Stereo Wiring Guide with Color Codes and Diagrams

For owners requiring precise harness connections, the vehicle’s OEM harness adapter plate includes eight color-coded leads–match each terminal with the aftermarket unit’s pinout guide. Factory harnesses on these mid-90s models use a yellow (constant 12V), red (switched 12V), black (ground), blue/white (antenna remote), and orange (illumination) as primary power connections. Data buses often interfere with third-party integration; bypass these by splicing into the purple (right rear) and green (left rear) speaker wires directly instead of relying on the 22-pin connector’s aggregated signal.

Locate the fuse box behind the driver’s-side kick panel; tap into fuse slot 18 (10A) for stable power delivery–this avoids draining the battery when the ignition is off. Aftermarket Pioneer, Kenwood, or Alpine units may require an additional ground wire; secure this to the vehicle’s chassis using a 10mm bolt near the pedal assembly. Verify each connection with a multimeter set to 20V DC range before finalizing–voltages below 11.8V indicate insufficient grounding or corroded terminals.

Speaker impedance plays a critical role in sound clarity; stock units typically run 4-ohm drivers. If upgrading to 2-ohm components, add a high-current inline fuse (20A) to prevent overheating. The amplifier remote turn-on wire (usually blue) should connect to the head unit’s corresponding lead–failure to do so results in delayed power-on cycles or no bass output. For models with factory subwoofers, the gray/black harness feeds a dedicated low-pass filter; disable this or integrate a line-output converter to maintain signal integrity.

RCA outputs on the head unit should use shielded twisted-pair cable–run these along the driver’s-side door sill to avoid interference from the vehicle’s ignition coil or alternator. If static persists, install a ground loop isolator between the head unit and amplifier. For vehicles with integrated security systems, retain the pink/white wire (data) connection to prevent false alarms–alternatively, program the aftermarket unit’s security feature to bypass this entirely.

Audio System Harness Connections for 1996 Off-Road SUV Variant

Begin by identifying the color-coded wires behind the factory head unit. The constant 12V power lead is yellow, while the switched ignition wire appears as red. Ground connections are typically black–verify with a multimeter to ensure zero resistance. Front left and right speaker outputs follow white (+) and white/black (-) for the left channel, gray (+) and gray/black (-) for the right. Rear channels use green (+) and green/black (-) (left) and purple (+) and purple/black (-) (right).

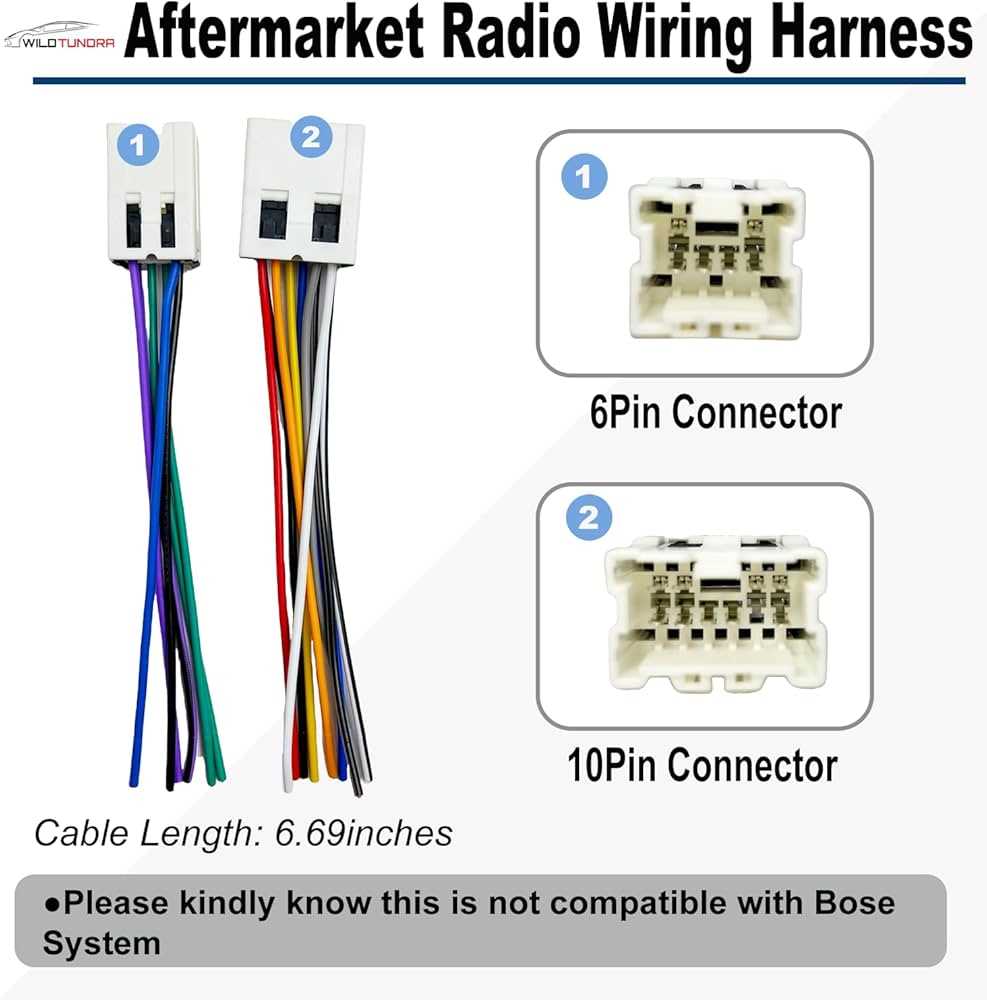

If replacing the stock unit with an aftermarket receiver, use a wiring harness adapter designed for this model year. Cutting directly into the OEM wires risks short circuits or loss of factory features like chimes or antitheft functions. A universal adapter (e.g., Metra 70-1721) matches the connector type and prevents irreversible damage to the vehicle’s electrical system.

• Yellow: Memory power (constant +12V)
• Red: Accessory/ignition (+12V when key is ON)
• Black: Chassis ground
• Blue/white: Amplifier remote turn-on (if equipped)
• Orange: Illumination dimmer control (adjusts display brightness)

For amplified systems, locate the blue/white wire (remote turn-on) and connect it to the new head unit’s corresponding output. This wire triggers the amplifier when the system is powered–failure to connect it results in no sound. If the vehicle has a factory amplifier, additional wires (pink (+) and pink/black (-)) may carry low-level preamp signals. These require an RCA converter for compatibility with standard aftermarket decks.

Troubleshooting Common Issues

No power? Check the yellow and red fuses under the dash–both are prone to corrosion in humid climates. A blown fuse often mimics wiring failures; replace with the correct amperage (typically 10A). Intermittent volume or static in one channel usually indicates a broken speaker wire. Test each channel separately by disconnecting the head unit and probing the harness wires with a 9V battery–healthy speakers will produce a clear pop.

1. Disconnect the battery negative terminal before starting.
2. Use crimp connectors or solder joints–never twist wires bare.
3. Secure connections with electrical tape or heat-shrink tubing.
4. Avoid routing audio cables parallel to power wires to reduce interference.
5. Label every wire before disconnecting the harness.

For steering wheel control retention, integrate a PAC RP4-CH11 adapter. It translates resistive button presses into digital signals understandable by modern receivers. The process involves splicing into the gray/red (data) and gray/white (ground) wires behind the dash cluster. Follow the adapter’s pinout exactly–incorrect connections can disable airbag systems.

Locating the Factory Cable Harness for OEM Audio System Removal

Begin by removing the lower dash panel beneath the climate controls–secure with a single 10mm bolt hidden behind a pop-off cover near the driver’s left knee. Once detached, gently pry the upper console trim off its clips using a plastic trim tool; excessive force will snap the brittle plastic tabs. The factory harness connector will be visible behind the climate control unit, bundled with four distinct plugs: two rectangular (ISO-standard power/audio), one smaller square (illumination/ground), and a round motorized antenna lead. Label each connector with masking tape before disconnecting to prevent misreassembly.

Connector Type	Wire Colors (Pin Count)	Function
ISO Power (Rectangular)	Yellow (12V constant), Red (12V switched), Black (ground) – (8 pins)	Primary system power, memory retention
ISO Audio (Rectangular)	White/Black (LF-), White (LF+), Gray/Black (RF-), Gray (RF+), Green/Black (LR-), Green (LR+), Violet/Black (RR-), Violet (RR+) – (8 pins)	Front and rear speaker outputs
Illumination (Square)	Orange (dimmer), Brown (illumination ground) – (4 pins)	Dashboard light sync
Antenna (Round)	Blue/White (power), Blue (signal) – (2 pins)	Motorized antenna activation

Trace the main harness bundle upward behind the ashtray housing–tucked alongside a hollow plastic conduit for HVAC ducts. Use a flashlight to spot the tan fuse tap (15A) wired into the ignition circuit; this powers the switched +12V red cable. Disconnect the negative battery terminal before probing any circuits to avoid blowing the 10A audio fuse located in the interior fuse box, third row from the top, left column. The harness’ ground junction is bolted to the chassis rail behind the driver’s kick panel, secured with a 12mm nut; clean the contact surface with fine-grit sandpaper if corrosion is present.

Wiring Color Standards and Signal Assignments for the Vehicle Audio Interface

Prior to connecting aftermarket components, verify each conductor’s purpose using a multimeter. The standard harness includes 12 primary cables:

• Yellow (B+) – delivers continuous 12V power from the battery, sustaining memory presets during ignition-off cycles. Fuse this line at 10A to prevent fire hazards.
• Red (ACC) – switches on with the key in the ACC or ON position. Feed this through the ignition relay for proper shutdown sequencing.
• Black (Ground) – attach directly to chassis metal using a bolt free of paint or corrosion. Scrape bare metal for optimal conductivity.
• Orange (Illumination) – dims the head unit display when headlights are active. Connect to the vehicle’s dimmer circuit or risk glare.
• Blue/White (Remote turn-on) – triggers external amplifiers at 12V. Route this separately from power antennas to avoid interference.
• Green (LF+) and Green/Black (LF–) – front-left speaker outputs. Match polarity to prevent phase cancellation.
• Purple (RF+) and Purple/Black (RF–) – front-right channel. Test with a 9V battery to confirm correct polarity before final connections.
• White (LR+) and White/Black (LR–) – rear-left midrange. Twist pairs to reduce noise pickup over long runs.
• Gray (RR+) and Gray/Black (RR–) – rear-right speaker. Secure connections with crimp connectors and heat shrink tubing.
• Pink (Telephone mute) – mutes audio during calls. Leave disconnected if not using a compatible hands-free system.

Avoid bridging any unmarked wires–these may handle CAN bus signals or factory theft-deterrent functions, and improper connections can trigger diagnostic codes.

Pinpointing Common Issues

Flickering display or intermittent power typically stems from inadequate grounding–recheck the chassis connection’s cleanliness and torque. Static from speakers often indicates an open ground loop; reroute the blue/white remote wire away from RCA cables. If the unit fails to power on, trace the red ACC wire to its fuse (10A, typically located in the dashboard fuse block). For subwoofer installations, use the unused purple/gray pair only after confirming they carry no signal in factory mode–wrong taps can damage the OEM amplifier.

When splicing, use solder and marine-grade heat shrink rather than twist-and-tape methods; corrosion in door jambs or under carpets will degrade connections within months. For dual-amp setups, split the blue/white remote wire with a 12V relay to prevent voltage sag. Always cap unused wires individually–exposed copper invites shorts that can fry the head unit’s internal regulator.

Step-by-Step Guide to Installing a New Audio System in Your Vehicle

Disconnect the vehicle’s battery before starting any electrical work. Locate the factory harness behind the original head unit–it typically has a 14-pin connector with colored wires. Use a multimeter to identify each wire’s function:

• Yellow: Constant 12V power (memory)
• Red: Switched 12V power (accessory)
• Black: Ground
• Blue/White: Amplifier remote turn-on
• Orange: Illumination
• Green/Blue, Gray/Red: Front/rear speaker outputs

Match these to the aftermarket harness–most brands include a color-coded adapter. If not, use crimp connectors or solder joints with heat shrink tubing for insulation.

Preparing the Dash and Mounting

Remove the dash panel using a pry tool or trim removal kit, starting from the bottom corners to avoid cracking. Store screws in a labeled container. Most OEM bezels require modification for aftermarket units–use a Dremel with a cutting wheel or a hacksaw to trim plastic edges if needed. Test-fit the new stereo before wiring to ensure proper clearance for ventilation and accessibility.

Secure the mounting sleeve to the dash using the factory clips or screws. Route the harness and antenna cable through the opening, avoiding sharp edges or moving parts. Connect the aftermarket harness to the vehicle’s harness, then plug in the new unit. Reconnect the battery and test all functions (power, volume, EQ, source switching) before finalizing the installation. If issues arise, recheck ground connections–poor grounding causes 90% of audio problems.
