Complete EZGO Golf Cart Wiring Diagram Guide for 1996 Models

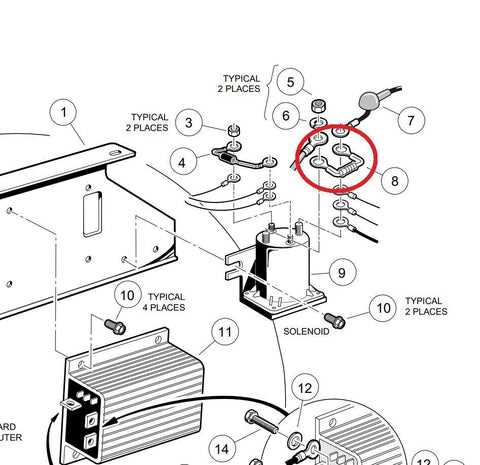

Start by locating the main solenoid near the battery tray–its two large terminals connect directly to the positive and motor leads. Use a multimeter set to continuity mode to verify the coil’s integrity between the smaller terminals; expected resistance should read 30-50 ohms. Anything above 100 ohms indicates a faulty coil, requiring replacement before further testing.
Check the > wiring harness for corrosion, especially the purple (P) and yellow (Y) wires leading to the solenoid. These two conductors must carry uninterrupted 12V when the ignition is engaged. Insert a test light into the connector; if the bulb doesn’t illuminate, inspect the > switch and fuse link upstream.
The > receives power through the light blue (Lb) wire spliced into the solenoid’s small control terminal. Confirm the buzzer activates only when > is engaged and the cart is stationary; a constant buzz points to a shorted relay or damaged micro-switch beneath the accelerator pedal.
Trace the > back to the >–its red (R) input wire should measure 13.2-14.5V with the engine running. A reading below 12.8V suggests a failing stator coil or loose ground strap near the flywheel. Replace the regulator only after verifying the stator’s AC output exceeds 20VAC at high idle.
Examine the >–its white (W) lead connects to the positive post via an inline fuse (30A). Never bypass this fuse; doing so risks overheating the > and melting the insulation on adjacent wires. A fully discharged battery pack should replenish within 8-10 hours under normal charging conditions.
Electrical Layout for Your 1996 EZGO: Hands-On Troubleshooting
Start by locating the main fuse between the battery pack and the solenoid–it’s often a 200-amp blade-style fuse hidden under the seat or near the controller. If the vehicle won’t crank, bypassing this fuse with a multimeter set to continuity mode pinpoints whether it’s blown. Replace it only with an identical rating; mismatched amperage risks melting wiring or frying the controller.
Trace the thick red cable from the battery’s positive terminal to the solenoid’s large post–this is your primary power feed. A corroded or loose connection here will drop voltage, causing sluggish acceleration or intermittent stalling. Clean the terminals with a wire brush, then tighten to 10-12 ft-lbs; over-torqueing strips the threads, while under-torqueing leaves gaps that invite arcing.
For models with regenerative braking, the yellow wire running from the motor’s field coil to the controller acts as the braking signal. If braking feels inconsistent, probe this wire for continuity while pressing the pedal–voltage should spike from 0V to 48V. A flat line indicates a broken wire or failed controller output, typically fixed by splicing in new 12-gauge wire or replacing the microcontroller board.
The key switch’s purple wire activates the accessory circuit. If the dash lights flicker but the vehicle won’t start, test this wire for 36V when the key is turned–the absence of voltage suggests a faulty ignition switch or a broken solenoid pull-in coil. Swap the switch first; it’s cheaper than a solenoid and fails more often.
Ground connections often hide problems–check the black wire bolted to the frame near the rear axle. Rust here creates resistance, mimicking weak batteries. Scrape the paint off the contact point, then secure the wire with a star washer and a fresh #10 self-tapping screw; zinc-plated hardware prevents future corrosion.
When rewiring, use tinned copper wire rated for at least 105°C–standard automotive wire overheats and embrittles under golf cart loads. Label each wire with heat-shrink tubing during disassembly; guessing during reassembly wastes hours and risks short circuits. A spare solenoid and a roll of 3M Super 33+ electrical tape should always be in your toolkit.
Finding the Right Electrical Schematic for Your Vintage Golf Cart
Begin by identifying the exact variant of your vehicle–gas or electric–before searching for schematics. Early models from this era often feature distinct control modules and voltage systems, which directly impact the circuit layout. Check the serial number plate, typically mounted near the passenger-side glove box or under the seat; this code will clarify the manufacturing details necessary for precise documentation.
Key Resources for Accurate Schematics
Official service manuals remain the most reliable source, but acquiring one can require contacting the manufacturer’s vintage parts division. Third-party suppliers like GolfCartKing or BuggiesGoneWild often host scanned archives of original blueprints, though accuracy varies. Forums such as EZGO Talk or Golf Cart Garage contain user-uploaded diagrams, but verify against multiple posts before trusting attachments–errors in older scans are common.
| Source Type | Pros | Cons |
|---|---|---|
| Manufacturer Manual | Guaranteed accuracy, includes detailed annotations | Hard to find, may require purchase |
| Third-Party Archives | Immediate access, free options available | Potential scanning artifacts, incomplete versions |
| Forum Uploads | Community-verified, often includes usage notes | Risk of outdated or altered versions |
Trace the harness routing physically if schematics are unavailable. Label each wire with masking tape and a marker before disconnecting anything; common colors follow industry standards but exceptions exist in earlier builds. A multimeter set to continuity mode will confirm connections–proceed one terminal at a time to avoid confusion.
Critical Areas to Verify
Focus on the solenoid, speed controller, and battery interconnections first. These components frequently fail and are central to the circuit’s operation. Note any deviations from standard color codes; purple or striped wires often indicate custom modifications. Measure voltage drops across main terminals to confirm expected values–12V for gas variants, 36V/48V for electric.
Cross-reference found schematics with OEM part numbers where possible. The wiring harness may list numbers like 17023-G01 or 17034-E02 on its tags, which can be used to locate exact diagrams via parts catalogs. If the vehicle has aftermarket upgrades–such as LED lighting or upgraded chargers–annotate the schematic manually to reflect changes.
Store a digital copy of the final schematic alongside physical labels on the cart itself. Use transparent sleeves to protect paper prints from moisture and grease. For long-term troubleshooting, consider creating a simplified diagram highlighting only the most failure-prone circuits, such as the ignition switch or controller bypass.
Step-by-Step Electrical Connection Color Codes and Their Roles
Begin by locating the primary battery feed–red cables deliver direct current from the power source to the controller. This line carries the full voltage and requires secure termination at both ends to prevent voltage drop. Use a 4-gauge wire for lengths exceeding 6 feet to maintain efficiency.
- Black: Ground reference. Connect to the chassis or a dedicated grounding point. Avoid daisy-chaining grounds to prevent interference.
- Orange: Links the key switch to the solenoid. Voltage here enables system activation; verify continuity with a multimeter before startup.
- Yellow: Solenoid to motor excitation. Ensure this path is uninterrupted–corrosion here causes startup failures.
- Blue: Reversing circuit–polarity swaps engage forward/reverse. Inspect switches for wear; bypassing damaged contacts restores directional control.
- Green/White: Auxiliary circuits (lights, accessories). Confirm fuse ratings match the load; excess current melts insulation.
Trace each color from the power pack to its endpoint. Use a continuity tester to identify breaks or shorts. Replace damaged segments with identically rated wire–mismatched gauges overheat under load. For 36V systems, brown and purple handle interlocks; cross-check with the manufacturer’s latest schematic, as revisions alter assignments.
Label connections with heat-shrink tubing codes. Secure all terminals with dielectric grease to repel moisture. Test under load post-installation–listen for unusual sounds (arcing) or smoke (shorted components). A 10-amp slow-blow fuse inserted at the battery positive terminal protects against catastrophic failure.
For regenerative braking modes, gray wires channel deceleration energy back to the pack. Route these clear of rotating parts to avoid abrasion. Verify controller compatibility; mismatched firmware versions cause erratic braking. Terminate all splices with soldered joints–crimps loosen over time, increasing resistance.
Troubleshooting Common Electrical Issues Using the Schematic
Locate fuse F2 on the voltage regulator circuit–corrosion here mimics a dead battery. Scrape terminal contacts with 400-grit sandpaper, verify 12.6V across the posts, then trace red trace #14 to the key switch; intermittent continuity here suggests a faulty ignition barrel requiring a jumper wire bypass test.
If the solenoid clicks but starter motor stalls, follow orange trace #6 from the battery to solenoid post S–voltage drop below 9.8V at post M indicates burnt contacts; bench-test solenoid with a screwdriver jumper between posts S and M while monitoring amperage draw–spikes over 200A confirm internal failure.
How to Diagnose and Repair Faulty Electrical Connections in Your Golf Vehicle
Locate the fuse box under the seat or near the battery compartment and inspect each fuse with a multimeter set to continuity mode. A blown fuse will read infinite resistance–replace it with an identical amperage rating. If the new fuse blows immediately, trace the corresponding circuit for shorts by disconnecting components one at a time.
Examine connectors for corrosion using a wire brush and electrical contact cleaner. Pay attention to terminals showing greenish oxidation or blackened plastic, as these signal heat damage. For MC (micro-coaxial) connectors, squeeze the housing while gently pulling wires to ensure internal crimps haven’t loosened. Re-crimp or solder connections if strands appear frayed.
Test suspect wires with a voltmeter. Probe the positive lead to the wire’s exposed copper and the negative to the chassis ground. With the key in the “ON” position, a reading below 10.5V indicates voltage drop–isolate the fault by moving the probe along the wire in 12-inch increments until the drop disappears. Mark the faulty segment for replacement.
- For solid-core wires (18-14 AWG), strip 5mm of insulation, twist strands tightly, and apply solder before crimping a new terminal.
- For stranded wires (22-16 AWG), use a ratcheting crimper to avoid over-compression.
- For twisted pairs (e.g., speed sensor leads), maintain the original twist ratio to prevent signal interference.
Route replacements along factory paths, securing them with existing loom clips every 8-10 inches. Avoid sharp edges or moving parts–use spiral wrap or braided sleeving for areas prone to abrasion. For high-current circuits (4 AWG or thicker), splice using heat-shrink butt connectors with adhesive lining to prevent moisture ingress.
Check grounding points by removing the bolt, sanding the contact surface to bare metal, and applying dielectric grease before reassembly. Loose or corroded grounds often mimic more serious electrical failures, causing intermittent faults. Verify by connecting a jumper wire from the ground lug to the chassis–if the issue resolves, the original ground requires cleaning or relocation.
- Remove the dashboard panel by unscrewing the four corner fasteners.
- Label each connector with masking tape before disconnecting.
- Use a circuit tester to verify power at the ignition switch’s “ACC” terminal before proceeding.
- Replace any wire showing brittle insulation or exposed conductors–even minor damage can degrade performance under load.
After repairs, perform a load test by driving the vehicle under simulated conditions (e.g., gradual acceleration, full-throttle climb). Monitor for erratic behavior, such as surging or sudden power loss, which may indicate hidden faults. For persistent issues, consult the vehicle’s service manual for diagnostic trouble codes (DTCs) stored in the controller–these pinpoint specific circuit malfunctions.
