Acura Integra 1997 Audio System Wiring Color Codes and Connection Guide

For DC2 or DB8 chassis variants, use the factory color-coded harness as your baseline. Pin A (solid brown) carries constant 12V–verify with a multimeter showing 13.8–14.2V at the fuse box junction before routing to the head unit. Avoid splicing into the lighter circuit; it triggers parasitic drain during ignition-off states. Attach a 20A fuse holder within 7 inches of the battery terminal to prevent short-circuit damage.

Ground connection demands a clean, unpainted surface near the original chassis bolt. Scrape off oxidation and apply dielectric grease to the ring terminal. Secure with a M6 zinc-plated bolt; torque to 12–15 Nm to prevent intermittent signal loss. Avoid coiling excess cable near the transmission tunnel–high-frequency interference corrupts RDS data on FM broadcasts.

Speaker polarity must align with the OEM harness: front left (+) violet/yellow, (-) violet/green; front right (+) gray/yellow, (-) gray/black. Rear channels follow the same convention–swap only if component sets require phase inversion. Confirm resistance across each coil using a low-ohm meter; readings below 3.8 Ω indicate shorted windings or incorrect gauge wire.

Illumination control retains dimming function if spliced into the white/black wire at the gauge cluster. T-tap connectors introduce 0.3V voltage drop–crimp and solder all joins for consistent backlighting. Test dimming operation at night driving modes; flickering indicates poor ground or oxidized dash loom terminals.

Anti-theft integration requires a resistor bypass if aftermarket units lack factory module compatibility. Locate the black/white lead behind the climate control–jumper a 1 kΩ, ¼W resistor between this wire and constant 12V to disable immobilizer errors. Ignore generic online schematics labeling this as “ignition”; incorrect bypass triggers ECU code 14 and stalls the engine.

Audio System Retrofit Guide for Honda’s 90s Coupe

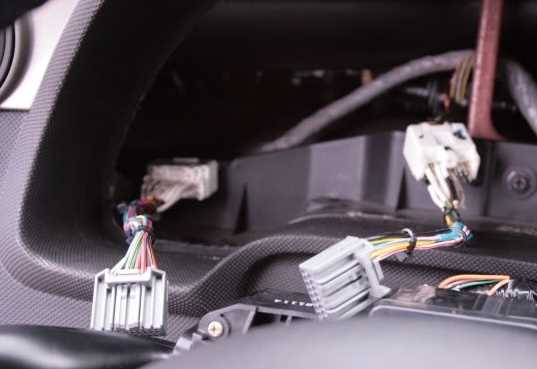

Begin by disconnecting the negative terminal of the battery to prevent short circuits. Locate the factory harness behind the dashboard on the driver’s side–it’s a 16-pin connector with two rows. Pinout details are as follows:

• Constant 12V power (yellow wire) – connects to the ignition switch.
• Switched 12V (red wire) – feeds from the fuse box.
• Ground (black wire) – bolts to chassis metal near the kick panel.
• Front left speaker (gray & gray/black) – 2 ohms impedance.
• Front right speaker (white & white/black) – same impedance.
• Rear left speaker (green & green/black) – check polarity before crimping.
• Rear right speaker (purple & purple/black) – requires splices if bypassing stock amp.
• Illumination (orange wire) – taps into dimmer circuit.
• Power antenna (blue wire) – activates when radio powers on.

Use a multimeter to verify each wire’s function before connecting aftermarket units. Clip connectors cause signal loss–solder joints with heat-shrink tubing ensure longevity. Factory amps in LS models require bypassing for full-range output; JDM versions include a built-in preamp. Check for hidden anti-theft wiring in GS-R trims; removing the hazard switch reveals additional modules.

Matching the Right Harness Connector for Your Vehicle’s Audio Upgrade

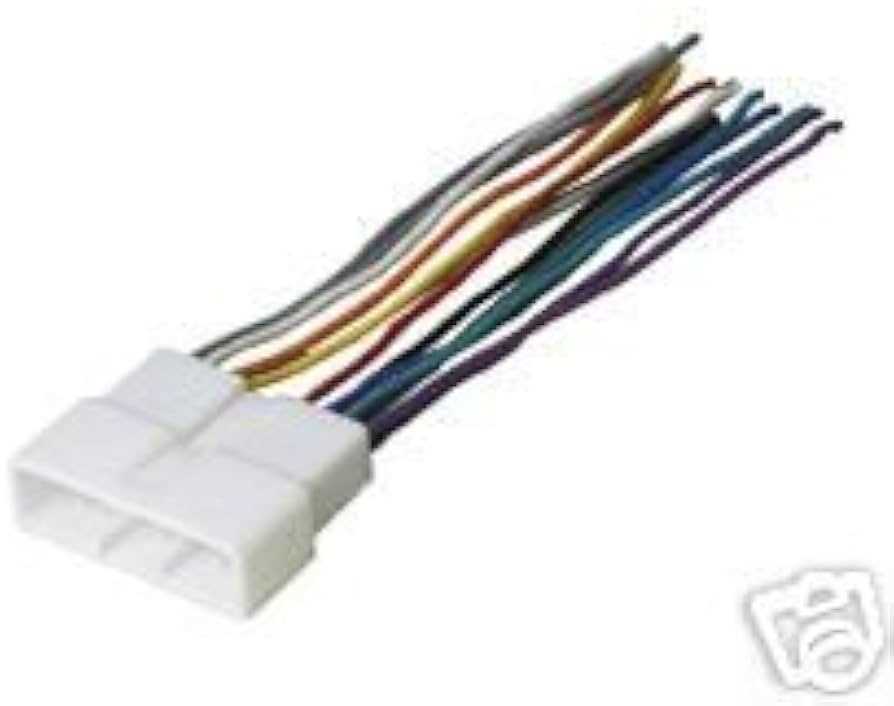

Locate the factory radio connector behind the dash–it’s a 20-pin plug with a distinct color code: solid orange (constant 12V), striped yellow (switched 12V), solid green (ground), and paired wires for front/rear speakers (gray/purple, white/brown). Use a multimeter to verify each pin’s function before connecting aftermarket components; resistance should read below 5 ohms on speaker outputs. Aftermarket harnesses like Metra 70-1732 or Scosche AC09B fit directly, but check pin alignment–some third-party adapters reverse left/right speaker polarity, causing phase cancellation.

• For base models, the harness lacks a separate amplifier trigger wire–install a relay if adding an external amp.
• Premium trims include a 4-pin mini connector for steering wheel controls; retain this for compatibility with PAC RP4-CH11.
• Avoid splicing into airbag or diagnostic wires (orange/black stripe) near the stereo harness–triggering faults risks system errors.

Measure twice, solder once, and secure connections with heat shrink tubing to prevent corrosion from moisture intrusion.

Identifying Original Audio System Cable Colors for Your Vehicle

Begin by removing the head unit’s trim panel using a plastic pry tool to avoid scratches. Locate the factory harness connector at the back of the unit–it typically features twelve labeled pins. Pin assignments for a standard double-DIN setup follow: yellow (constant power), red (switched ignition), black (ground), blue/white (remote turn-on), and orange (illumination). Speaker wires are grouped in pairs: front left (gray/light gray), front right (white/white-black), rear left (green/green-black), and rear right (purple/purple-black).

Trace each wire from the harness to its corresponding splice point behind the dash if colors appear faded or non-standard. Use a digital multimeter set to DC voltage–probe the yellow wire (should read ~12V) and black wire (confirm 0V) to verify connections before proceeding. For amplifier integration, identify the blue/white striped wire leading to the power antenna or amplifier trigger–it carries a low-current signal activating aftermarket components when the unit powers on.

Cross-reference found colors with the original manufacturer’s harness documentation, as some models may include an additional pink wire (telephone mute) or brown (speed-sensing volume). If matches are inconsistent, test speakers individually with a 9V battery–positive lead to the wire, negative to ground; a faint pop confirms the correct channel. Store documented colors immediately to avoid rework.

Common Errors During Aftermarket Audio System Installation

Incorrectly matching power cables to the head unit’s harness triggers immediate failures. The constant 12V line must connect to the yellow wire, while the red ignition wire powers the device only when the key is turned. Swapping these disrupts memory settings or drains the battery overnight. Verify connections with a multimeter–expected voltage should read 12-14V on yellow and 0V on red when the ignition is off. Ground wires (black) require direct chassis contact; attaching them to painted surfaces or loose bolts causes interference and speaker hum. Strip the wire clean, secure it with a star washer, and avoid daisy-chaining grounds.

Wire Color	Function	Voltage Test (Key On/Off)	Fault Symptoms if Miswired
Yellow	Battery constant	12-14V / 12-14V	Loss of memory presets
Red	Ignition-switched	12-14V / 0V	Battery drain, system reset
Black	Ground	0V / 0V	Static, erratic operation

Loose ISO connectors or soldered joints introduce resistance, reducing output clarity. Crimp connectors properly with a ratcheting tool–twist-and-tape methods fail under vibration, causing intermittent dropouts. Speaker wires paired incorrectly (positive to negative) produce out-of-phase sound, canceling bass frequencies. Test each channel with a 9V battery; correct polarity yields a distinct pop. Illumination wires (orange) must sync with dashboard lighting; reversing them dims the display erratically. Antenna triggers (blue/white) require direct connection to the factory amplifier or external power antenna–omitting this disables radio reception.

Advanced Pitfalls: Amplifier and Signal Interference

Skipping the use of a line output converter (LOC) when retaining factory amplifiers distorts audio at higher volumes. Measure factory speaker voltage–most systems output 5-8V peak; LOCs step this down to 2-4V for aftermarket units. Remote turn-on wires (blue) power amplifiers only when the head unit activates; tapping into an always-hot circuit overloads the system. RCA cables routed alongside power wires pick up alternator whine; cross them at 90-degree angles and shield with foil if rerouting isn’t possible. Capacitors (farads per 1000W RMS) prevent voltage sag but require precise installation–reverse polarity destroys the component instantly. Use a test light to confirm proper polarity before finalizing ground and power connections.

Preventing Damage When Linking Head Unit Power, Ground, and Audio Lines

Strip insulation from wires using a precision stripper set to 5–7 mm–not scissors–to avoid nicking copper strands. Twist exposed conductors clockwise before crimping or soldering, ensuring strands lay flat without fraying. Apply heat-shrink tubing (minimum 2:1 shrink ratio) over connections before sealing, sliding it at least 10 mm beyond the splice to cover bare metal entirely. Verify polarity with a multimeter: red (+), yellow (constant 12V), black (ground), and paired speaker wires (front/rear positives often appear with a stripe).

Grounding Correctly to Avoid Interference

Attach the ground cable directly to a chassis bolt free of paint, rust, or primer–sand the contact point to bare metal for conductivity. Use a star washer between the terminal and chassis to prevent loosening from vibration. Avoid daisy-chaining grounds: connect all device grounds (amp, head unit, RCA shields) to a single, centralized chassis point. Test for continuity (under 0.1 ohms) before finalizing connections to eliminate noise or intermittent failures.

For speaker wires, match gauge to amplifier demands: 18 AWG suffices for stock systems, while aftermarket setups under 75W RMS require 16 AWG, and 14 AWG for outputs exceeding 100W. Route cables away from power lines, ECU compartments, and ignition wires to prevent electromagnetic interference. Secure runs with plastic clamps every 15 cm, never zip ties–vibration can cause insulation damage over time. After installation, power on with all components disconnected, then reconnect one at a time while monitoring for pops, hisses, or distortion, indicating miswiring or short circuits.
