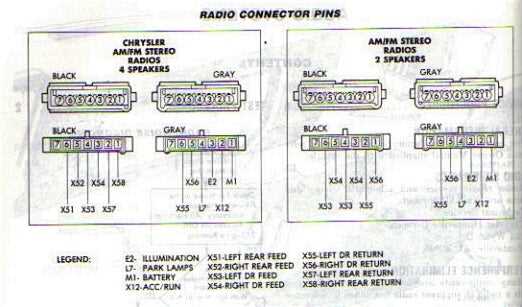

Complete 1997 Dodge Ram 1500 Radio Wiring Color Code Guide

Begin by locating the vehicle’s factory harness behind the entertainment unit–typically a 12-pin plug with color-coded wires. The gray and dark gray leads handle constant 12V power, while light blue/white delivers switched ignition feed. Ground connections use black or black/white wires; verifying these with a multimeter ensures proper voltage readings (12-14V key-on, 0V key-off). Incorrect pairing here will cause intermittent power loss or parasitic battery drain.

For speaker outputs, trace the tan, tan/black, violet, violet/black, gray, gray/black, green, and green/black strands to the corresponding door or dash units. Each pair represents a single speaker–left front, right front, left rear, right rear–with the solid color carrying positive polarity and the striped version negative. Avoid splicing into antenna power (pink wire) unless integrating an amplified system, as it requires a dedicated line.

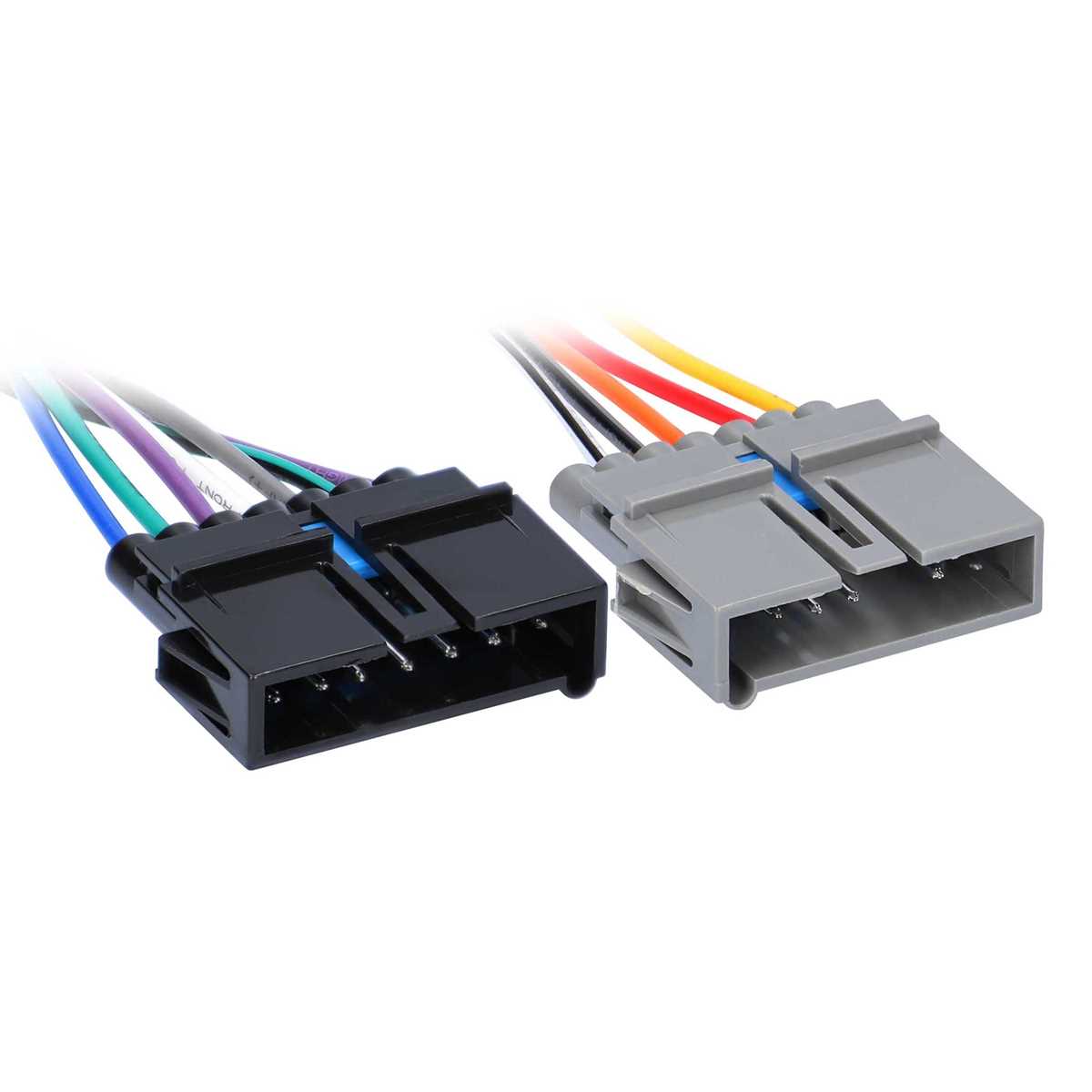

Aftermarket installations demand a matching adapter harness (Metra 70-1002 or equivalent) to bridge factory connectors with new hardware. If retaining the stock antenna, maintain the pink/light blue wire for motorized units; cutting it disables automatic retraction. For manual antennas, this wire becomes redundant. Always test continuity before finalizing connections–shorts in door speaker lines commonly manifest as distorted audio or blown fuses.

Security features, like retained accessory power, rely on the yellow wire. Disrupting this circuit may disable delayed accessory modes, impacting integrated alarms or remote start systems. When routing new cables, secure them away from sharp edges or moving components (steering column, pedal assemblies) using split-loom tubing and zip ties spaced every 12 inches to prevent chafing.

Automotive Audio System Connector Guide for Classic Pickup Models

Locate the factory harness behind the dashboard’s central console–white (left front speaker), dark green (right front), gray (left rear), and purple (right rear) wires form the primary circuit. The power feed splits into yellow (constant 12V) and red (ignition-switched), while the black ground connects to chassis bolt near the transmission tunnel. For aftermarket units, splice these directly; avoid solderless connectors to prevent corrosion in high-resistance environments.

Critical Pinout for Tuner Retrofit

Factory amplifier wires–light blue (antenna trigger), brown (mute), and tan (illumination)–must be isolated if installing non-OEM head units. The dimmer signal (tan) operates on 0-5V PWM; modern adapters often misinterpret this, causing erratic display behavior. Test voltage with a multimeter before connection–values above 2.5V at full brightness require a voltage divider circuit. Speaker outputs measure 4 ohms impedance; ensure replacement devices match this spec to prevent thermal overload.

For noise suppression, route RCA cables perpendicular to OEM harness bundles and apply ferrite chokes near the head unit’s power input. The orange (battery sense) wire, often overlooked, maintains clock memory–tie this to constant 12V only if the new system lacks a dedicated memory circuit. Failure to properly terminate this line results in persistent voltage drops during cold starts, leading to reset errors.

Finding the Stock Audio Connector in Your Full-Size 1990s Pickup

Begin by lowering the glove compartment completely–it detaches on two hinges without screws. Behind its right side, a black plastic clip secures a bundle of colored leads; this is the harness you need.

Trace the wires from the back of the original head unit downward. They disappear beneath the central dash trim, but a single 10 mm bolt holds a metal bracket–remove it to reveal the full harness tucked inside a foam sleeve.

Look for four distinct connector groups:

• 16-pin white plug (speaker outputs)
• 4-pin red/black (constant +12 V, ignition, ground)
• 8-pin green (amplifier trigger & dimmer)
• 2-pin blue/white (antenna motor)

Pinout labels are molded into the plastic–no reference sheet required.

Under-Dash Access Shortcut

Kick panels are not necessary. Pull the cigarette lighter forward–its wiring shares a harness conduit. A single Torx T20 screw lets you swing the ashtray assembly outward, exposing the harness routed along the firewall brace.

Follow the thickest white conduit upward–it merges into a rectangular black box. This box clips to the steel dash support; two plastic tabs release it instantly, revealing the factory connector and a spare inch of slack.

Common Mistakes to Avoid

1. Mistaking the HVAC vacuum lines for audio wires beneath the steering column; audio leads are always multi-color.
2. Disconnecting airbag wiring (solid yellow connectors); they sit higher behind the headlight switch.
3. Pulling harnesses without releasing dash-top fasteners–three 7 mm bolts under the instrument cluster must come out first.

After reconnecting, cycle ignition twice to confirm memory retention before securing trim panels.

Decoding Stock Audio System Cable Colors and Purposes

Locate the yellow wire harness terminal labeled as constant +12V–this powers memory retention for presets and clock settings. Pair it with the black ground strand (often bare or ring-terminal secured) to prevent parasitic drain when the ignition is off. Verify continuity with a multimeter before connecting aftermarket units to avoid blown fuses or dim display issues.

Trace the red ignition-switched lead, typically thin-gauge and bundled with accessory circuits. This wire activates the head unit when the key is turned, cutting power completely when the vehicle stalls. Confusing it with the yellow constant line causes rapid battery discharge–notice the red’s smaller diameter compared to the thicker yellow or orange harness strands.

• Dark blue with white stripe: Rear left speaker (+)
• Dark green with white stripe: Rear right speaker (+)
• Gray with black stripe: Front right speaker (+)
• White with black stripe: Front left speaker (+)
• Solid brown: Amplifier remote turn-on
• Violet: Illumination dimmer reference

For speaker polarity, confirm that paired solid and striped wires never touch–shorting them distorts audio and risks amplifier damage. Use a 9V battery briefly against speaker wires: correct polarity makes the cone push outward. Swap connections if it pulls inward, then label terminals permanently with color-coded shrink tubing to prevent installation errors during upgrades.

Troubleshooting Non-Standard Harness Configurations

Check for factory-installed premium audio harnesses where orange with black stripe often replaces violet for dimming control, while pink serves as a secondary constant +12V for security modules. If the fuse blows repeatedly after reconnecting, split the harness carefully–insulation nicks from factory crimping frequently cause intermittent shorts under carpet or behind dash panels.

Step-by-Step Guide to Integrating a New Head Unit with Factory Harness

Begin by locating the vehicle’s primary electrical junction behind the dashboard–typically a bundle of wires exiting the original stereo cavity. Identify the 12-color standard harness (ISO or proprietary) by matching wire gauge and insulation types: solid colors for primary functions (e.g., red for constant power, yellow for switched), striped variants for grounds or secondary signals (e.g., orange/white for illumination). Use a multimeter set to DC voltage to confirm each lead’s purpose: probe while cycling the ignition, activating accessories, and enabling headlights to distinguish power sources from dimmer circuits. Crimp weatherproof connectors onto aftermarket adapter pigtails, ensuring polarity alignment–red to red, black ground to chassis anchor, and illumination wires to the factory dimmer control to maintain dashboard light synchronization. For amplifier retention, splice the teal or pink factory speaker harnesses directly into the new unit’s output harness using sealed butt connectors; avoid soldering near the firewall to prevent heat damage to adjacent wiring loom.

Test functionality in stages: verify power delivery (display illumination, memory retention) before inserting the head unit, then confirm speaker output with a 1 kHz test tone to isolate phase issues. If static persists, reroute antenna cabling away from ignition coils–use foil shielding on unswitched power lines to suppress alternator whine. Secure connections with adhesive-lined heat-shrink tubing, then fasten grounding points to bare metal using star washers to prevent corrosion. Finally, wrap the harness in abrasion-resistant spiral wrap, tucking excess length behind climate controls to avoid rattles.

Diagnosing Electrical Faults in a 1996-1998 Full-Size Pickup Audio System

Start by isolating the head unit’s fuse if static or intermittent sound persists. The fuse box beneath the dash on the driver’s side typically lists the audio circuit as “STEREO” or “RDO,” rated at 10-15 amps. Replace blown fuses only after verifying the harness for chafed wires–especially near the firewall entry point–where abrasion frequently severs insulation. Use a multimeter set to continuity mode to probe suspected wires; a reading below 0.5 ohms confirms intact connections, while infinite resistance signals a break requiring soldering or crimping.

Blown speakers often misdiagnosed as head unit failure exhibit distinct symptoms: distorted bass, one-sided output, or complete silence. Disconnect the speaker harness and test each coil directly with a 9V battery–bumped cones should move audibly, while dead units indicate a shorted voice coil. Check impedance with a multimeter: 4-ohm nominal resistance should fall between 3.2-3.8 ohms; readings near zero suggest a shorted wire or coil. Replace factory tweeters last, as their thin wiring frays at the cone pivot, mimicking amplifier failure.

Symptom	Likely Cause	Verification Method	Solution
No power	Blown fuse, loose ignition wire	Check fuse resistance, probe red/black wires (0V at red = bad ground)	Replace fuse, re-solder ground
Intermittent AM/FM	Corroded antenna connector, broken coaxial center wire	Test continuity at antenna base (should be <2 ohms)	Clean connector, replace coaxial cable
CD player eject failure	Faulty track motor or misaligned belt	Manual eject test (press reset hole with paperclip)	Replace belt kit or motor assembly

Antennas fail when internal coils separate–measure continuity from the mast to the base: 1-3 ohms confirms functionality, while infinite resistance indicates a broken element requiring complete replacement. For Power/Antenna relay failures, locate the black box near the brake master cylinder and bypass it temporarily with a jumper wire between terminals 30 and 87 (12V should flow directly to the antenna motor). If the amp turns on, the relay’s internal contacts are welded shut.

Ground loop noise–a persistent 60Hz hum–escalates when accessory devices share inadequately sized return paths. Install a dedicated 10-gauge wire from the head unit’s metal chassis directly to the battery’s negative terminal, bypassing the body ground, which often corrodes. Verify elimination of noise by temporarily disconnecting aftermarket amplifiers; if hum persists, replace the head unit’s ground strap with braided copper mesh. For tape deck errors, clean the heads with 91% isopropyl alcohol and demagnetize monthly to prevent oxide buildup.

Aftermarket harness adapters introduce voltage drop due to undersized wires–replace generic 18-gauge harnesses with 14-gauge tinned copper for all power (red/yellow) and speaker (right/left) circuits. Confirm power delivery with a clamp meter: 12.6V at red wire with ignition off should drop no more than 0.2V when cranking. If voltage dips below 10V, upgrade the alternator’s output to 140A minimum to compensate for modern amplifier demands.
