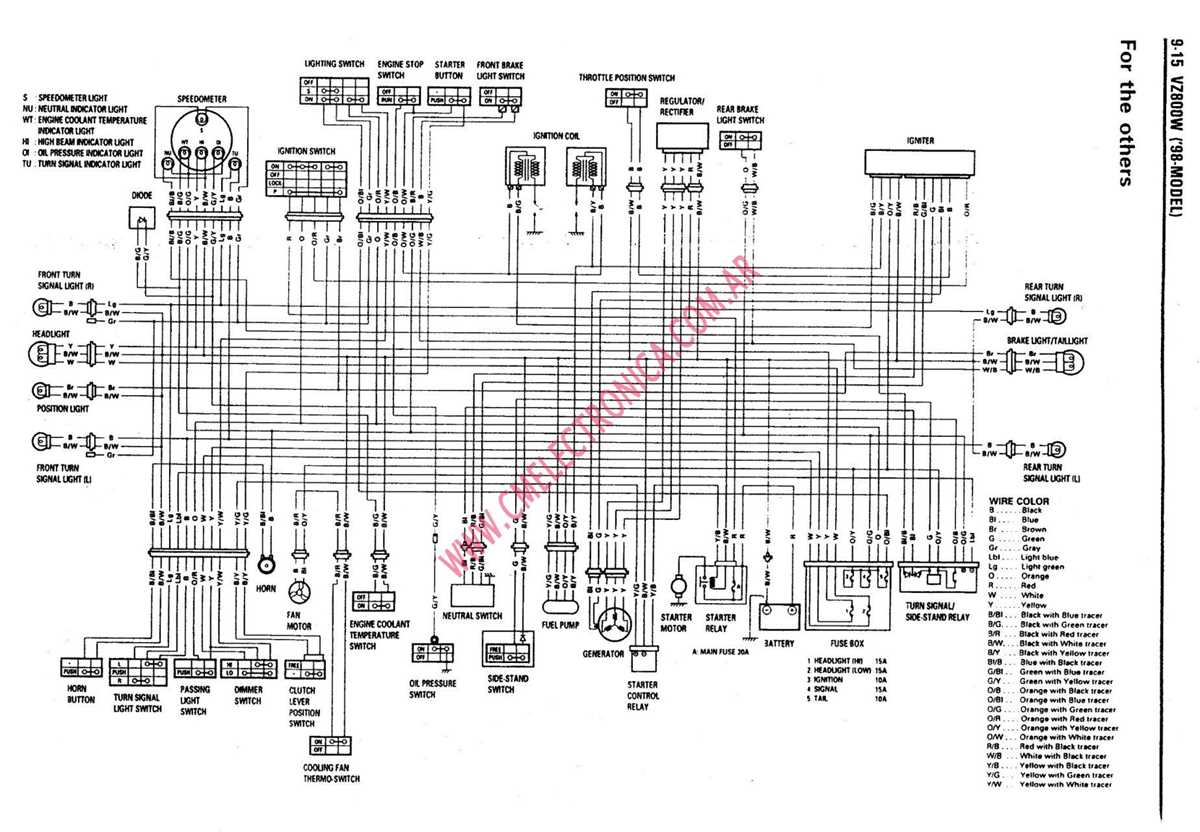

Suzuki Marauder VZ800 1998 Electrical System Diagram and Wiring Guide

Start with the color-coded wiring reference if diagnosing ignition faults. The black/yellow (B/Y) wire supplies 12V to the ignition switch–check for continuity at connector C104. A drop below 10V here suggests a corroded terminal or broken wire between the ignition and main fuse. For fuel pump issues, trace the green/red (G/R) wire from the pump to relay R1; resistance should not exceed 1.5 ohms. Excessive resistance points to a failing relay or chafed insulation near the frame.

Ground paths require scrutiny. The chassis ground (GND) at point E01 must show zero resistance to the battery negative terminal. Corrosion at this junction will cause erratic gauge readings and starter motor failure. Use a multimeter to verify–any reading above 0.1V indicates a compromised connection. For lighting circuits, focus on the gray/white (Gr/W) wire feeding the tail lamp; voltage should match system voltage (12.6–13.8V) when the key is on. Dim or flickering lights often stem from loose bulb grounds or deteriorating socket contacts.

To isolate charging system faults, disconnect the rectifier connector and measure AC voltage at the stator’s white/blue (W/B) and white/yellow (W/Y) wires while revving the engine to 3000 RPM. Output should exceed 25V AC. If readings are low, test stator resistance–yellow-to-yellow wires should measure 0.2–1.0 ohms. Readings outside this range confirm a shorted stator. For signal circuits, the brown/orange (Br/O) wire carries turn signal data to the flasher; intermittent operation typically involves a faulty flasher relay or oxidized bulb contacts.

When rewiring, use 16-gauge wire for accessory circuits and 14-gauge for high-draw components like the starter. Replace OEM connectors with heat-resistant terminals–standard crimp connectors fail under vibration. Label wires with heat-shrink tubing and photograph each connection before disconnecting. For persistent faults, consult the manufacturer’s microfiche–labeled “VZ Series Electrical” it details pin assignments for all sensors. Avoid splicing wires near moving parts; route harnesses through protective conduit along the subframe for longevity.

Electrical Schematic for the Classic Twin-Cylinder Cruiser

Begin troubleshooting by isolating the main fuse block–located under the left side cover–and verifying continuity across each 10A, 15A, and 20A fuse using a multimeter set to resistance mode. A reading above 1 Ω indicates a blown fuse; replace with an identical rating to prevent overheating in the charging circuit.

Trace the alternator output wire, typically a thick yellow lead terminating at the voltage regulator/rectifier. Disconnect the connector and measure AC voltage at idle (1,500–2,000 RPM); expect 25–40V AC. If readings deviate, inspect the stator windings for shorts–resistance between any two yellow wires should be 0.2–1.0 Ω.

Check ignition system integrity by testing the pickup coil (gray/white wires) resistance: 80–160 Ω between leads confirms functionality. Low resistance suggests internal shorting; replace the entire ignition assembly if outside tolerance. Ensure the CDI unit’s ground wire (black) has uninterrupted contact with the frame–corrosion here mimics ignition failure.

• Battery connections: Clean terminals with a wire brush, then apply dielectric grease to inhibit oxidation. Measure voltage with engine off (12.6V min) and running (13.5–14.5V). Voltage below 13.2V at 3,000 RPM signals regulator/rectifier failure.
• Lighting circuit: Test turn signal relay (3-pin, 2 amber leads) by swapping with a known-good unit. If signals flash erratically, check for loose bulbs (12V 21/5W) or a faulty flasher module.
• Chassis ground: Scrape paint from frame contact points where black wires terminate. Poor grounding causes intermittent electrical gremlins–verify with a jumper wire from negative battery post to suspected ground points.

Inspect wire harness routes for chafing, especially near the steering head and rear swingarm pivot. Use spiral wrap or electrical tape to reinforce areas where insulation is compromised. Pay particular attention to the purple wire (taillight) and brown wire (instrument cluster)–these are prone to breakage from vibration.

Component-Specific Testing Procedures

1. Starter solenoid: Jumper the large terminals with a screwdriver while engaging the starter button. If the engine cranks, the solenoid is faulty; if not, test the starter motor directly by applying 12V to its positive terminal.
2. Neutral switch: Locate the switch on the transmission case (green wire). With the bike in neutral, multimeter should read continuity between switch terminal and ground. No continuity? Adjust the switch plate or replace the switch.
3. Fuel pump: Listen for a 2-second priming buzz when turning the ignition on. Absent or weak sound? Check the purple/black wire for 12V–if voltage present, replace the pump; if not, inspect the ECU connections.

For intermittent issues, use a tone generator on suspected wires to pinpoint breaks in the harness. Label each circuit with masking tape and correlate findings with a factory service manual’s color-coded diagram–aftermarket schematics often invert wire colors. When splicing, use solder and heat-shrink tubing; avoid crimp connectors for critical circuits like ignition or charging.

Pinpointing Critical Conductors and Junctions in the 800cc Bike’s Electrical Framework

Begin by locating the main ignition feed–typically a red or yellow cable originating from the battery’s positive terminal. This conductor branches into the fuse box before splitting toward the ignition switch, starter relay, and ECU. Trace its path to verify continuity; a multimeter reading below 11.5V at any junction indicates corrosion or a severed link, especially around the frame grounding points near the steering head.

The alternator output (white/red stripe) must be identified next, connecting to the regulator-rectifier at the rear fender. Test for AC voltage (30–50V at 3,000 RPM) to confirm charging; absence suggests stator failure or a faulty rectifier. Adjacent to this, the neutral switch wire (light green) and clutch lever circuit (black/yellow) require inspection–both should show momentary ground when activated, or starter engagement will fail.

Sensor and Lighting Circuit Verification

Isolate the engine temperature sender (grey) and oil pressure switch (brown/white), both routed to the instrument cluster. A resistance check of 200–500 ohms across the temp sensor at operating heat ensures accuracy. For lighting, the headlight’s high/low beam leads (sky blue and dark blue) must be tested under load–dim output often stems from a weakened alternator or melted bullet connectors behind the headlight bucket.

Finally, examine the turn signal flasher unit’s power feed (orange) and its associated four light-green leads. Each should pulse at 0.5–1Hz when activated; erratic blinking points to a failing relay or shorts in the front/rear harness sections. Use a probe to backtrace the brake light circuit (green/white) from the pedal switch–corrosion here disrupts shifting logic in models with integrated safety interlocks.

Step-by-Step Guide to Locating and Testing the Ignition Circuit Pathways

Begin by disconnecting the battery’s negative terminal to prevent accidental shorts. Use a 10mm wrench to loosen the clamp, then set the cable aside in a secure position away from metal surfaces. This precaution eliminates risk while probing connections later.

Remove the fuel tank by loosening the mounting bolts and carefully lifting it clear. Beneath, you’ll expose the main harness and ignition components. Trace the thick yellow wire from the ignition switch–this is the primary power feed. Follow it to the ignition relay, typically a small black or white box near the battery. Check for corrosion or fraying where the wire meets the relay terminals.

Use a multimeter set to continuity mode to verify the integrity of the ignition switch. Probe the switch’s input (yellow) and output (black/yellow) pins while turning the key to the “ON” position. A consistent beep indicates a functional path; silence or erratic readings suggest a faulty switch or broken conductor inside the harness. If testing reveals issues, replace the switch or inspect the internal wiring for hidden breaks.

Inspect the spark plug wires next. Pull each boot gently to detach it from the coil and plug. Examine the boots for cracks and the wires for brittleness. Set the multimeter to 20k ohms resistance mode, then measure between the coil post and spark plug terminal. Readings should fall between 5k–15k ohms; values outside this range signal a compromised wire requiring replacement.

Test the ignition coils by backprobing the primary and secondary circuits. For the primary side, connect the multimeter’s leads to the coil’s positive (+) and negative (-) terminals while cranking the engine. A healthy coil will show 12V pulses. For the secondary side, measure across the coil’s tower and ground–the multimeter should display 5–20kV during cranking. No voltage indicates a dead coil or failed power delivery.

Reassemble all components in reverse order, ensuring connections are snug and free of dirt. Reattach the battery last. Start the engine and listen for smooth operation. If issues persist, revisit the relay or stator–both common failure points in older machines with high-mileage stator windings prone to heat damage.

Diagnosing Electrical Faults with Schematic References

Isolate the ignition circuit first by locating fuse F2 (10A) on the left-hand panel beneath the seat. Trace the red/white wire from the fuse to the ignition switch–if resistance exceeds 0.5 ohms or voltage drops below 11.5V at the switch terminal, replace the fusible link or inspect terminal corrosion. Verify continuity between the switch and CDI unit connector (pin 3) using a multimeter; interruptions indicate a broken conductor requiring harness replacement.

Test the charging system by back-probing the yellow wire at the alternator connector (three-phase output). At 4,000 RPM, voltage should measure 13.5–14.8V AC; readings outside this range signal a faulty stator or rectifier. Check diode resistance in both directions–forward bias should yield 10–50 ohms, reverse bias infinite ohms. Replace the rectifier if deviations are found, ensuring proper heat sink contact during reassembly.

Sensor Circuit Verification

Confirm the engine temperature sender operation by disconnecting the single-wire connector and grounding the sensor lead momentarily. The gauge should peg to “hot”–if unresponsive, test the grey wire for 5V reference voltage at the ECU pin 7. Absence of voltage requires ECU replacement; gauge failure indicates a faulty instrument cluster. For the crank position sensor, probe the white/red wire at the ECU connector (pin 20)–waveform should resemble a 5V square wave at idle; irregular patterns necessitate sensor or reluctor ring inspection.

Examine tail light circuits by connecting a test light to the brown/red wire at the taillight socket–illumination confirms proper ground reference. If intermittent, remove the rear fender and inspect the frame ground point near the license plate bracket for paint or rust interference. Clean with a wire brush and re-secure the star washer for reliable conductivity. For turn signal issues, swap the flasher relay (located behind the left-side panel) with a known-good unit before diagnosing bulb or harness faults.

Headlight failures often stem from the H4 bulb’s dual-filament configuration–test each filament separately (low beam: 55W, high beam: 60W) with an ohmmeter. Burnt filaments require bulb replacement; persistent failures suggest voltage regulator issues. Trace the grey/red wire from the headlight to the dimmer switch–corrosion at the switch terminals is a common failure point, often resolved with contact cleaner and dielectric grease application.

Harness and Connector Inspections

Inspect the main harness for chafing near sharp edges, particularly where it passes behind the cylinder head and near the rear suspension linkage. Use electrical tape or conduit to repair minor insulation breaches; severe damage mandates segment replacement. Check all ECU connectors for bent pins–realign with fine tweezers, ensuring pins are fully seated and free of oxidation (clean with 220-grit sandpaper if necessary).

For starter relay problems, bypass the relay temporarily by jumpering terminals 30 and 87 with a screwdriver–engine cranking confirms relay failure. If the starter motor engages but spins slowly, measure voltage at the battery during cranking–drops below 9.5V indicate a weak battery, bad connections (clean terminals), or a faulty starter motor. Disassemble the starter to inspect brush wear (minimum length: 5mm) and clutch mechanism engagement.

Fuel pump priming issues can be isolated by listening for a 2-second hum when turning the key to “ON.” Absence of sound requires checking the black/red wire at the pump connector for 12V–missing voltage suggests a faulty pump relay (swap with the horn relay for quick testing) or broken wire in the sub-harness. Verify pump ground continuity by probing the black wire at the pump connector; resistance above 0.1 ohms necessitates frame ground cleaning.
