Complete 1999 GMC Sierra Trailer Wiring Diagram Guide for Safe Towing
Start by locating the factory wiring harness under the rear bumper–it’s a 7-pin round connector secured by a plastic clip. If corrosion is present, strip the wires 1/4 inch and solder new connectors directly. The brown circuit (running/brake lights) often fails first; bypass it with 14-gauge wire routed inside a split loom for protection. Ground the green wire (right turn/stop) to the chassis near the tailgate hinge–use a star washer and dielectric grease to prevent voltage drop.
For auxiliary lighting, tap the yellow wire (left turn/stop) at the junction box behind the driver-side taillight. Avoid the trailer’s stock converter box if installing LED lights; hardwire them straight to the fuse panel using a 20-amp relay. The blue (electric brakes) and black (12V power) circuits require a 50-amp breaker–mount it within 18 inches of the battery to meet SAE J2807 compliance.
Test continuity with a multimeter before securing connections. Voltage should read 12.4V at the plug with the engine off and 13.8V at idle. If the ABS module flashes code C0281, reprogram the trailer brake controller via a Tech2 scanner–disable the proportional gain for manual adjustment. Route all wires above the axle to avoid chafing; secure with zip ties every 12 inches.
Electrical Hookup Guide for Heavy-Duty Pickup Towing
Locate the factory harness connector under the rear bumper, typically adjacent to the spare tire mount. This 7-way plug follows standard SAE J560 configuration: brown (running lights), green (right turn/brake), yellow (left turn/brake), white (ground), blue (electric brake), black (12V auxiliary), and red (reverse lights on newer models). Verify pin assignments with a multimeter before connecting–factory seals often corrode after exposure, leading to voltage drops on the green and yellow circuits.
For aftermarket installations, use 14-gauge primary wires (12-gauge for brake circuits) with marine-grade heat-shrink connectors. Route cables through the frame rail gusset on the driver side, securing every 18 inches with adhesive-lined clamps to prevent chafing against the exhaust pipe’s heat shield. Avoid splicing into the tail light wiring–tap directly into the harness behind the rear bumper access panel for cleaner power delivery and reduced interference.
The blue wire requires a dedicated relay if adding an electric brake controller. Install the controller within 12 inches of the driver’s left knee for easy adjustment access. Use a 30-amp circuit breaker on the black auxiliary wire to prevent overloads–most factory fuses max at 20 amps, insufficient for winches or high-draw lighting rigs. Test brake output voltage at the plug with the controller set to 12V; readings below 10V indicate grounding issues, typically resolved by cleaning the white wire’s connection to the frame rail mounting tab.
Adapters for older campers often lack the red circuit–add a separate 12-gauge wire from the reverse light feed on the transmission’s range sensor if backup cameras or auxiliary lights are needed. Seal all connections with dielectric grease and wrap with 3M Super 33+ vinyl tape; standard electrical tape degrades within months under UV exposure. For LED upgrades, bypass the factory resistor modules behind the taillight assemblies–LEDs draw under 200mA, while incandescent bulbs require 2.1 amps, causing hyperflash without load resistors.
Common failure points include the green and yellow wires at the rear crossmember. Inspect for brittle insulation between the leaf spring hangers–a frequent rub point. Replace damaged sections with Teflon-jacketed wire; standard PVC coating melts at 140°F, while Teflon withstands 500°F. For persistent ground issues, run an additional 10-gauge wire from the white circuit to the tow hitch mounting bolt, ensuring both ends are bare metal–paint acts as an insulator even on “prepped” surfaces.
Finding the Original Towing Connection on Your Pickup
Begin by lowering the spare tire carrier to access the rear bumper’s underside. The main harness exits the frame rail near the driver-side tail lamp, secured by a white plastic clip. Follow the two-inch black conduit upward–it splits behind the left shock absorber into a seven-pin plug. If corrosion or road grime obscures the connector, use dielectric grease after cleaning with 800-grit emery cloth.
Component Locations Underneath
| Part | Position | Fastener Type |
|---|---|---|
| Control module | Mounted on rear cross-member, adjacent to fuel tank | Three torx T30 screws |
| Ground stud | Frame rail, 10 inches forward of hitch receiver | 1/4-inch hex bolt |
| Power feed | Tapped into brake controller relay under driver’s seat | Green 12 AWG splice connector |
For trucks equipped with the optional bed slide-out, remove the rear panel access door first. The auxiliary harness runs parallel to the fuel filler neck before terminating at a weatherproof junction box beneath the bed striker plate. Use a 1/4-inch flex extension bit to reach the box without unbolting the entire bed assembly.
Verify correct polarity at each pin using a multimeter set to DC 12V range before attaching new connectors. Pin 6 (blue) should register 12.6 volts during brake application, while Pin 3 (brown) flickers 3.5V when hazard flashers engage–deviations indicate corrosion in the bed-side splice block requiring immediate address.

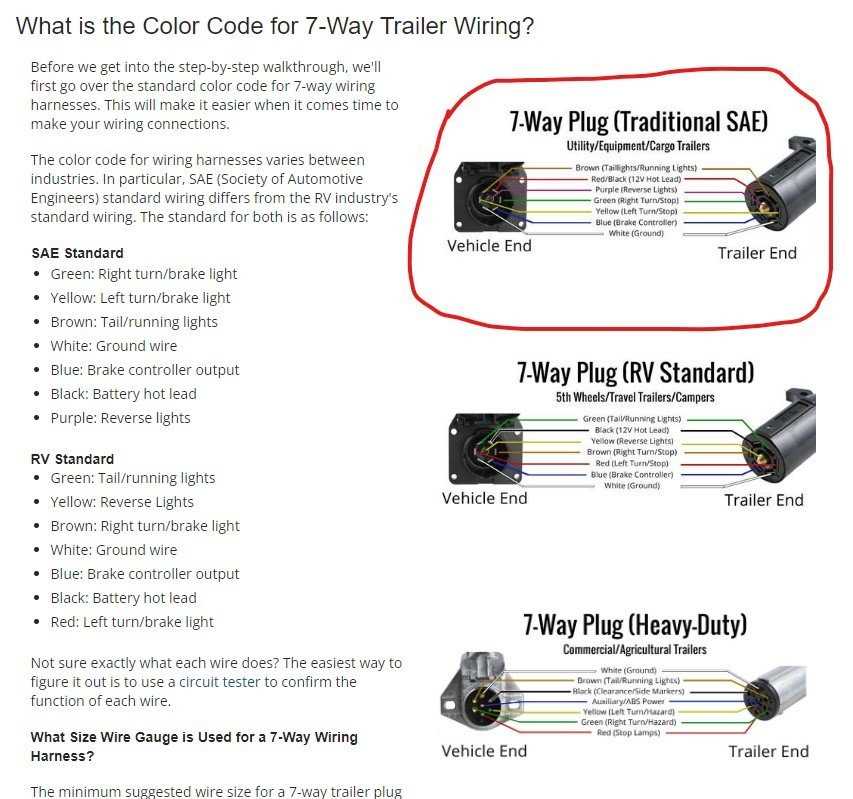

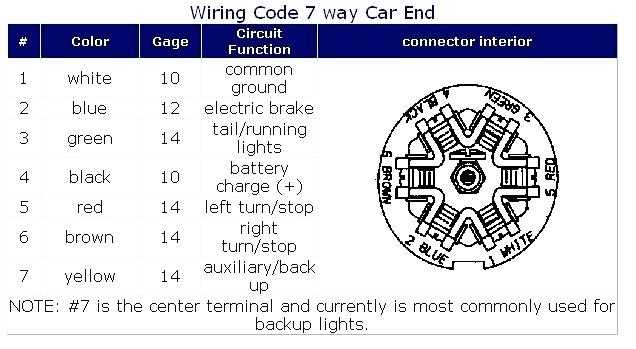

Decoding Connector Pin Colors and Their Roles in the Vehicle Harness
Locate the seven-pin round connector mounted near the rear bumper–it follows the SAE J560 standard. The white cable attached to the center pin grounds the system; verify it’s securely bonded to the chassis using a 10-gauge wire or thicker. Any corrosion here disrupts every other function.
The brown wire on the upper-right position powers running lights. Test continuity between this lead and the corresponding bulb sockets; a reading above 0.5 ohms indicates resistance buildup. Replace the section if frayed or oxidized–cheap splices fail under vibration.
For left and right turn signals, the yellow (driver side) and green (passenger side) wires share the same pin positions as factory taillight circuits. Probe each lead while activating the turn stalk; both should show 12V alternating with the bulb flashes. Intermittent voltage suggests a faulty flasher relay or corroded socket contacts.
The blue auxiliary wire on the lower-left pin delivers backup power for electric brakes or a hydraulic actuator. If your hauling rig uses surge brakes, this circuit must never exceed 30 amps; install an inline fuse within 7 inches of the connector. Excessive draw here melts the pin housing.
A red cable occupies the remaining upper-left position, typically reserved for battery charge lines or auxiliary 12V feeds. Confirm it’s not tied to any brake controller unless a DC-DC converter is installed–unregulated voltage damages sensitive electronics. Use a multimeter to check for parasitic drains when everything’s off.
Inspect the black wire located on the pin adjacent to the white ground. It carries +12V switched ignition power for accessories like winches or interior camper lights. Measure voltage at the connector while cycling the key; if it drops below 10V, examine the fuse block for loose connections or burnt terminals.
After verifying each circuit, coat the pin contacts with dielectric grease and secure the connector cap to prevent moisture ingress. Re-test every function before attaching any load–skipping this step risks intermittent failures during transit.
How to Verify Connector Leads Using a Test Meter
Attach the black probe of your test meter to a clean, unpainted metal surface on the vehicle’s frame. Set the meter to the 20V DC range and probe each pin in the harness connector with the red lead while an assistant activates the corresponding function–turn signals, brake lights, or reverse lamps. A reading between 12.0V and 14.5V should appear within two seconds; anything below 10.5V or above 15.0V indicates a faulty relay, corroded ground, or damaged circuit board.
Switch to continuity mode and confirm the integrity of each lead by back-probing the connector while it remains disconnected from the harness. The meter should beep crisply when bridging the pin to its designated return path–either the ground wire (typically white) or the specific color-coded lead for that circuit. No audible signal or resistance above 5 ohms suggests an open wire, spliced joint failure, or pin corrosion inside the plug’s housing.
Test the ground lead independently by touching the black probe to the vehicle chassis and the red probe to the ground pin inside the disconnected harness. Resistance should read 0.2 ohms or less; higher values point to paint, rust, or loose mounting bolts preventing proper conduction. If resistance fluctuates, clean the contact points with a wire brush and apply dielectric grease before retesting.
For reverse-light circuits, engage the vehicle’s ignition and shift into reverse. The voltage spike should last no longer than 300 milliseconds to avoid damaging the module. If the reading persists beyond this window, inspect the transmission range sensor or the integrated control module for stuck contacts. Voltage drop across any pin exceeding 0.5V under load signals potential corrosion in the fuse box or relay socket that deserves immediate cleaning or replacement.
Document every pin’s voltage under no-load and full-load conditions using a spreadsheet: note colors, pin positions, and observed values. Compare findings against the manufacturer’s specifications–any discrepancy above 5% requires tracing upstream to the fuse, relay, or ECU connector. Use a dedicated pin-out chart to avoid misidentification, as misaligned readings often stem from swapped leads rather than actual failures.
