Complete 1999 Toyota Corolla Radio Wiring Color Codes and Connection Guide

Begin by disconnecting the negative battery terminal to prevent shorts or accidental power surges. Locate the harness behind the dashboard, typically a cluster of 10 to 12 wires grouped in a single plug–color-coded for function: yellow (constant 12V), red (switched 12V), black (ground), and blue/white (amplifier trigger). Use a multimeter set to DC voltage to verify each wire’s purpose before splicing. Misidentifying these can lead to blown fuses or inoperative speakers.

For the speaker outputs, expect pairs of wires per channel: front left (gray/white and gray), front right (green/white and green), rear left (blue/white and blue), and rear right (violet/white and violet). Test each pair with a 1.5V battery–proper polarity will cause a faint pop from the connected speaker. If no sound occurs, check for broken strands or corroded connectors, especially in vehicles with aftermarket modifications.

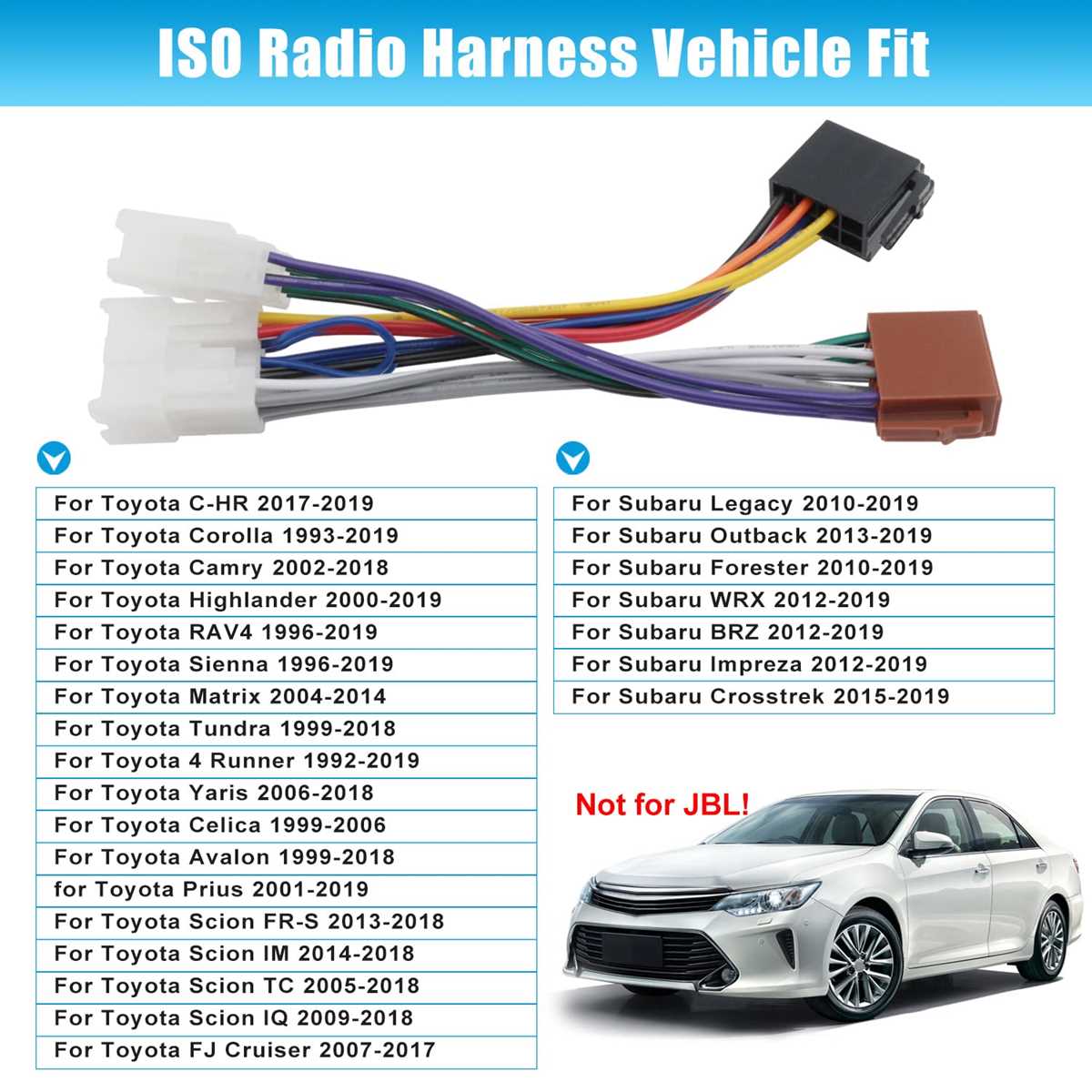

Aftermarket units often require adapter harnesses; bypass these if using the original factory setup. Solder joints last longer than crimp connectors but ensure heat shrink tubing seals the connections to prevent oxidation. For retention issues, reinforce the mounting bracket with metal screws–plastic clips degrade over time. Reassemble the trim slowly, pressing evenly along edges to avoid cracking.

The power antenna or amplifier wire (blue/white) activates when the system turns on. If your antenna motor or subwoofer doesn’t respond, trace this line back to the fuse box–common failures include blown fuses or faulty relays. Check the fuse labeled “CIG” (10A); it often shares power with the audio circuits.

Understanding Your Vehicle’s Audio System Connections

Begin by locating the factory harness behind the dashboard’s central panel. The standard OEM connector uses twelve pins: six for power, ground, and illumination, and six for speaker outputs. Pin assignments follow this order:

• Pin 1 (B+): Constant 12V (red wire)
• Pin 2 (ACC): Switched 12V (yellow wire)
• Pin 3 (GND): Chassis ground (black wire)
• Pin 4 (ILL): Dash lights (orange wire)
• Pin 5-8: Front and rear speaker positives (gray/white for front right, violet/white for rear right)
• Pin 9-12: Speaker negatives (gray/black for front right, violet/black for rear right)

Verify voltage with a multimeter before connecting aftermarket units; incorrect polarity risks damaging amplifiers or head units.

Factory speaker impedances range between 4-6 ohms, though most third-party stereos support 4-ohm loads without modification. If upgrading to higher-output systems, ensure the replacement harness includes relay protection–OEM harnesses lack built-in fuses for aftermarket power demands. For amplified setups, splice an inline fuse (typically 15A) into the B+ line within 20cm of the battery terminal.

Color codes remain consistent across base and optional trim packages, but confirm with a test light if discrepancies appear:

1. Turn ignition to accessory mode (ACC).
2. Probe Pin 2 (yellow); should register 12V.
3. Check Pin 1 (red) with engine off–must hold steady voltage.
4. Ground Pin 3 (black) directly to chassis if electrical noise persists.

For navigation or satellite interfaces, additional wires (telematics, CAN bus) may appear–these require adapter modules. Avoid bridging wires directly; use soldered connections or crimp terminals rated for automotive heat cycles (minimum 221°C). Sheathed wiring looms prevent shorts; route alongside existing bundles, securing with zip ties every 15cm.

Decoding the Audio System Plug Layout for Your Vehicle Model

Locate the main 16-pin connector behind the factory head unit–pins 1-4 deliver constant 12V (red), switched ignition (yellow), dimmer (orange), and ground (black). Pins 5-8 carry left front speaker outputs (+/–), while 9-12 handle right front channels. Rear speaker wires occupy pins 13-16 in the same polarity sequence. Verify each terminal with a multimeter; factory markings often fade but correct voltage readings (12V on power, 4-8V on speaker leads) confirm assignments.

• Pin 1: Battery (+12V) – always live, links to red wire.
• Pin 2: Accessory – activates with key, yellow wire.
• Pin 3: Illumination – adjusts with dash lights, orange wire.
• Pin 4: Chassis ground – black wire.
• Pin 5-6: Driver-side front speaker (+/–).
• Pin 7-8: Passenger-side front speaker (+/–).
• Pin 9-10: Rear left speaker (+/–).
• Pin 11-12: Rear right speaker (+/–).
• Pins 13-16: Unused or antenna trigger on select trim levels.

Strip 5mm of insulation from matching harness wires; crimp with 22-18 AWG connectors for secure splices. Cross-check against an aftermarket harness adapter if the original plug is damaged–consistent pin spacing matches OEM standards.

Step-by-Step Wire Color Codes and Their Functions

Locate the yellow cable first–this is the constant 12V power lead, typically tied directly to the battery’s positive terminal. Ensure this line maintains a secure connection; loose contact here results in intermittent functionality or complete failure. Test with a multimeter to confirm 12V even when the ignition is off.

The red wire delivers switched power, activated only when the key is in the “accessory” or “on” position. Connect this to a fuse-protected circuit, preferably a 10A fuse, to prevent overload. If the system draws power while off, this wire is either misrouted or shorted–trace the path immediately.

Black is the ground reference, but not just any chassis point will suffice. Attach it to a bare metal surface free of paint, rust, or corrosion. Use a star washer and tighten securely; poor grounding introduces interference, popping noises, or erratic display behavior. If symptoms persist, run a dedicated ground wire directly to the vehicle’s negative battery terminal.

Identify blue with white stripes–this is the amplifier remote turn-on lead. It sends a low-current signal (usually 50-100mA) to activate external amplifiers. Verify the output by probing with a test light; if inactive, check the head unit’s settings for amplifier control options. Some models require manual enabling via hidden menus.

A green and black twisted pair handles the left rear speaker outputs. Strip no more than 6mm of insulation, twist tightly, and solder for durability. Reverse polarity here swaps bass and treble channels; test with a 1kHz sine wave to confirm proper phase alignment. If distortion occurs, recheck solder joints for cold connections or stray wire strands.

The gray and red pair corresponds to the right front speaker. Use heat-shrink tubing to insulate splices–exposed wires risk shorting against the dashboard frame. Match impedance (typically 4 ohms) to avoid overheating; bridging 2-ohm speakers without compensation damages the internal amplifier stage. For aftermarket upgrades, calculate total load resistance before connection.

Troubleshooting Uncommon Wires

Purple and purple/black are often auxiliary inputs or subwoofer outputs. Measure voltage–if fluctuating, inspect for signal loss or loose connectors. Light blue wires may carry GPS data or steering wheel control signals; consult the vehicle’s service manual for pinouts. Orange or orange/white wires regulate illumination–connect these to the dimmer switch to sync brightness with dashboard lights. Errors here cause either constant max brightness or complete blackout.

Gear Checklist for Self-Fit Audio System Integration

Start with a multimeter rated for at least 10A DC, indispensable for verifying circuit integrity before energizing connections. Look for models with auto-ranging and audible continuity alerts to shortcut troubleshooting–Fluke 17B or Klein MM400 cover 90% of field needs without overspending. Add a crimping tool with interchangeable dies: AWG-specific jaws ensure gas-tight terminals on 18-14 gauge leads, preventing corrosion where solder fails.

Acquire trim removal kits–plastic wedge tools with multiple prong configurations reduce panel damage when extracting dash fascia. Opt for sets containing hooked pry bars and magnetic extenders; these retrieve fallen screws in tight cavities. Include a magnetic screwdriver (6-inch shaft, Phillips #2) for blind fastening tasks behind instrument clusters.

Precision Instruments for High-Order Tasks

Wire strippers with dual-action ergonomics (Knipex 12 62 150 or equivalent) strip insulation cleanly without nicking conductors–critical when handling tinned copper strands prone to fraying. Employ heat-shrink tubing (polyolefin, 3:1 ratio) in diameters matching wire gauge; a butane torch or heat gun activates the sleeve, creating waterproof seals around splices.

For signal paths, use T-taps or quick-connect terminals–avoid scotch locks on low-voltage lines as they introduce resistance. Keep a roll of Kapton tape (mil-spec, 1-inch width) for bundling delicate harnesses; its heat resistance exceeds PVC alternatives during soldering. A non-contact voltage tester (e.g., Milwaukee 2202-20) identifies live circuits in wiring looms, preventing short risks during probing.

Finalize preparations with a torque screwdriver (1.5–5 Nm range) to secure mounting brackets–over-tightening snaps plastic housings common in late-model head units. Include a miniature flashlight with adjustable beam (e.g., Streamlight Stylus Pro) for inspecting connector cavities; LED illumination reveals pin misalignment invisible under ambient light.

Common Installation Errors and Prevention

Skipping the voltage check before connecting new components leads to immediate fuse failure or permanent damage to sensitive circuits. Use a multimeter set to 20V DC range: probe the harness connector with the ignition off–any reading above 0.1V indicates unwanted current. Isolate the source by disconnecting the battery and tracing the wire back to its origin, often a poorly grounded accessory or aftermarket module drawing parasitic power.

Mismatching wire gauges creates resistance points that overheat under load, particularly in amplifier feeds or high-current paths. The table below shows minimum acceptable sizes for specific current draws:

Current (Amps)	Minimum Wire Gauge (AWG)	Max Recommended Length (Feet)
5	18	12
10	16	8
20	14	5
30	12	3

Never splice signal wires using twisted connections or electrical tape; these degrade in under a year, causing intermittent failures or noise. Instead, use solder-and-heat-shrink joints for all low-level audio and data links. After soldering, test continuity with a tone generator to ensure no breaks exist before closing the harness. For power feeds, crimp connectors with the correct tool–pliers compress them unevenly–and secure with adhesive-lined shrink tubing to prevent corrosion.
