How to Wire Two Light Switches Step-by-Step Circuit Guide

Connect the power source to a neutral bus bar first. Ensure the incoming white conductor terminates here before addressing any other connections. If the neutral path splits (especially in multi-way setups), mark the second neutral wire with black tape to indicate it serves a different function. Skipping this step risks short circuits during testing.

Traveler terminals require consistent labeling: two brass-colored screws on modern toggle devices denote these positions. Insert one red jacketed cable into each terminal–never mix them up. Reverse connections here will prevent proper toggling between control points. Verify continuity with a multimeter set to 200Ω range; readings should match between travelers at any control point when toggled.

Loop the common wire from the primary control device through a backstab connector only if the device specs explicitly allow 14 AWG solid copper. Otherwise, wrap the conductor clockwise around the screw terminal and torque to 12 in-lbs. Loose connections overheat–check with a thermal camera after 15 minutes under load. If temperatures exceed 60°C, redo the termination.

For dimming circuits, use pigtail splices instead of direct device terminations. Connect the fixture’s live conductor to the dimmer’s output terminal via a twist-on wire connector rated for 600V. Avoid combining aluminum and copper conductors here–galvanic corrosion compromises integrity within 12 months.

Grounding loops demand separate paths: bond the metal switch box to the green grounding screw, then run a dedicated bare conductor from the box to the grounding bus bar. Omitting this link violates NEC 250.114(3) and creates shock hazards. Test ground continuity with a 3-lamp tester; all lamps must illuminate identically across both control points.

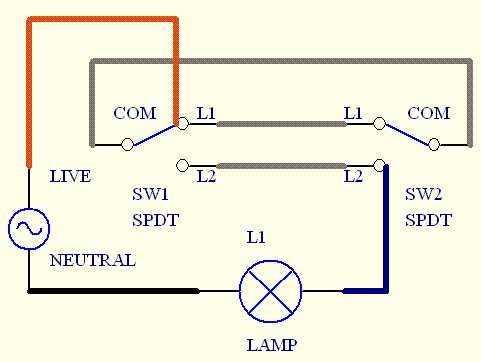

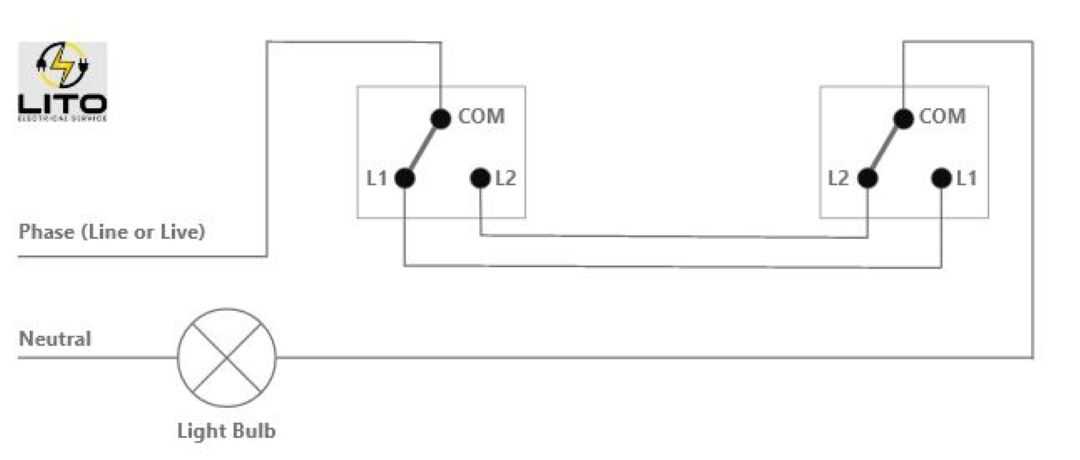

Dual Control Circuit Layout for Illumination Devices

Begin by connecting the live conductor from the power source to the common terminal of the first control unit. This ensures uninterrupted current flow before branching to secondary points. Use a 14-gauge copper wire for standard residential applications, as it safely handles the typical 15-amp load without risk of overheating. Label both ends of the wire during installation to prevent misconnections later, especially in multi-gang boxes where space is limited.

Route the traveler cables between the two control units next, linking their respective traveler terminals. These conductors will alternate the current path based on the toggle position, enabling independent operation from either location. For safety, twist the exposed ends of these wires before securing them with wire nuts, ensuring no frayed strands remain that could cause shorts. Verify continuity with a multimeter set to ohms–readings should alternate between infinite resistance and near zero as you toggle both devices.

Attach the neutral wire directly to the luminaire, bypassing both control units entirely. This prevents potential voltage leaks into the control chain and complies with NEC Article 300.3(B) for single-phase circuits. If the fixture lacks a grounding terminal, bond the neutral and grounding conductors at the junction box using a green wire nut–never omit this step in metal enclosures. Test for ground integrity by measuring between the neutral and any exposed metal surface; readings should not exceed 1 ohm.

For three-way configurations involving dimmers, replace the standard mechanical toggles with electronic modules designed for compatibility. These require additional low-voltage wiring between the units to synchronize brightness levels. Follow the manufacturer’s recommended torque specifications when securing terminals–typically 12–18 inch-pounds for #10-32 screws–to avoid loosening from thermal cycling. Avoid daisy-chaining multiple dimming modules on a single circuit, as this can lead to flickering or premature component failure.

When installing in older structures with cloth-insulated wiring, replace it entirely with NM-B cable or conduit-protected THHN conductors. Cloth insulation degrades over time, posing a fire hazard even if the outer sheath appears intact. Use a thermal camera to scan the completed setup for hotspots, particularly around splice points and terminals. Any temperature rise above 10°C over ambient warrants immediate re-inspection.

Document the finished setup with a labeled schematic, including conductor colors, terminal assignments, and circuit breaker identifiers. Store this alongside the property’s electrical panel directory for future reference. If adding surge protection, place a Type 2 SPD rated for 50 kA at the service entrance, not downstream of the control units, to shield sensitive electronics from transient spikes. Test the entire arrangement under full load for a minimum of 24 hours before closing access panels.

Key Instruments and Protective Measures for Installing Two-Position Control Units

Begin by equipping a non-contact voltage tester–models rated for 120-240V AC detect live circuits through insulation without direct contact. Hold the probe 1-2 cm from wires or terminals; a flashing LED or audible tone confirms active current. Use this device to verify circuit deactivation before handling any conductive components.

A flathead screwdriver with a 3/16-inch shaft fits standard terminal screws, while a Phillips #2 driver suits deeper recesses. Insulated handles (rated 1000V) prevent accidental shorts; test grip integrity monthly by flexing handle coatings–cracks or brittleness necessitate immediate replacement. For stripped wires, employ needle-nose pliers with serrated jaws to twist copper strands securely.

Wire strippers with 12-14 AWG notches remove 5/8-inch of sheathing without nicking conductors. Verify strip length by comparing against the control unit’s terminal depth–excess exposed copper risks short circuits. For over-tightened screws, use a torque screwdriver set to 10-12 in-lbs to avoid fracturing plastic housing.

Circuit breakers labeled “OFF” must be physically locked or tagged with a “Do Not Operate” warning. Even after flipping the breaker, test terminals with a multimeter in AC voltage mode–probes on hot and neutral should read 0V before proceeding. Store tools in a lined toolbelt to prevent metal-on-metal contact during work.

Gloves rated for electrical work (Class 0, 1000V) should cover wrist bones but avoid bulk–excess material impedes switch slot adjustments. Safety glasses with side shields protect against wire fragments; clear lenses maintain visibility for close detail work. For elevated installations, position a fiberglass step ladder with slip-resistant feet–metal ladders conduct current if contacting live circuits.

Fish tape assists in pulling conductors through conduits, but feed it slowly to avoid kinks–sharp bends reduce wire gauge capacity. Label each conductor at both ends before disconnecting existing setups: “Line,” “Load 1,” “Load 2,” and “Neutral.” Use colored electrical tape for immediate identification; permanent markers fade under heat exposure.

How to Connect a Basic Dual-Control Toggle Installation

Turn off the circuit breaker supplying power to the fixture before handling any conductors. Use a non-contact voltage tester to confirm absence of current–hold the probe near each wire for at least three seconds. Failure to verify can result in severe electrical shock.

Remove the faceplate securing the existing toggle by unscrewing the mounting screws. Gently pull the assembly away from the wall, exposing the conduit box. Loosen the terminal screws on the back of the device using a flathead screwdriver, but avoid applying excessive force to prevent stripping threads.

Identify the supply conductor (typically black) connected to the brass terminal. This carries incoming voltage from the circuit panel. Locate the return conductor (also black) linked to the other brass screw–this delivers power onward to the overhead fitting. The neutral (white) and grounding (bare/green) should already be joined directly; do not disconnect these unless relocating the box.

If retrofitting to a newer model, clip ¼ inch of insulation from each prepared end using wire strippers. Twist the exposed strands clockwise to keep them bundled. Bend a small hook at the tip to wrap around the terminal screw, ensuring full contact when tightened. Misaligned connections cause arcing.

Attach the supply conductor to one brass terminal, looping the hook clockwise so the screw tightens rather than loosens the grip. Secure the return to the opposite brass point. Ensure no stray strands touch adjacent screws or the metal box. Recheck tightness with a quarter-turn using the screwdriver–loose connections generate heat.

Reinsert the device into the conduit box, aligning mounting holes with box tabs. Push gently to avoid disturbing connections inside. Fasten the faceplate screws until snug, but do not overtighten–plastic ears can snap. Restore power at the breaker and toggle the lever to verify operation. If the fixture fails to activate, reopen the box and inspect terminals for crossed wires or loose strands.

For older installations lacking grounds, retrofitting a grounded toggle requires adding a separate green/bare conductor back to the panel. This may involve fishing new cable through studs or surface-mount conduit. Check local electrical codes before proceeding–ungrounded circuits pose a fire hazard even in low-amperage setups.

When finished, label the circuit breaker clearly in the service panel. Use indelible ink on adhesive tape, specifying “Overhead fixture toggle – Northeast corner room.” This prevents future confusion during maintenance and ensures safe shutoff if alterations are needed later.
