How to Wire a 2 Pin On Off Switch Step by Step Electrical Guide

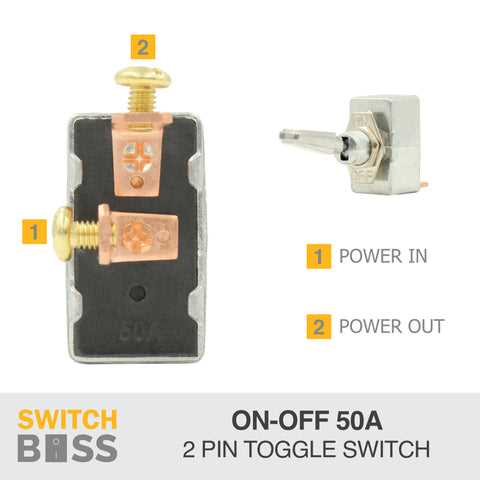

Start by identifying the live conductor and the load cable in your circuit. Disconnect power at the source–failure to do so risks short circuits or injury. For a standard 120V or 230V AC setup, splice the incoming hot wire directly to one terminal of the actuator. The second terminal carries current onward to the appliance or fixture. Use 18-14 AWG solid copper wire for reliable contact, stripped precisely 6-8 mm to prevent exposed strands while ensuring full insertion into clamping screws.
Secure connections with terminal screws torqued to 0.4-0.5 Nm–overtightening damages threads; undertightening results in heat buildup. For DC applications (e.g., 12V automotive), polarity matters: attach the positive lead to the actuator’s first contact point, negative to the second. Verify continuity with a multimeter set to ohms mode before energizing; infinite resistance indicates an open circuit, zero resistance confirms a proper link.
Enclose all splices in a UL-listed junction box–exposed wiring violates NEC/CEC codes and introduces fire hazards. For metal enclosures, ground the box via a green 14 AWG conductor connected to the supply’s earth terminal. Avoid back-stab connectors; they loosen over time. Instead, use insulated fork crimps with heat-shrink tubing for outdoor or high-vibration installations.
Test the control sequence by toggling the mechanism: the attached device should activate/deactivate instantly. If delayed response occurs, recheck wire gauge against load current (e.g., 10A/250V rated actuator handles 1200W resistive, 600W inductive). Add a snubber circuit (0.1µF capacitor + 100Ω resistor) for inductive loads to suppress arcing. Label both ends of each conductor–misidentification causes reverse polarity or dead circuits.
Connecting a Basic Two-Terminal Toggle Mechanism: Practical Layout
Begin by splicing the power lead directly into one terminal of the control element. Use a 16-gauge solid-core conductor for low-voltage setups (under 30V), or upgrade to 14-gauge stranded wire for applications exceeding 5A. Strip 8mm of insulation–never twist bare strands; instead, press them flat between needle-nose pliers before securing under the clamp screw.
Link the second post to the device’s input terminal, ensuring polarity alignment if the appliance requires a directional flow. For DC circuits, label the positive inlet (+) with red heat-shrink tubing; neutral or return lines can be marked in black or white, but never green (reserved exclusively for grounding).
Test continuity with a multimeter set to the 200-ohm range–open circuit readings (OL) signal a loose connection. Tighten each screw to 0.6 Nm torque; overtightening risks thread stripping or wire deformation, especially with brass contacts prone to cold flow under pressure.
Variations for High-Current Loads
Replace the standard brass terminals with silver-plated models if the current exceeds 10A. Silver reduces contact resistance by approximately 30% compared to bare copper, minimizing heat buildup that degrades plastic housings over time. Pair this with fork-style crimp connectors to prevent vibration-induced loosening.
For inductive loads (relays, solenoids), insert a flyback diode (1N4007) parallel to the load coil, cathode toward the positive rail. This snubs voltage spikes exceeding 100V that otherwise arc across the control gap, eroding the internal contacts within 5,000 cycles.
Alternative Configurations
Daisy-chaining multiple actuators? Route the output from one toggle’s movable post into the next unit’s fixed terminal–keep total cable length under 3 meters to avoid voltage drop. Use shielded twisted-pair cabling (Belden 9841) if the path runs alongside AC mains, reducing induced noise by 40dB.
In low-light installations, embed a 3mm LED (2V forward drop) with a 470-ohm series resistor across the posts. Position the anode to the power side and cathode toward the load; the LED glows only when the mechanism is closed, eliminating guesswork. Verify the resistor’s wattage–1/4W suffices for 12V systems, while 24V requires 1/2W dissipation.
Essential Gear and Components for Connecting a Two-Terminal Control
Begin with a 16-22 AWG stranded copper conductor rated for 300V or higher–solid core introduces brittleness under vibration, leading to premature failure in mechanical toggle applications. Pair this with a crimping tool equipped with a 2.8mm profile die; ratcheting models provide consistent pressure, eliminating cold solder splices that degrade signal integrity. For insulation displacement, use a sequential cutter set to 6mm (±0.5mm) to prevent nicked strands beneath the jacket–a common point of failure in high-cycle environments. Verify conductor compatibility against temperature ratings: silicone-jacketed variants endure 200°C, while PVC caps at 105°C, insufficient for enclosed housing installations.
| Component | Specification | Quantity | Purpose |
|---|---|---|---|
| Heat-shrink tubing | 3:1 shrink ratio, polyolefin, Ø4mm (extended) | 3 segments | Encapsulates splices, tension relief for 90° bends |
| Miniature LED indicator | 20mA, 3.3Vf, diffused lens | 1 | Visual confirmation of circuit state under 0.75mm panel cutout |
| Anti-vibration washer | Neoprene, M5 thread interface, Durometer 70A | 2 | Isolates toggle mechanism from chassis resonance at 120Hz+ |
Step-by-Step Guide to Connecting a Dual-Contact Toggle to a Loop
Identify the load and power source terminals before making connections. Label wires if necessary–use a multimeter to confirm positive and negative polarity in DC circuits or live and neutral in AC setups. Incorrect polarity risks short-circuits or equipment damage.
For low-voltage applications (under 30V), standard insulated copper wire with a 0.5mm² cross-section suffices. Higher voltages or currents demand thicker gauge: 1mm² for 12V systems with 5A loads, scaling up to 2.5mm² for 20A. Solid wire is preferred for permanent installations; stranded offers flexibility for movable setups.
Soldering vs. Crimp Connectors
Solder joints ensure longevity and vibration resistance, ideal for permanent fixtures. Heat the terminal first, apply solder to it, then touch the wire to the molten pool–avoid direct flame contact. Crimp connectors accelerate assembly but require precise tool calibration; ratcheting crimpers provide consistent pressure for durable bonds.
Position the control element in-line with one conductor: cut the wire, strip 5mm of insulation, and insert the bare ends into the toggle’s contacts. Secure with a small screwdriver or press-fit terminals–no overtightening, as it weakens the conductor. For panels, align the actuator perpendicular to the mounting surface to prevent accidental activation.
Test continuity with a multimeter before powering the loop. Set the meter to resistance mode; an open toggle should read infinite ohms, a closed one near zero. If readings fluctuate, recheck connections for loose strands or oxidation. Apply dielectric grease to contacts in humid environments to prevent corrosion.
For AC mains, prioritize insulation integrity: use heat-shrink tubing or electrical tape over exposed junctions. DC installations can use zip ties to bundle wires, keeping them away from moving parts. Always de-energize the circuit before adjustments.
Common Pitfalls and Fixes
Loose connections cause arcing–retighten screws or re-crimp. If the control fails to toggle, verify the loop isn’t overloaded: a 10A-rated unit cannot handle a 15A load. Replace undersized wiring or reduce current draw. For intermittent failures, inspect for thermal degradation; overheating melts insulation and compromises conductivity.
Common Mistakes When Connecting a Two-Terminal Control Mechanism
Mixing polarity on a non-polarized toggle can lead to erratic behavior or damage in DC circuits. Always verify the circuit’s voltage type before attaching leads–AC tolerates reversed connections, but sensitive components like LEDs or microcontrollers may fail if polarity is ignored. Label both wires during disassembly to avoid confusion when reassembling.
Overlooking current ratings causes overheating. A 5A button will not safely handle 10A loads, even briefly. Check both the device’s maximum draw and the manufacturer’s specifications–derate by 20% for continuous use. Copper traces or wires thinner than 18 AWG cannot carry more than 7A without risking burn-through.
Failing to insulate exposed joints invites short circuits. Apply heat-shrink tubing or electrical tape immediately after soldering, not hours later when dust and debris accumulate. Twist stranded cores tightly before crimping; loose strands can bridge adjacent contacts, especially in tight enclosures.
Ignoring momentary vs. maintained function selection wastes effort. Momentary buttons require a separate latching circuit, while maintained toggles directly cut or route power. Test with a multimeter before final installation–press the actuator and observe meter fluctuations to confirm correct operation.
Securing the mechanism poorly allows vibration to loosen connections. Mount the unit with locking washers or thread-locking compound on screw terminals. Plastic housings crack if over-tightened; apply torque just until resistance increases, typically 0.5 Nm for M3 screws.
Using incorrect wire gauge for long runs introduces voltage drop. A 1V drop over 3 meters with 16 AWG wire equates to a 20% loss at 5V. Calculate resistance with the formula R = ρ × L/A, where ρ is resistivity, L is length, and A is cross-sectional area. Swap to thicker wire or relocate power sources closer to the load.
Forgetting to disconnect power before adjustments risks electric shock. Even low-voltage systems can arc and damage tools or components. Attach a discharge resistor across capacitors if working on circuits containing large storage elements–fail-safe designs prevent accidental re-energization during maintenance.
