Simple 2 Wire Doorbell Wiring Guide With Diagrams for Beginners
Connecting a basic entry signal system requires only two conductors between the chime unit and push button. Route 18-gauge solid copper leads from the signal box terminals to the button contacts–ensure polarity doesn’t matter unless using an electronic module. Most mechanical chimes operate with unshielded pairs, but verify voltage specs if pairing with a transformer: common 8V–24V AC configurations demand matching output. Interrupt one conductor at the doorway switch to complete the loop when pressed.
For outdoor applications, use weatherproof cable clamps and silicone-filled junction boxes to prevent moisture ingress. Splice connections with crimp connectors or solder, then seal with heat-shrink tubing. Avoid running conductors parallel to high-current lines–minimum 12-inch separation prevents interference-induced false triggers in low-voltage systems. Test continuity with a multimeter before energizing: a closed loop should show near-zero resistance, while an open circuit indicates a faulty switch or broken lead.

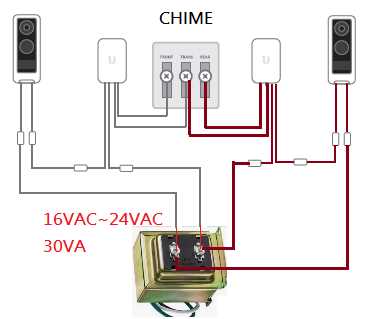

If the chime fails to sound, check the transformer output first. A weak signal often stems from improper tap selection–verify the voltage rating stamped on the unit’s core matches the chosen tap. Mechanical assemblies may require manual striker adjustment if the tone sounds distorted; loosen the retention screws and reposition the plunger until it aligns with the tone bar. For multi-tone setups, gang multiple buttons in parallel, ensuring each switch shares the same two conductors to avoid cross-circuiting.
Installing a Two-Conductor Entry Signal System

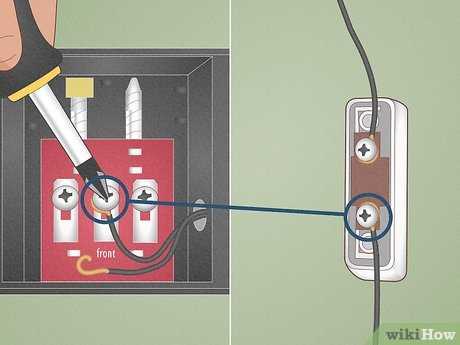

Connect the transformer secondary leads–typically 10 to 24 volts AC–to the chime unit terminals marked “Front” or “Trans.” Strip 6 mm of insulation from each conductor and secure them under the screw heads; polarity matters only if the unit has a built-in diode. Route the loop through the entry button using bell push terminals labeled “NO” (normally open); loop the same pair back to the chime without splices to maintain signal integrity. Verify continuity with a multimeter before powering the circuit–resistance should read below 1 ohm across the closed switch. If voltage sags below 8 VAC at the chime during button press, upgrade the conductor gauge to 18 AWG copper.
Mount the entry button no higher than 120 cm above finished floor to comply with NEC 404.8(A); secure staples every 60 cm along the conductor path, keeping a 12 mm clearance from stud edges per NEC 300.4(D). Avoid running parallel to 120 V circuits within the same raceway–induced hum can distort the signal pulse. For outdoor installations, use gel-filled junction boxes rated NEMA 3R; seal conductor entries with silicone-based sealant to prevent moisture ingress. Test the system with a 1-second press before finalizing wall finishes–chime volume should exceed 70 dB at 1 meter.
Identifying Components for a Two-Conductor Entry Signal Setup
Begin by locating the transformer–typically a small, rectangular device mounted near the electrical panel or inside a utility closet. Most residential transformers output between 8V and 24V AC, with 16V or 24V being the most common. Check the voltage rating stamped on the device; mismatched voltage can damage chimes or cause weak operation. If the transformer is older than 10 years, consider replacing it to avoid voltage drop issues.
Select the signal emitter based on compatibility with the transformer’s voltage. Mechanical strikers–such as plunger or solenoid types–require 12V to 24V AC and operate with audible metal-on-metal contact. Electronic tones, including recorded voices or synthesized melodies, often need 16V AC but may accept 8V to 24V depending on the model. Verify the input range in the manufacturer’s specifications before installation to prevent underpowering or overheating.
Component Compatibility Reference
| Component | Voltage Range (AC) | Key Features | Common Issues |
|---|---|---|---|
| Mechanical Striker | 12V–24V | Durable, no power requirement beyond initial pulse | Volume decreases with age; misalignment causes weak sound |
| Electronic Module | 8V–24V (check spec sheet) | Custom sounds, adjustable volume | Sensitive to voltage spikes; firmware updates may be required |
| Push-Button Switch | N/A (low-current signal path) | Weather-resistant models available; LED illumination optional | Corroded contacts; seal failure in outdoor units |
Examine the signal path conductor for continuity before connecting components. Use a multimeter to test for 0Ω resistance between endpoints when the circuit is open. If resistance exceeds 1Ω, inspect for oxidation at terminal points or kinked conductors–these can disrupt current flow and reduce signal strength. Replace any damaged sections with 18-gauge solid copper conductor rated for indoor/outdoor use to ensure long-term reliability.
Choose a button actuator designed for low-voltage environments. Models with stainless steel contacts resist corrosion better than brass, especially in humid or coastal areas. For outdoor installations, pick units with an IP44 or higher ingress rating to prevent moisture-related failures. Avoid illuminated buttons unless the transformer can handle the additional load–most require an extra 30mA to 50mA to power the LED.
Step-by-Step Guide to Connecting Power Supply to Chime Unit
First, identify the low-voltage power source–typically a 10V–24V AC adapter. Locate the terminal screws: one marked “hot” (usually brass-colored) and the other “neutral” (silver). Turn off electricity at the circuit breaker to prevent short circuits. Use a multimeter to confirm the power is disabled before proceeding.
Strip 6–8 mm of insulation from each conductor using wire strippers. Insert the stripped ends into the corresponding terminals on the power source, securing them with a flathead screwdriver. Ensure no exposed metal extends beyond the terminal to avoid accidental contact. Tighten screws firmly–loose connections cause intermittent operation.
Testing and Troubleshooting
- Re-energize the circuit at the breaker.
- Check voltage at the terminals with a multimeter–readings should match the adapter’s rated output (e.g., 16V AC).
- If voltage drops or fluctuates, inspect for loose terminals, frayed conductors, or incorrect adapter wattage.
- Verify the chime mechanism activates by pressing the button–silence indicates a faulty connection or insufficient current.
For outdoor installations, use weatherproof junction boxes and silicone-filled connectors. Route conductors through walls via conduit or protective tubing to prevent rodent damage or moisture intrusion. Label all connections clearly for future maintenance. If the system includes a backlit button, ensure the power source supports additional load without overloading.
How to Properly Run Conductors from Switch to Signal Unit
First, measure the distance between the push button and the signal box accurately–add 10% extra length to account for bends, staples, and minor adjustments. Use solid-core conductors rated for indoor use (typically 18-20 AWG) to prevent interference from household voltage fluctuations. Avoid stretching the cable taut; slack of 1–2 inches every 6 feet prevents tension from door movements or thermal expansion.
Route the cable through walls or baseboards using a fish tape, securing it every 18–24 inches with insulated staples. For outdoor paths, use weatherproof conduit (1/2-inch PVC or flexible metal) and seal entry points with silicone caulk to prevent moisture ingress. If passing through studs or joists, drill holes at least 1.5 inches from edges to avoid damaging structural integrity and keep the path straight to reduce signal resistance.
Critical Connection Points
- Strip conductor ends to expose 3/8 inch of copper–use wire strippers calibrated for the gauge to avoid nicks.
- Twist strands clockwise before inserting into terminal screws to ensure maximum contact area.
- Tighten screws to 8–12 inch-pounds of torque; over-tightening risks shearing threads or breaking the terminal.
Test continuity with a multimeter before finalizing connections–set it to the 200-ohm range and measure between the button’s contacts while pressed. A reading below 1 ohm confirms proper installation; readings above 5 ohms indicate corrosion, loose connections, or excessive cable length. For runs exceeding 75 feet, consider a thicker gauge (16 AWG) or a low-voltage relay to maintain signal strength.
Troubleshooting Common Issues in 2 Wire Doorbell Installations
Check the transformer voltage first–most systems require 16–24V AC at the chime unit. Use a multimeter to measure output at the terminals; readings below 15V indicate a failing power source or corroded connections. Replace transformers rated for older homes, often stuck at 8–10V, incompatible with modern chimes. Verify the circuit breaker isn’t tripped; some models lack clear labeling.
Inspect push-button contacts for oxidation. Disassemble the exterior switch, scrub contacts with fine-grit sandpaper, then apply dielectric grease. If the button sticks, check for moisture ingress–seal gaps with silicone caulk. Test continuity with a meter; infinite resistance means a broken switch. Replace with a weatherproof model if corrosion recurs.
Test the chime unit by bypassing the button. Jump the low-voltage terminals momentarily–if the chime sounds, the issue lies in the exterior circuit. Listen for weak or distorted tones; this suggests coil failure in mechanical models. For digital chimes, ensure firmware matches the manufacturer’s updates. Reset by disconnecting power for 30 seconds.
Examine pathways for shorts or breaks. Use a tone generator to trace concealed runs, probing walls only where necessary. Abraded insulation near metal studs or staples causes intermittent failures. Reroute damaged sections with CL2-rated conductors, avoiding sharp bends. Check terminal screws–loose connections create high resistance, overheating and melting plastic housings.
Verify compatibility between components. A 12V transformer won’t drive an 18V chime, and vice versa. Mismatched systems may hum without striking. Consult spec sheets; some vintage chimes need specific impedance levels. Add a resistor in series if tones are too quiet–values between 10–50 ohms adjust volume without damaging coils.
Isolating Intermittent Problems
Attach a recording device near the chime to capture sporadic failures. Log timestamped events alongside multimeter readings during dropouts. Temperature swings often expose faulty connections–test after dark when ambient heat drops. Replace quick-connect terminals with soldered joints for outdoor runs; vibration from wind or traffic loosens crimps over time.
Safety Confirmations
Disconnect the primary side of the transformer before servicing. Cap exposed ends with wire nuts to prevent shorts. Never test voltage with fingers–plasma arcs from aged transformers can exceed 30kV during failure. Use a non-contact tester for initial probes. Ground the chime housing to metal conduit; floating frames pick up RF interference, causing false triggers.
