Step-by-Step Guide to Wiring a 2-Wire Temperature Sensor Circuit

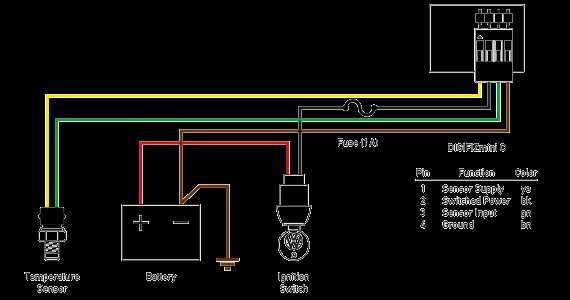

For standard thermocouple or RTD setups using just two conductive paths, connect the measuring instrument’s positive terminal to the red lead and the negative terminal to the white or unmarked lead. Maintain proper polarity–swapping these can distort readings by up to 5°C in high-precision applications. Verify continuity with a multimeter before finalizing splices; resistance between leads should not exceed 1Ω for 100Ω platinum elements.

When routing signal paths, keep them isolated from high-current lines by at least 10 cm to minimize electromagnetic interference (EMI). Use twisted pairs if cable runs exceed 5 meters; untwisted conductors can introduce stray voltages of 2–3 mV per meter in industrial environments. Shielding grounded at a single point prevents ground loops that skew low-level signals (typically below 50 mV).

Avoid soldered joints for field installations–instead, use screw terminals or compression fittings rated for the deployment environment. Corrosion-resistant alloys like nickel-plated copper prevent oxidation in humid or acidic conditions, extending longevity by up to 40% compared to untreated connections. For submerged applications, seal junction boxes with IP67-rated enclosures to prevent moisture ingress, which can cause offset errors of 0.1°C per 1% relative humidity.

Confirm compatibility with your data acquisition system: 2-lead RTDs require external current excitation, while thermocouples generate millivolt signals that differ by type (Type K: ~40 μV/°C, Type J: ~50 μV/°C). Always match the sensor’s color-coded leads to the instrument’s input configuration–misalignment can void calibration or damage sensitive electronics.

Connecting Dual-Lead Thermal Probes: A Practical Guide

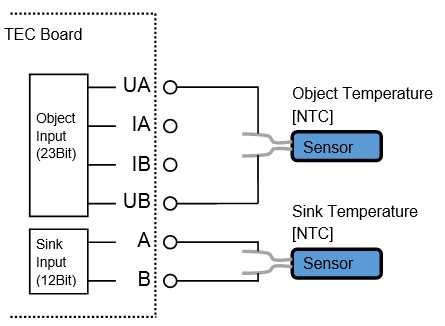

Start by identifying the polarity of your dual-lead probe–most industrial components use a red lead for positive and a black or white one for negative. If the device lacks color coding, check for a “+” symbol near one contact or consult the manufacturer’s datasheet, as reversing connections will invert readings or damage sensitive circuitry.

For resistive devices like Pt100 or NTC thermistors, ensure the measuring instrument matches the probe’s resistance range–typically 100Ω to 10kΩ. Use a multimeter in ohmmeter mode to verify continuity before installation; an open circuit indicates a faulty probe, while readings far outside the expected range suggest incorrect pairing with the meter.

To minimize signal degradation, keep lead lengths under 5 meters unless using shielded cables. If extending beyond this, employ twisted-pair wiring with a grounded shield connected only at the instrument end to prevent ground loops. For noisy environments, add a 0.1μF ceramic capacitor across the probe terminals at the controller side to filter high-frequency interference.

Industrial control systems often require a pull-up resistor when interfacing with digital inputs. For 4–20mA loops, confirm the probe’s compliance–some resistive probes need a transmitter to convert resistance to current. If using a PLC’s analog input, set the module to accept the correct signal type (e.g., 0–10V for voltage output probes or 4–20mA for active transmitters).

When connecting to a microcontroller, avoid exceeding the ADC’s input voltage range–most operate at 0–3.3V or 0–5V. For probes with inherently non-linear output (e.g., thermocouples), apply a lookup table or polynomial correction in firmware. For resistive devices, use a simple voltage divider circuit, but ensure the bias voltage doesn’t exceed the probe’s maximum rating (often 5V for Pt100).

In high-precision applications, account for self-heating effects by limiting excitation current. For Pt100 probes, currents above 1mA can introduce measurable errors–use 0.1mA for critical measurements. Calibration should be performed at two points (e.g., 0°C and 100°C) within the expected operating range, not just ambient conditions, to ensure accuracy across the full span.

Avoid parallel connections unless the probe is specifically designed for it–most resistive types will yield incorrect readings if shunted. For modular systems, use terminal blocks with gold-plated contacts to prevent oxidation, especially in humid or corrosive environments. If the probe is exposed to moisture, seal the connections with heat-shrink tubing or conformal coating to prevent shorting.

For troubleshooting, start by verifying power delivery to the measurement circuit–no excitation voltage means the probe won’t respond. If readings fluctuate wildly, suspect poor grounding or electrical noise; if static and incorrect, check for reversed leads or a damaged sensing element. Replace any probe showing significant drift over time, as this indicates degradation of the internal material.

Essential Gear and Parts for Two-Lead Probe Setup

Start with a calibrated multimeter capable of measuring resistance and DC voltage. Ensure the unit supports at least 0–20 VDC and 0–2 kΩ ranges–models with auto-ranging simplify field checks. Attach insulated test probes with 4 mm banana plugs; finer tips reduce accidental shorting when probing small terminals. Include a thermocouple simulator (Type K/J) if verifying controller inputs; accuracy within ±0.2°C prevents calibration drift.

• Stripping tool: precision 18–24 AWG blades, spring-loaded to avoid nicking conductors
• Crimping die set: ratcheting type with 2.8 mm and 4.8 mm nests for ring and spade lugs
• Heat-shrink tubing assortment: polyolefin, 3:1 ratio, diameters 3 mm, 4 mm, 5 mm; adhesive-lined variants for moisture resistance
• Torque screwdriver: adjustable 1.2–3.5 Nm, magnetized for secure fastener handling
• Shielded twisted pair (STP) cable: 22 AWG, foil plus braid shielding, PVC jacket for noise immunity
• Mounting hardware kit: nickel-plated M4 screws, split washers, nylon bushings; thread locker (blue, medium strength) for vibration-prone environments

Avoid using generic twist connectors; prefer UL-listed splice blocks rated for 90°C continuous duty. For high-temperature zones (>120°C), specify ceramic terminal blocks or gold-plated ferrules. Keep a 500 V megohmmeter onsite–minimum 100 MΩ insulation resistance validates cable integrity before power-up. Label every lead with heat-resistant tags; color-code source (red) and return (black) plus Kelvin taps (white) if four-terminal measurement is later required.

PT100 and Thermocouple Connection Guide for Precise Measurements

Begin by verifying the lead configuration of your resistive element or thermoelement. For a PT100, standard models use two conductors, while some variants may include three or four for improved accuracy. Thermocouples typically require only two leads, but ensure compatibility with the measurement device’s input type–Type K, J, or T demand specific compensations.

Strip the ends of the conductors to expose 5–7 mm of bare metal. Avoid excessive removal of insulation to prevent short circuits or interference. Use crimp ferrules for PT100 setups to secure connections; thermocouples often benefit from direct soldering or compression terminals if vibration is a concern.

PT100 Hookup Procedure

• Attach the first conductor to the positive terminal of your transmitter or indicator, noting polarity if using a four-lead model. PT100s are polarity-insensitive for two-lead variants.
• Connect the second conductor to the negative terminal. For three or four-lead PT100s, link the additional leads as per the manufacturer’s specifications–these compensate for lead resistance.
• Tighten terminal screws securely; loose connections introduce resistance and skew readings. Check torque values if specified.

Thermocouple Integration

1. Identify the thermocouple type (e.g., K, J) and match it to the instrumentation input. Incorrect pairing causes erroneous data.
2. Use extension cables designed for thermocouples–copper wires corrupt signals. Connect the positive lead (usually color-coded red) to the corresponding terminal.
3. Attach the negative lead to its designated terminal. Ensure proper grounding if required; floating setups reduce noise in electrically noisy environments.
4. Cold junction compensation (CJC) must align with the thermocouple type. Some transmitters perform this automatically–verify settings before energizing.

For PT100s, calibrate the system by referencing a known ice-point bath (0°C) or boiling water (100°C) under controlled conditions. Record baseline deviations if adjustments are needed. Thermocouples require less calibration but benefit from periodic verification against a reference probe.

Seal connections using heat-shrink tubing or insulated splices to prevent moisture ingress. In industrial settings, conduit or armored cable protects against physical damage. Verify signal integrity with a multimeter–PT100s should show ~110 ohms at 0°C, while thermocouples exhibit millivolt outputs proportional to their type and differential.

Power on the system incrementally. Monitor for drift or erratic behavior; stable readings confirm correct setup. Log initial values for future troubleshooting. If anomalies persist, recheck terminal tightness, cable integrity, and device configurations before suspecting sensor failure.

Common Mistakes When Hooking Up 2-Lead Thermal Detection Devices

Reverse polarity ranks as the most frequent error during installation. Most probes lack internal protection against incorrect lead attachment, leading to erroneous readings or permanent damage. A thermocouple designed for 4-20mA output will fail silently if connected backward, while an RTD may generate negative resistance values outside its calibrated range. Always verify the lead markings–typically red for positive and white or blue for negative–before securing connections. Test continuity with a multimeter in diode mode if markings are unclear.

Ignoring lead resistance causes measurable inaccuracies in low-resistance applications. Copper extension leads, though inexpensive, introduce parasitic resistance proportional to their length and gauge. A 18 AWG copper conductor adds roughly 2.1 ohms per 100 meters at 20°C, skewing readings by ~0.5°C per ohm in a 100-ohm platinum RTD. Use compensated cable–such as twisted-pair with shield–or apply a correction factor based on measured loop resistance. The table below lists resistance values for common gauges:

AWG	Ohms per 100m (Copper)	Ohms per 100m (Compensated)
18	2.1	0.3
20	3.3	0.4
22	5.3	0.6
24	8.4	0.9

Ground loops introduce noise indistinguishable from legitimate signals when both device termination and control circuitry share a common earth reference. A 10 mV potential difference can manifest as a 0.25°C deviation in a 4-20mA loop. Break ground loops by isolating the probe’s shield at one end only–preferably at the controller–or use galvanic isolation modules with >500 VDC breakdown. Bypass capacitors (0.1 μF ceramic) across terminals suppress high-frequency interference, but never connect them directly to the shield.

Overlooking ambient conditions during routing exposes leads to thermal contamination. Placing unshielded conductors near heating ducts, motors, or sunlight alters readings by conduits acting as unintended fins. Maintain a minimum 50 mm clearance from hot surfaces; for environments above 125°C, use fiberglass-insulated or Teflon-coated leads. Moisture ingress through improperly sealed glands causes corrosion at junctions, increasing resistance unpredictably. Apply dielectric grease or heat-shrink tubing over terminals exposed to humidity above 80% RH.

Assuming compatibility between probe types and instruments leads to calibration drift. A loop-powered indicator expecting 100 Ω platinum RTD will misread a 50 Ω copper coil, amplifying errors quadratically with distance. Cross-reference transmitter input ranges–common spans include 0-100 Ω, 0-200 Ω, 0-500 Ω–and verify excitation current. Instruments sourcing >1 mA may self-heat a low-mass probe, skewing measurements by 0.1°C per mW dissipated. Match probe output to controller input impedance; high-impedance inputs (>10 kΩ) tolerate mismatches, while low-impedance (
