Complete Guide to Wiring a 2 Wire Toggle Switch Step by Step
Begin by identifying the power source and load terminals. A correctly assembled circuit requires the incoming current line to connect directly to one terminal of the actuator. The second terminal must link to the device or component receiving voltage, completing the path. Failure to follow this sequence increases the risk of short circuits or open loops, which may damage sensitive equipment or create safety hazards.
Use uncoated copper conductors with a minimum cross-section of 1.5 mm² for standard 120V AC applications. For 240V systems or higher loads, upgrade to 2.5 mm² or larger to prevent overheating under sustained current. Strip exactly 6–8 mm of insulation from each end–excessive exposure can lead to accidental contact between adjacent conductors, while insufficient stripping may cause poor conductivity.

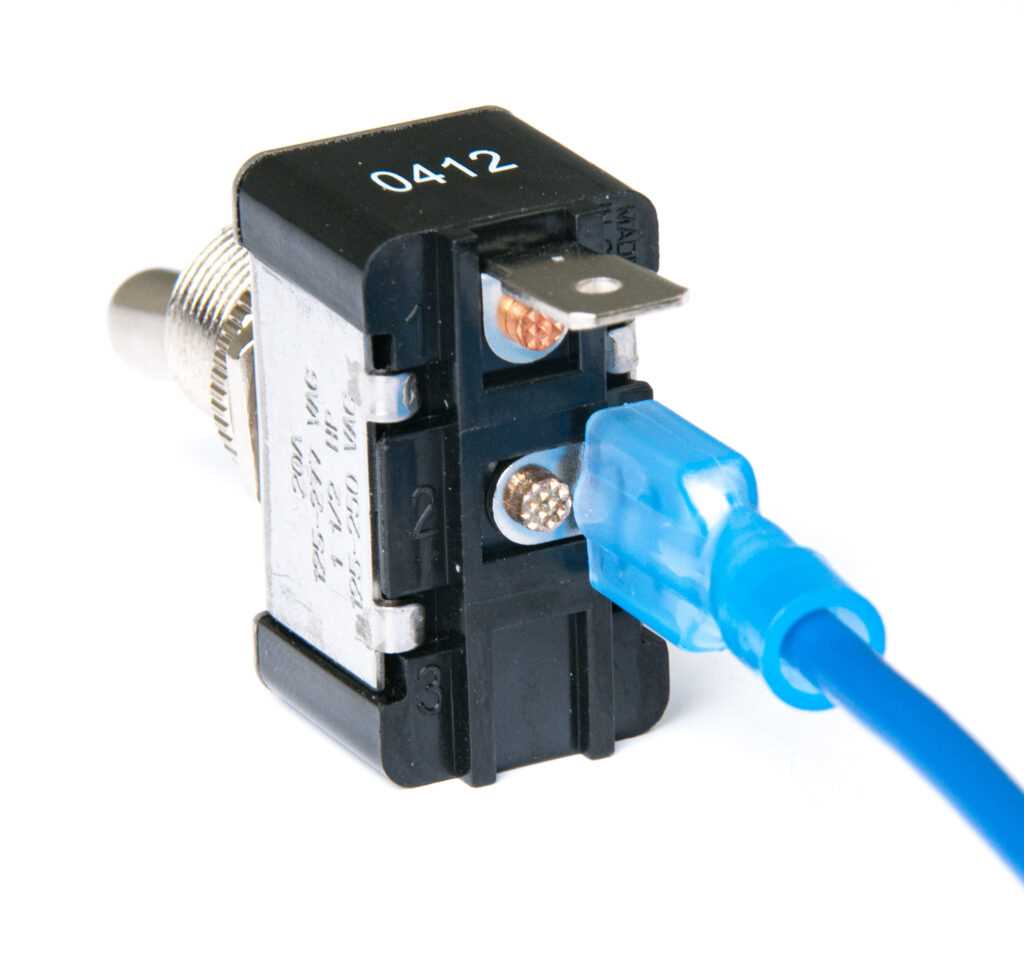

Secure connections with crimp terminals or screw clamps rated for the expected amperage. Twist bare ends clockwise before fastening to ensure uniform pressure distribution and prevent loosening under vibration. Verify tightness with a torque screwdriver set to 0.8–1.2 Nm for common terminal sizes. Loose contacts generate resistance hotspots, potentially melting insulation or tripping protective devices.
Test continuity with a multimeter before energizing the circuit. Set the meter to ohms (Ω) and probe the actuator’s terminals–an intact connection should read near zero resistance. If readings fluctuate or exceed 0.5 Ω, recheck crimping, stripping, and terminal tightness. For live-circuit verification, use a non-contact voltage tester to confirm power absence at the device before handling.
Seal exposed connections with heat-shrink tubing or electrical tape rated for the operating voltage. Standard PVC tape withstands 600V; for outdoor or high-moisture environments, use adhesive-lined shrink tubing to block corrosion. Label all conductors at both ends, noting polarity if applicable–misidentification during future maintenance can lead to reversed polarity or equipment malfunction.
Connecting a Two-Lead Control for Basic Circuits

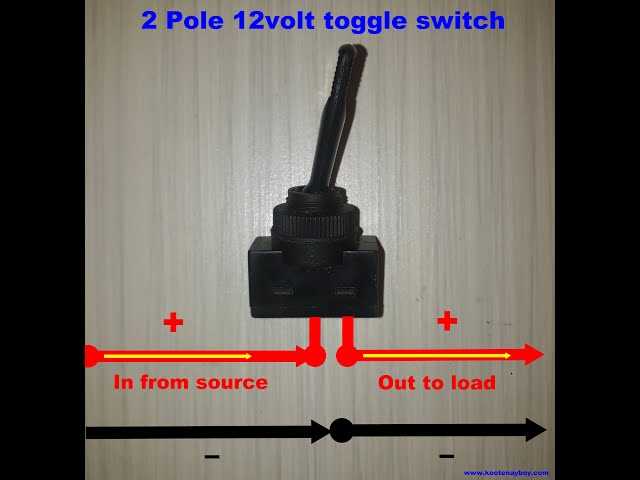

Start by identifying the power source and load terminals–these are the only two contact points needed for a standard on-off mechanism. Connect the incoming current line (live) directly to one terminal of the actuator; the outgoing line to your device attaches to the opposite side. If polarity isn’t specified, orientation doesn’t affect function in DC low-voltage setups, but verify with a multimeter before energizing to prevent reverse flow in sensitive equipment.
For AC applications, observe these key steps:
- Label both leads before disconnecting any existing setup to avoid confusion later.
- Use heat-shrink tubing or terminal blocks rated for 20% above expected amperage to isolate connections.
- Secure the control in a dry, vibration-free enclosure if mounting outdoors or in mobile units.
Momentary types require different handling–refer to the manufacturer’s datasheet for spring-return timing if your design needs temporary activation.
Troubleshooting Common Errors
If the circuit fails after installation:
- Check for continuity between contacts while toggling–an open reading indicates internal breakage.
- Inspect for shorts across leads; excessive heat or sparking suggests overload.
- Test the power supply voltage at both terminals with the system energized; a drop greater than 5% may signal insufficient current delivery.
Replace components showing physical wear or corrosion immediately, as intermittent failures often begin with compromised metal surfaces.

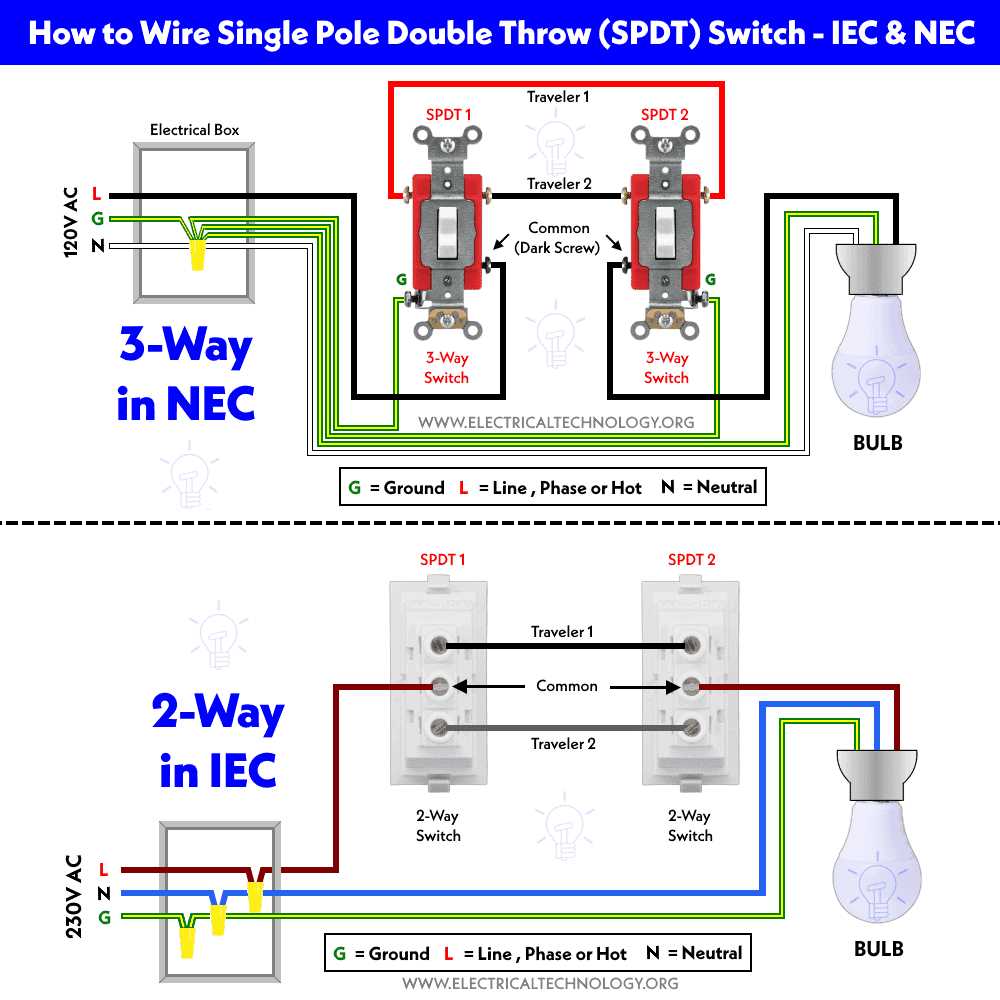

Identifying Terminals on a Basic SPDT Control Mechanism
Locate the common (COM) terminal first–it is typically positioned centrally on the device’s metal frame or marked with a distinct label like “C” or “P.” This connection serves as the pivot point, routing current to either of the two remaining contacts. On most models, the COM terminal aligns with the actuator’s physical center, but always cross-check with a multimeter in continuity mode if markings are unclear or worn. Set the selector to one position, touch one probe to the COM, and the other to each side terminal; only one should register a closed circuit at a time.
Side terminals (often stamped “NO” and “NC”) dictate the device’s behavior. The normally open (NO) contact remains disconnected until the actuator engages, while the normally closed (NC) maintains a live link until toggled. These labels may appear as “1” and “2” on compact units or be omitted entirely–inspect for small notches or raised bumps on the plastic housing to differentiate them. If no visual cues exist, trace the internal copper springs: the NC side’s spring usually exerts stronger tension when disengaged.
| Terminal | Symbol (Common) | Multimeter Test (Selector Off) | Multimeter Test (Selector On) |
|---|---|---|---|
| Common (COM) | C, P | Closed with NC | Closed with NO |
| Normally Closed (NC) | NC, 1 | Closed with COM | Open |
| Normally Open (NO) | NO, 2 | Open | Closed with COM |
For unlabeled units, use a 9V battery and an LED to verify functionality: attach the battery’s positive lead to the COM, then momentarily connect the negative to each side terminal. The LED should illuminate only on the NO side when the actuator is engaged. Repeat with the selector in both positions to confirm polarity–reversing this method (connecting negative to COM) can mislead if the LED’s polarity-dependent.
Step-by-Step Permanent Power Connection Guide
Disconnect the circuit breaker controlling the feed line before handling any conductive parts. Use a non-contact voltage tester to confirm the absence of current–hold it near the terminal screws and connection points until the indicator confirms zero potential.
Strip 6-8mm of insulation from each lead using precision clippers, ensuring no nicks on the exposed strands. Twist the strands clockwise to consolidate them, then tin the ends with a soldering iron and rosin-core solder for corrosion resistance and improved conductivity.
Identify the supply lead (typically marked with red or black insulation) and the return path (commonly white, gray, or green-grounded). For permanent energization, bypass any intermediary control mechanisms–connect the supply directly to the load’s input terminal without interruption.
Secure the conductive ends using terminal blocks rated for 20% above the expected load current. For 15A circuits, use 20A-rated connectors; for 20A circuits, opt for 25A blocks. Tighten screws to 1.2Nm torque–insufficient pressure risks overheating, while overtightening may strip threads.
Route leads along structural pathways, avoiding sharp edges, moving components, or heat sources above 60°C. Maintain a 10mm clearance from other conductive paths and secure every 150mm with flame-retardant cable ties or flexible conduit for vibration-prone installations.
Apply electrical joint compound to aluminum-copper junctions to prevent galvanic corrosion. For mixed-metal connections, use bi-metallic lugs or approved antioxidant paste applied within 30 seconds of joining to minimize oxidation layer formation.
After finalizing connections, re-energize the circuit at the breaker. Verify load functionality–measure voltage across the load terminals (should match supply potential) and check for abnormal heat dissipation at connection points with an infrared thermometer (target
Seal exposed conductive parts with heat-shrink tubing or liquid electrical tape, ensuring full coverage of stripped sections. Label the permanent feed path clearly at both ends with a permanent marker: “PERMANENT OUTPUT – NO INTERRUPTION.”
Controlling Dual Pathways with a Common Return
Use a single-pole, double-throw control element to alternate between two independent signal routes sharing a reference plane. Connect the common terminal to the ground plane, then attach each of the two remaining poles to the positive lead of the respective circuit. This arrangement ensures only one circuit receives voltage at a time, eliminating cross-talk while maintaining a unified return path. Verify the contact rating matches the load current–most general-purpose devices handle 10 A, but high-power applications may require heavy-duty variants.
Position the actuator between the two live connections, not on the ground side, to prevent accidental shorting across both circuits if corrosion or mechanical fatigue occurs. Install a 0.1 µF decoupling capacitor between each circuit’s positive node and the shared ground close to the actuator terminals; this absorbs transient spikes when toggling inductive or capacitive loads, extending contact life. Route the input leads through separate strain-relief grommets to prevent conductor fatigue from repeated switching cycles.
For low-voltage DC setups (≤ 48 V), polarity protection diodes on each circuit’s positive leg prevent reverse-voltage damage if miswiring occurs. In AC setups, add a 250 V MOV across the actuator contacts to clamp voltage spikes induced by switching reactive loads. Ensure the enclosure’s mounting orientation keeps actuator travel perpendicular to vibration sources to avoid false actuation; secure fastening with lock washers if environmental vibration exceeds 0.5 g RMS.
Label each circuit adjacent to the actuator in contrasting colors with adhesive markers resistant to UV degradation, specifying voltage and load type (e.g., “LED strip – 12 VDC 2 A” vs. “Motor – 24 VAC 5 A”). Periodically test actuation force–degraded contacts requiring > 6 N may need cleaning with isopropyl alcohol or replacement. Record baseline continuity readings with a multimeter before first power-up, then repeat after 1,000 cycles to detect early wear patterns.
