Step-by-Step 2-Zone Thermostat Wiring Guide with Diagrams

Start by mapping separate power loops for each temperature-controlled area. Use a 24V transformer as the primary supply, splitting the output into two independent low-voltage branches. Each branch should feed a dedicated thermostat and its corresponding heater or cooling unit. Avoid shared wiring between circuits–this prevents voltage drop and ensures precise temperature regulation in both sections.

For baseboard heaters, connect the thermostat’s R (power) and W (heat) terminals directly to the unit’s terminals. Confirm polarity matches manufacturer specs–reversing leads can damage controls. If using a relay for high-amperage appliances (e.g., radiant floor systems), wire the thermostat to the relay’s coil and route the appliance’s power through the relay’s contacts. This isolates low-voltage controls from high-current loads.

Label every conductor at both termination points. Use red for R (hot), white for W (load), and a third color (e.g., blue) if adding a common neutral for smart thermostats. Test continuity with a multimeter before energizing: resistance should read near zero between matched pairs and infinite on unconnected circuits. Secure all splices with wire nuts rated for the gauge (typically 18-12 AWG for 24V systems).

Add a fuse or circuit breaker (3-5A) on the transformer’s input side to protect against overload. Position controls outside high-moisture areas–condensation causes erratic operation. If integrating a single transformer for both circuits, verify its VA rating meets the combined load of relays, thermostats, and end devices (e.g., 40VA minimum for two 24V units).

Two-Circuit Heating Layout: Hands-On Installation

Start by mapping thermostat locations relative to the control panel. Measure voltage drops across each circuit path–use a multimeter set to 20V AC for baseboard heaters or 24V DC for hydronic systems. Record resistance values; deviations above 5% indicate corroded contacts or undersized conductors.

Select conductor gauge based on load demand:

• 12 AWG for loads under 20A (hydronic pumps, line-voltage thermostats)
• 10 AWG for 20-30A (electric baseboards, radiant floors)
• 8 AWG mandatory for dual 30A circuits sharing a neutral

Verify manufacturer ratings–some heat exchangers require dedicated return paths.

Isolate power at the main breaker before splicing. Strip 3/8″ insulation from conductors entering terminal blocks; insert straight, not twisted. Crimp spade connectors using a ratcheting tool–avoid manual pliers for high-amperage connections. Label each wire with heat-shrink tubing (red=hot, white=neutral, blue=common) to prevent cross-circuiting during maintenance.

Route circuitry through dedicated conduits. Splitter boxes must not exceed 40% fill ratio–use Schedule 40 PVC for underground runs between buildings. Seal all conduit entries with silicone-based duct seal compound; avoid foam tape–it degrades under thermal cycles. Grounding rods must be copper-clad steel, minimum 8′ length, spaced at least 6′ from structural footings.

Thermostat Configuration

Mount control devices at 5′ above finished floor–adjacent to doorways introduces draft errors. For low-voltage systems (under 30V), wire nut connections require anti-oxidant grease. Line-voltage heaters need polarization: brass screws connect hot, silver screws connect neutral. Test continuity with a non-contact voltage tester before energizing:

1. Power on: verify display illuminates
2. Setpoint adjustment: check relay clicks at 5°F above ambient
3. Load test: confirm heater draws within ±10% of nameplate amperage

Calibrate sensors annually. Dust accumulation on bimetallic strips skews readings–clean with compressed air; avoid liquid cleaners. Replace thermistors showing resistance drift >2 kΩ. Programmable models require battery backup–use lithium AA, not alkaline, for longer cycle life in ambient temperatures above 100°F.

Final checkout protocol:

• Cycle each circuit 3 times–listen for buzzing (indicates loose screws)
• Infrared scan junction boxes–hot spots reveal undersized conductors
• Verify transformer secondary voltage (24V±2V for hydronics)

Document all readings in a logbook; attach circuit map with NEC Article 424 compliance notes.

Troubleshooting sequence for intermittent faults:

1. Measure voltage at thermostat–if 0V, check transformer output
2. Inspect wiring harness for pinched runs (common in wall cavities)
3. Test limit switches with an ohmmeter–replace if contacts show pitting

Replace entire harnesses older than 15 years–insulation brittleness causes leakage currents.

Selecting the Optimal Thermostat for Dual-Climate Setups

Install a smart thermostat with individual temperature control for each section, such as the Ecobee Smart Thermostat Premium or Honeywell Home T9. These models support multi-room regulation via remote sensors, eliminating the need for separate controllers while maintaining precision. Verify compatibility with your HVAC equipment–heat pumps require models like the Nest Learning Thermostat (3rd Gen), while high-voltage systems (240V) demand dedicated relays and thermostats like the King KTRG.

For hydronic or radiant floor systems, use thermostats with built-in humidity sensors and adaptive algorithms, like the Mysa Smart Thermostat, which adjusts for boiler delay and prevents overheating. Compare key specifications in the table below:

Feature	Ecobee Premium	Honeywell T9	Nest 3rd Gen	Mysa
Remote Sensors	Up to 32	Up to 20	1 (optional)	None
System Compatibility	Gas/Electric/Heat Pump	Gas/Electric/Heat Pump	Heat Pump/Gas	Electric Baseboard/Radiant
Voltage Rating	24V	24V	24V	120V/240V
Integration	Apple HomeKit, Google, Alexa	Google, Alexa	Google, Alexa	Apple HomeKit, Google, Alexa
Special Features	Built-in air quality monitor	Geofencing	Self-learning	Boiler delay compensation

Avoid non-programmable thermostats in dual-climate installations–manual adjustments reduce efficiency by up to 20% compared to smart alternatives. For rental properties or budget constraints, the Emerson Sensi Touch 2 offers Wi-Fi connectivity and multi-area tracking at 40% lower cost than premium models, though it lacks advanced features like humidity control or remote sensors.

Prioritize models with open API support if integrating with third-party automation (e.g., Home Assistant, SmartThings). The Brivis Touchscreen Thermostat enables custom scripting for unique setups like zoned underfloor heating paired with forced-air systems. Always confirm wiring requirements–some thermostats need a C-wire (common) for continuous power, while battery-operated units like the Lux Products TX500U require replacement every 6–12 months.

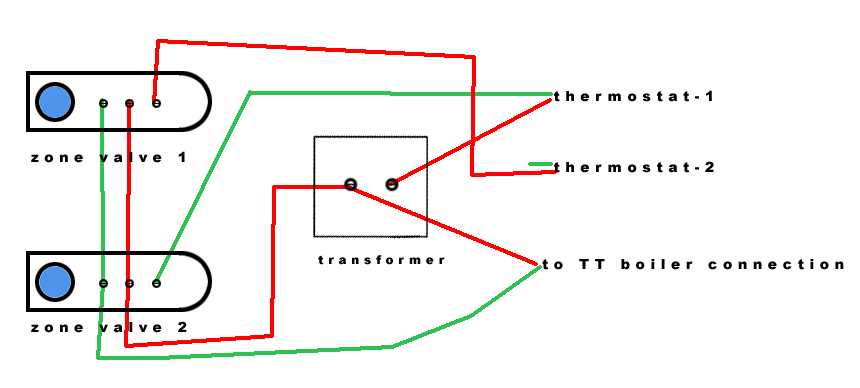

Step-by-Step Installation of Dual-Circuit Control Valves

First, identify the power source for your heating distribution system. Use a 24V transformer with a minimum capacity of 40VA to ensure stable operation for both actuators. Connect the transformer’s hot wire (typically red) to the thermostat’s R terminal, and the common wire (usually white) to the C terminal. Verify voltage with a multimeter before proceeding–readings should remain steady at 24-28V.

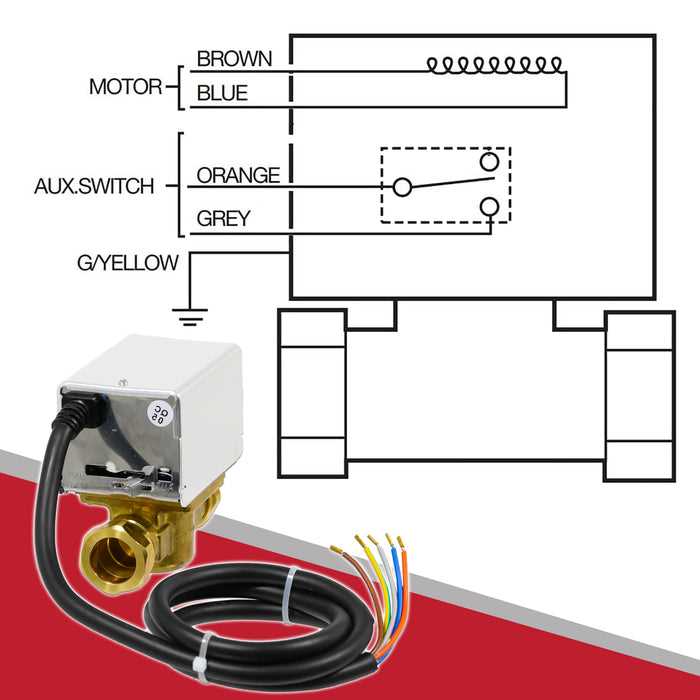

Install the actuator on the first flow regulator by aligning the motor housing with the valve body. Secure it with the provided screws, ensuring the drive shaft engages the valve stem fully. Repeat this for the second actuator. Use a small flathead screwdriver to manually test the valve’s movement–it should open and close smoothly without resistance.

Run thermostat wire (18/5 solid copper) from each actuator to the control panel. Strip ¼ inch of insulation from each conductor and insert the white wire into the C terminal of the first actuator. Connect the red wire to the TH terminal. For the second actuator, use the orange wire for TH and blue for C, keeping polarity consistent. Label all wires at both ends to avoid misconnections.

Integrating Thermostats and Safety Switches

Attach the first thermostat’s W wire to the END SWITCH terminal of the corresponding actuator. The second thermostat’s W wire connects to the END SWITCH of the other actuator. If using a double-pole switch for emergency shutdown, wire it in series with the transformer’s hot lead. Test each circuit by setting the thermostat to call for heat–actuators should click open within 30 seconds.

Avoid shared neutrals between circuits. Dedicate a separate neutral return (white wire) for each actuator to prevent voltage drop and erratic operation. For systems with a boiler interlock, connect the interlock’s dry contacts to the transformer’s hot wire, bypassing the actuators when the boiler fails. Use a 3A fuse in the transformer’s primary side for overcurrent protection.

Seal all connections with heat-shrink tubing or electrical tape. Bundle wires with nylon zip ties every 12 inches to prevent vibration-induced wear. After completing installation, power up the system and observe actuator behavior during a full heating cycle–each should open only when its corresponding thermostat demands heat, closing promptly when the call ends.

Calibrate actuator timing by adjusting the valve’s limit switch if needed. Most actuators default to a 3-minute timeout; consult the manufacturer’s specs for variations. Document the final configuration, including wire colors, terminal assignments, and transformer voltage readings, for future troubleshooting.

Integrating Multiple Thermostats into a Dual-Thermal-Control Configuration

Begin by identifying the power source voltage–typically 24V AC from the furnace or boiler–to ensure compatibility with all sensory devices. Use a Class 2 transformer if the existing supply lacks sufficient capacity; most modern setups handle up to 1.5A per circuit segment, but verify specs for your specific model. Connect the R (power) terminal to all sensors in parallel, maintaining a single return path through the W (heat call) or Y (cooling call) terminals for each thermal division.

• For mechanical thermostats, strip 18–20 AWG solid copper wire to 5–6mm of exposed conductor, twist tightly, and secure with a terminal screw or crimp connector rated for 90°C min. Avoid stranded wire unless tin-plated to prevent oxidation.
• Smart sensors (e.g., Nest, Ecobee) require dedicated C (common) connections; daisy-chain these from the transformer’s neutral side, ensuring each device draws less than 0.3A to prevent voltage drop.
• Label each lead at both ends with heat-resistant shrink tubing or printed tags–use alphanumeric codes matched to a schematic printed on waterproof Tyvek paper for field reference.

Isolate high-current relays (if retrofitting an older system) by installing a separate 24V relay for each thermal control branch. Mount relays on a DIN rail adjacent to the primary control board, spacing them ≥20mm apart for airflow. Wire the relay coils directly to the W/Y outputs of each sensor to prevent cross-talk; use flyback diodes (1N4007) across coil terminals for solid-state models to suppress voltage spikes.

Troubleshooting Parallel Sensor Arrays

1. Verify power integrity: Measure voltage at the farthest sensor–expect 24V AC ±5%; if below 22V, reduce wire length or upsize to 16 AWG.
2. Check for shorts: Disconnect all sensors, then reconnect one at a time. A 0V reading at the R terminal indicates a fault in the disconnected segment.
3. Test heat call sequencing: Simulate demand by jumpering R to W at each sensor. Listen for relay clicks; delays >2 seconds suggest undersized wire or relay contact degradation.
4. Inspect common connections: A loose C terminal will cause intermittent operation in smart sensors–tighten to 3.5 Nm using a torque screwdriver.

For systems exceeding 8 sensors, split the circuit into sub-panels. Install a barrier strip (e.g., Phoenix Contact UK 5-TB) for each group, feeding power through a dedicated 4A circuit breaker. Use 1.5mm² (16 AWG) wires for runs
